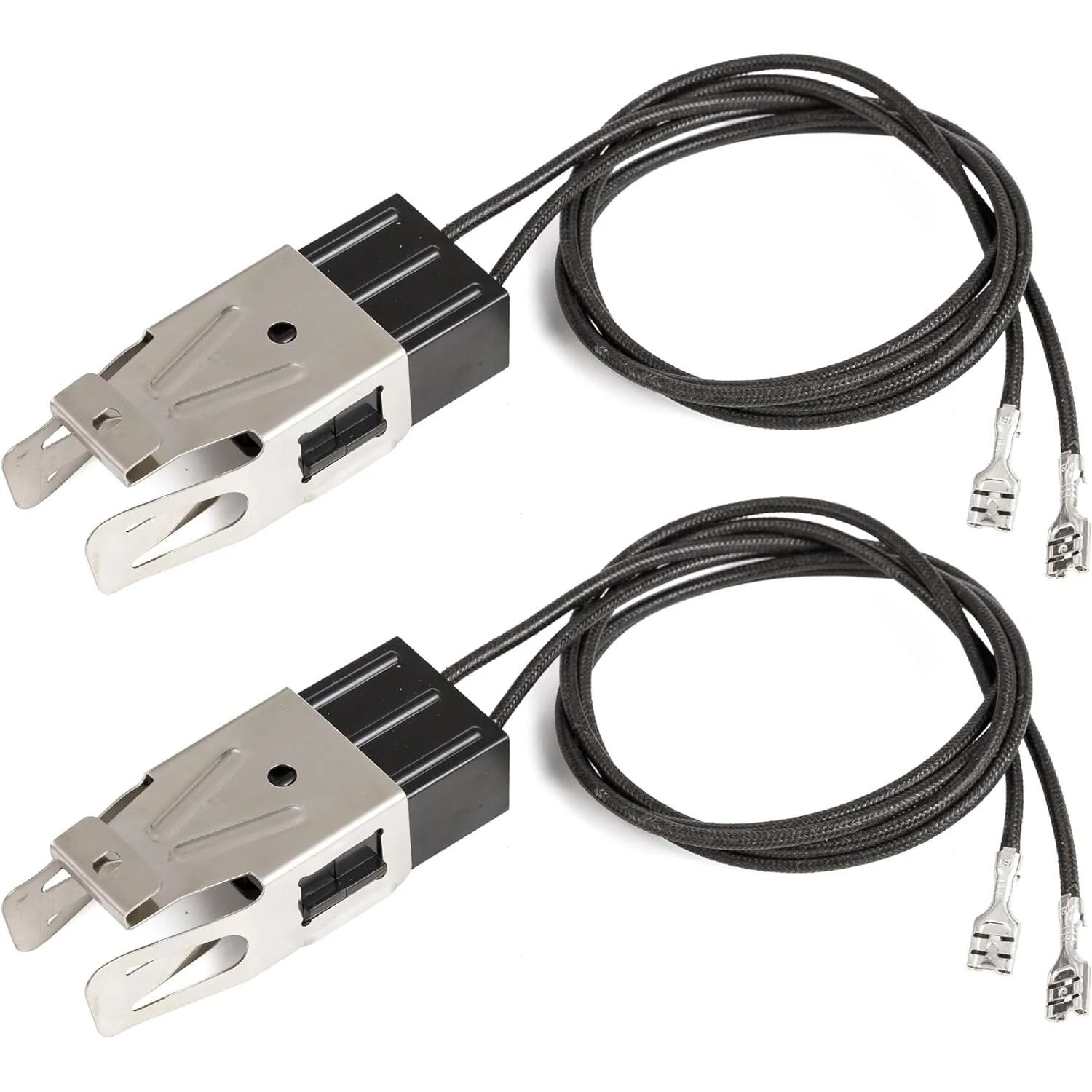

WB2X8228 Electric Range Element Receptacle and Wire Kit - Pack of 2

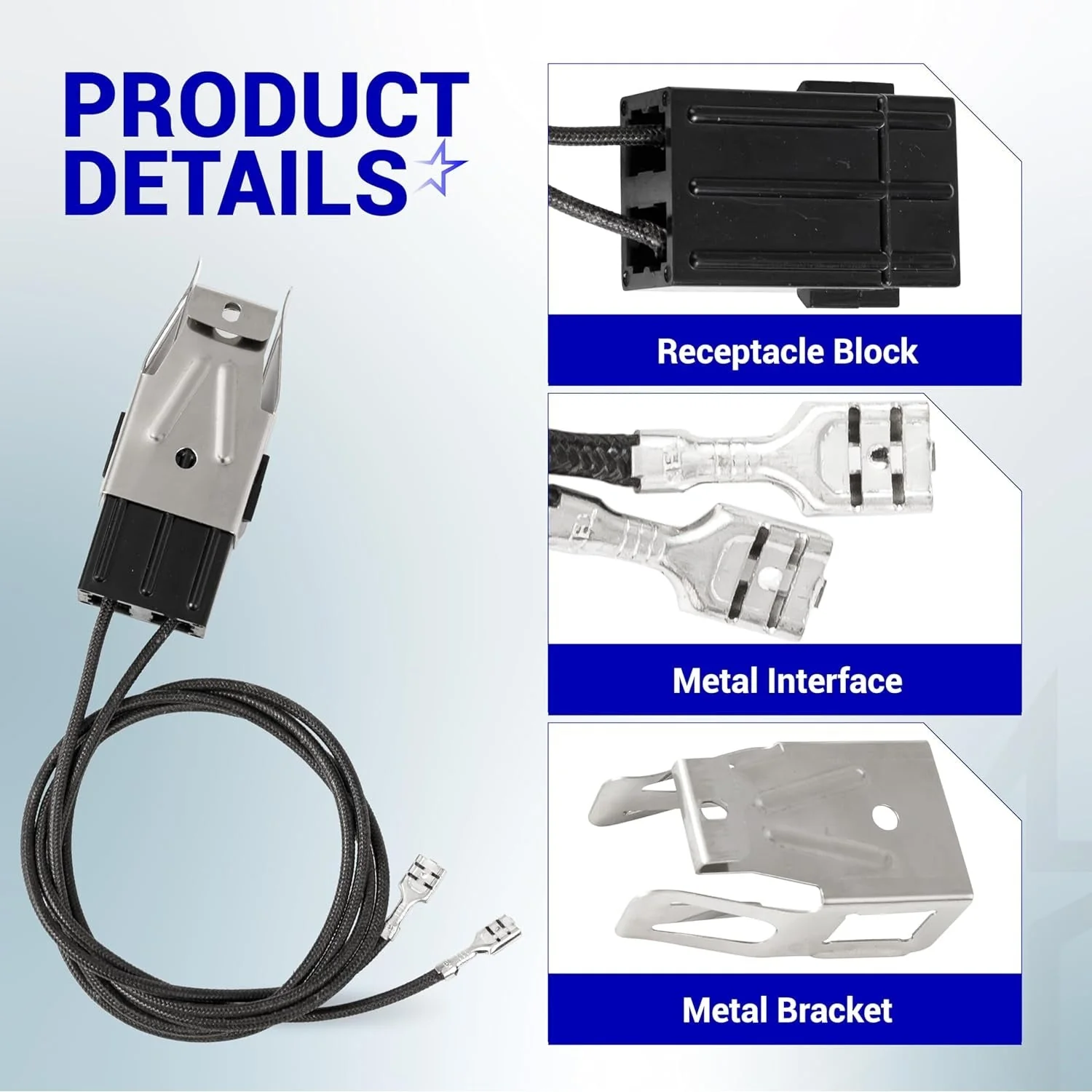

Key Features

• High-Temperature Ceramic Housing: Features a heavy-duty ceramic block designed to withstand the intense localized heat of the burner element connection, preventing melting and electrical arcing.
• Reinforced Nickel-Plated Terminals: Equipped with high-conductivity terminals that ensure a tight, low-resistance mechanical connection with the element "feet," maximizing heat output and extending element life.
• Fiberglass-Insulated Leads: Includes two high-temperature 14-gauge wire leads with fiberglass braiding, rated for the extreme thermal environments found beneath the cooktop surface.
• Complete Installation Kit: Provided as a 2-pack that includes ceramic wire nuts or heat-shrink tubing, offering everything needed to restore power to two separate burners in a single repair.
• Universal "Plug-In" Design: Engineered to accept standard 2-terminal plug-in surface elements, providing a secure "snap-fit" that prevents the burner from wobbling during use.

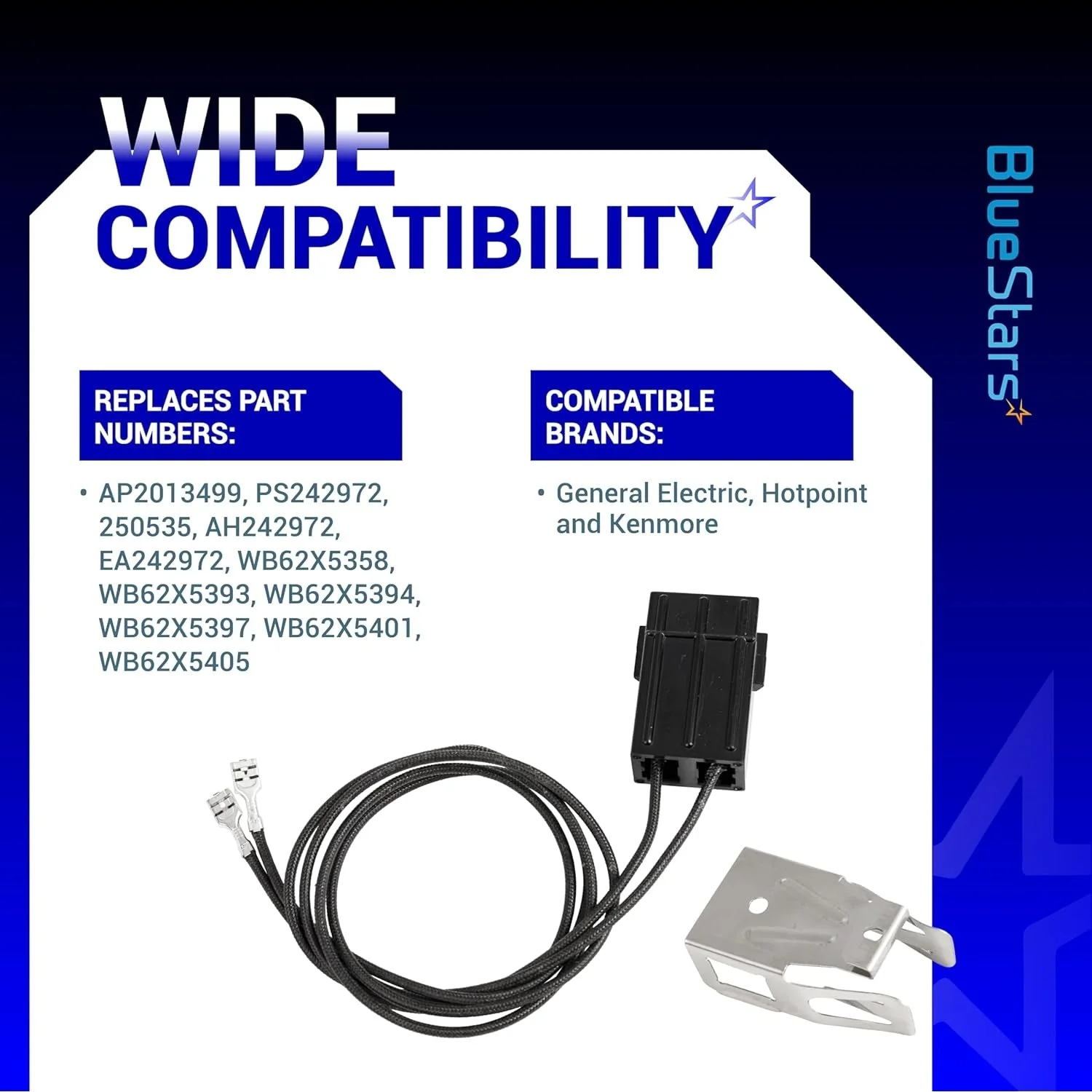

Replaces / Cross-Reference Part Numbers

• Primary Part Number: WB2X8228.
• Cross-References: AP2013499, PS242972, 250535, AH242972, EA242972, WB62X5358.
• Manufacturer Equivalents: EAP242972, 1146, 222D2097G003.

Compatibility & Fitment

This receptacle kit is the standard replacement for most General Electric-built electric ranges with plug-in burners. Key compatible brands include:

• GE (General Electric): Fits a wide array of Spectra, Profile, and standard coil-top ranges.
• Hotpoint: Compatible with almost all Hotpoint electric stoves utilizing plug-in surface elements.
• Kenmore / Sears: Fits many models with a "362" or "363" prefix (manufactured by GE).
• Additional Brands: Fits specific electric cooktops from RCA, McClary, and Monogram.
• Note: This kit is intended for Coil-Top (Plug-In) burners. It is not compatible with radiant glass-top (smoothtop) ranges.

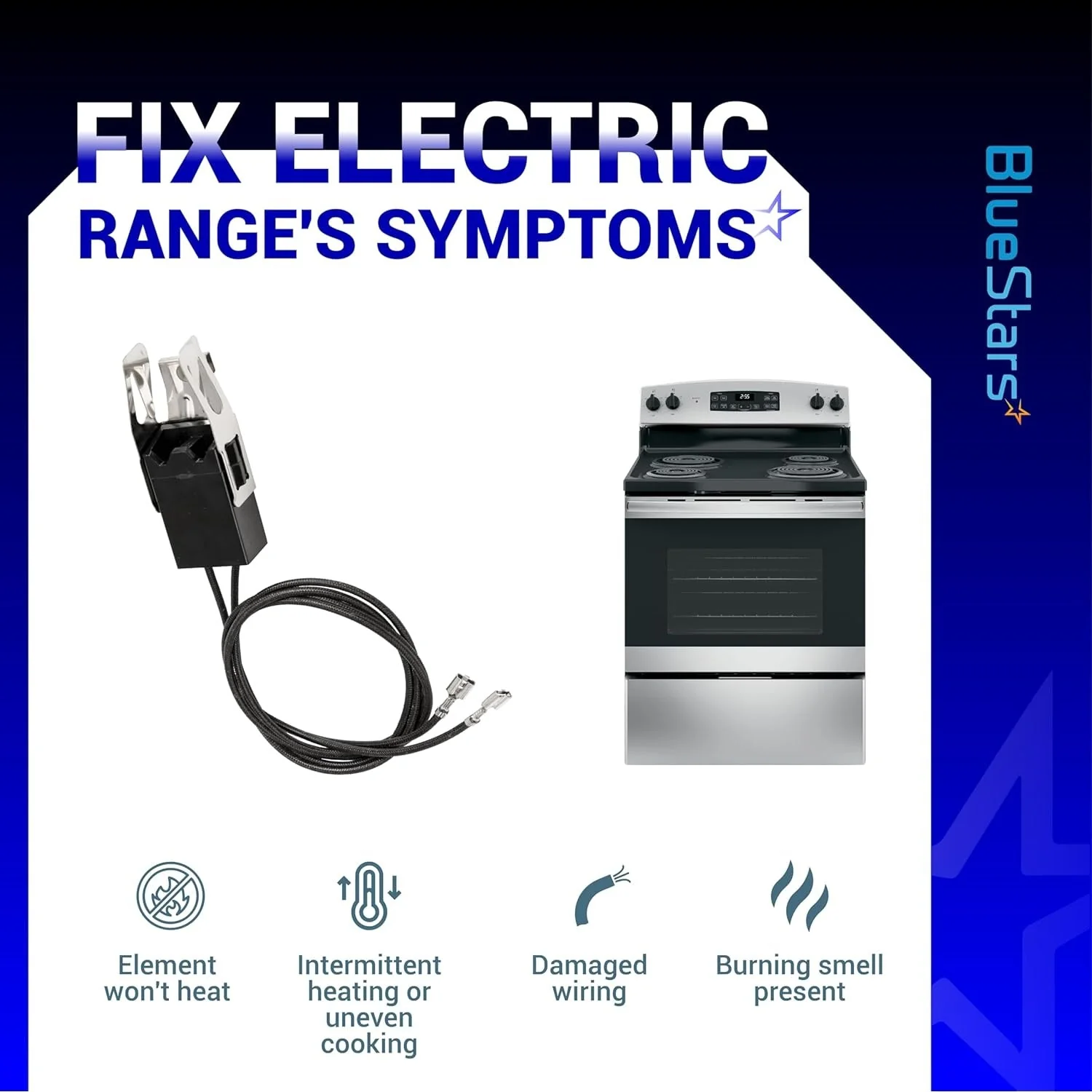

When to Replace

• Burner Won't Heat: The most common symptom; the receptacle terminals have burnt out or lost tension, breaking the electrical circuit to the element.
• Visible Burn Marks: The plastic or ceramic block appears blackened, melted, or charred, which indicates electrical arcing and is a significant fire hazard.
• Intermittent Power: The burner only works if you wiggle it or push it down, suggesting the internal terminals have become pitted or loose.
• Pitted Element Terminals: If your burner "feet" have black pits or melted spots, the receptacle is likely damaged and must be replaced along with the burner to prevent immediate failure of the new part.
• Burning Plastic Smell: An electrical odor coming from beneath the cooktop when the burners are on usually indicates a failing receptacle or melting wire insulation.

Installation Tips

• Safety First: CRITICAL: Unplug the range or turn off the circuit breaker. Surface units carry high voltage (240V) that can be lethal.
• Inspect the Element: PRO TIP: If the receptacle is burnt, inspect the ends of the heating element. If the metal "feet" are pitted or charred, replace the element as well. Reusing a damaged element will quickly destroy your new WB2X8228 receptacle.
• Solid Connections: Use a wire stripper to expose about 1/2-inch of clean copper on the range's wiring. Twist the new leads and the range wires together tightly before securing them with the provided ceramic wire nuts.
• Wire Routing: Ensure the new wires are tucked away from the bottom of the burner box. Direct contact with the heat reflector pans can melt the insulation over time.
• Check the Ground: While the cooktop is open, ensure the metal receptacle bracket is securely fastened to the range frame to maintain a proper ground and prevent electrical noise.
