279769 Dryer Thermal Cut-Off Kit

Key Features

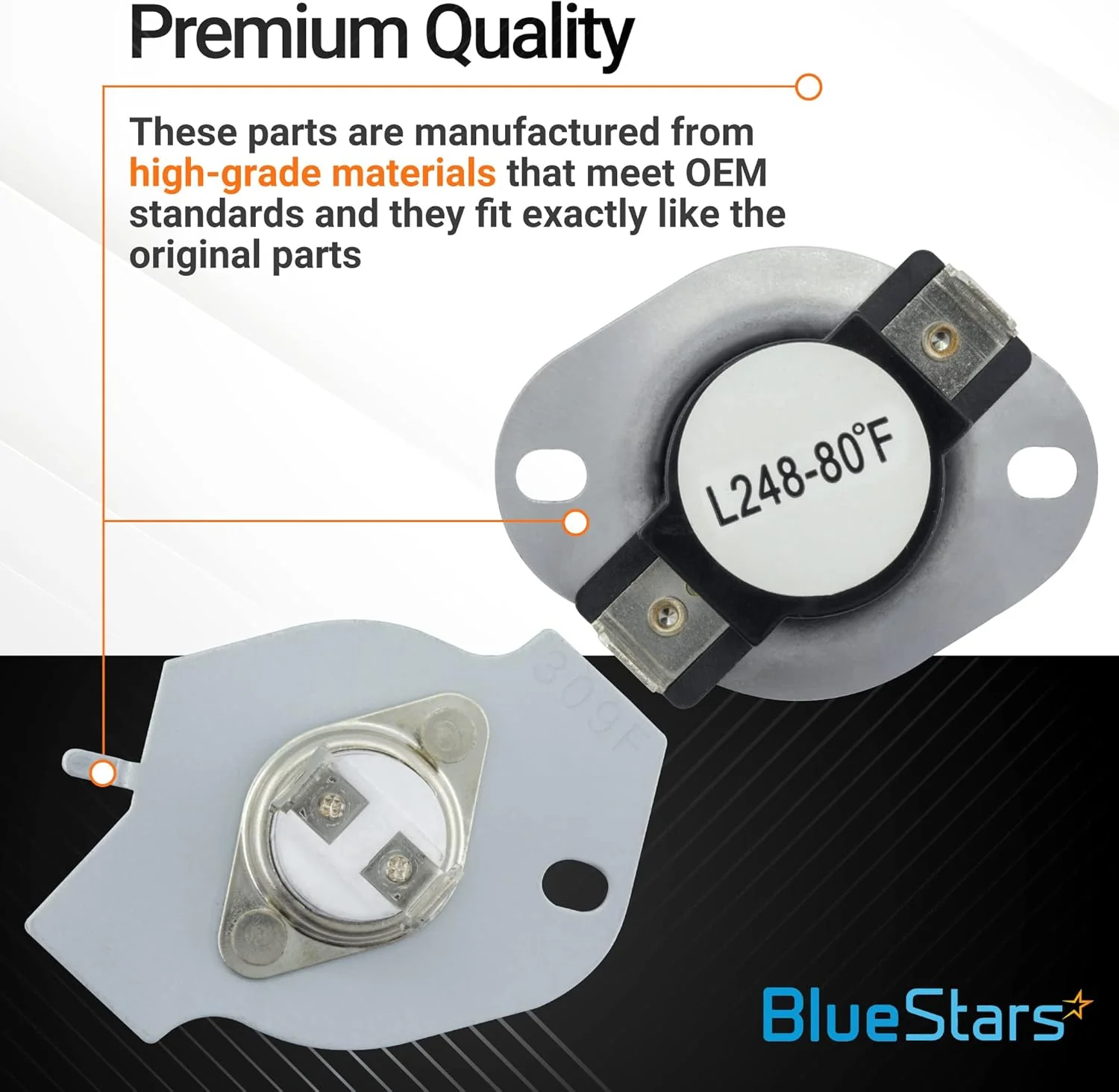

• Includes one high-limit thermostat and one thermal cut-off fuse.

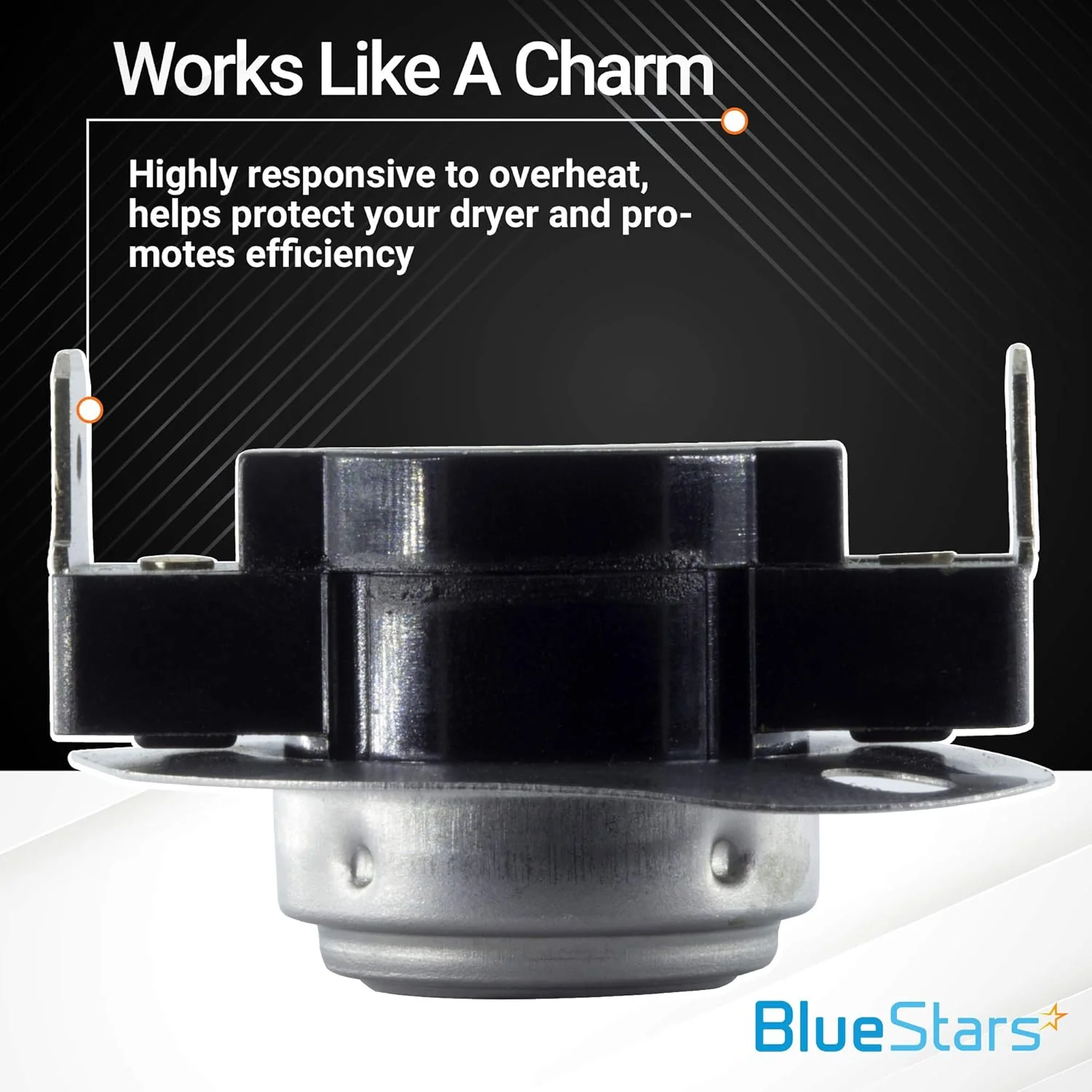

• Thermostat is rated L250-80F, opening at 250°F and closing at 170°F.
• Thermal fuse is a one-time safety device rated for 352°F.
• Acts as a safety mechanism to prevent the dryer from overheating.
• Used on electric and gas dryers.

Replaces / Cross-Reference Part Numbers

• 279769
• 3387134
• 3389946
• 3398671
• 3977394
• 80001
• AP3094224
• PS334278

Compatibility & Fitment

• Designed for use with dryers from brands including Whirlpool, Kenmore, Roper, Estate, KitchenAid, and Amana.
• Confirm compatibility by checking your appliance's original part number or model number.

When to Replace

• Dryer will not start.
• Dryer runs but produces no heat.
• Dryer takes an excessively long time to dry clothes.
• The thermal fuse shows no continuity when tested with a multimeter.

Installation Tips

• Disconnect the dryer from its power source before beginning any repairs.
• It is recommended to replace both the high-limit thermostat and the thermal fuse simultaneously.
• A multimeter can be used to test for continuity to diagnose a blown fuse.
• Before replacing, inspect and clean the dryer's venting system to address the root cause of overheating.
