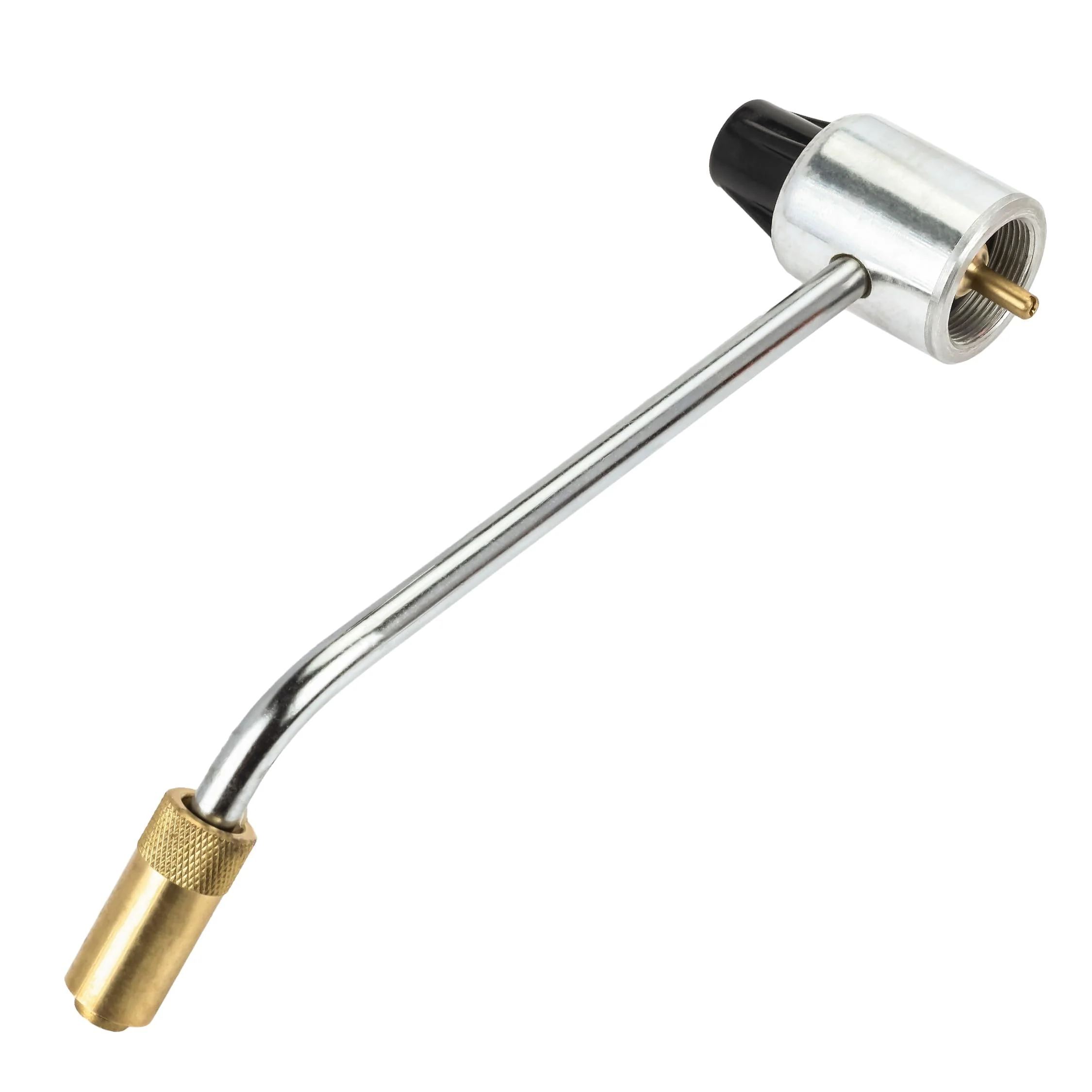

5430 Gas Stove Pressure Regulator

Key Features

• Precision Flow Control: Specifically engineered to regulate high-pressure propane from disposable cylinders down to the exact PSI required for consistent, blue-flame performance on Coleman camping stoves.
• High-Altitude Stability: Designed to maintain a steady gas stream even in cold weather or high-altitude environments, preventing the "surging" or "flame-out" common with worn regulators.

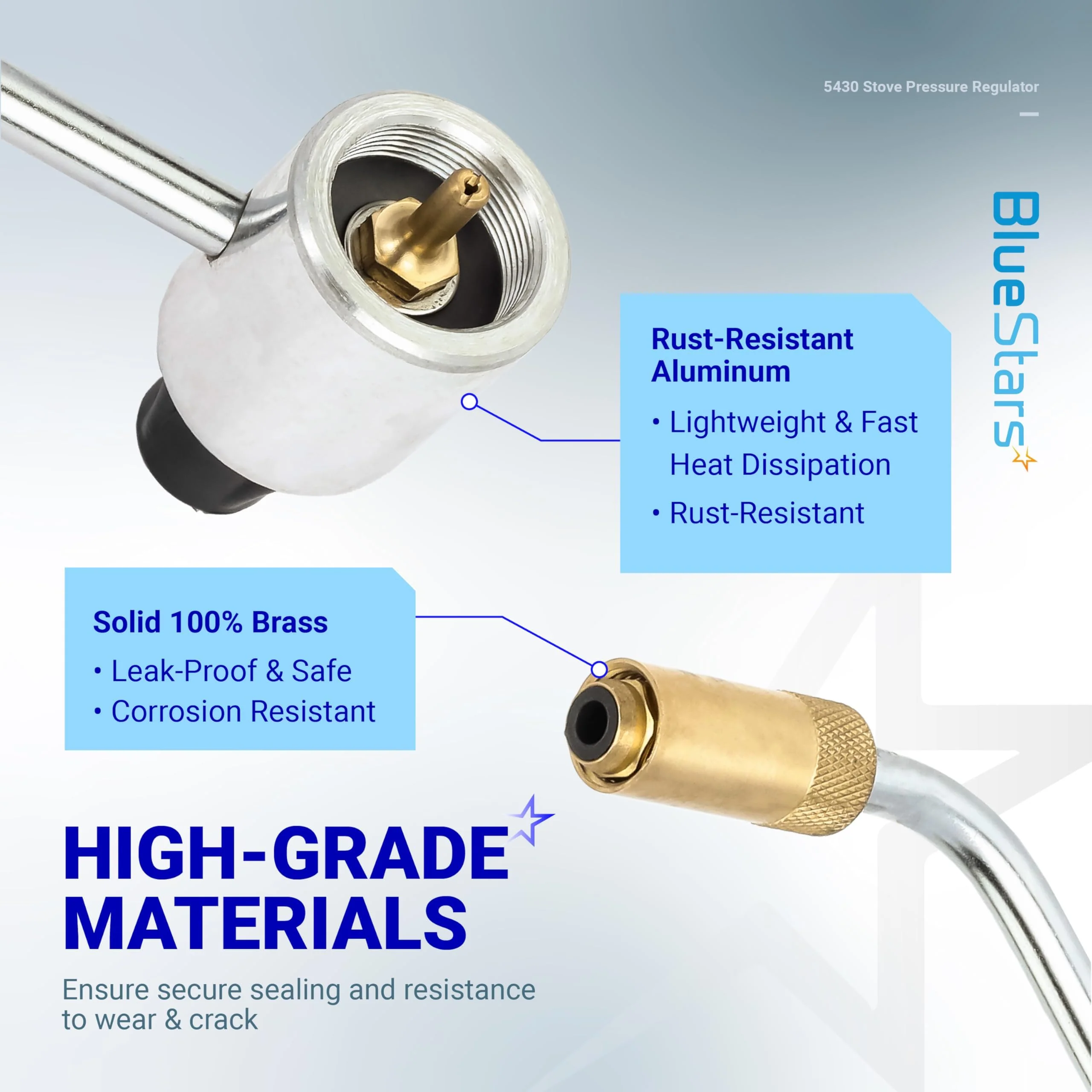

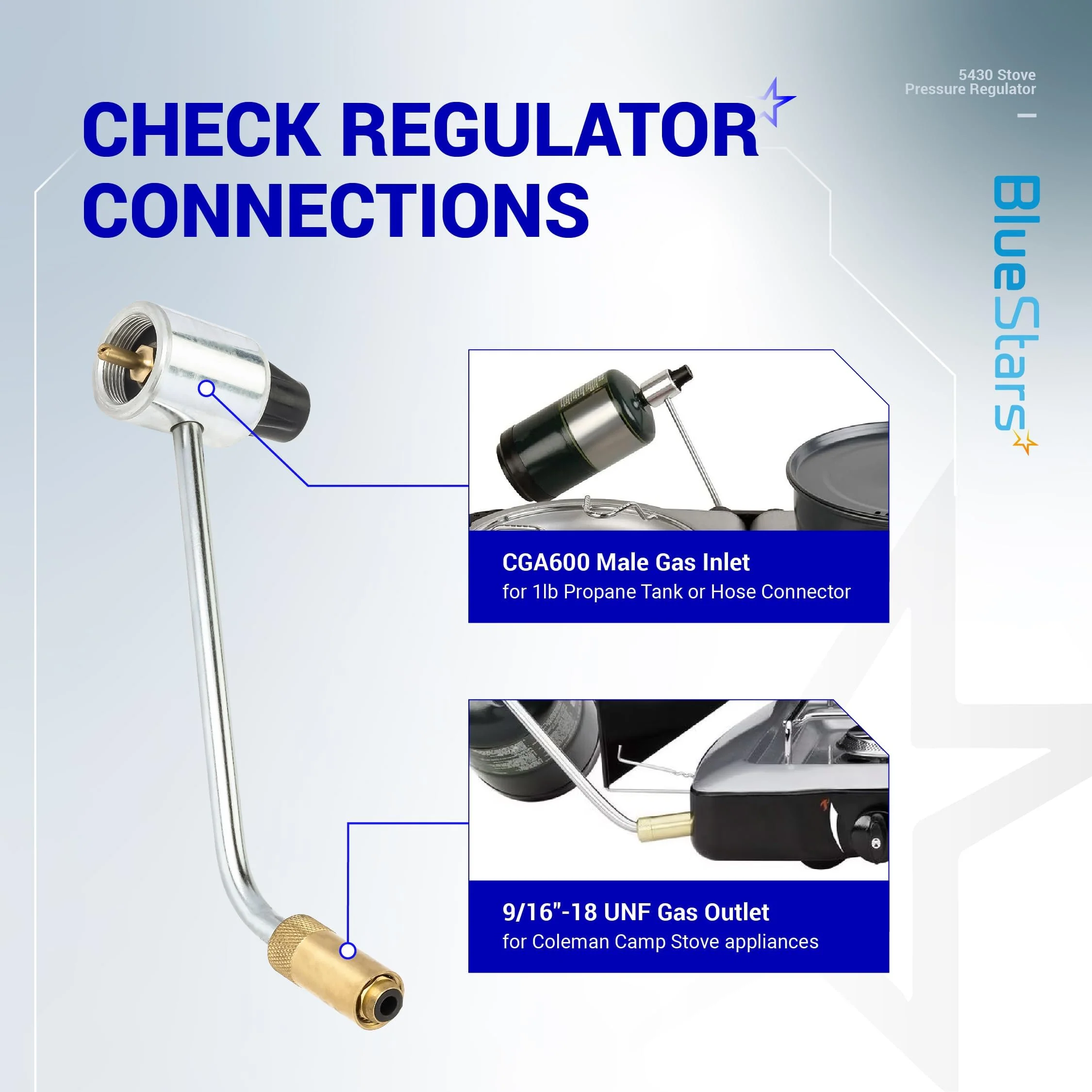

• Heavy-Duty Brass Fittings: Features solid brass connection points for maximum durability and a spark-free, airtight seal against the stove and the propane tank.
• Tool-Free Installation: Equipped with a knurled easy-grip nut, allowing for rapid attachment and removal by hand during campsite setup and teardown.
• Compact & Portable: Lightweight, rigid design fits easily into stove storage compartments or carry bags without bending or leaking.

Replaces / Cross-Reference Part Numbers

• Coleman 5430 Series Regulator
• 5430-5651
• 9922-5651
• Generic Coleman Propane Stove Regulator Arm

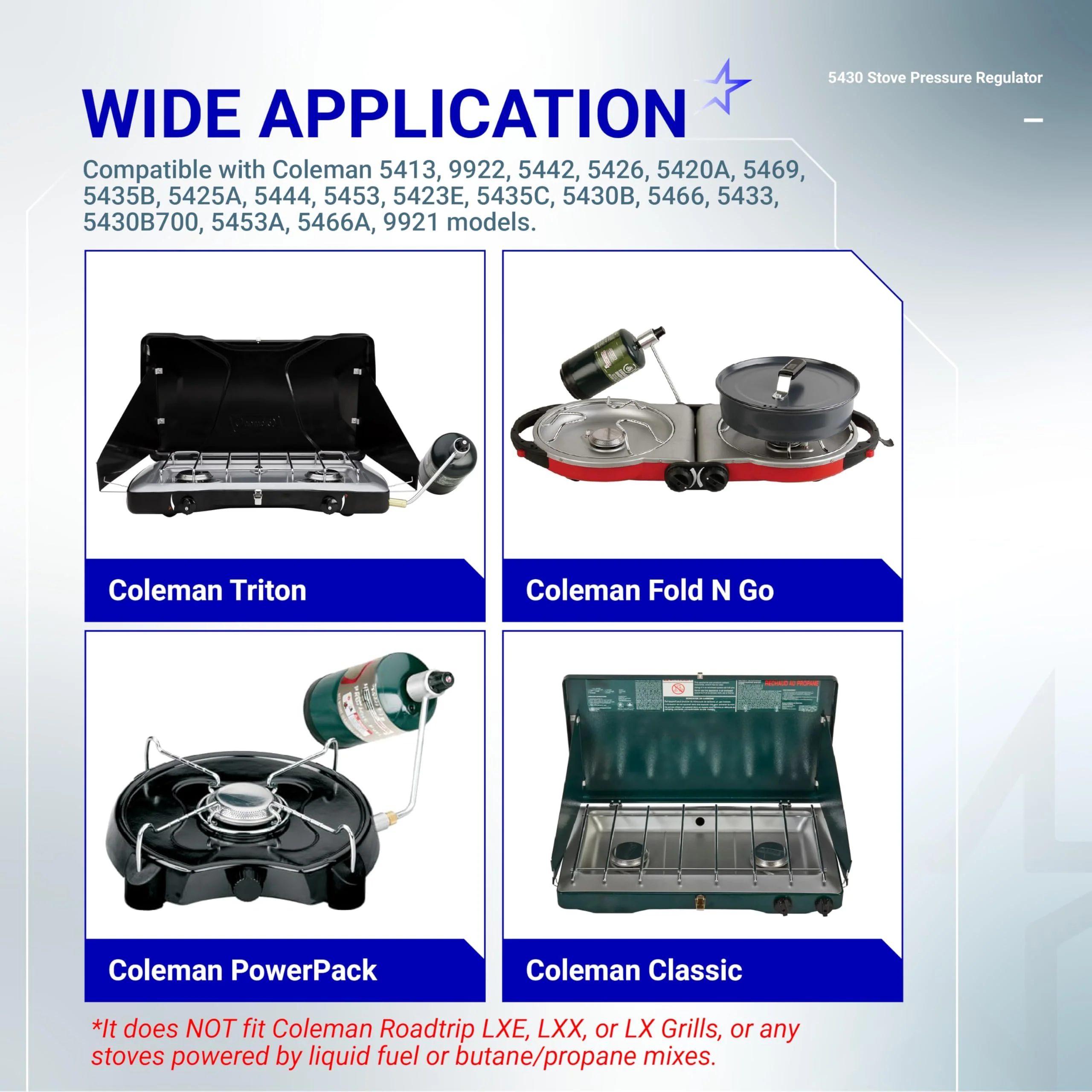

Compatibility & Fitment

This regulator is a standard replacement for many classic and modern Coleman 2-burner propane stoves. Key compatible models include:

• Coleman Stove Series: 5430, 5433, 5435, 5444, 5453, 5466, 5469, and 9922.
• Fold N Go: Compatible with various Fold N Go portable stove models (e.g., 5442 series).
• Powermax: Fits select models utilizing the standard threaded regulator arm.
• IMPORTANT NOTE: This regulator is NOT compatible with Coleman Roadtrip LXE, LXX, or Party Grill models, which require a different threaded configuration.

When to Replace

• Weak or Yellow Flame: The stove burners produce a low, flickering, or orange flame even when the propane tank is full and the burner valves are wide open.
• Hissing Sound / Gas Smell: A clear sign of a gas leak at the regulator body or the connection points; replace immediately for safety.
• Frozen Regulator: If the regulator frosts over excessively or "freezes up" during use, the internal diaphragm may be failing.
• Bent or Stripped Threads: The regulator will no longer screw onto the stove or the propane bottle securely, leading to a dangerous leak.
• No Gas Flow: The internal safety check valve has stuck closed, preventing any propane from reaching the burners.

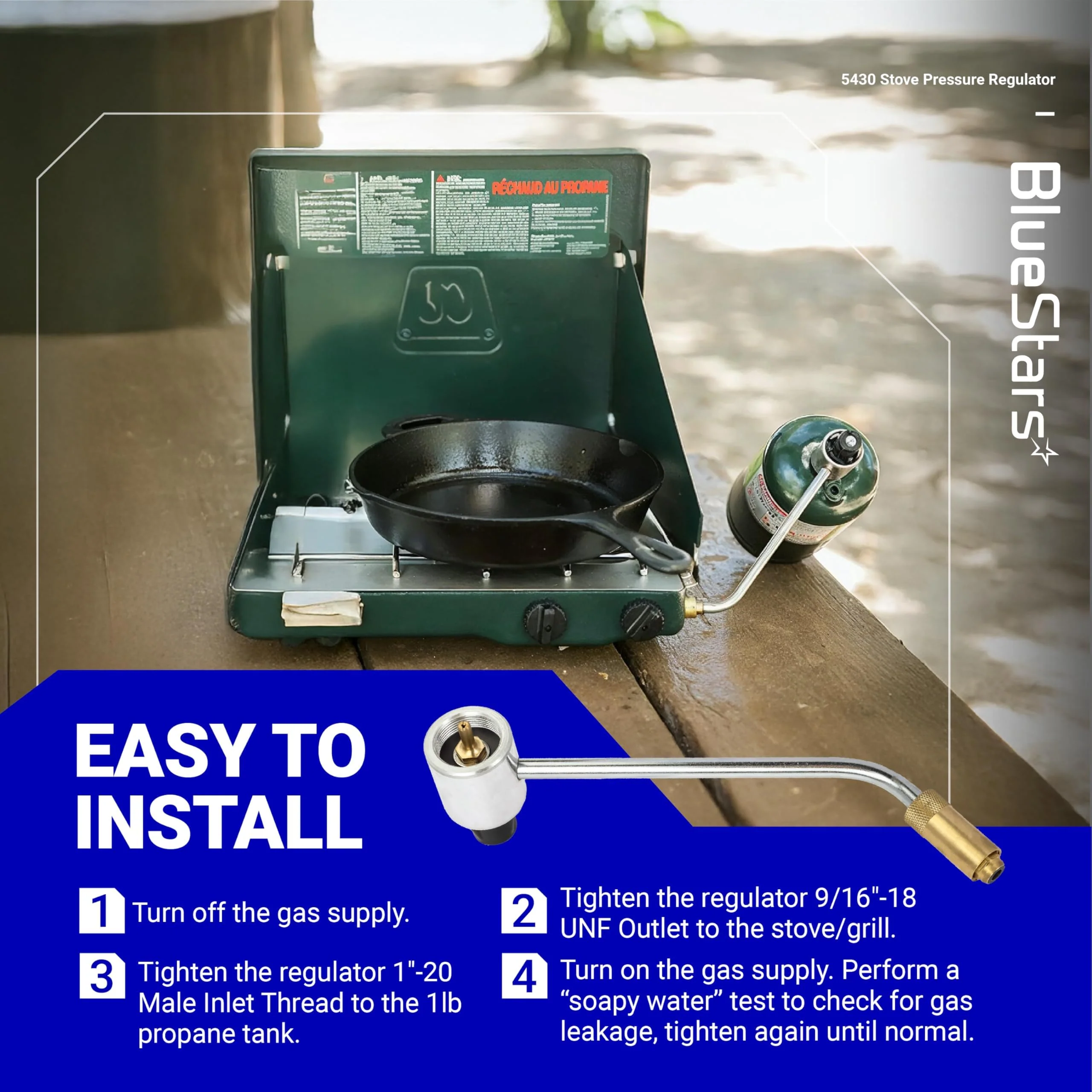

Installation Tips

• Hand Tighten Only: Do not use pliers or a wrench to attach the regulator to the stove or the propane cylinder. Over-tightening can crush the internal gasket or strip the brass threads.
• Leak Test: After connecting a new propane bottle, apply a small amount of soapy water to the connections. If bubbles appear, the seal is not airtight.
• Storage: Always remove the regulator from the stove and the propane bottle after use. Storing the stove with the regulator attached can lead to bent threads or damage to the internal seals.
• Clean the Vent: Ensure the small vent hole on the regulator body is free of dirt, grease, or spider webs, as a blocked vent will cause the flame to fluctuate.
• Proper Fuel: Designed for use with standard 1lb (16.4oz) disposable propane cylinders. If using a 20lb tank adapter hose, ensure the hose is connected to the regulator, not directly to the stove.
