[Lifetime Warranty] Propane Refill Adapter for 1 LB. Tanks, Propane Adapter 20lb to 1lb Converter with Gauge & Valve – QCC1/Type1 Propane Refilling 90-Degree Elbow Adapter 5-20 LB Tank
Propane Refill Adapter for 1 LB. Tanks, Propane Adapter 20lb to 1lb Converter with Gauge & Valve – QCC1/Type1 Propane Refilling 90-Degree Elbow Adapter 5-20 LB Tank

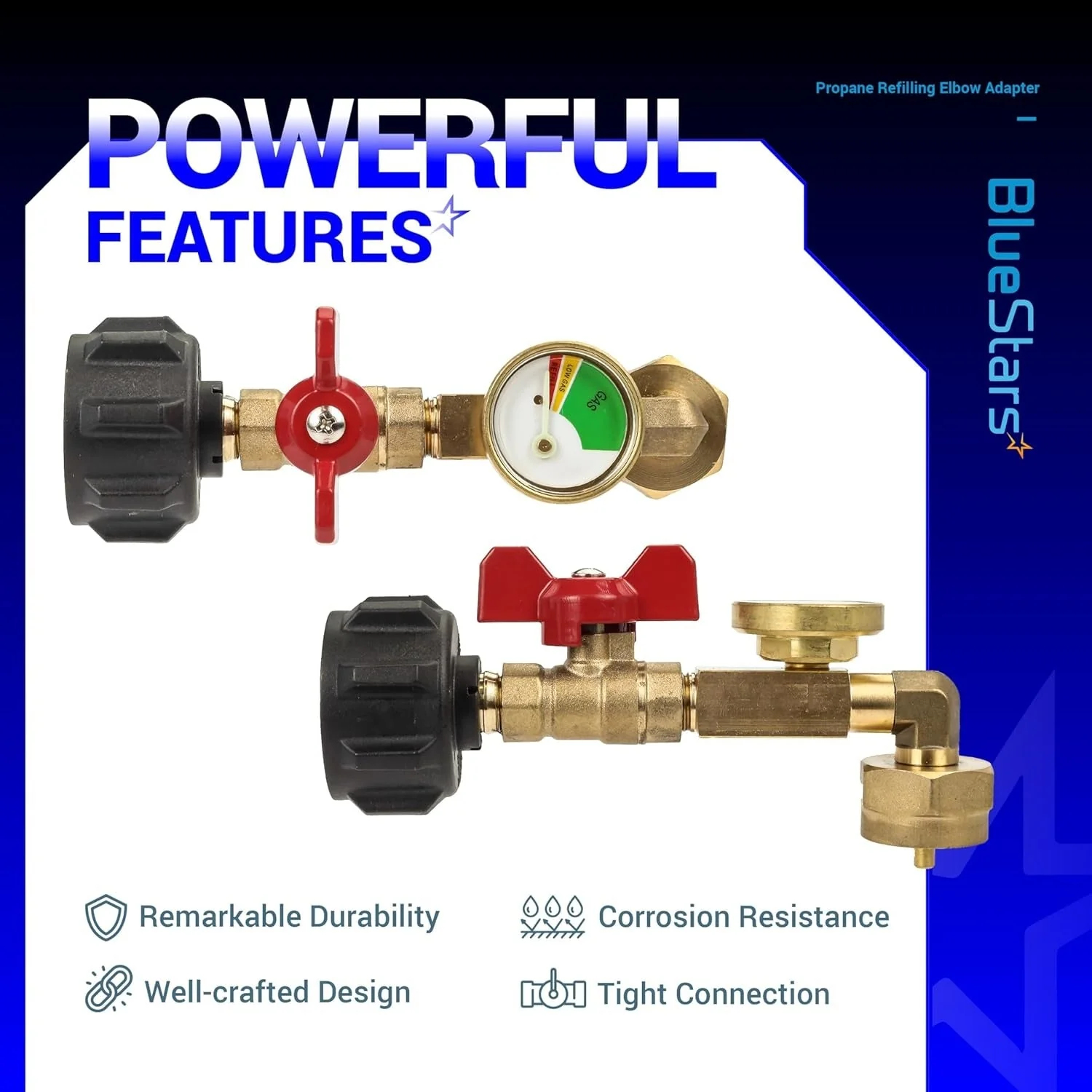

Key Features

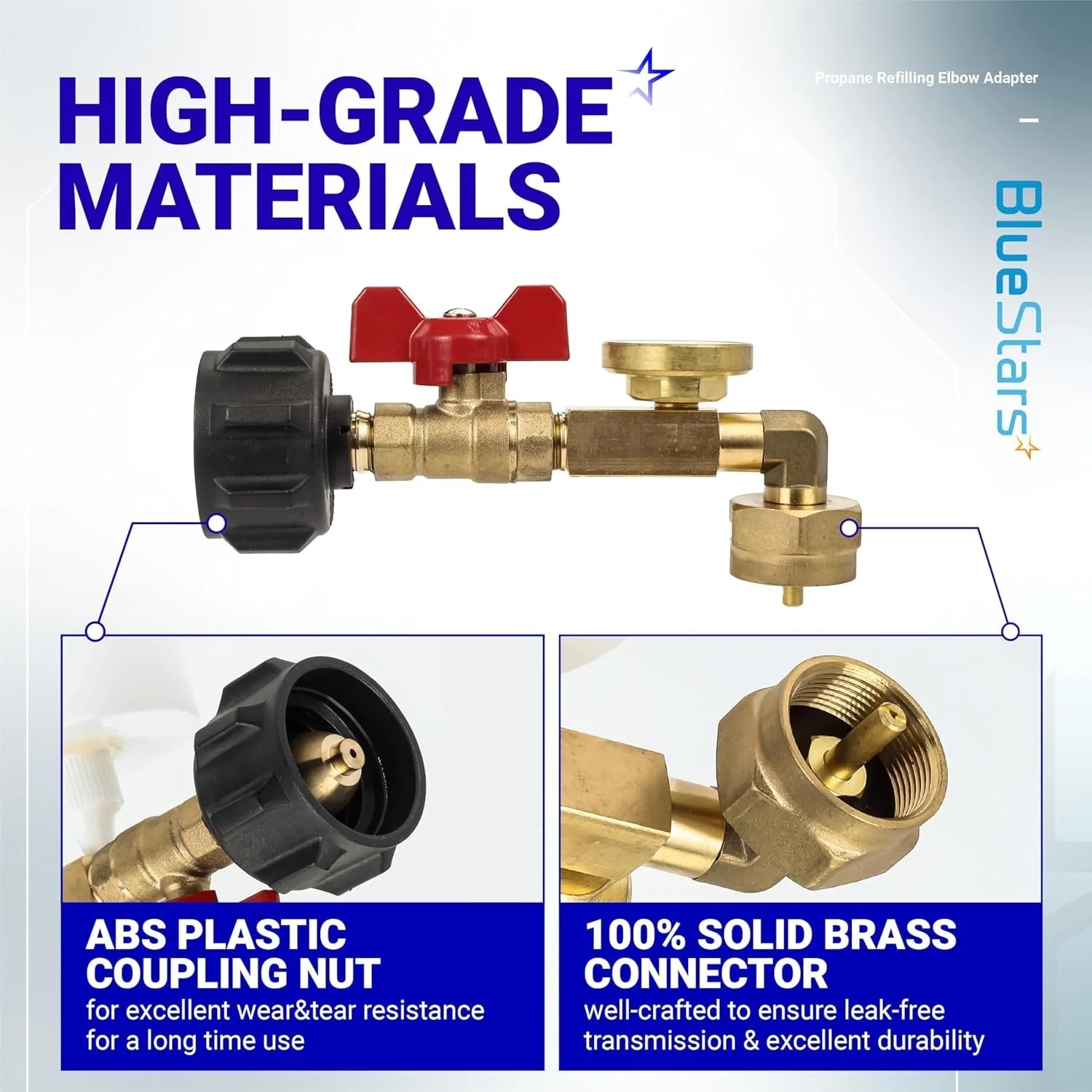

- Solid brass construction for durability and corrosion resistance.

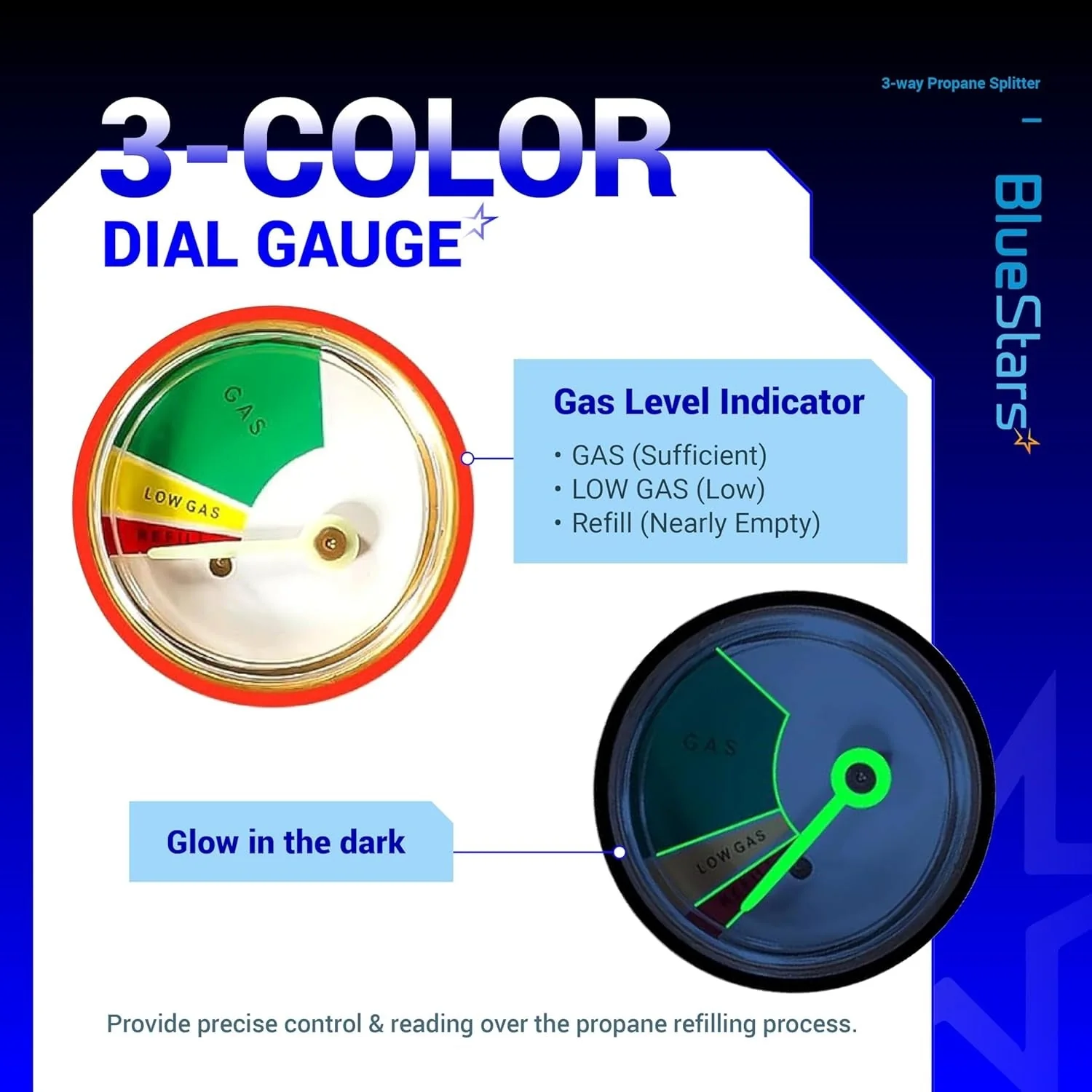

- Integrated, color-coded pressure gauge for monitoring the filling process.

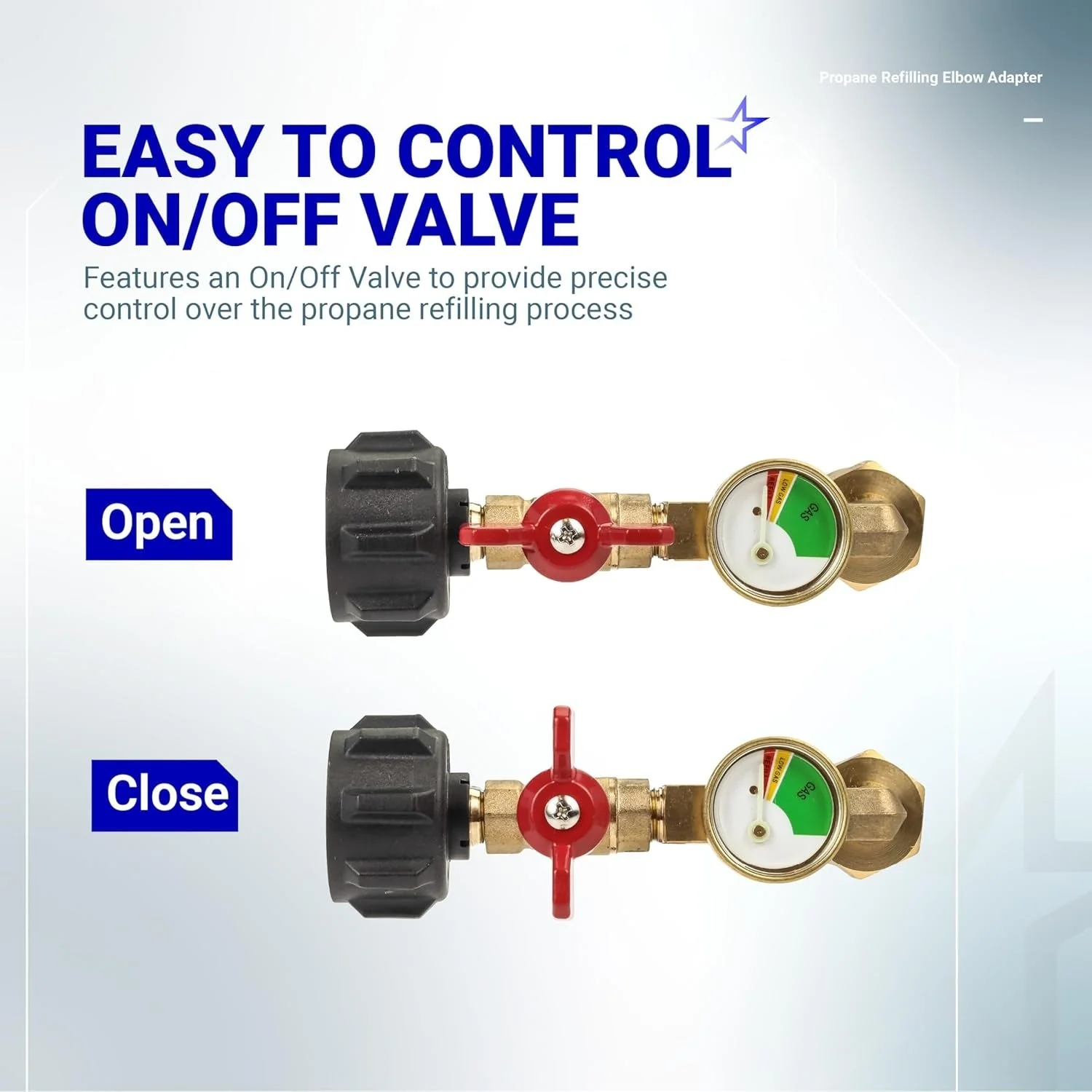

- Manual on/off control valve for precise flow management.

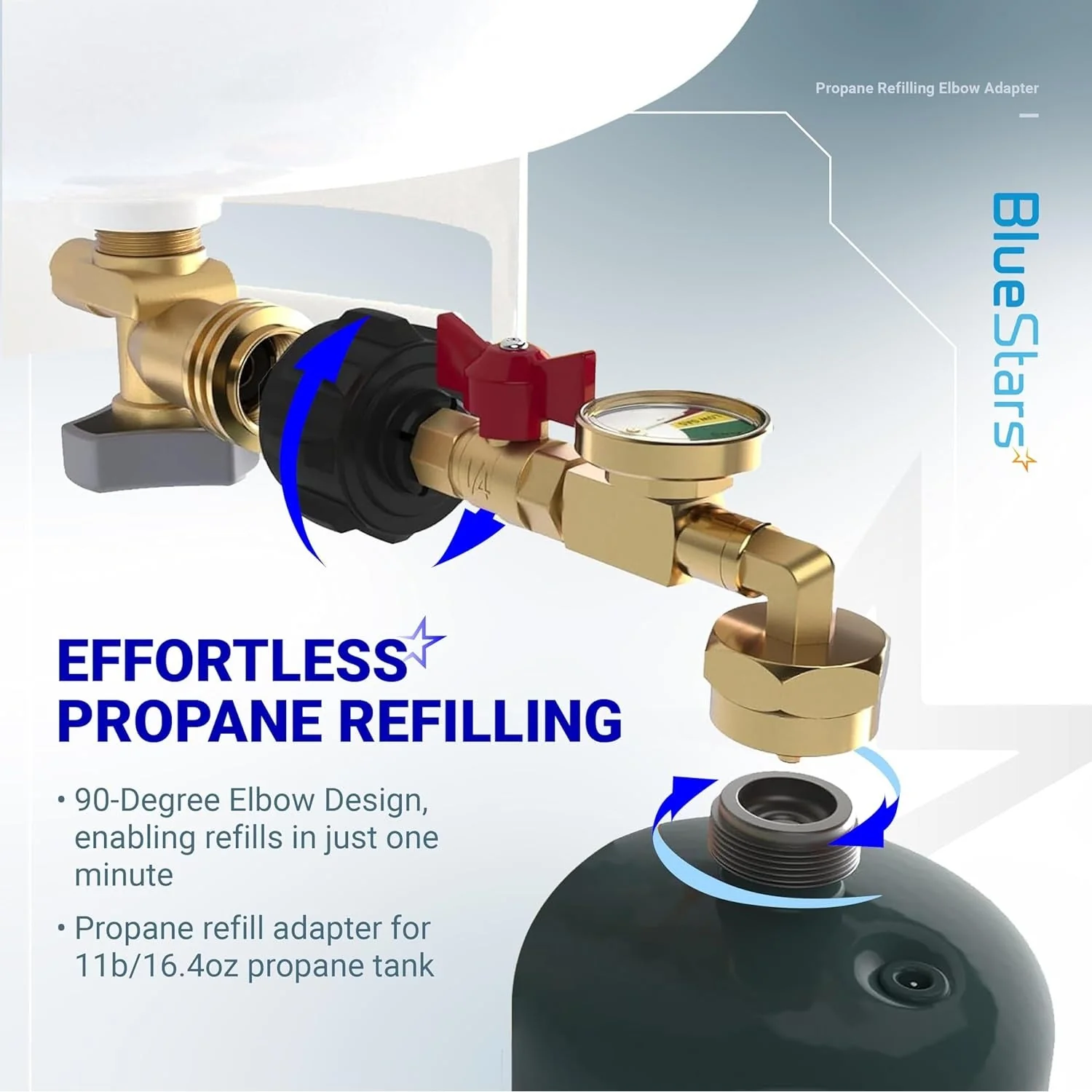

- 90-degree elbow design allows for quick and easy connection in tight spaces.
- Built-in safety feature provides overflow protection.
- Enables refilling of 1 lb cylinders from larger propane tanks.
Replaces / Cross-Reference Part Numbers
- Universal adapter for all QCC1/Type1 tank connections.
- Functions as a direct converter from a QCC1/Type1 male fitting to a 1 lb disposable cylinder male fitting.
Compatibility & Fitment
- Source Tank Connection: Fits all standard QCC1/Type1 propane tanks from 5 lb to 40 lb capacity.
- Destination Cylinder Connection: Fits standard 1 lb (16.4 oz) disposable propane cylinders.
- Common Applications: Refilling small cylinders for portable grills, camp stoves, tabletop heaters, and propane torches.
When to Replace
- Visible signs of damage, such as cracks or deep gouges in the brass body.
- Threads on either connection are stripped, damaged, or cross-threaded.
- Propane leaks are detected from the adapter body, valve, or connections (audible hiss or odor).
- The control valve is seized, difficult to turn, or does not shut off the flow completely.
- The pressure gauge is non-functional, provides erratic readings, or has a cracked lens.

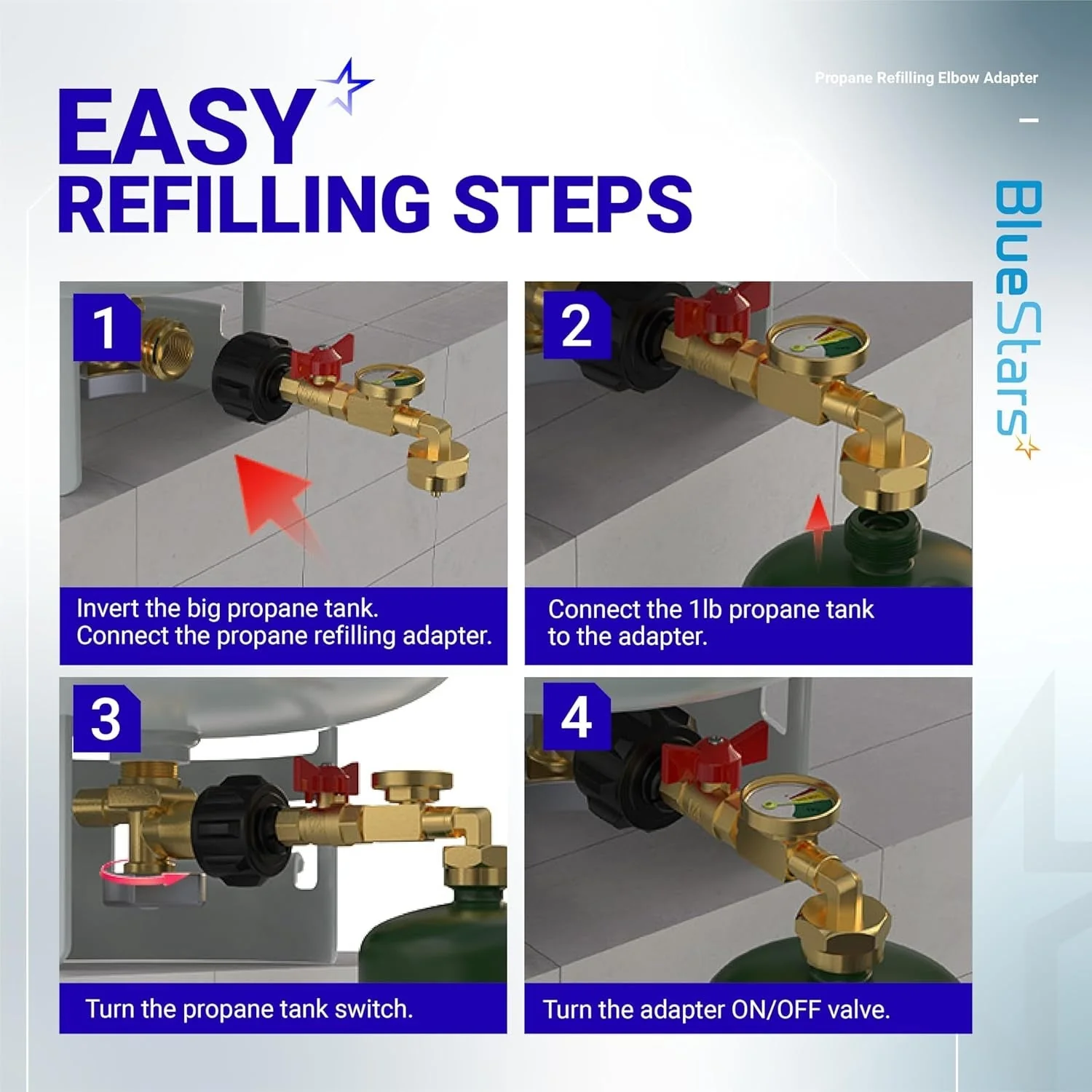

Installation Tips
- Always perform refilling in a well-ventilated outdoor area, away from any flames or ignition sources.
- For a more complete fill, place the empty 1 lb cylinder in a freezer for 15-20 minutes prior to filling.
- Ensure both the adapter's control valve and the large tank's service valve are fully closed before connecting.
- Attach the adapter to the large source tank first, then attach the 1 lb cylinder. Hand-tighten all connections.
- Invert the source tank to allow liquid propane to flow into the 1 lb cylinder.
- Open the source tank valve, then slowly open the adapter's control valve to begin the transfer.
- Close all valves and disconnect the 1 lb cylinder once the sound of propane transfer stops or the gauge indicates it is full.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
[Lifetime Warranty] Propane Refill Adapter for 1 LB. Tanks, Propane Adapter 20lb to 1lb Converter with Gauge & Valve – QCC1/Type1 Propane Refilling 90-Degree Elbow Adapter 5-20 LB Tank
[Lifetime Warranty] Propane Refill Adapter for 1 LB. Tanks, Propane Adapter 20lb to 1lb Converter with Gauge & Valve – QCC1/Type1 Propane Refilling 90-Degree Elbow Adapter 5-20 LB Tank
Propane Refill Adapter for 1 LB. Tanks, Propane Adapter 20lb to 1lb Converter with Gauge & Valve – QCC1/Type1 Propane Refilling 90-Degree Elbow Adapter 5-20 LB Tank
Key Features
- Solid brass construction for durability and corrosion resistance.
- Integrated, color-coded pressure gauge for monitoring the filling process.
- Manual on/off control valve for precise flow management.
- 90-degree elbow design allows for quick and easy connection in tight spaces.
- Built-in safety feature provides overflow protection.
- Enables refilling of 1 lb cylinders from larger propane tanks.
Replaces / Cross-Reference Part Numbers
- Universal adapter for all QCC1/Type1 tank connections.
- Functions as a direct converter from a QCC1/Type1 male fitting to a 1 lb disposable cylinder male fitting.
Compatibility & Fitment
- Source Tank Connection: Fits all standard QCC1/Type1 propane tanks from 5 lb to 40 lb capacity.
- Destination Cylinder Connection: Fits standard 1 lb (16.4 oz) disposable propane cylinders.
- Common Applications: Refilling small cylinders for portable grills, camp stoves, tabletop heaters, and propane torches.
When to Replace
- Visible signs of damage, such as cracks or deep gouges in the brass body.
- Threads on either connection are stripped, damaged, or cross-threaded.
- Propane leaks are detected from the adapter body, valve, or connections (audible hiss or odor).
- The control valve is seized, difficult to turn, or does not shut off the flow completely.
- The pressure gauge is non-functional, provides erratic readings, or has a cracked lens.
Installation Tips
- Always perform refilling in a well-ventilated outdoor area, away from any flames or ignition sources.
- For a more complete fill, place the empty 1 lb cylinder in a freezer for 15-20 minutes prior to filling.
- Ensure both the adapter's control valve and the large tank's service valve are fully closed before connecting.
- Attach the adapter to the large source tank first, then attach the 1 lb cylinder. Hand-tighten all connections.
- Invert the source tank to allow liquid propane to flow into the 1 lb cylinder.
- Open the source tank valve, then slowly open the adapter's control valve to begin the transfer.
- Close all valves and disconnect the 1 lb cylinder once the sound of propane transfer stops or the gauge indicates it is full.
$25.19
[Lifetime Warranty] Propane Refill Adapter for 1 LB. Tanks, Propane Adapter 20lb to 1lb Converter with Gauge & Valve – QCC1/Type1 Propane Refilling 90-Degree Elbow Adapter 5-20 LB Tank—
$25.19
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Propane Refill Adapter for 1 LB. Tanks, Propane Adapter 20lb to 1lb Converter with Gauge & Valve – QCC1/Type1 Propane Refilling 90-Degree Elbow Adapter 5-20 LB Tank
Key Features
- Solid brass construction for durability and corrosion resistance.
- Integrated, color-coded pressure gauge for monitoring the filling process.
- Manual on/off control valve for precise flow management.
- 90-degree elbow design allows for quick and easy connection in tight spaces.
- Built-in safety feature provides overflow protection.
- Enables refilling of 1 lb cylinders from larger propane tanks.
Replaces / Cross-Reference Part Numbers
- Universal adapter for all QCC1/Type1 tank connections.
- Functions as a direct converter from a QCC1/Type1 male fitting to a 1 lb disposable cylinder male fitting.
Compatibility & Fitment
- Source Tank Connection: Fits all standard QCC1/Type1 propane tanks from 5 lb to 40 lb capacity.
- Destination Cylinder Connection: Fits standard 1 lb (16.4 oz) disposable propane cylinders.
- Common Applications: Refilling small cylinders for portable grills, camp stoves, tabletop heaters, and propane torches.
When to Replace
- Visible signs of damage, such as cracks or deep gouges in the brass body.
- Threads on either connection are stripped, damaged, or cross-threaded.
- Propane leaks are detected from the adapter body, valve, or connections (audible hiss or odor).
- The control valve is seized, difficult to turn, or does not shut off the flow completely.
- The pressure gauge is non-functional, provides erratic readings, or has a cracked lens.
Installation Tips
- Always perform refilling in a well-ventilated outdoor area, away from any flames or ignition sources.
- For a more complete fill, place the empty 1 lb cylinder in a freezer for 15-20 minutes prior to filling.
- Ensure both the adapter's control valve and the large tank's service valve are fully closed before connecting.
- Attach the adapter to the large source tank first, then attach the 1 lb cylinder. Hand-tighten all connections.
- Invert the source tank to allow liquid propane to flow into the 1 lb cylinder.
- Open the source tank valve, then slowly open the adapter's control valve to begin the transfer.
- Close all valves and disconnect the 1 lb cylinder once the sound of propane transfer stops or the gauge indicates it is full.
