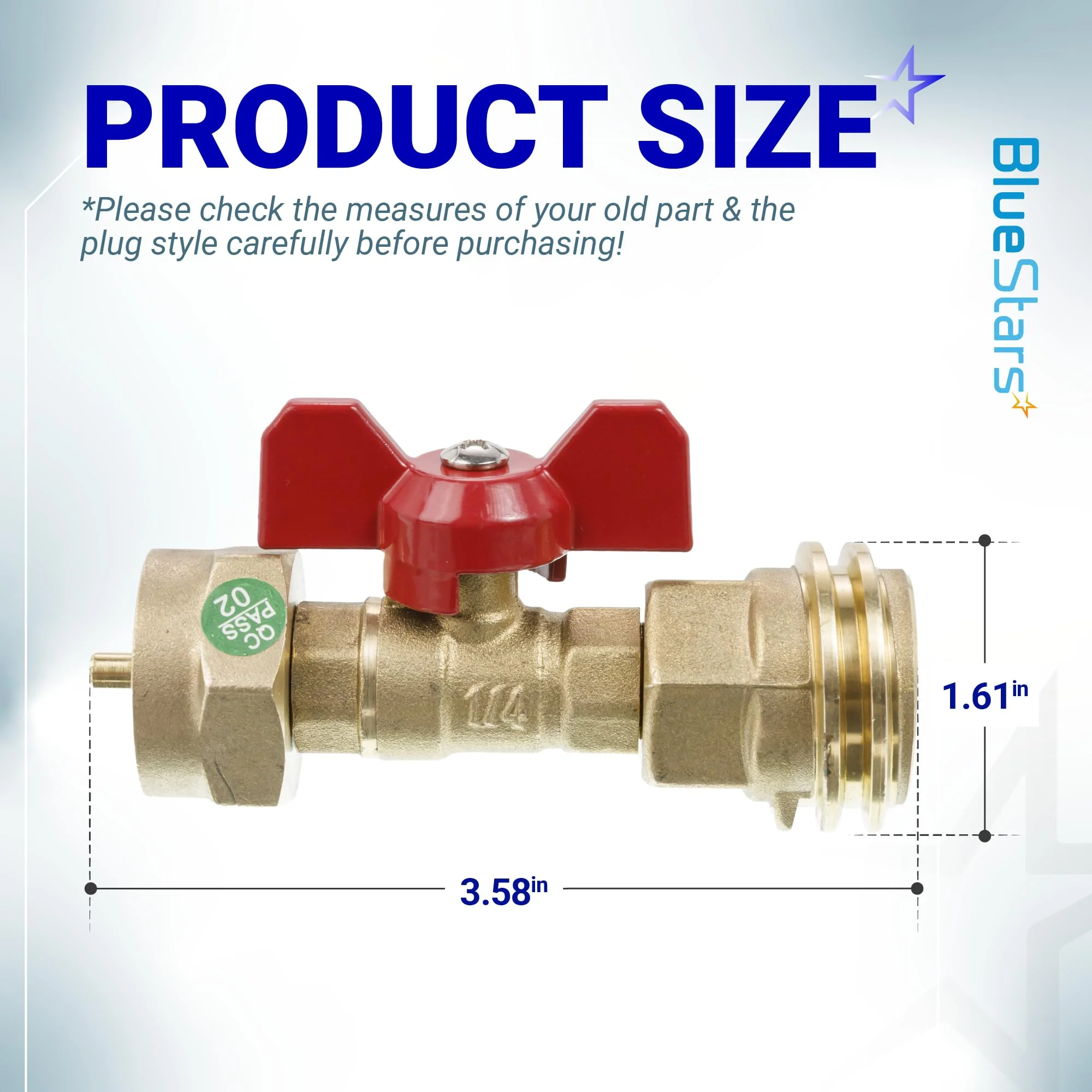

20lb to 1lb Propane Tank Adapter with Valve

Key Features

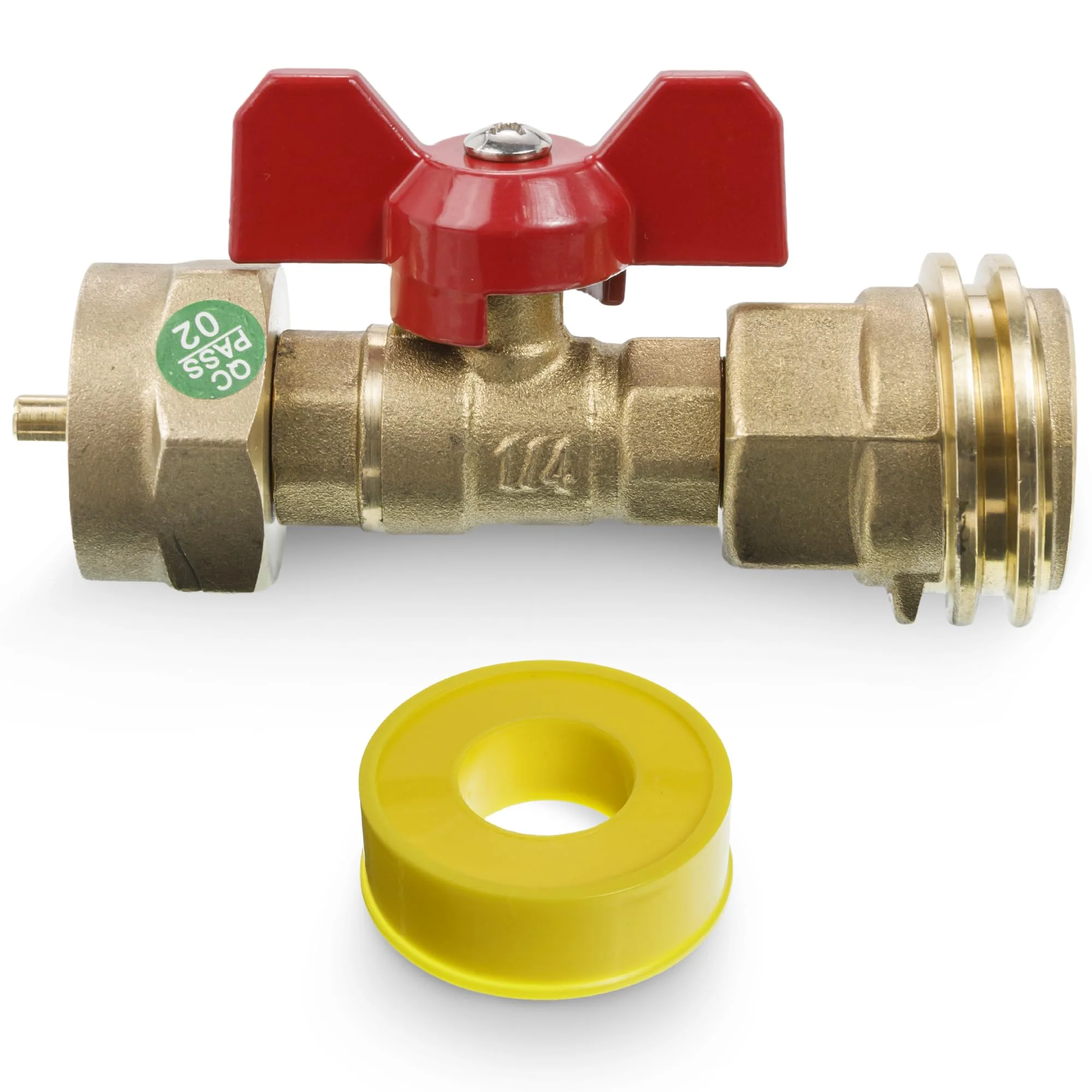

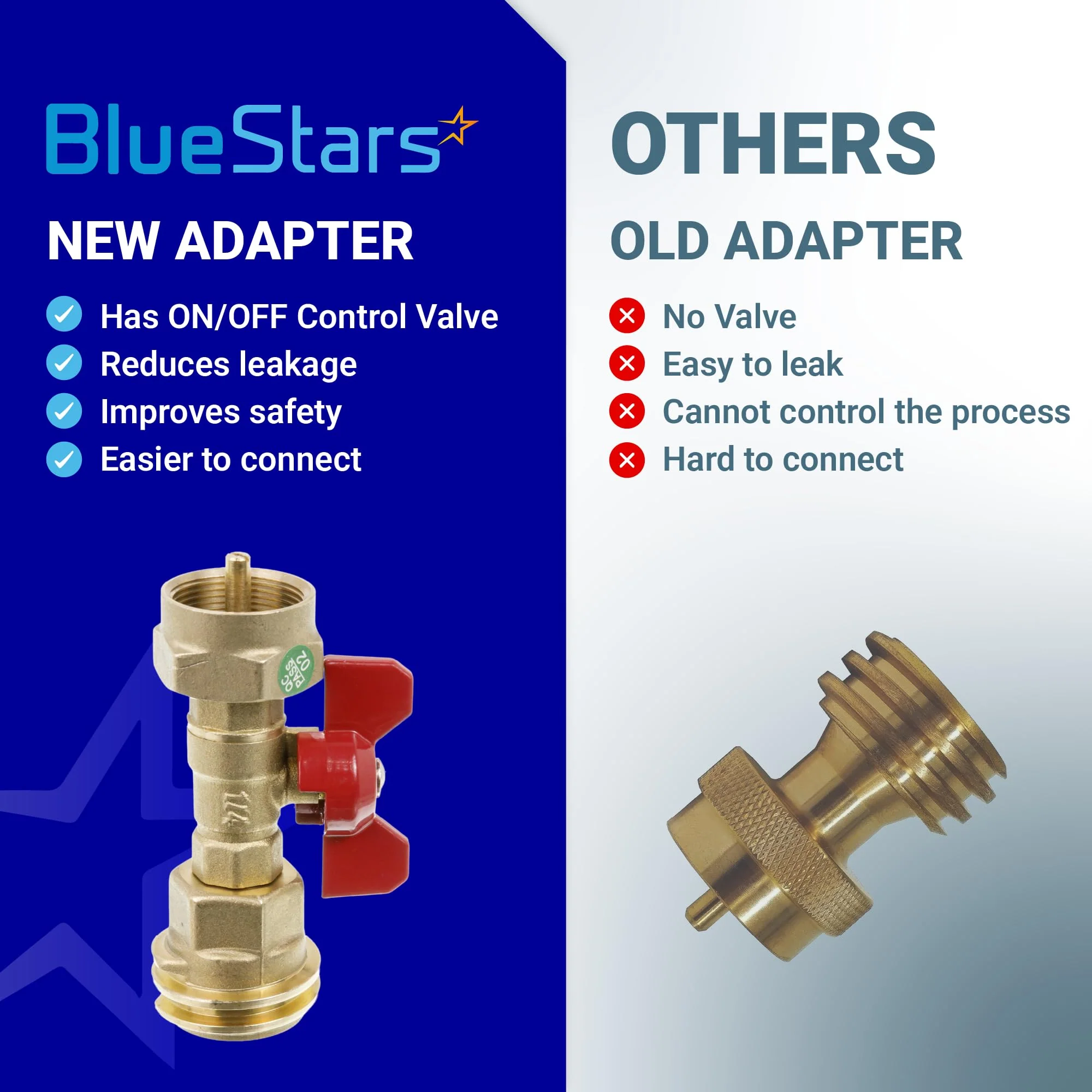

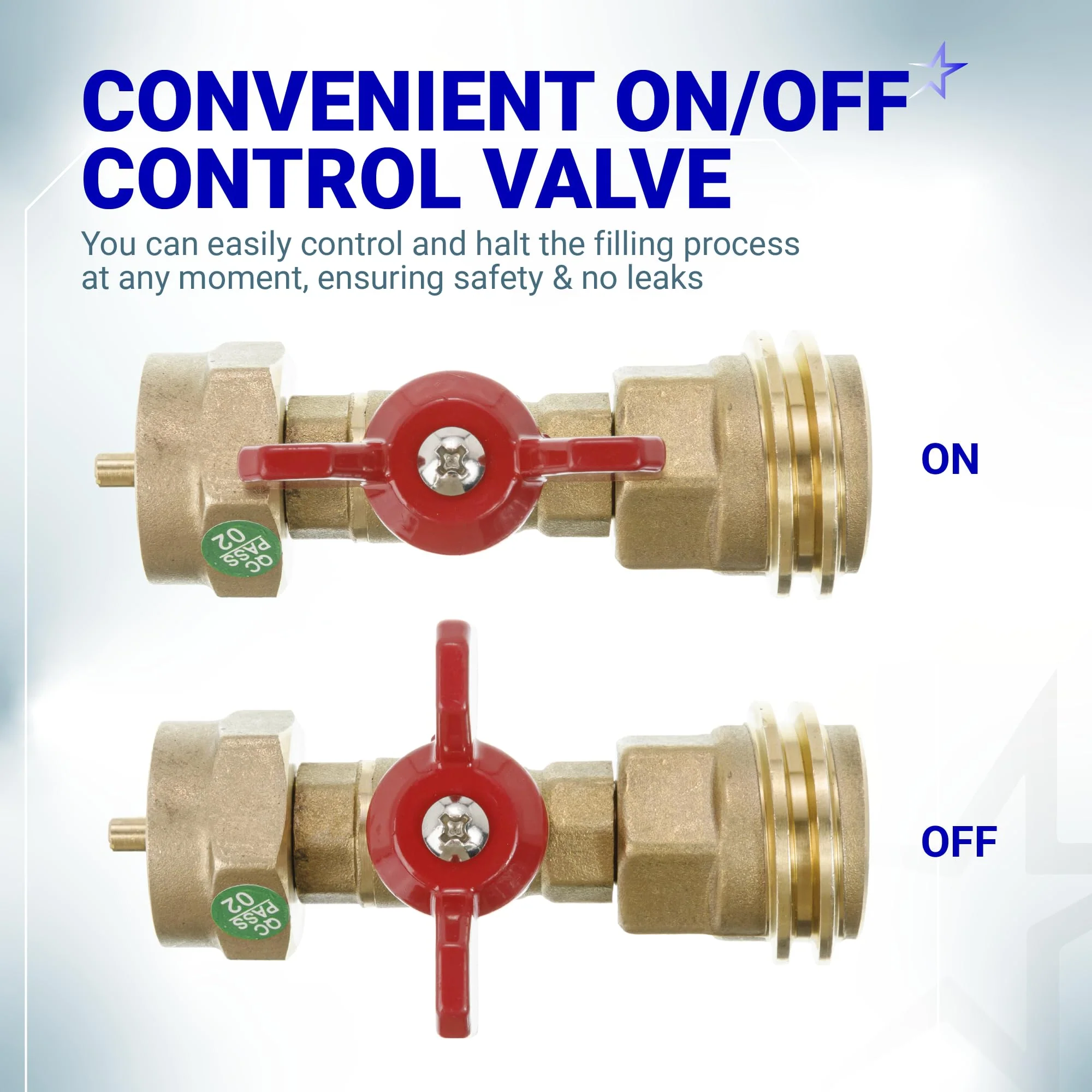

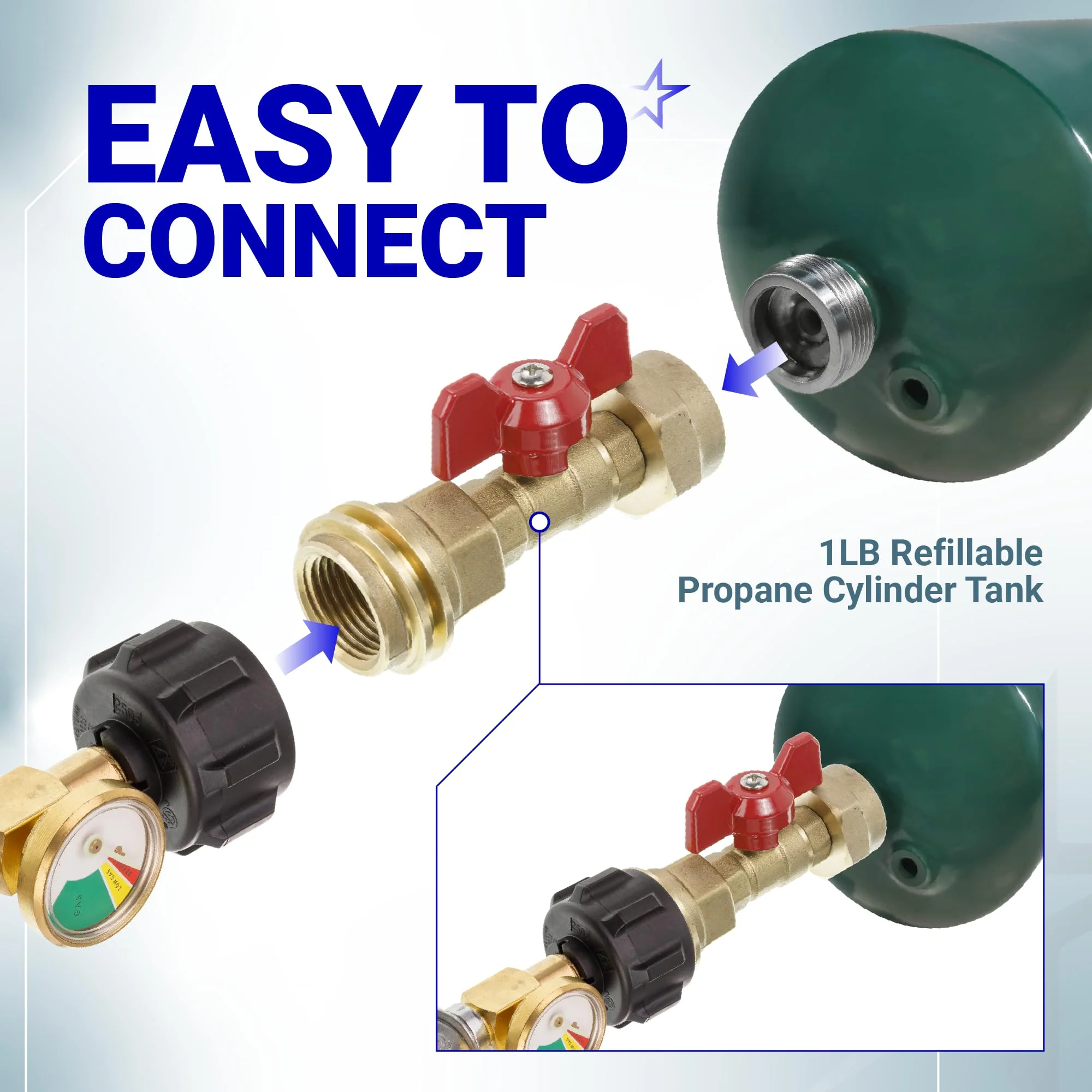

• Integrated Control Valve: Features a built-in brass shut-off valve that allows you to start and stop the propane flow instantly, providing significantly more control and safety than basic "pass-through" adapters.

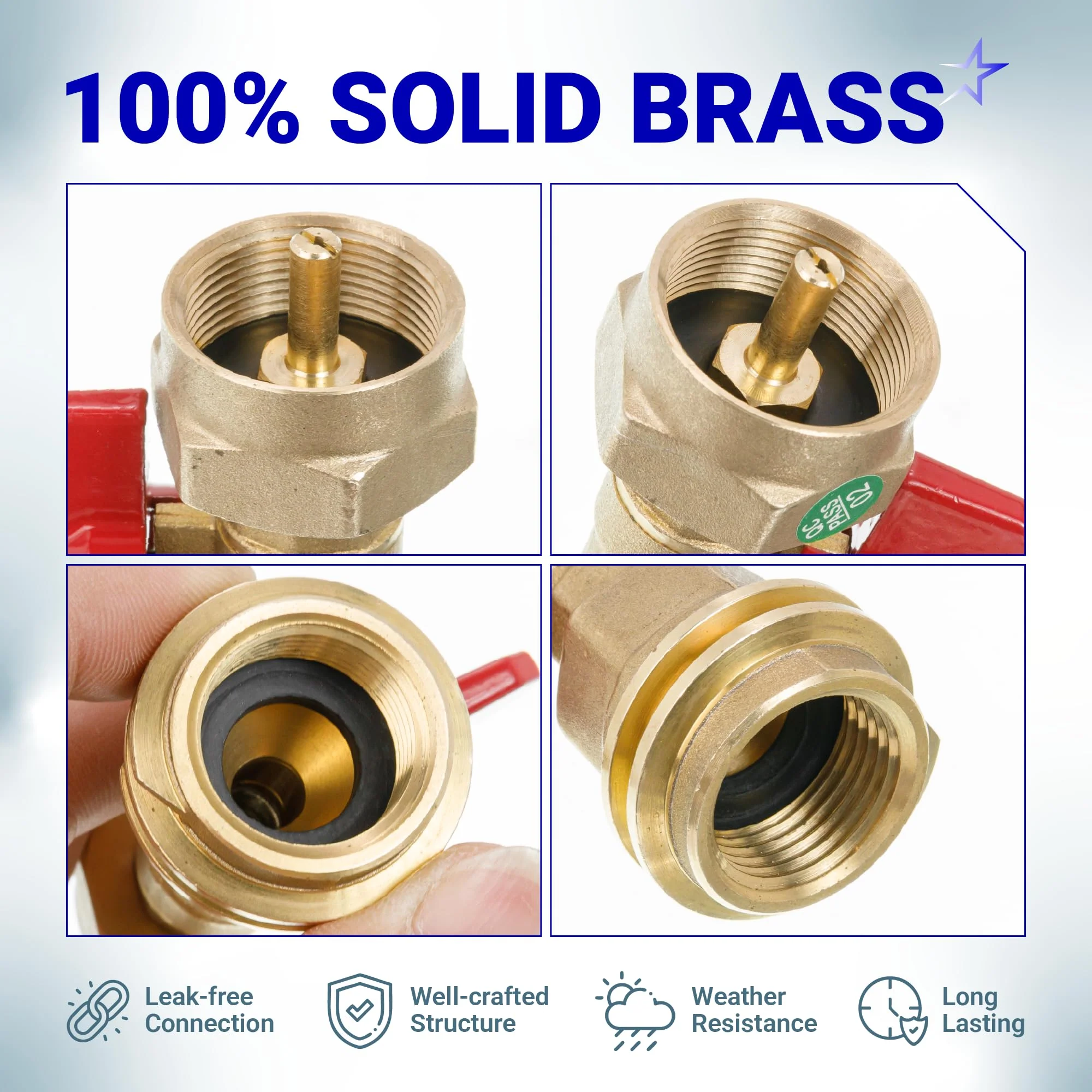

• Solid Brass Construction: Machined from 100% heavy-duty brass, ensuring a spark-proof connection, high corrosion resistance, and a long service life for outdoor use.

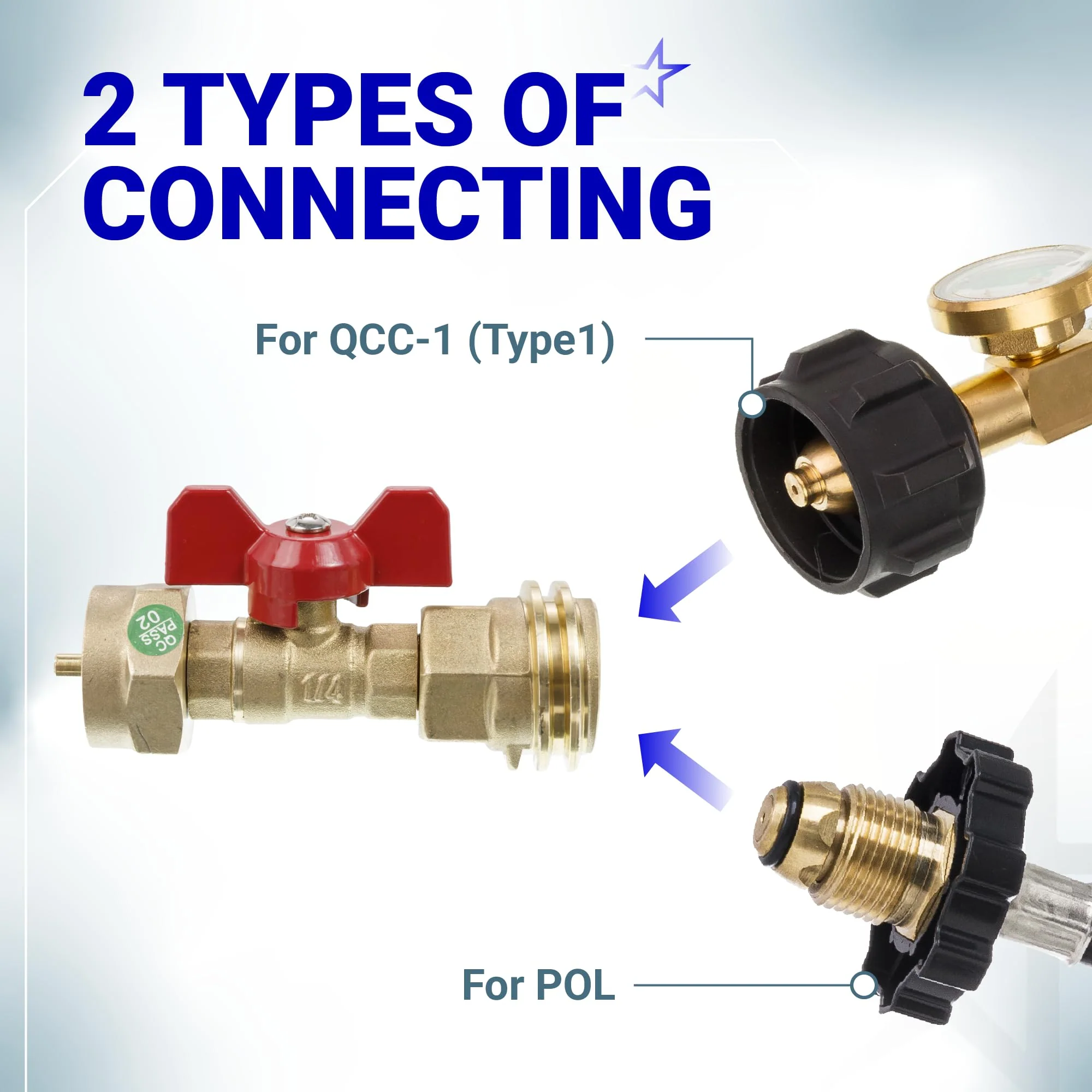

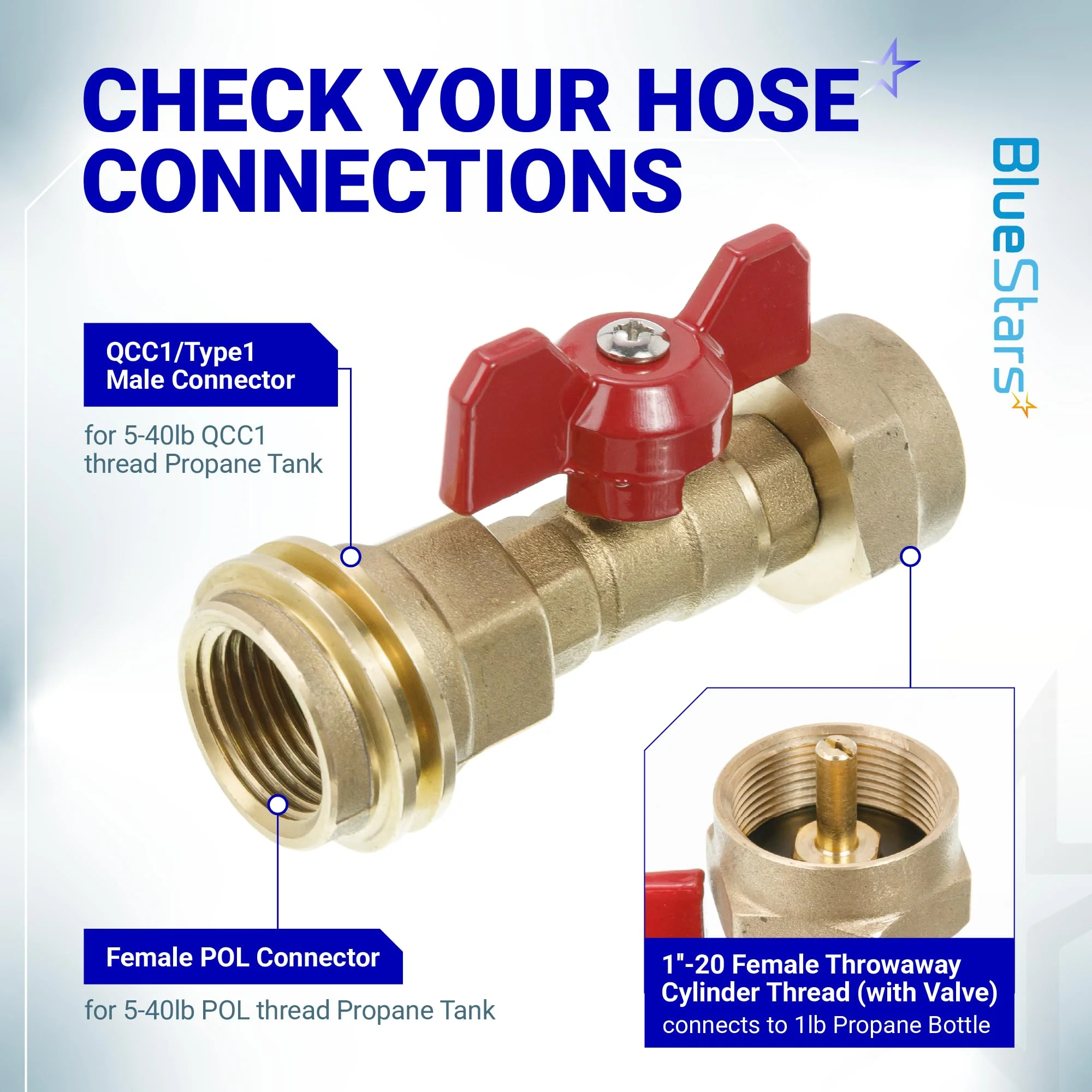

• Universal Dual-Thread Inlet: Designed with a QCC1 / Type 1 male thread (outer) and a POL female thread (inner), allowing it to fit virtually any standard 20lb, 30lb, or 40lb propane tank.
• Standard Disposable Outlet: Features a CGA600 connection that fits all standard 1lb (16.4oz) "camping" or "throwaway" green propane cylinders.
• High-Pressure Safety Seal: Engineered with internal rubber gaskets and precision-cut threads to maintain a 100% airtight seal during high-pressure liquid propane transfer.

Replaces / Cross-Reference Part Numbers

• 20lb to 1lb Propane Refill Adapter
• QCC1 to CGA600 Converter
• Propane Refill Valve with Shut-Off
• Universal 1lb Cylinder Refill Tool

Compatibility & Fitment

This adapter is a universal tool for transferring fuel from bulk storage tanks to portable cylinders. Key compatibility includes:

• Supply Tanks: Standard North American 20lb (BBQ), 30lb, and 40lb tanks (using QCC1 or POL connections).
• Portable Cylinders: 1lb / 16.4oz disposable cylinders from brands like Coleman, Bernzomatic, and Worthington.

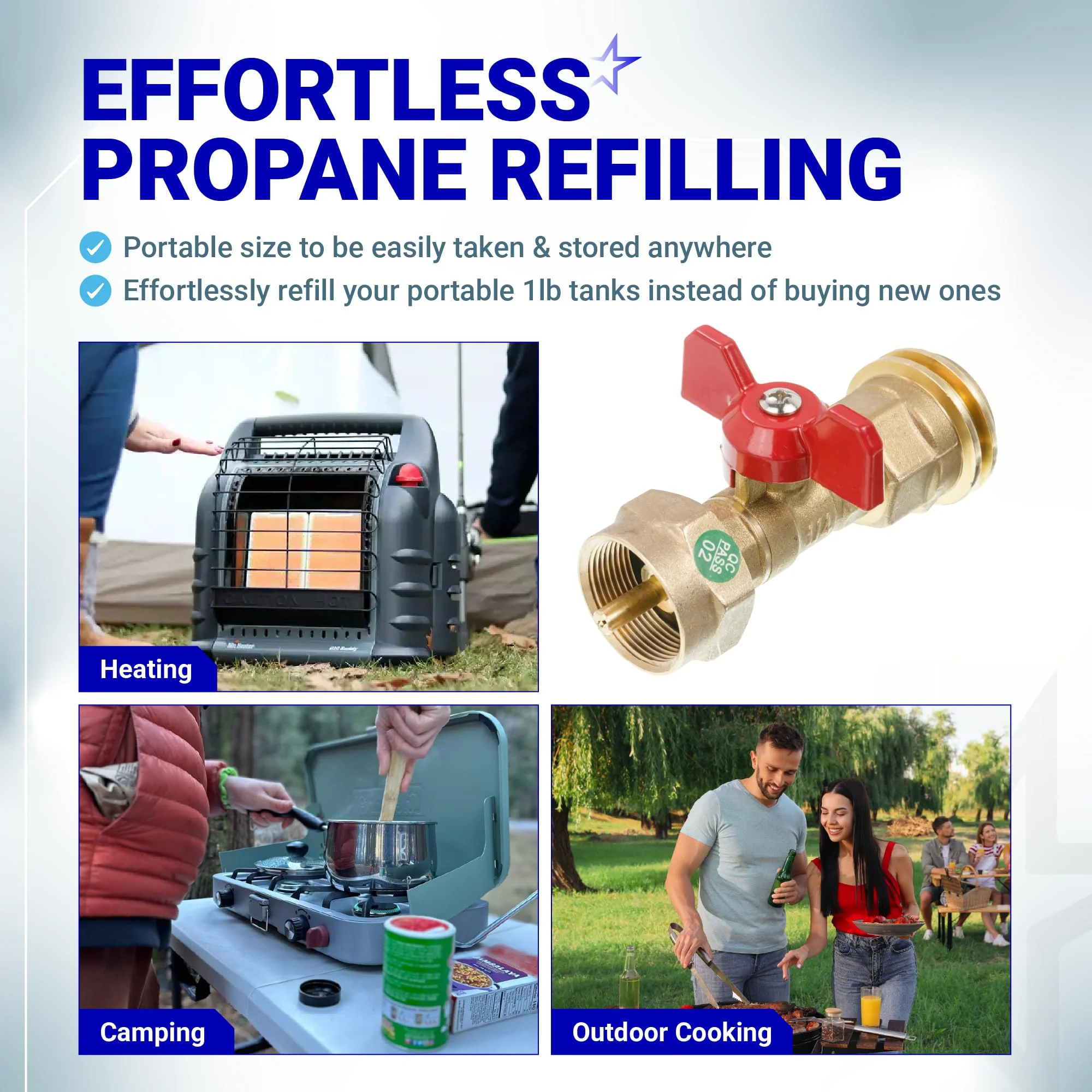

• Applications: Ideal for powering portable heaters (e.g., Mr. Heater Buddy), camping stoves, lanterns, and tabletop grills without buying new bottles.

When to Replace

• Gas Leaks: Hissing sounds or the smell of propane at the connection points; always perform a soapy water test if a leak is suspected.
• Worn Threads: The brass threads become flattened, crossed, or stripped, preventing a secure hand-tightened connection.
• Faulty Valve: The control lever becomes loose, stuck, or fails to completely stop the flow of gas when in the "Off" position.
• Damaged Gaskets: The black rubber O-rings inside the fittings are cracked, dry-rotted, or missing entirely.
• Physical Deformation: The adapter has been dropped or crushed, leading to an imbalance that prevents a flush seal.

Installation Tips

• The Freezer Method: To achieve a "full" refill (liquid transfer), place the empty 1lb cylinders in a freezer for 30 minutes before refilling. Keep the 20lb tank in a warm area to maximize the pressure difference.
• Invert the Tank: Propane is a liquid at the bottom of the tank. To refill a small bottle, the 20lb supply tank must be turned upside down during the transfer.
• Hand Tighten Only: Brass is a soft metal; do not use pliers or a wrench. Hand-tightening is sufficient to engage the internal rubber seals.
• Safety Monitoring: Use a digital scale to weigh the 1lb tank before and after. Do not exceed the original "full" weight (typically 27–30 oz total weight including the bottle). Never overfill.
• Outdoor Use Only: Refilling propane must be done in a well-ventilated outdoor area. Propane vapor is heavier than air and can collect in low spots or garages, creating a fire hazard.
