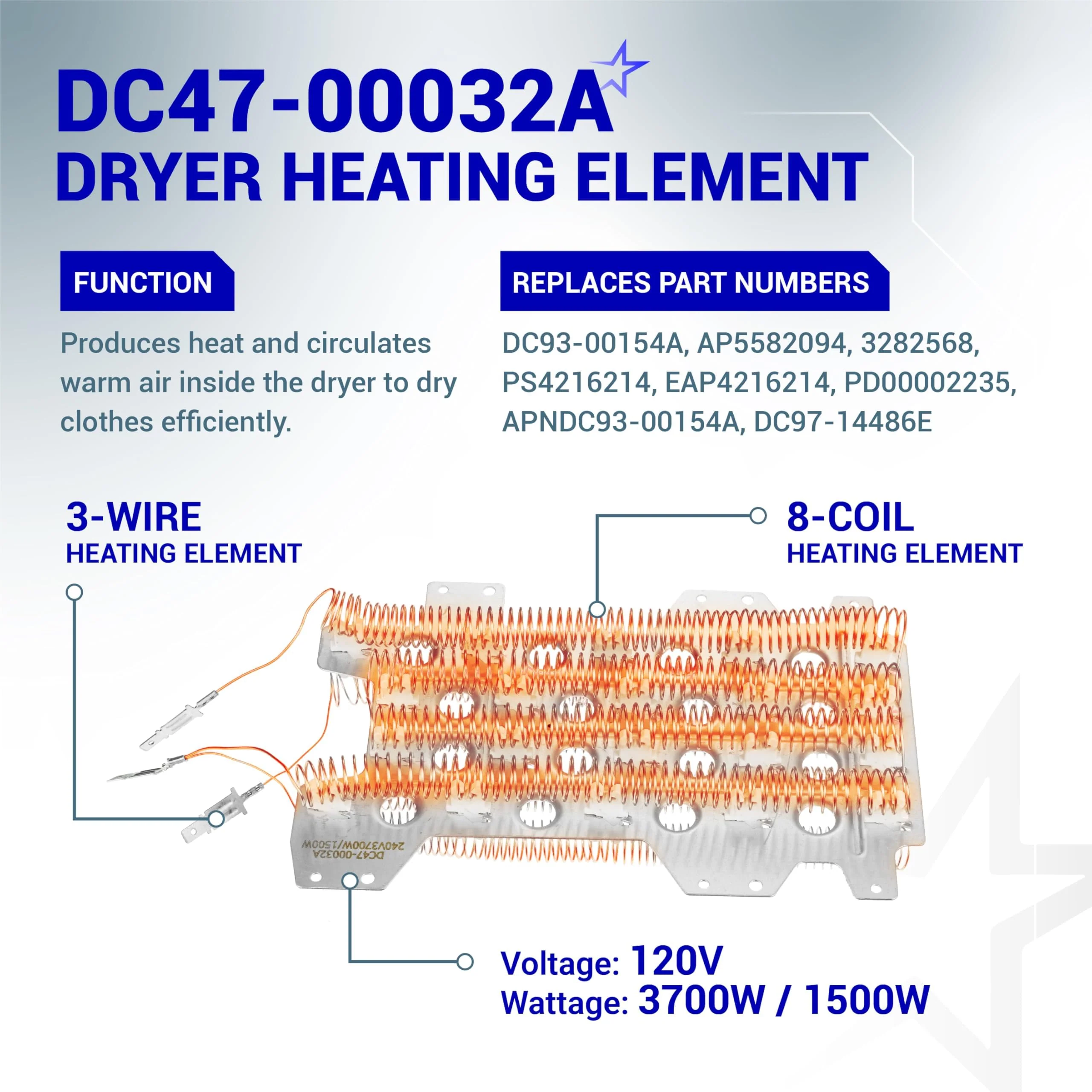

DC47-00032A Dryer Heating Element Assembly & Tune-Up Kit

Key Features

• 2026 Upgraded Coil Technology: Features an improved Nickel-Chromium alloy heating coil that is 25% thicker than standard OEM replacements, providing superior heat resistance and a significantly longer operational lifespan.
• All-In-One Restoration Kit: Includes not just the heating element, but all critical safety components (DC47-00018A, DC96-00887A, DC47-00016A, and DC32-00007A) to ensure a complete repair of the heating circuit.
• Precision Thermal Calibration: The included thermostats and thermistor are factory-calibrated to exact Samsung specifications, preventing dangerous overheating and ensuring consistent drying temperatures.
• Reinforced Housing: The heating chamber is constructed from heavy-duty galvanized steel to resist warping and heat-stress cracking during high-heat cycles.
• Plug-and-Play Installation: Designed as a direct-fit assembly with standard 1/4" spade terminals, allowing for a straightforward swap without the need for wire splicing or modifications.

Replaces / Cross-Reference Part Numbers

• Heating Element: DC47-00032A, AP4201899, 2068550, PS2038533.
• Thermostat/Fuse Kit: DC47-00018A (High Limit), DC96-00887A (Thermal Fuse), DC47-00016A (Thermal Cut-off), DC32-00007A (Thermistor).
• Other: 35001247, 35001119, AP4201894.

Compatibility & Fitment

This 2026 upgraded kit is specifically engineered for high-capacity Samsung electric dryers. Key compatible models include:

• DVE52 Series: DVE52M8650V/A3, DVE52M8650W/A3.
• DVE54 Series: DVE54R7600C/A3, DVE54R7600V/A3, DVE54R7600W/A3.
• DVE45 Series: DVE45R6300C/A3, DVE45R6300V/A3, DVE45R6300W/A3.
• Universal Samsung Fit: Compatible with most DV40, DV42, DV45, DV48, and DV50 series electric dryers utilizing the 3-wire heating configuration.

When to Replace

• No Heat: The dryer spins and the timer counts down, but the clothes remain damp and cold at the end of the cycle.
• Dryer Takes Too Long: A cycle that used to take 40 minutes now takes 2 or 3 cycles to dry a single load, indicating a partially broken or shorted coil.
• Burnt Smell: A distinct "electrical burning" odor during operation, often caused by a sagging coil touching the metal housing.
• Tripped Breaker: The dryer trips the house circuit breaker immediately upon starting the heat cycle, indicating a grounded heating element.
• Blown Thermal Fuse: If the dryer won't start at all, it is often due to the thermal fuse (included in this kit) blowing because of a restricted vent or a failing heating element.

Installation Tips

• The Multi-Component Rule: Even if your element looks okay, always replace the thermal fuse and thermostats included in this kit. Often, a failing thermostat is what caused the original heating element to burn out.
• Vacuum the Vent: Before installing the new kit, use a vacuum to clear out all lint from the internal dryer duct and the exterior wall vent. Airflow restriction is the #1 cause of heating element failure.
• Clean the Terminals: Ensure the wire connectors are tight and free of corrosion. A loose connection creates resistance, which generates heat and can melt the wires.
• Don't Touch the Coil: Try not to touch the new heating coil with your bare hands. Oils from your skin can create "hot spots" that lead to premature failure.
• Continuity Test: Before closing the dryer, use a multimeter to check for continuity across the element terminals. A reading of approximately 9–11 ohms is standard for a healthy 240V element.
