Y303836 303836 Dryer Blower Wheel With Clamp

Key Features

• Moves air from the heater housing through the drum and out the exhaust vent.

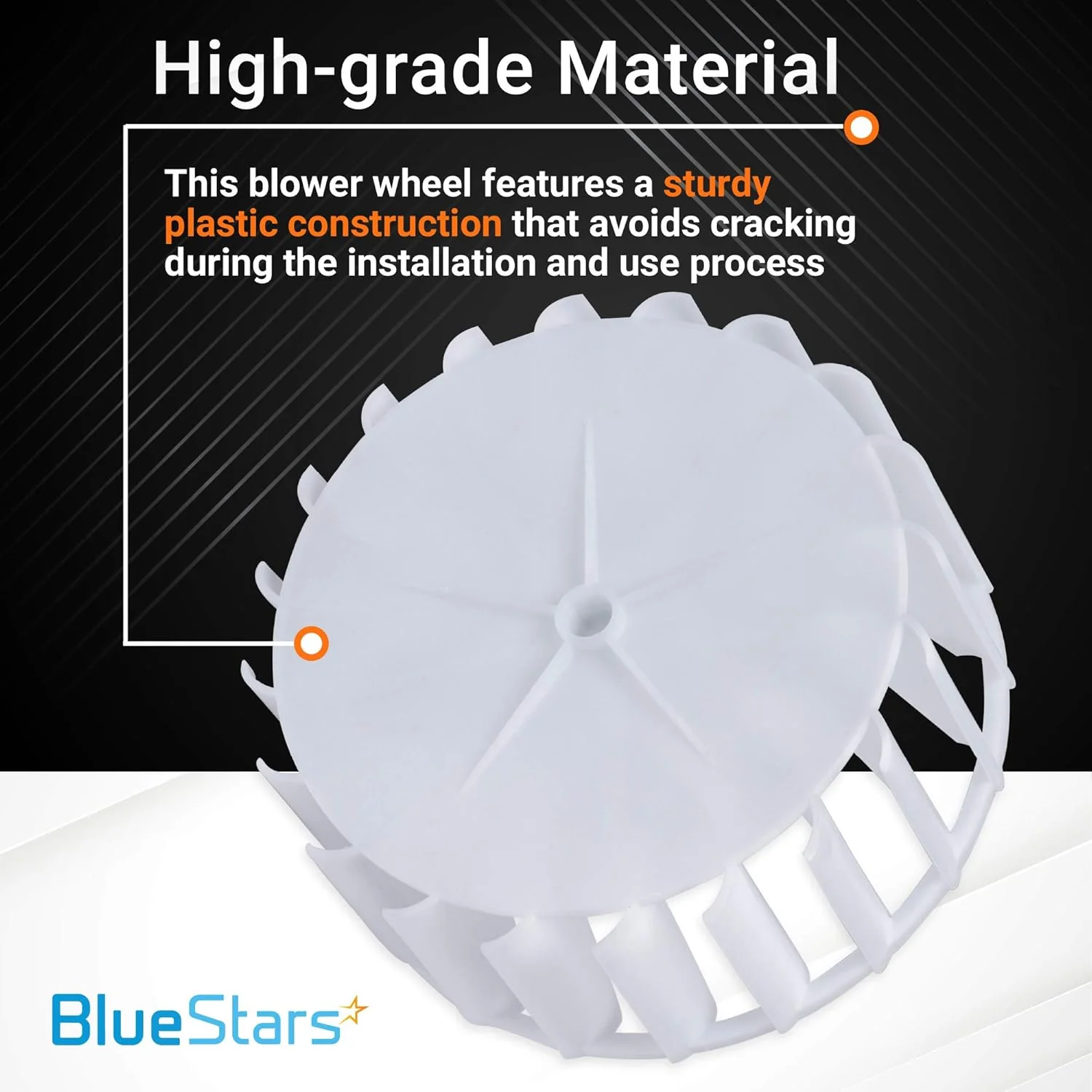

• Constructed from durable plastic to withstand high temperatures and rotation speeds.
• Includes one blower wheel and one metal clamp for securing to the motor shaft.

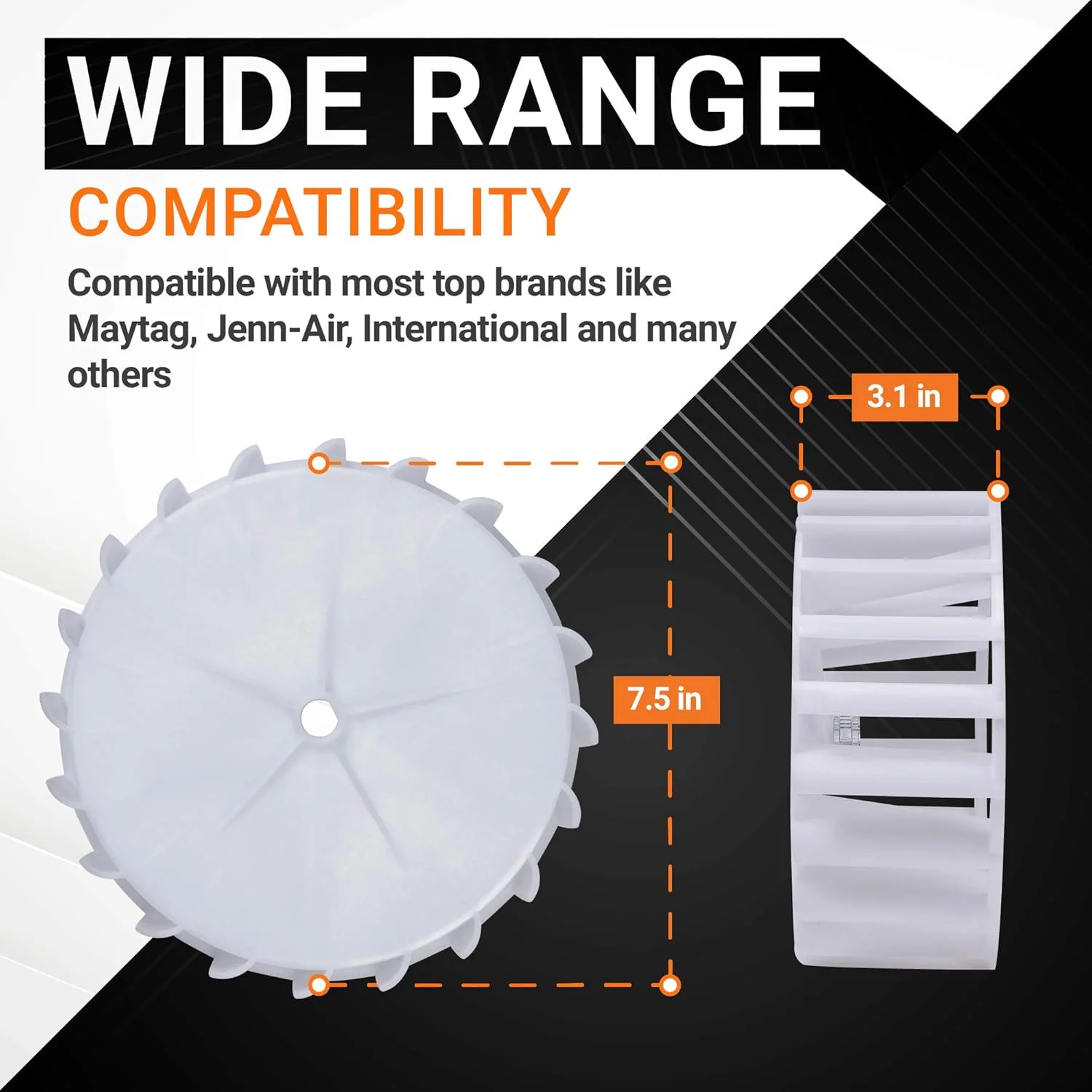

• Dimensions: Approximately 7.5 inches in diameter and 3.375 inches wide.

Replaces / Cross-Reference Part Numbers

• Y303836
• 303836

Compatibility & Fitment

• Designed for use with dryers from brands including Maytag, Whirlpool, and Jenn-Air.
• Fits specific models such as Maytag DE303, DE410, DE512, and LDE512.
• Verify compatibility with your specific dryer model number before ordering.

When to Replace

• Dryer is running but not heating or drying clothes sufficiently.
• Weak or no airflow from the exhaust vent.
• Loud rumbling, thumping, or vibrating noises during the cycle.
• Visible damage, such as cracks or stripped splines on the existing wheel.

Installation Tips

• Disconnect the dryer from its power source before beginning any repairs.
• Access to the blower wheel requires partial disassembly of the dryer housing.
• The blower wheel is typically located under the drum bulkhead, attached to the motor shaft.
• Basic hand tools, such as a socket set and screwdrivers, are required for installation.
