W10861225 W10714516 Dryer Door Handle

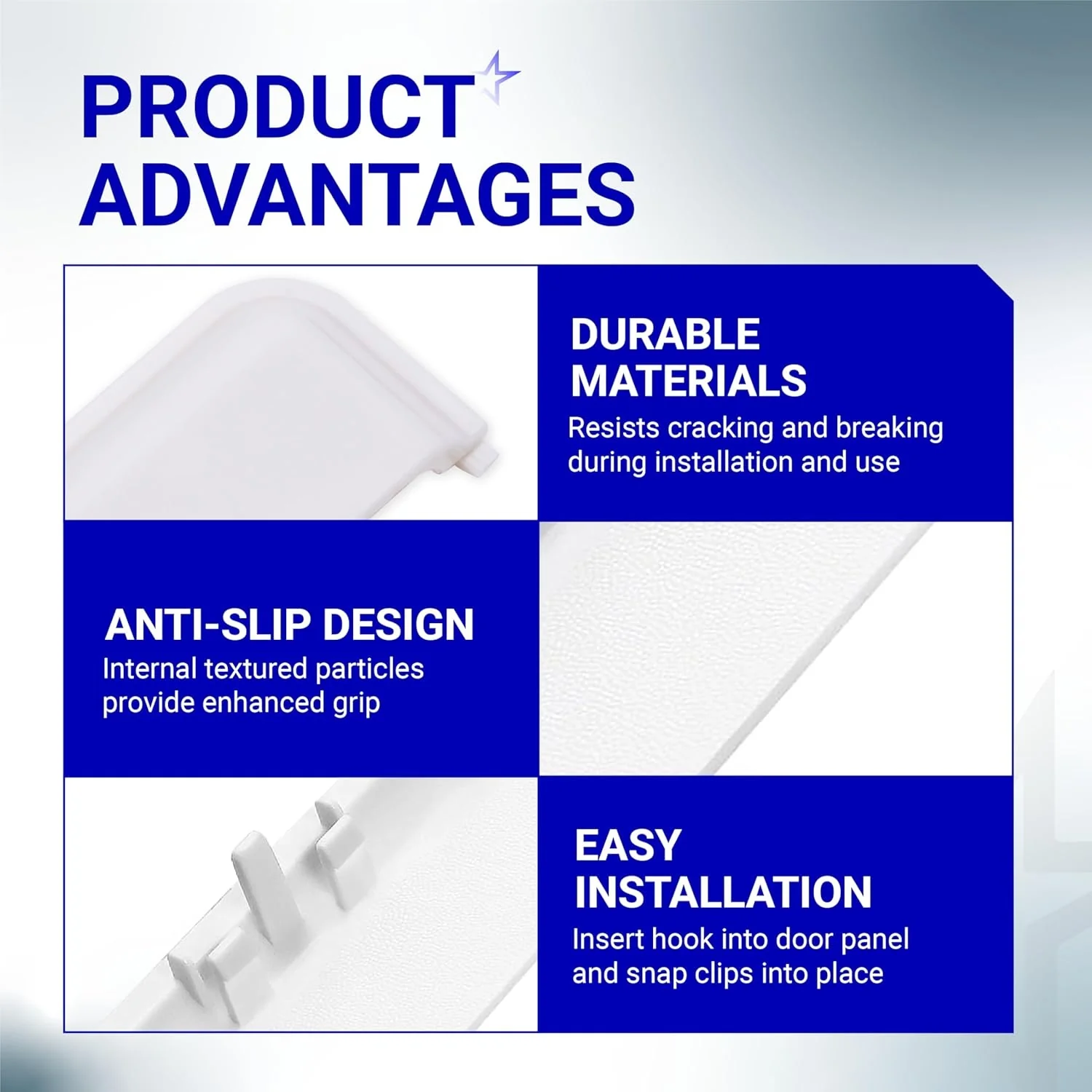

Key Features

• Ergonomic Grip: Contoured design provides a comfortable surface for opening and closing the dryer door during high-volume laundry tasks.

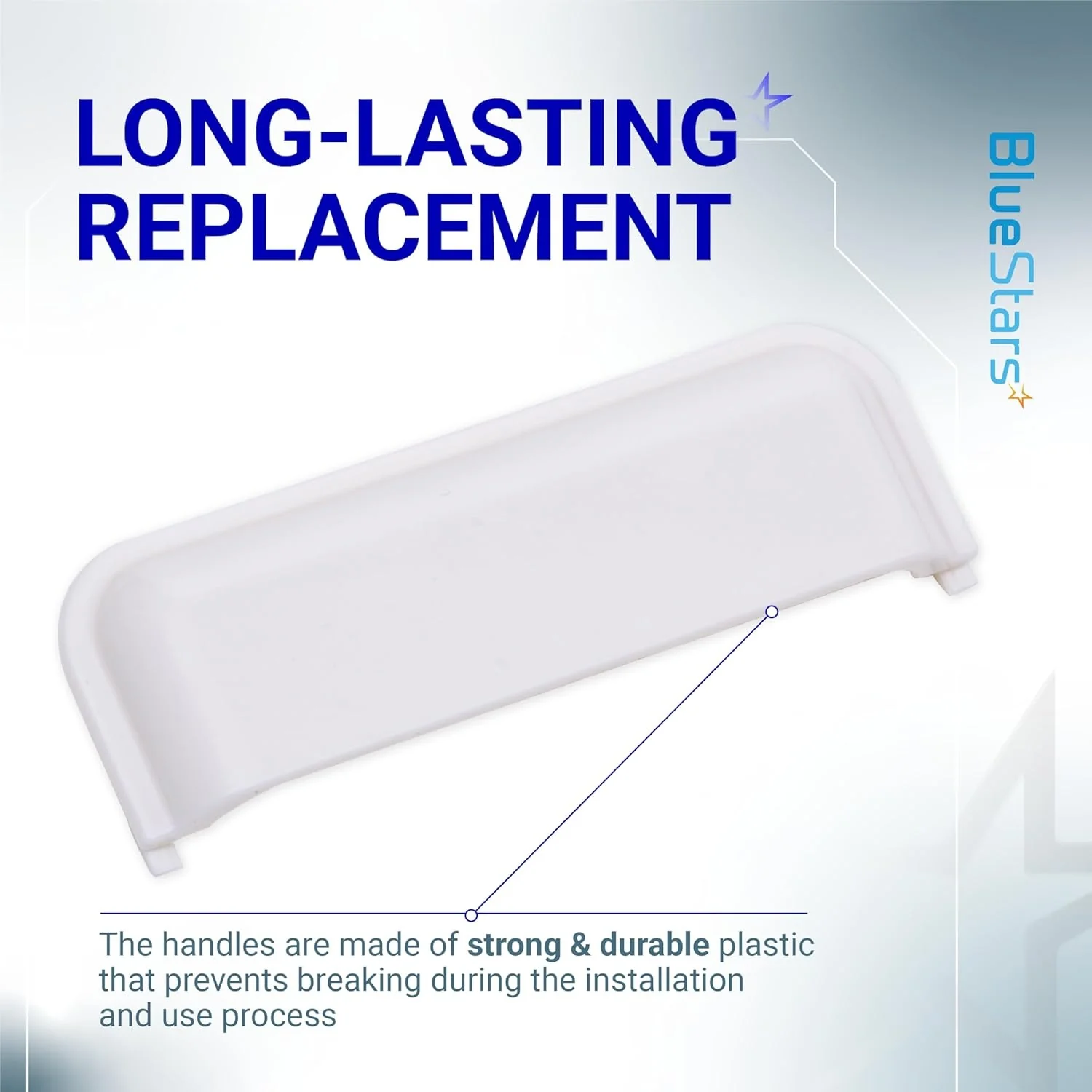

• High-Impact Construction: Molded from heavy-duty, heat-resistant plastic to withstand the thermal stress of high-heat drying cycles.
• Direct-Fit Replacement: Matches original equipment dimensions for a flush fit against the door panel without the need for modifications.
• Tool-Free Snap Installation: Features a simplified mounting system that allows the handle to be secured into place by aligning the tabs and applying firm pressure.

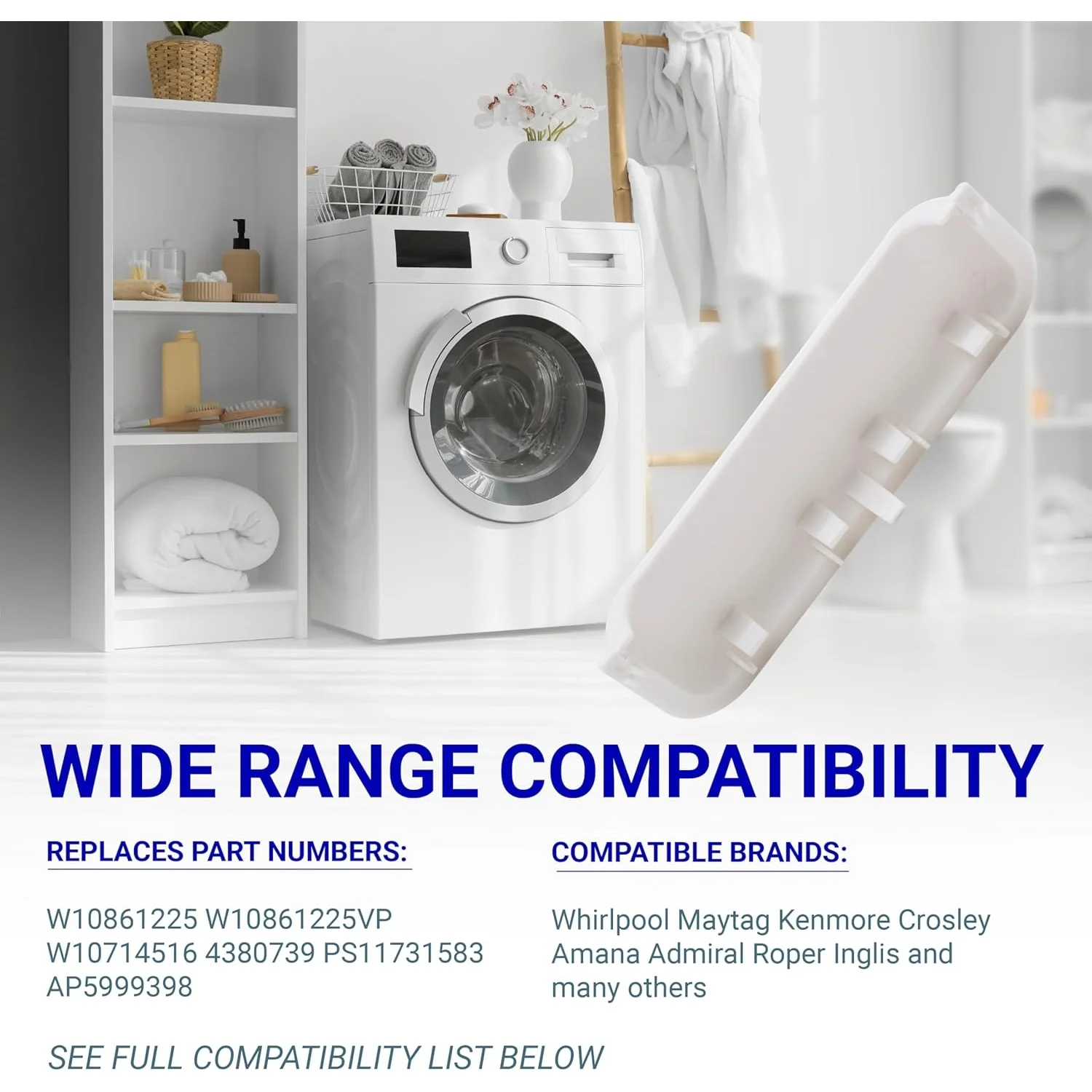

Replaces / Cross-Reference Part Numbers

• W10861225
• W10714516
• AP5999398
• PS11731583
• W10861225VP
• W10714516VP
• 4378788

Compatibility & Fitment

This door handle is compatible with various top-load matching and front-load dryers from the Whirlpool family of brands, including:

• Whirlpool: Fits many WED and WGD series models (e.g., WED4815EW0, WGD4815EW0, WED4915EW).
• Maytag: Compatible with select Centennial and Bravos models (e.g., MEDC215EW0, MGDC215EW0).
• Amana: Fits standard NED and NGD series models (e.g., NED4655EW, NGD4655EW).
• Kenmore / Sears: Compatible with select 110-series dryers (e.g., 110.65132410).
• Roper & Admiral: Fits most standard 29-inch wide dryer cabinets using this handle profile.

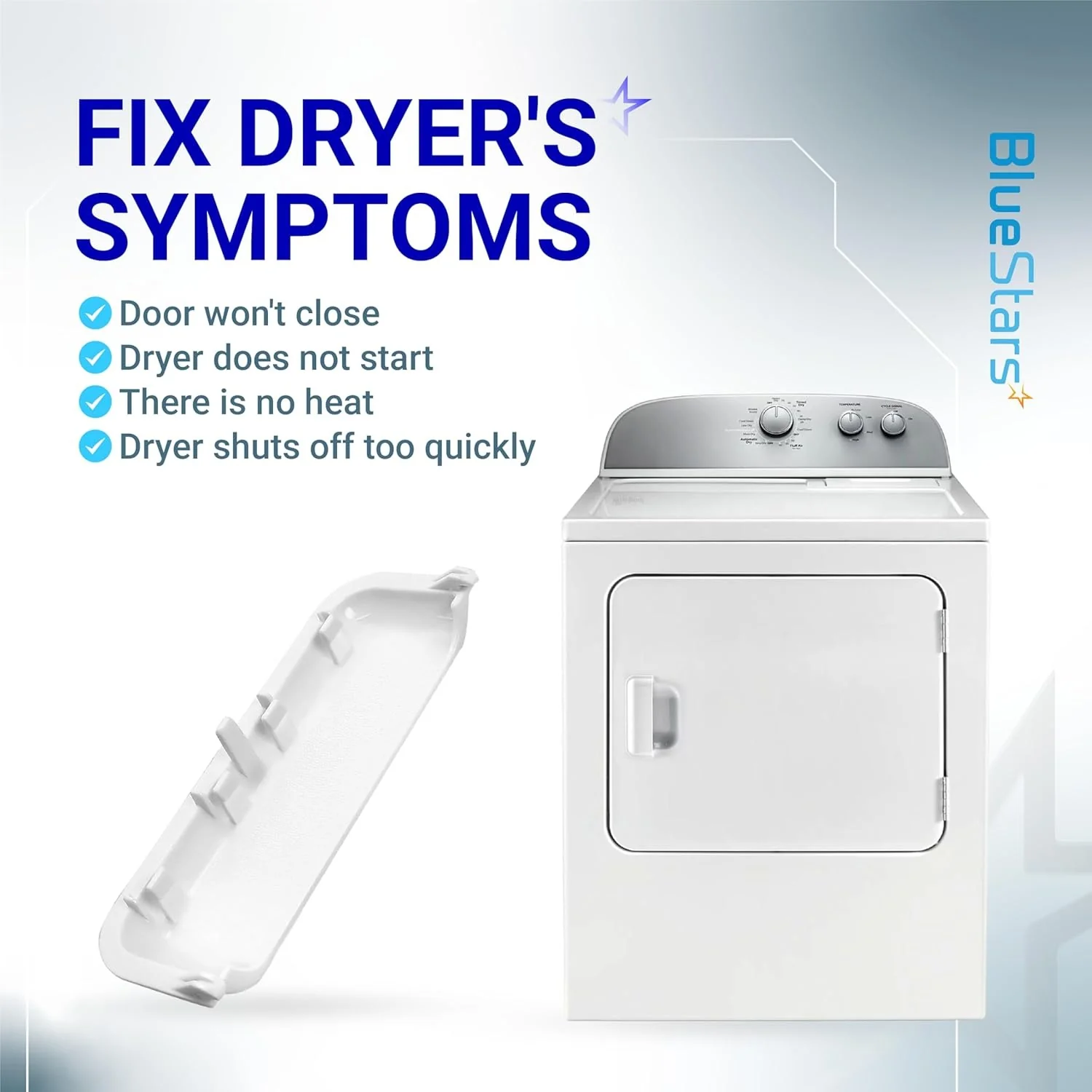

When to Replace

• Snapped Mounting Tabs: The plastic prongs that insert into the dryer door have broken off, leaving the handle loose or detached.
• Physical Cracking: Visible hairline fractures or complete breaks in the handle body caused by mechanical stress.
• Discoloration: The plastic has become yellowed or brittle due to age and heat exposure.
• Cosmetic Damage: Deep scratches or gouges that impact the aesthetics of the appliance.

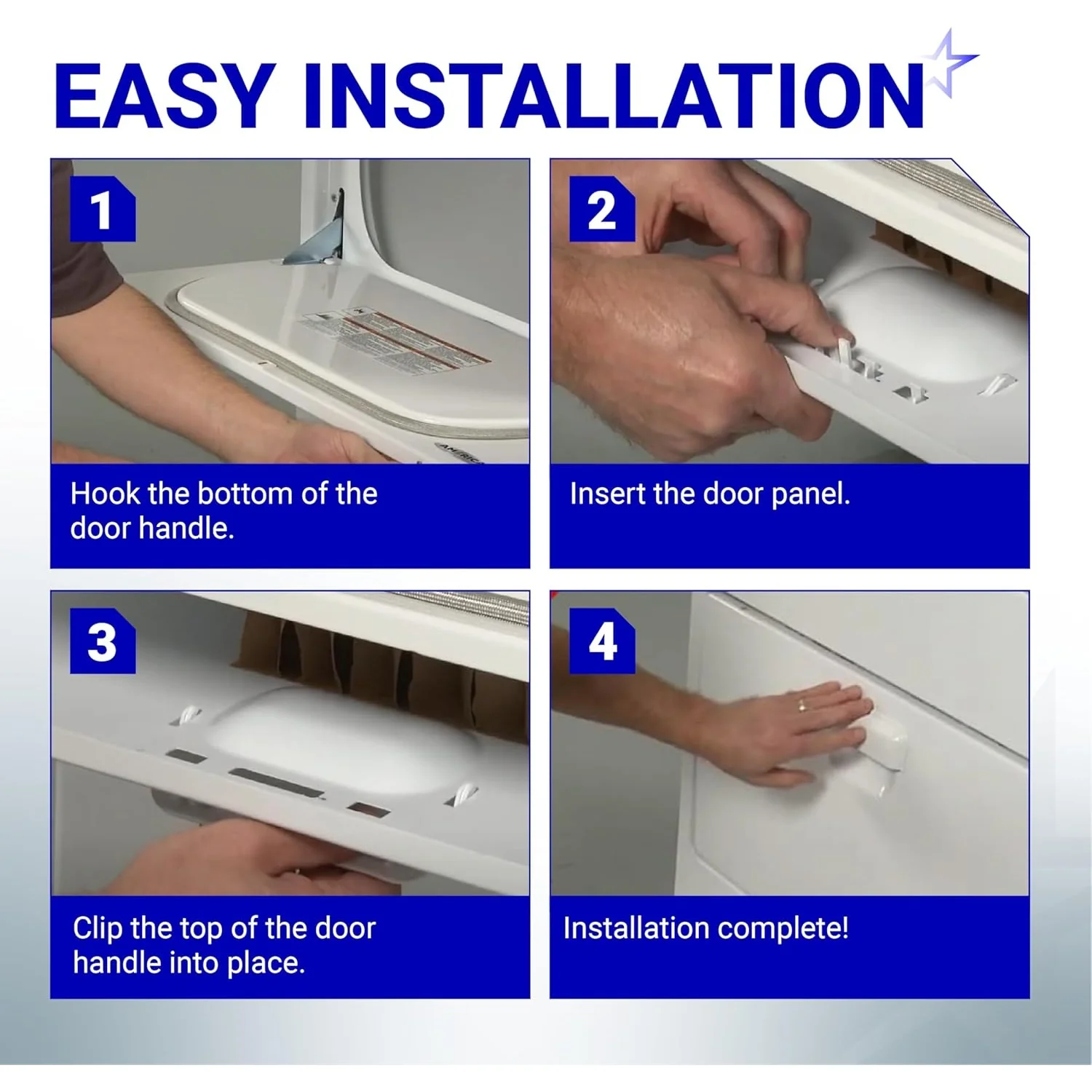

Installation Tips

• Removal: If a portion of the old handle is still attached, use a flat-head screwdriver or a putty knife to gently pry the remaining plastic tabs out of the door slots.
• Clean the Surface: Wipe down the door panel area behind the handle to remove any lint or residue before installing the new part.
• Alignment: Line up the two mounting prongs on the back of the handle with the corresponding rectangular slots on the dryer door.
• Snap into Place: Apply even, firm pressure to the center of the handle until you hear or feel the tabs click into the door frame.
• Verification: Open and close the door several times to ensure the handle is securely seated and does not wobble.
