WH03X30517 Washer Shift Actuator & WH01X27538 Washer Drive Belt & WH05X24185 Washing Machine Clutch & WH01X24434 Washer Spring

Key Features

• Complete four-piece repair kit for washing machine drive systems.
• Includes (1) WH03X30517 Shift Actuator, (1) WH01X27538 Drive Belt, (1) WH05X24185 Clutch, and (1) WH01X24434 Spring.
• The shift actuator controls motor functions, switching between agitate and spin cycles.
• Components constructed from durable materials, including high-grade ABS plastic for the actuator and clutch.

Replaces / Cross-Reference Part Numbers

• Shift Actuator (WH03X30517): 4932143, AP6891334, PS12727275
• Drive Belt (WH01X27538): 4455582, AP6037722, PS11767175, WH01X26531
• Clutch (WH05X24185): 4546419, AP6284307, PS12173161, WH05X21025
• Spring (WH01X24434): 4455584, AP5985827, PS11723145

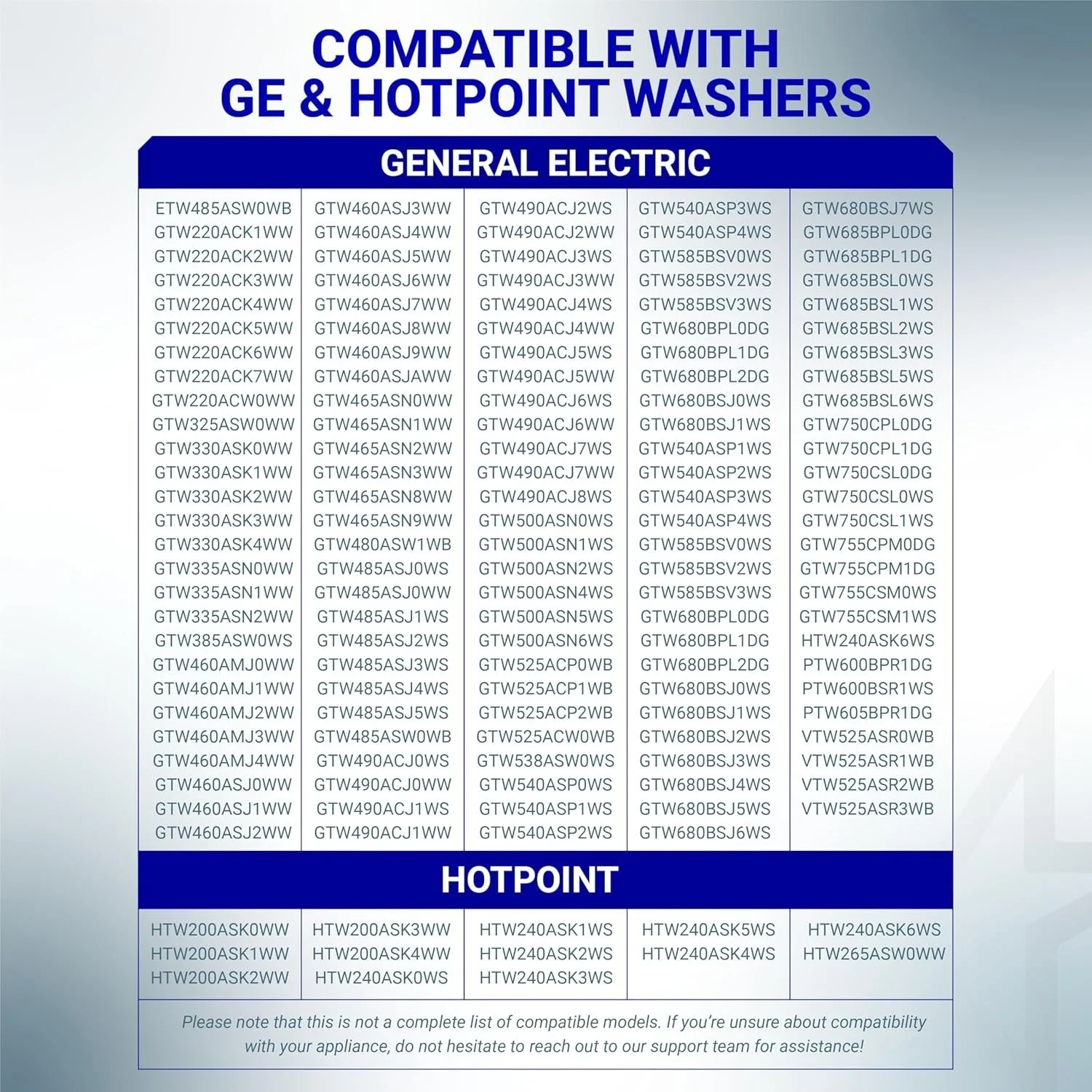

Compatibility & Fitment

• Designed for direct fitment on a wide range of top-load washing machine models.
• Primary brands: GE, Hotpoint.
• Confirm compatibility by matching your appliance's model number and the original part numbers.

When to Replace

• Washer will not agitate or spin.
• Loud grinding, whirring, or squealing noises during operation.
• Washer stops mid-cycle.
• Clothes remain soaking wet after the final spin cycle is complete.
• Specific error codes related to the motor or mode shifter appear.

Installation Tips

• Disconnect the washing machine from both power and water supplies before beginning repairs.
• Wear safety gloves to protect your hands.
• Take a picture of the existing part connections for reference during reassembly.
• Refer to your washer's service manual for model-specific instructions.
