[Lifetime Warranty] W11096268 W11220230 Washer Water Inlet Valve - Compatible with Whirlpool Kenmore Washers - Replaces W10632527 W10758829 W10853296 W11096268 AP6329544 (120V 60Hz)

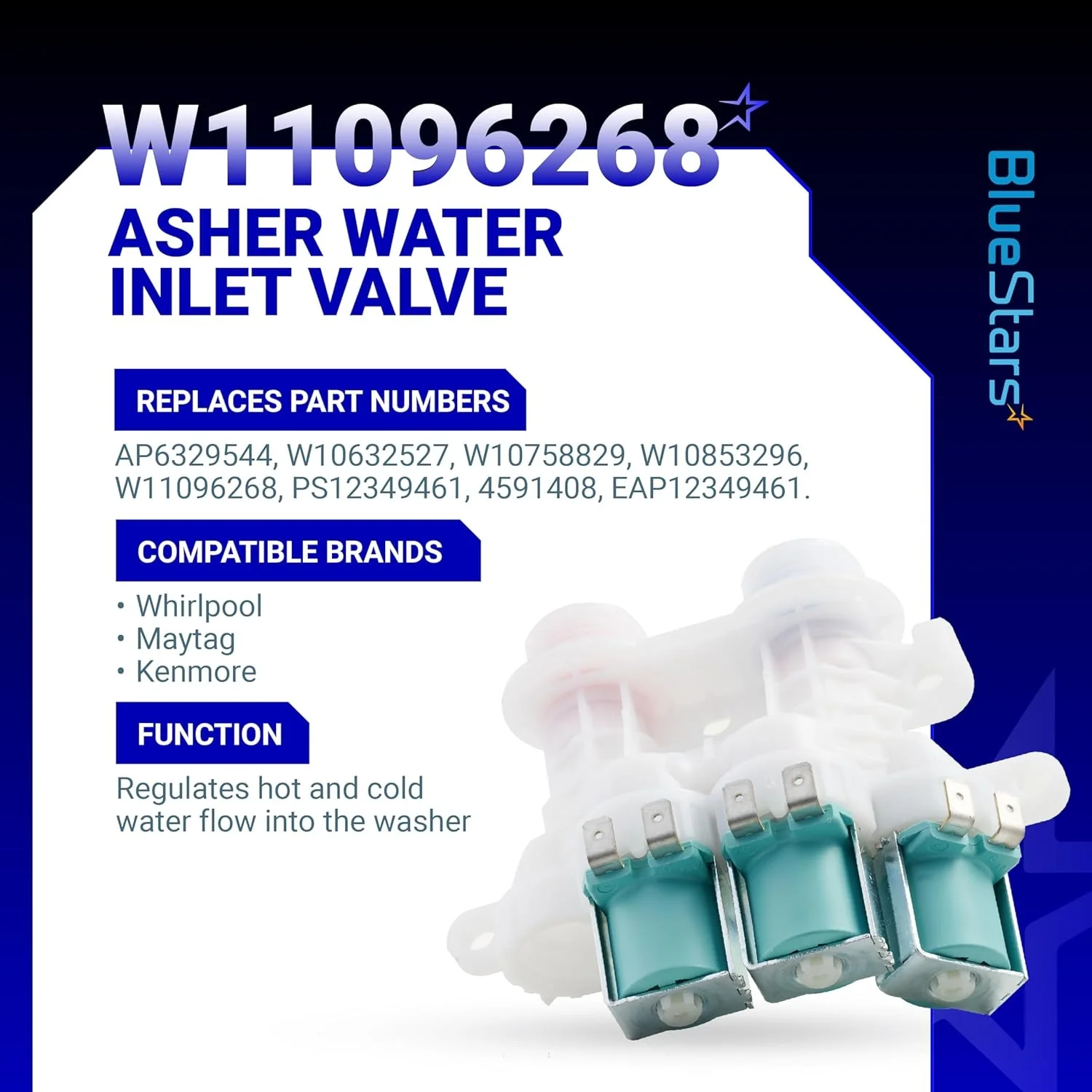

W11096268 / W11220230 Washer Water Inlet Valve
Key Features
- Controls the flow of hot and cold water into the washing machine.
- Features three solenoids for precise water temperature management.
- Electrical Specification: 120V, 60Hz.
- Approximate Dimensions: 4.3 in Height x 5.41 in Length.
Replaces / Cross-Reference Part Numbers
- W11220230
- W11096268
- W10853296
- W10758829
- W10632527
Compatibility & Fitment
- Designed for select washing machine models from brands including Whirlpool, Maytag, and Kenmore.
- Verify compatibility with your specific model number before ordering.
When to Replace
- Washer does not fill with water, or fills slowly.
- Water leaks from the valve body or hose connections.
- Washer fills with the incorrect water temperature.
- Washer continues to fill with water when powered off.
- Loud humming or buzzing noise is present during the fill cycle.
Installation Tips
- Disconnect the washer from both power and water supplies before beginning installation.
- Place towels under the work area to catch any residual water from hoses.
- Inspect and clean the filter screens in the water inlet hoses.
- Ensure all hose connections are hand-tightened, then turned an additional quarter-turn with pliers to prevent leaks.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
