W10648041 WPW10648041 Dishwasher Water Inlet Valve with Brass Elbow Kit

Key Features

• Precision Solenoid Actuation: Engineered with an upgraded electromagnetic coil that provides instant response to control board signals, ensuring the exact water volume is dispensed for every wash cycle to maintain optimal cleaning performance.

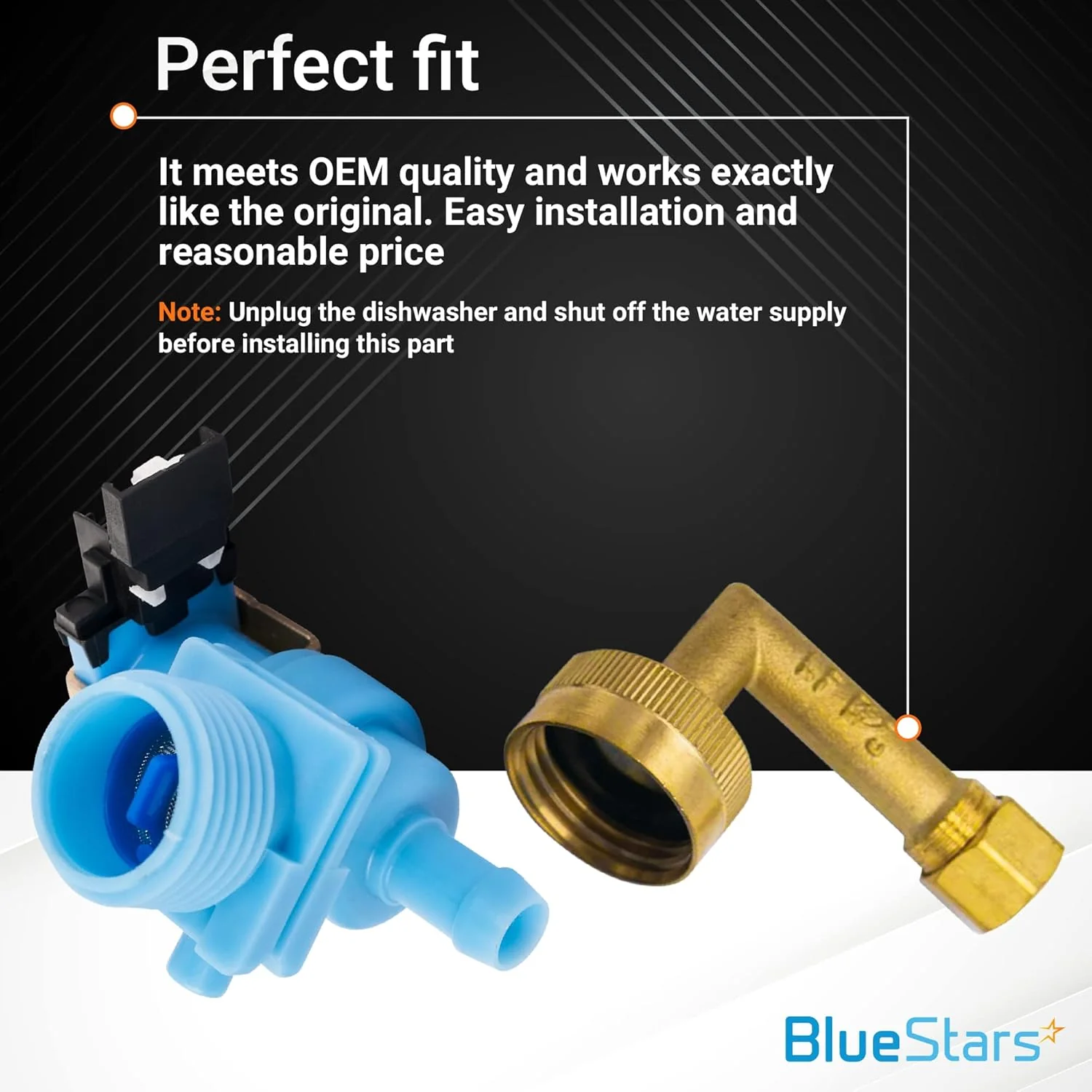

• 90-Degree Brass Elbow Fitting: Includes a high-durability, lead-free brass elbow fitting (3/4-inch GHT to 1/4-inch compression) designed for a secure, leak-proof connection to standard household water supply lines.

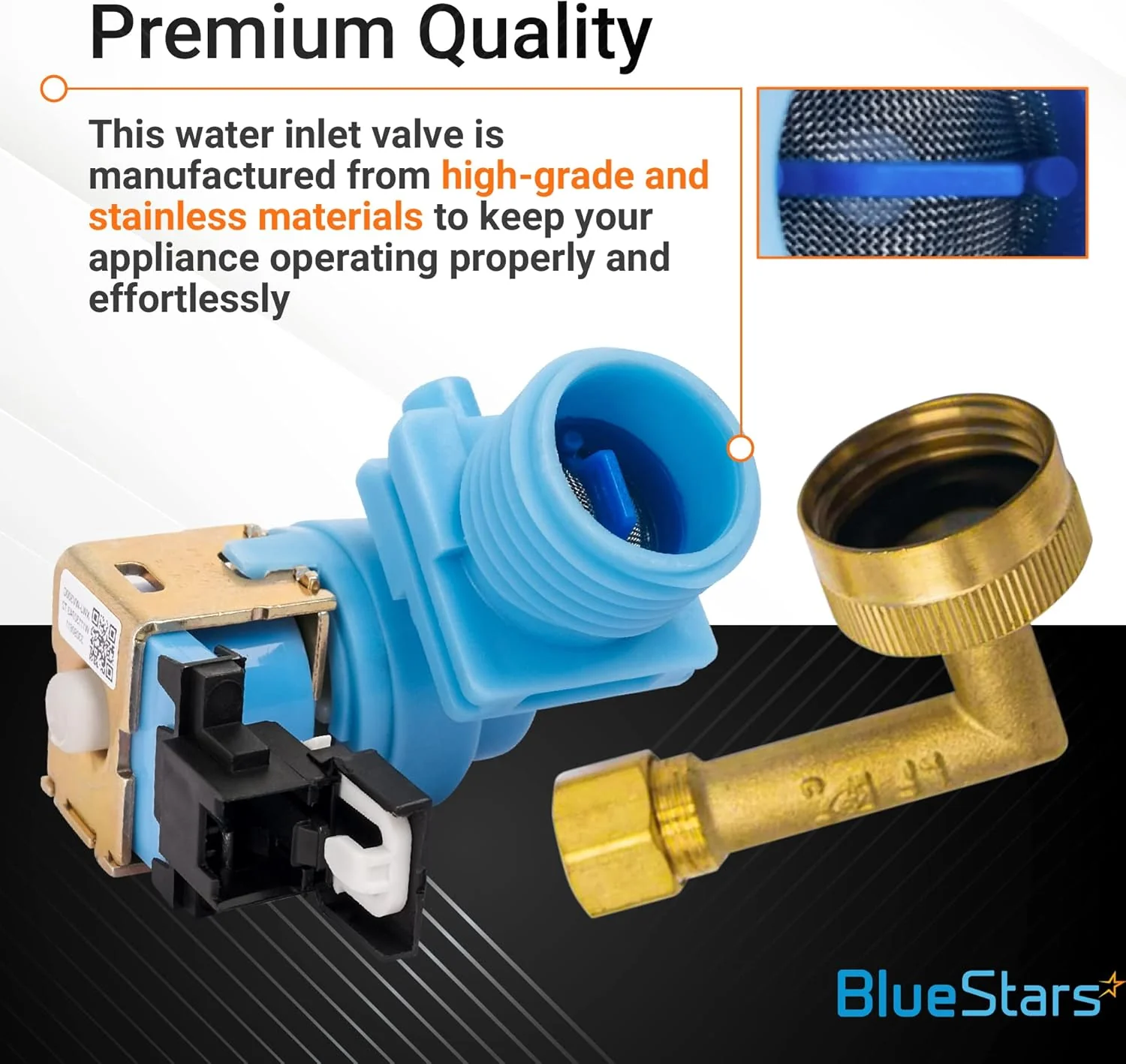

• Integrated Fine-Mesh Sediment Filter: Features a built-in stainless steel screen that captures sand, mineral scale, and pipe debris before they can enter the dishwasher's internal pumps or clog the delicate spray arm nozzles.
• Anti-Hammer Flow Control: Internally baffled to minimize "water hammer" noise and vibration when the valve shuts off, protecting your home's internal plumbing and ensuring a quieter kitchen environment.

Replaces / Cross-Reference Part Numbers

• Primary Part: W10648041, WPW10648041.
• Industry Standards: AP5802887, PS8760080, EAP8760080.
• Legacy Cross-Reference: W10195048, W10219505, W10563806, 3282294.

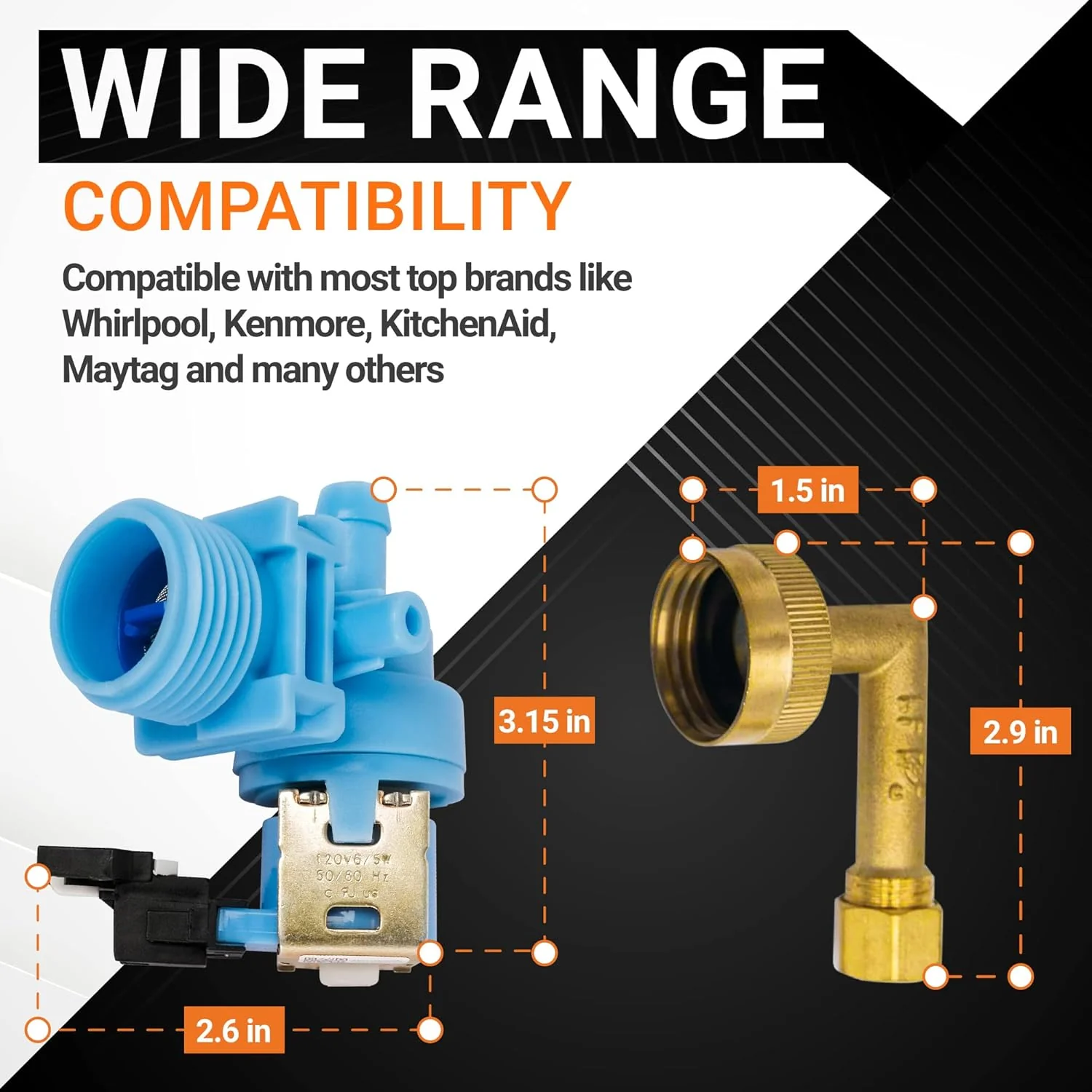

Compatibility & Fitment

This water inlet valve is the standard replacement for most Whirlpool-manufactured dishwashers produced over the last 15 years. Key compatible brands include:

• Whirlpool & Maytag: Fits hundreds of WDT, WDF, and MDB series models (e.g., WDT720PADM, MDB4949SHZ, WDF520PADM).
• KitchenAid & Jenn-Air: Compatible with various KDTM, KDTE, and JDB series high-end units (e.g., KDTE104ESS, KUDC10FXSS).
• Kenmore (665 Series): Fits many 665-prefix "Elite" and standard dishwashers produced for Sears (e.g., 665.13263K311, 665.13282K113).
• Amana, Roper, & Estate: Direct fit for ADB and DU series models utilizing the W10648041 valve style.
• Note: This valve is typically located behind the lower kickplate at the bottom front-left of the dishwasher.

When to Replace

• Dishwasher Not Filling: The cycle starts and the drain pump runs, but the tub remains dry because the valve is stuck closed or the solenoid has failed electrically.
• Water Leaking into Tub: You find standing water at the bottom of the dishwasher when it is turned off, indicating the internal diaphragm is no longer sealing completely.
• "F8 E1" or "i10" Error Codes: Modern Whirlpool dishwashers display these codes when the control board senses a "Low Water" or "Slow Fill" condition.
• Loud Buzzing During Fill: A loud mechanical hum when the machine tries to take in water suggests the solenoid coil is failing or the internal valve stem is jammed with mineral scale.
• Poor Cleaning Results: If the valve's internal screen is partially clogged, the dishwasher won't fill with enough water to maintain full spray arm pressure.

Installation Tips

• Safety First: You MUST unplug the dishwasher and turn off the water supply valve under the sink before beginning this repair.
• Access the Valve: Remove the lower kickplate (toe kick) at the bottom front. The valve is usually mounted to the left side of the frame with one or two hex-head screws.
• Use Plumber's Tape: Apply a small amount of Teflon tape to the brass elbow threads to ensure a watertight seal, but keep the tape away from the very tip of the fitting to prevent it from entering the valve.
• Check the Clamp: When moving the internal rubber hose to the new valve, ensure the spring clamp is positioned securely behind the barb to prevent the hose from blowing off under pressure.
• Leak Test: After installation, turn the water back on and run a "Rinse" cycle before reinstalling the kickplate to verify there are no drips at the threaded connection or the outlet hose.
