W10613606 Refrigerator Compressor Start Relay and Capacitor - Pack of 2

Key Features

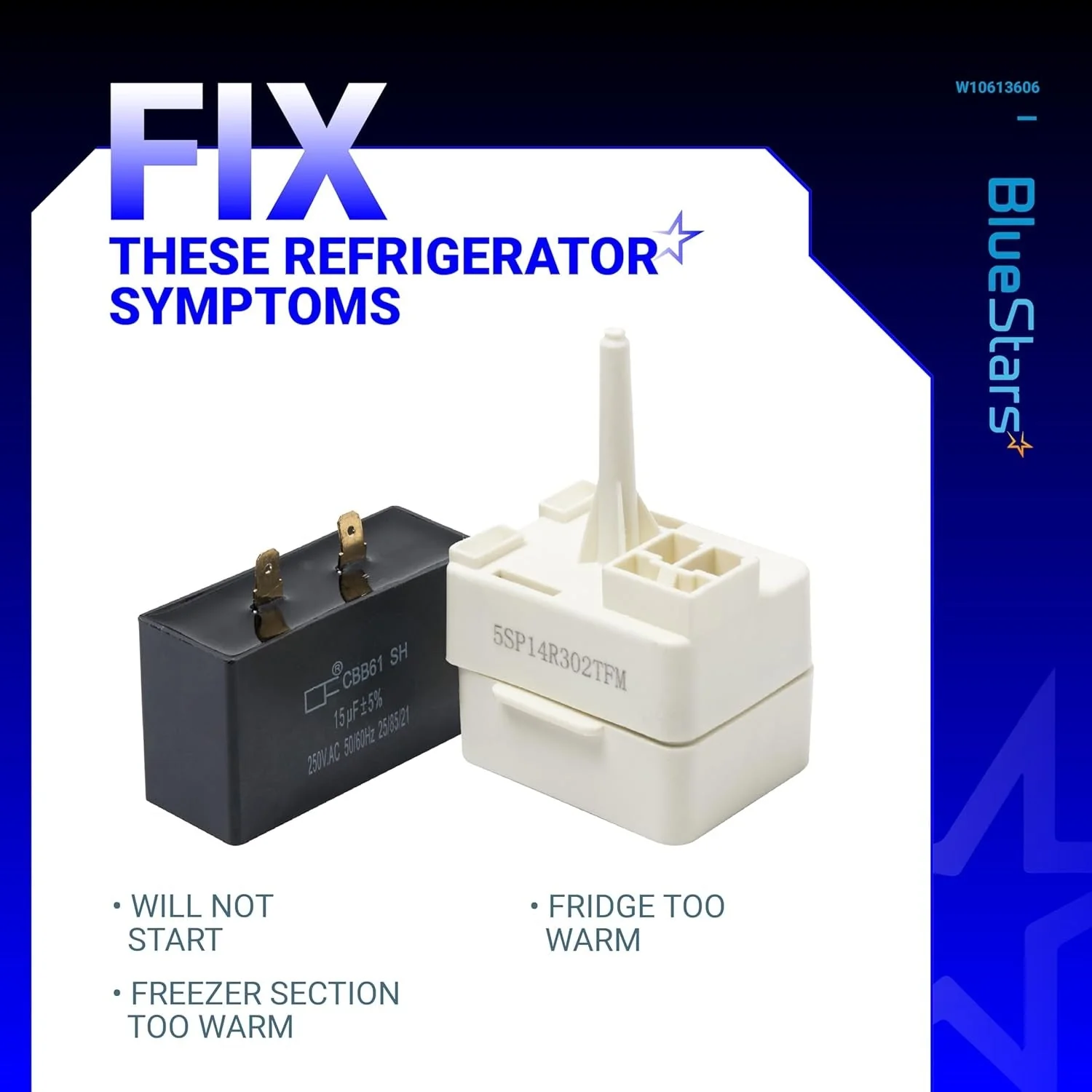

• Dual-Component Start System: Integrates a high-torque start relay and a run capacitor into a single assembly to provide the electrical "kick" necessary to engage the compressor motor.
• Integrated Overload Protection: Features an internal bi-metal thermal disc that automatically cuts power if the compressor draws excessive current or overheats, preventing expensive motor burnout.
• Efficient Power Management: The included capacitor helps improve the motor's power factor and running efficiency, reducing electrical consumption during the cooling cycle.
• High-Conductivity 3-Pin Interface: Designed with a precision 3-pin plug that mounts directly onto the compressor's terminals (Common, Start, and Run), ensuring a secure, vibration-resistant connection.

Replaces / Cross-Reference Part Numbers

• Primary Part Number: W10613606.
• Cross-References: W10416065, 67003186, 67005561, 67005562, 8208290, 8208309, PS8746522, AP5802318.
• Manufacturer Equivalents: EAP8746522, PD00007141.

Compatibility & Fitment

This relay and capacitor kit is used across many brands manufactured by Whirlpool Corporation. Key compatible models include:

• Whirlpool & Kenmore: Fits hundreds of 106-prefix and 596-prefix models, as well as the Gold and Resource Saver series.
• KitchenAid: Compatible with many built-in and freestanding French door units (e.g., KFIS, KFCS, KBFS series).
• Maytag & Amana: Fits various MFD, MFF, and AFD series refrigerators produced after the Whirlpool integration.
• Jenn-Air & Estate: Direct fit for premium Jenn-Air models and value-tier Estate refrigerators utilizing the standard 3-pin compressor terminal.

When to Replace

• The "Click-Buzz-Click" Sound: The most common symptom; you hear a loud click from the back of the fridge followed by a 5-second hum (buzz), then another click as the overload trips.
• Refrigerator Not Cooling: The fans are running and the lights are on, but the compressor is cold and silent, resulting in warm temperatures in both compartments.
• Continuity Failure: Testing the relay with a multimeter across the main terminals shows "Open" (no beep), indicating the internal ceramic disk has shattered.
• Visible Capacitor Damage: The capacitor body appears bulged, leaking fluid, or shows burn marks at the terminal connections.
• Warm Fridge, Cold Freezer: In early stages of failure, the compressor may struggle to start intermittently, leading to inconsistent temperatures.

Installation Tips

• Safety First: CRITICAL: Unplug the refrigerator before touching the compressor area. Capacitors can hold a lethal electrical charge even when the power is off; discharge the capacitor by touching a screwdriver across its terminals before handling.
• Clean the Terminals: PRO TIP: Use a small piece of sandpaper or a wire brush to clean the three metal pins on the compressor before plugging in the new relay. Oxidation on these pins is a common cause of high resistance and premature relay failure.
• Orientation Matters: Most of these relays are designed to be installed with the "3-pin" side facing the compressor. Ensure the pins line up perfectly before pressing firmly; forcing the relay can bend the compressor terminals.
• Check the Compressor: Before installing, test the compressor pins for "shorts to ground." If the compressor winding is grounded, the new relay will blow instantly.
• The "Shake" Test: Gently shake your old relay. If it sounds like a box of broken glass (rattling), the internal ceramic PTC disc has failed, confirming the need for replacement.
