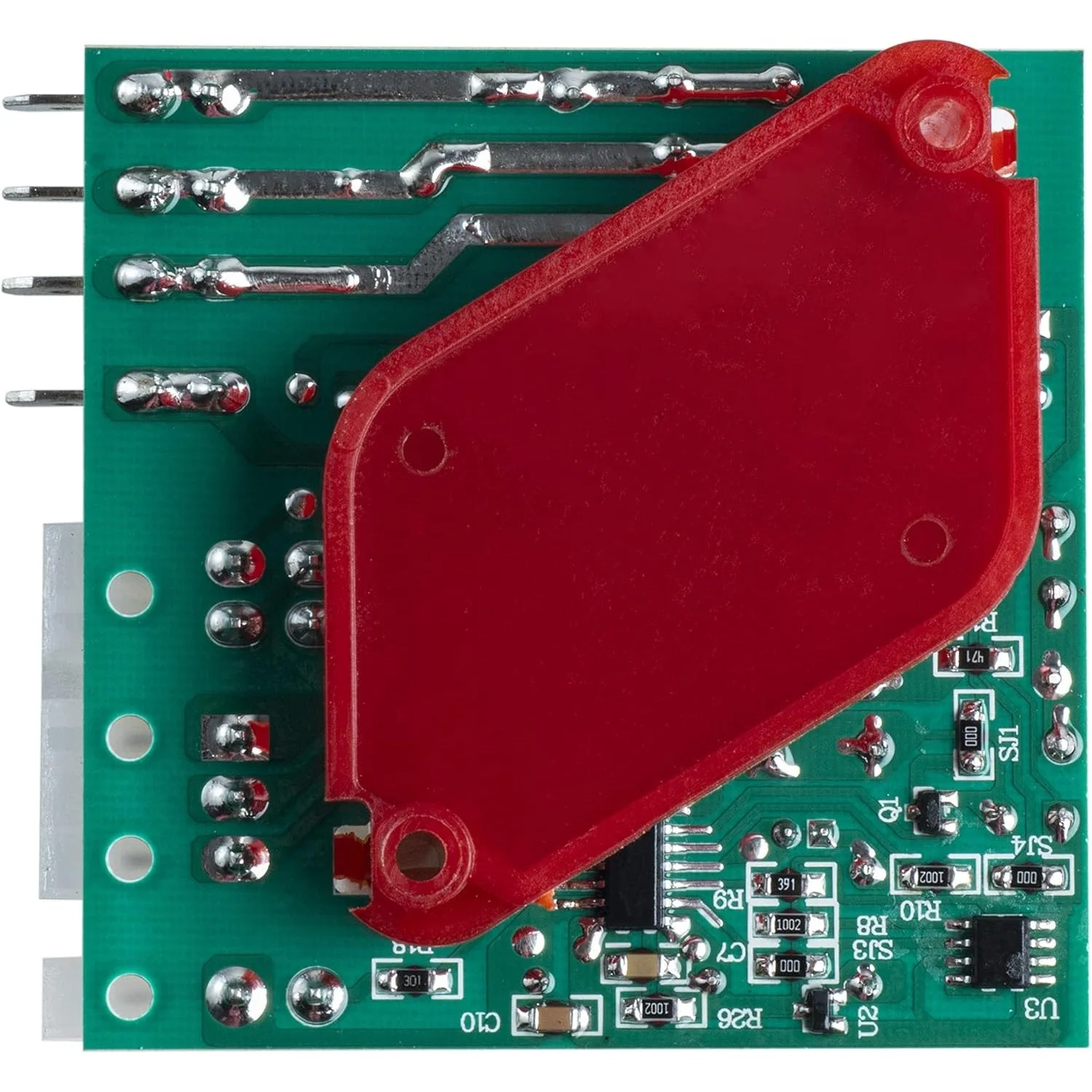

W10366605 Refrigerator Adaptive Defrost Control (ADC) Board

Key Features

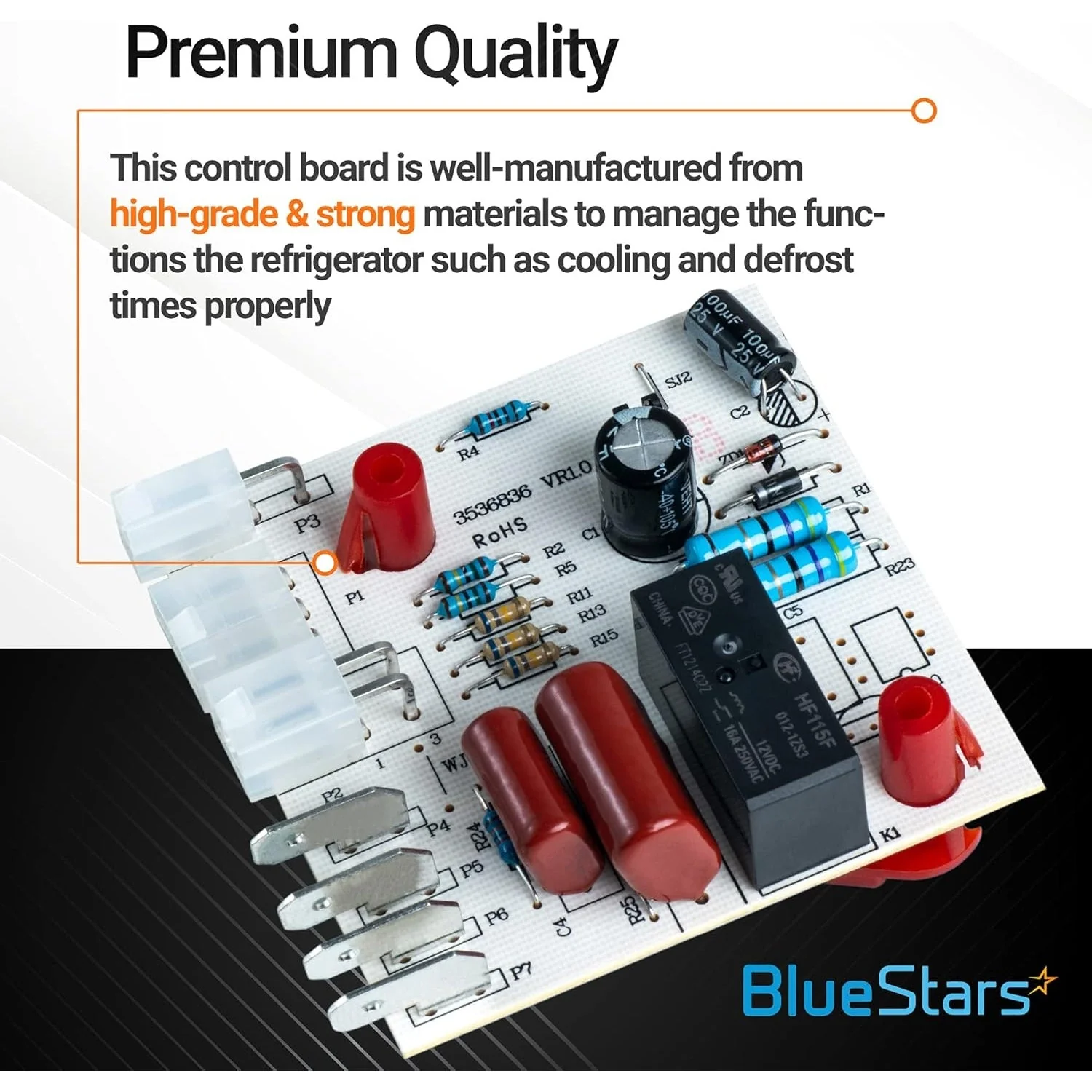

• Adaptive Defrost Logic: Features an intelligent micro-controller that monitors compressor run-time and door opening frequency to automatically adjust the interval between defrost cycles, maximizing energy efficiency.
• Precision Relay Switching: Equipped with a heavy-duty 120V relay that provides reliable power switching to the defrost heater, ensuring complete ice removal from the evaporator coils.
• Low-Power Design: Manufactured with high-grade electrical components that draw minimal idle power, helping to lower the overall energy consumption of the appliance.
• Enhanced Circuit Protection: Includes integrated surge protection to shield the delicate control logic from electrical spikes common in residential power grids.

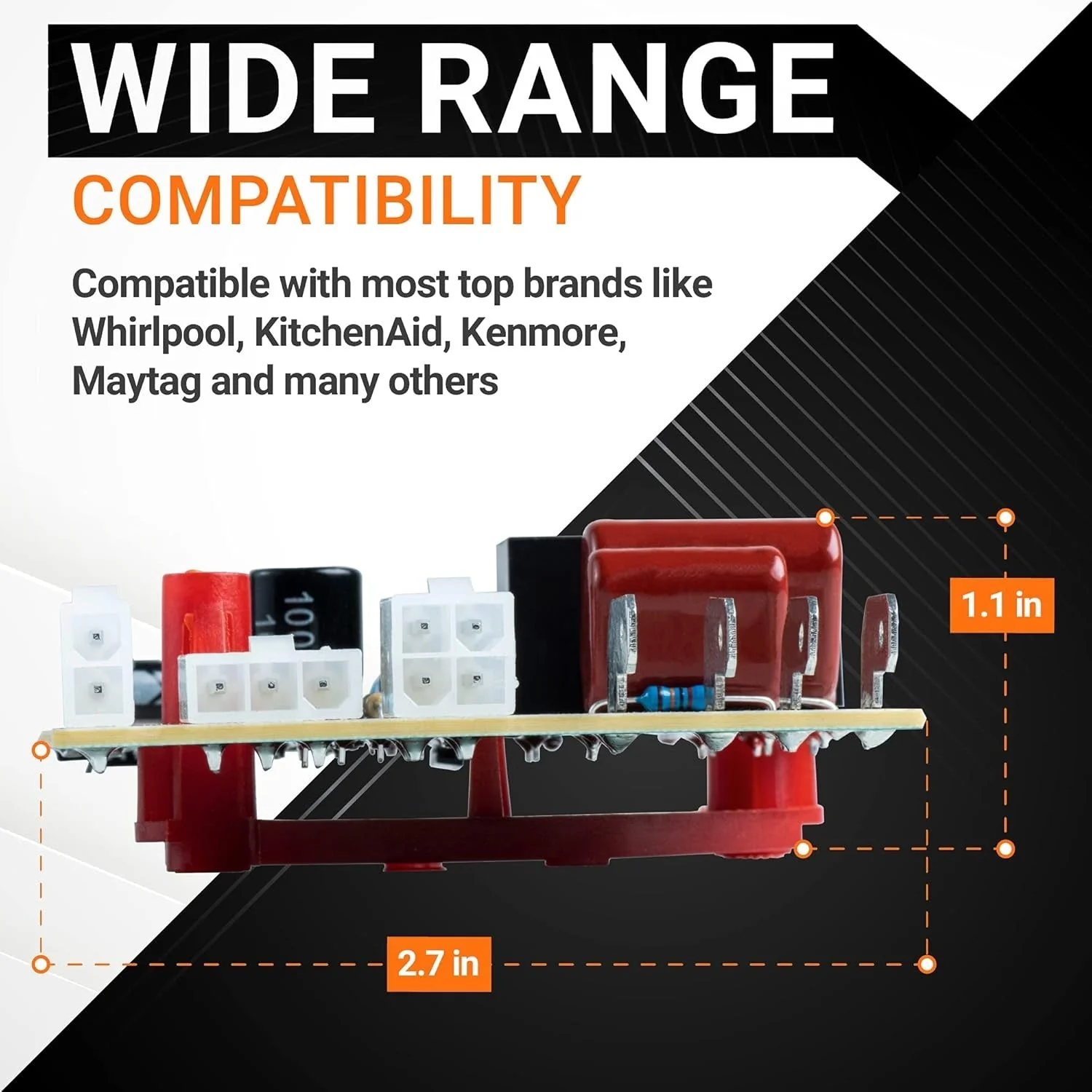

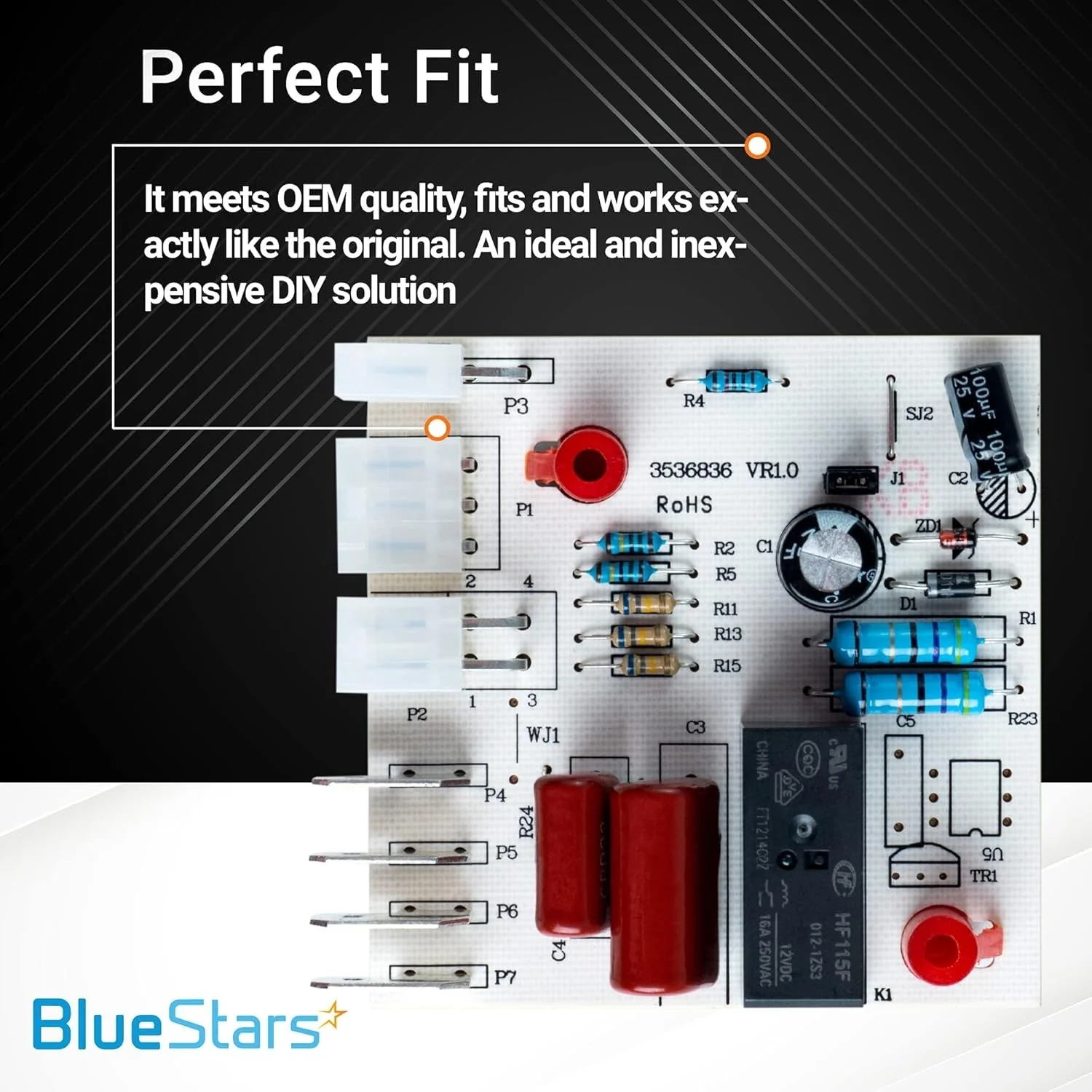

• Direct Plug-and-Play Installation: Designed with a standardized pin-connector layout that matches the factory wiring harness, allowing for a fast and secure connection without wire splicing.

Replaces / Cross-Reference Part Numbers

• Primary Part Number: W10366605.
• Cross-References: AP6020483, W10135899, 2252150, 2304099, 2303820, 2195205, 2195202, 2200368, 2213456, 2213457, 2213473.
• Industry Standard Codes: PS11753802, EAP11753802, 1878841.

Compatibility & Fitment

This control board is used extensively in Whirlpool-manufactured refrigerators. Key compatible brands include:

• Whirlpool & Kenmore: Fits a vast range of 106-prefix and 253-prefix models, as well as the popular Gold, Resource Saver, and ED5/GD5 series.
• Maytag: Compatible with various MZD and MSD series side-by-side refrigerators produced after the Whirlpool merger.
• KitchenAid & Amana: Direct fit for premium KitchenAid units and value-tier Amana refrigerators utilizing mechanical or early electronic defrost systems.
• Additional Brands: Fits specific models from Estate, Roper, Crosley, and Inglis.
• Note: This board is typically located inside the control console housing on the ceiling of the refrigerator compartment. Some installations may require you to transfer the board from its original plastic housing into the new one.

When to Replace

• Ice Buildup on Freezer Back Wall: The most common sign; the board is failing to trigger the defrost heater, causing frost to accumulate and eventually block the airflow.
• Fridge Section is Warm: When the evaporator coils are frozen solid, cold air cannot be moved into the fresh food compartment by the fan.
• Compressor Runs Constantly: Because the coils are insulated by ice, the refrigerator struggles to reach the set temperature, forcing the compressor to run without stopping.
• Audible Clicking Noises: A failing relay on the board may click repeatedly without successfully turning on the defrost heater.
• Water Leaking Inside: In some cases, erratic defrost cycles can cause the defrost drain to freeze over, leading to water pooling at the bottom of the fridge.

Installation Tips

• Safety First: CRITICAL: Disconnect the refrigerator from the power source before starting. This board is connected directly to line voltage.
• Access the Console: PRO TIP: Remove the screws holding the plastic control console to the ceiling of the refrigerator. Be careful as you lower it; the wiring harnesses for the lights and temperature controls are still attached.
• Discharge Static: Touch a grounded metal object before handling the new board. Static electricity can damage the sensitive microchips on the W10366605.
• The "Test" Mode: Many of these boards have two small metal pads or pins labeled "Test." After installation, you can jump these pins briefly with a screwdriver to force the fridge into an immediate defrost cycle to verify the repair.
• Check the Heater & Thermostat: Before closing the console, it is wise to test the defrost heater and defrost thermostat (bi-metal) for continuity. If those parts are blown, the new control board will not solve the ice problem.
