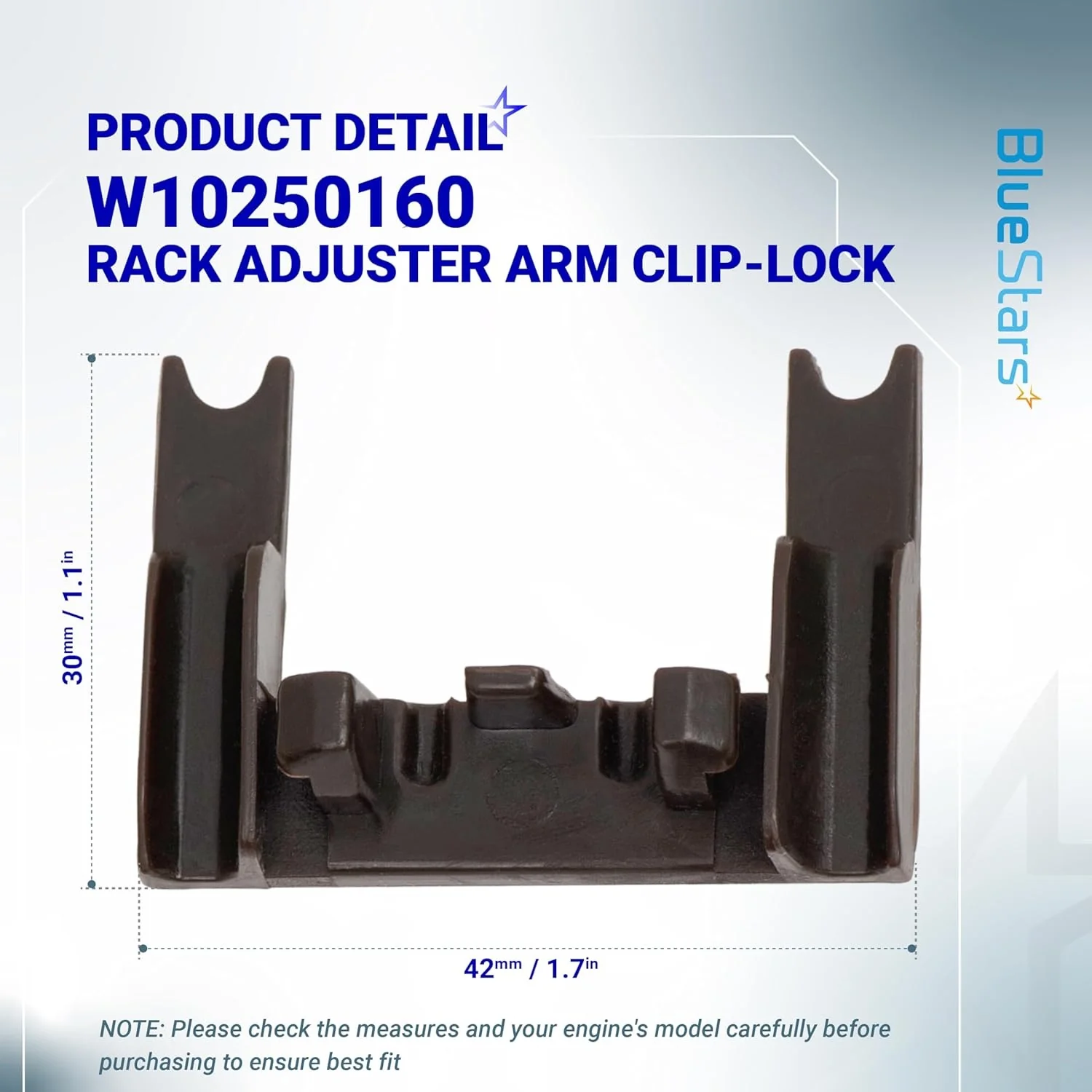

W10250160 WPW10250160 Upper Rack Adjuster Clip-Lock - Pack of 2

Key Features

• High-Temperature Structural Polymer: Manufactured from a specialized, reinforced plastic designed to endure the intense thermal stress of "Sani-Rinse" and "Heated Dry" cycles without warping or becoming brittle over time.
• Dual-Tab Snap-Lock Mechanism: Features an upgraded locking interface designed to snap securely onto the upper rack adjuster housing, preventing the rack from accidentally dropping or becoming unseated during heavy loads.
• Detergent-Resistant Construction: 100% rust-proof and resistant to the caustic enzymes and chemicals found in modern dishwasher detergent pods and rinse aids.
• Complete 2-Piece Maintenance Set: This value pack allows for the simultaneous replacement of both the left and right side clip-locks, restoring the level balance and structural integrity of your upper dish rack.

Replaces / Cross-Reference Part Numbers

• Primary Parts: W10250160, WPW10250160, WPW10250160VP.
• Industry Standards: PS11751100.

Compatibility & Fitment

This clip-lock is the standard replacement for the upper rack adjuster assembly on modern Whirlpool-manufactured dishwashers. Key compatible brands include:

• Whirlpool & Maytag: Fits many WDT, WDF, and MDB series models (e.g., WDT720PADM, MDB4949SHZ).
• KitchenAid & Jenn-Air: Compatible with various KDTM, KDTE, and JDT series units (e.g., KDTE104ESS, KUDC10FXSS).
• Kenmore (665 Series): Fits hundreds of 665-prefix "Elite" and standard dishwashers produced for Sears (e.g., 665.13263K311).
• Amana & Estate: Direct fit for dozens of ADB and DU series models utilizing the W10250160 clip style.
• Note: Specifically for the **Upper Rack Adjuster**. These clips hold the adjuster housing to the rack; they are not the wheels that roll in the tracks.

When to Replace

• Upper Rack Dropping: One side of the upper rack suddenly falls or "slumps" because the clip-lock has snapped, causing the rack to detach from the adjuster.
• Rack Won't Adjust: The height adjustment mechanism feels loose or wobbly, often indicating the plastic tabs on the clip-lock have worn down or broken.
• Visible Heat Damage: The grey plastic looks "whitened" or has visible stress fractures from long-term exposure to the dishwasher's heating element.
• Missing Clips: Clips have popped off during a cycle and were lost or melted against the dishwasher tub floor.
• Unbalanced Loading: The upper rack sits at an angle, making it difficult to load tall glasses or causing the middle spray arm to hit the dishes below.

Installation Tips

• No Tools Required: This is a simple "snap-on" repair. Pull the upper dish rack out completely to access the adjuster housing on the side of the rack.
• Removing the Old Clip: If the old clip is still attached, use your fingers or a small flat-head screwdriver to gently pry the locking tabs away from the housing. Be careful not to crack the main adjuster body.
• Alignment: Ensure the upper rack is at the desired height. Align the new W10250160 clip with the mounting slots on the adjuster housing.
• The "Click" Test: Press the clip firmly until you hear a distinct "click" from both locking tabs. This ensures the rack is securely anchored to the adjuster.
• Check the Other Side: Since these clips are sold in a 2-pack and usually wear at the same rate, it is recommended to replace both sides even if only one is currently broken.
