W10006384 Washer Drive Belt

Key Features

• Function: Connects the drive motor to the splutch pulley assembly.
• Location: Installs on the underside of the washing machine.
• Action: Enables the tub to spin and agitate.

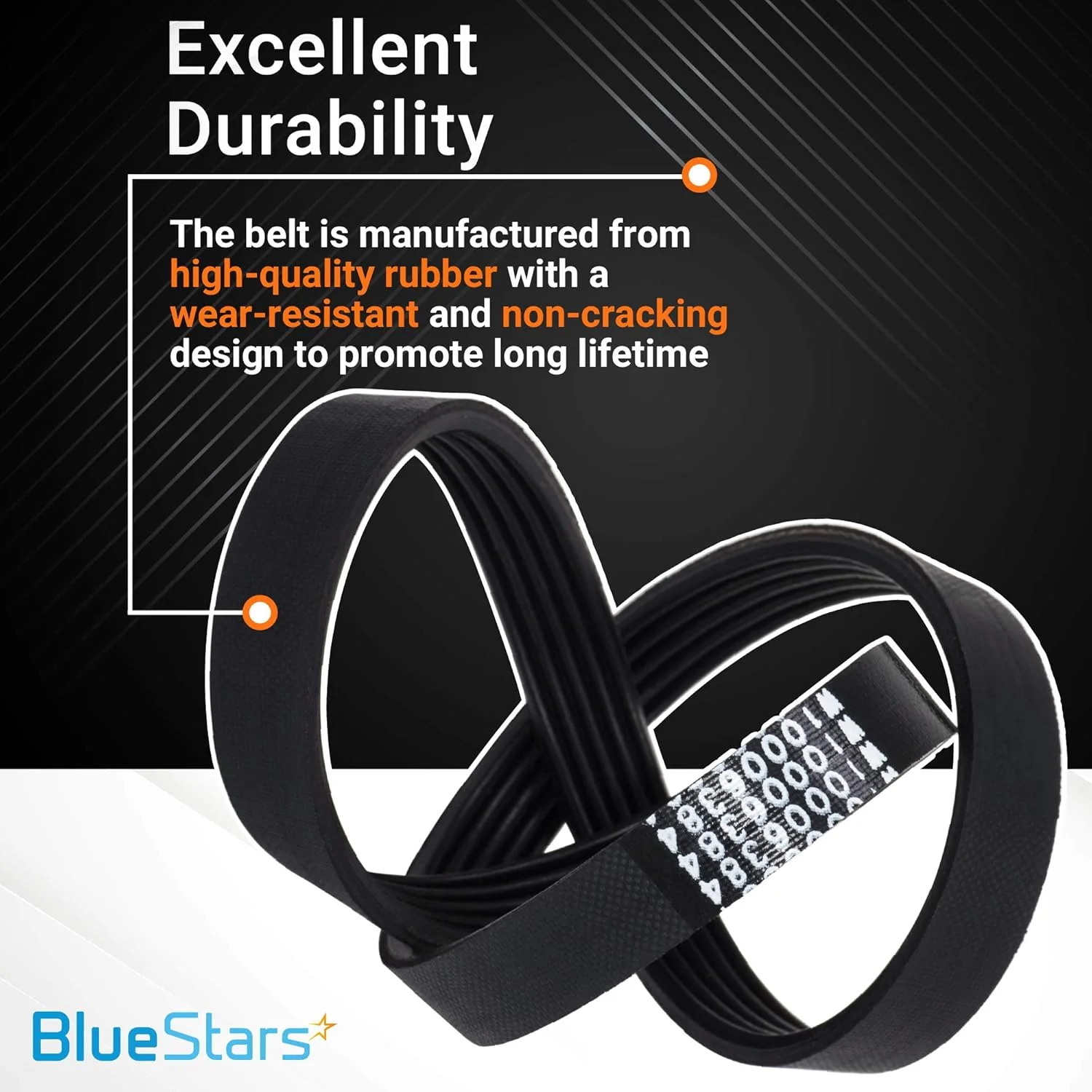

• Material: Composed of durable, flexible rubber composite for longevity.

Replaces / Cross-Reference Part Numbers

• WPW10006384
• W10006384VP
• AP6014712
• PS11747978
• EAP11747978

Compatibility & Fitment

• Fits select top-load washing machines, primarily "Vertical Modular Washer" models manufactured from 2009 to present.
• Compatible with specific models from brands including Whirlpool, Maytag, Kenmore, Amana, and Roper.
• Example model: Maytag MVWC555DW1

When to Replace

• The washer fails to agitate or spin, but the motor can be heard running.
• Loud squealing, thumping, or slapping noises occur during a cycle.
• A distinct burning rubber odor is present.
• The existing belt is visibly frayed, cracked, stretched, or broken.

Installation Tips

• Disconnect the washing machine from all power and water sources before servicing.
• Access the belt by carefully tilting the machine to expose the underside.
• Typical tools required: 5/16-inch nut driver, channel lock pliers, and tape.
• Route the new belt around the motor pulley and the large splutch pulley.

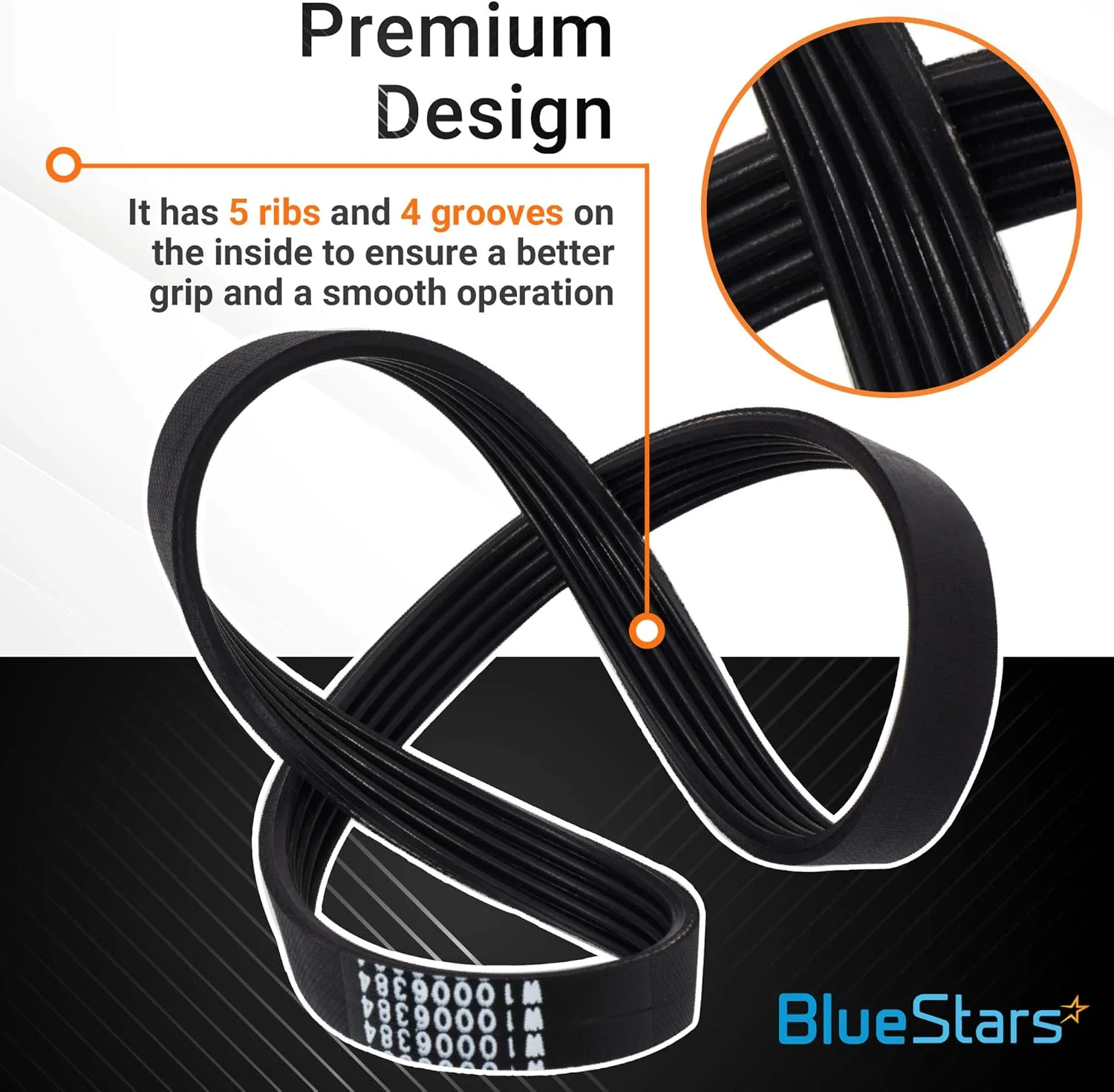

• Ensure the ribbed side of the belt correctly seats into the grooves of the motor pulley.
