[Lifetime Warranty] SRV7000-660 Igniter Replacement
SRV7000-660 Igniter Replacement

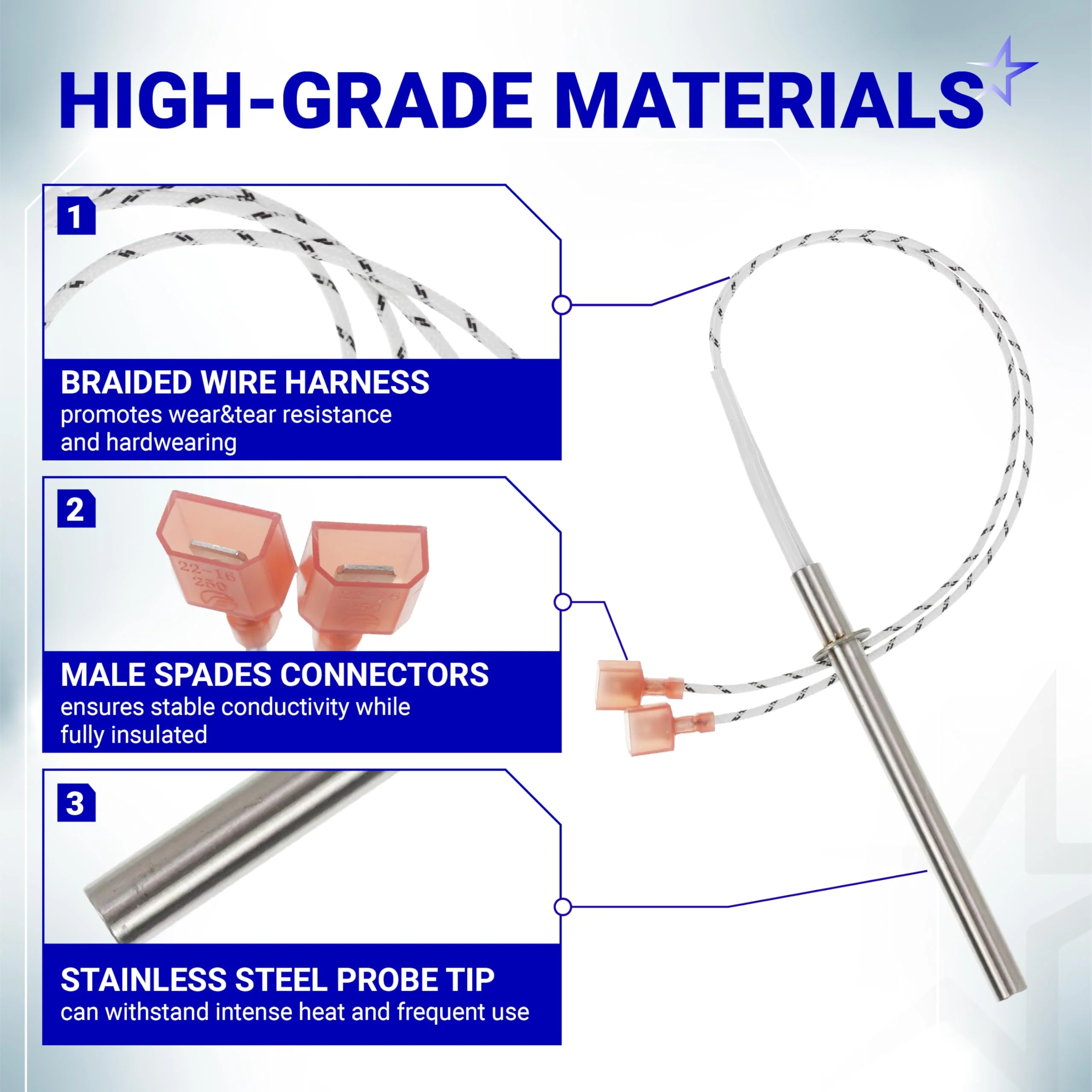

Key Features
- Voltage: 120V AC
- Power Rating: 300W
- Overall Length: 4 inches
- Connection Type: AMP style plug
- Sheath Material: 310S stainless steel
- Includes one igniter element and anti-seize compound
Replaces / Cross-Reference Part Numbers
- SRV7000-660
- SRV7000-660-AMP
- PH-660P
Compatibility & Fitment
-
PelPro Models:
- PP60
- PP70
- PP130
- PPC90
- TSC90
-
Pleasant Hearth Models:
- PH35PS
- PH50PS
- PH50CABPS
- PHC90
-
Quadra-Fire Models:
- Compatible with select stove models requiring this part number.
When to Replace
- Stove fails to automatically ignite pellets.
- Ignition cycle is significantly longer than normal.
- Visible damage, cracking, or swelling on the igniter element.
- The stove's control board indicates an ignition failure error.
Installation Tips
- Always disconnect the stove from the power source before beginning service.
- Allow the existing igniter and stove components to cool completely.
- Handle the new igniter carefully by the base to avoid contaminating the element with skin oils.
- Apply a small amount of the included anti-seize lubricant to the igniter tube threads for easier future removal.
- Ensure the wire connectors are fully seated and secure.
- Refer to your stove's service manual for model-specific instructions.
