[Lifetime Warranty] 12V 4-Terminal 117-1197 Starter Solenoid - Compatible with Exmark Toro TimeCutter SS5000 Z4200 SS4225 SS4235 Zero-Turn Lawn Mower 784-1221-210 104-3189 E513075 1-513075 212655 28-4210
12V 4-Terminal 117-1197 Starter Solenoid
Key Features
- Voltage: 12V DC
- Terminals: 4

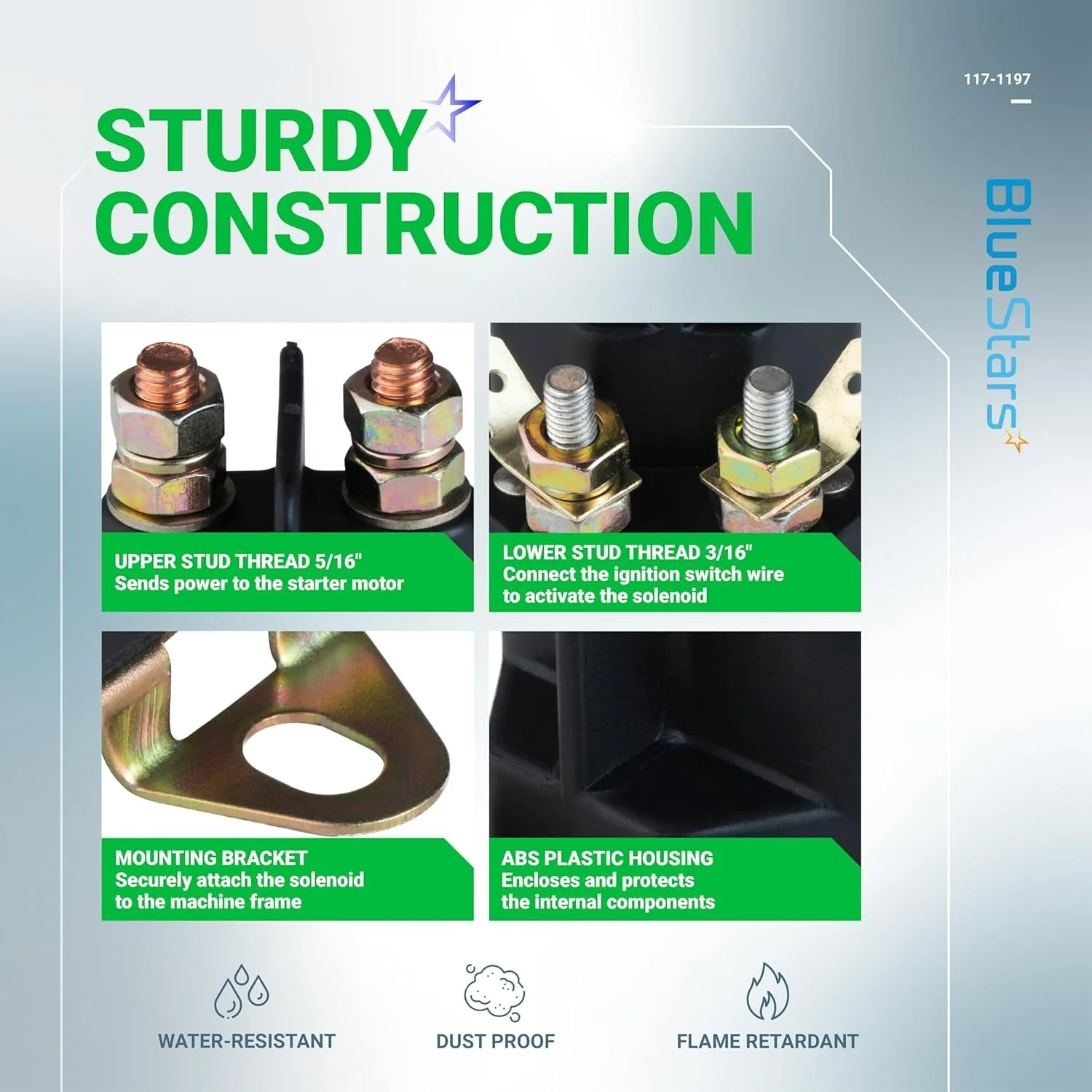

- Upper Stud Thread: 5/16 inch
- Lower Stud Thread: 3/16 inch

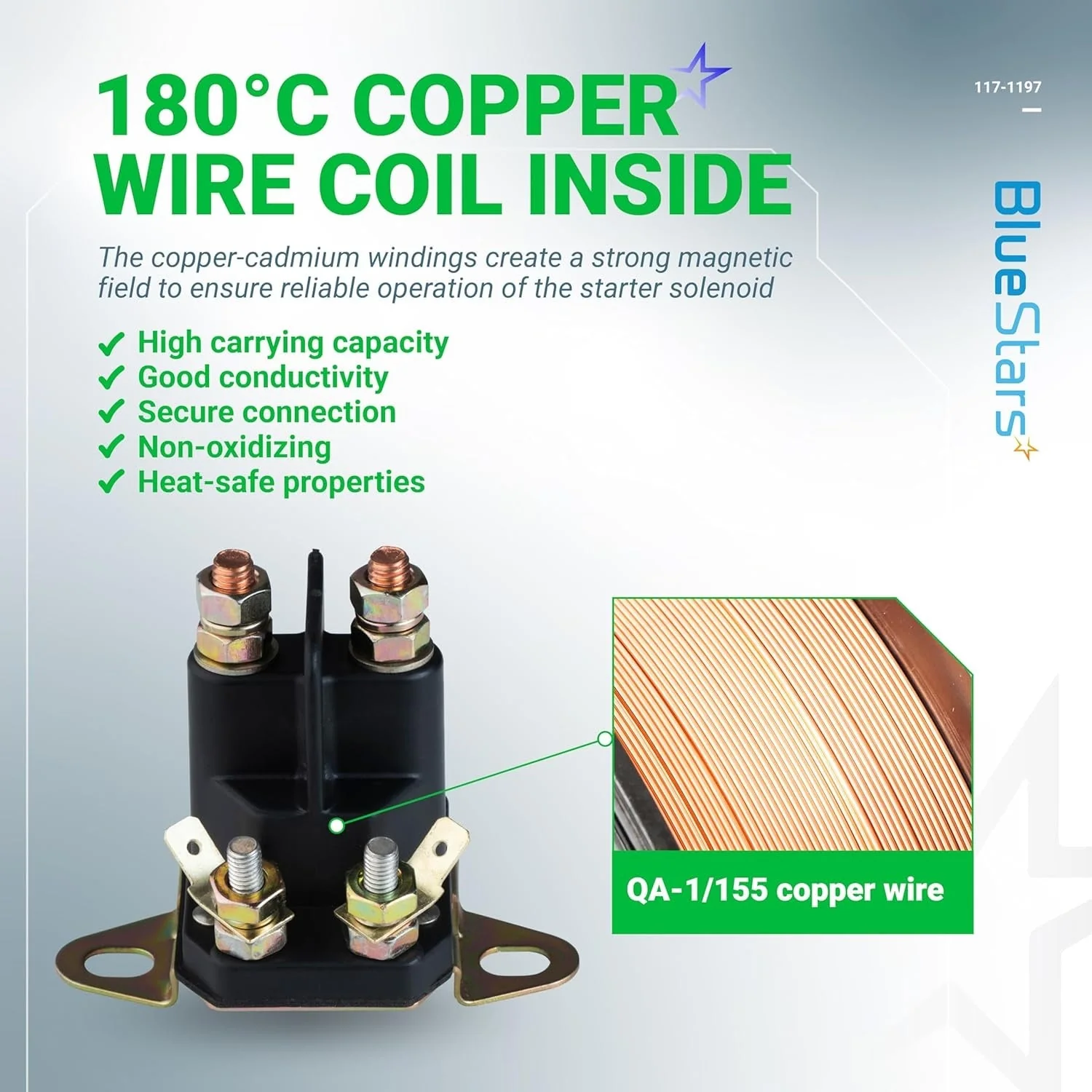

- Constructed with a brass coil and silver-plated contacts for electrical conductivity and corrosion resistance.
Replaces / Cross-Reference Part Numbers
- Toro: 117-1197

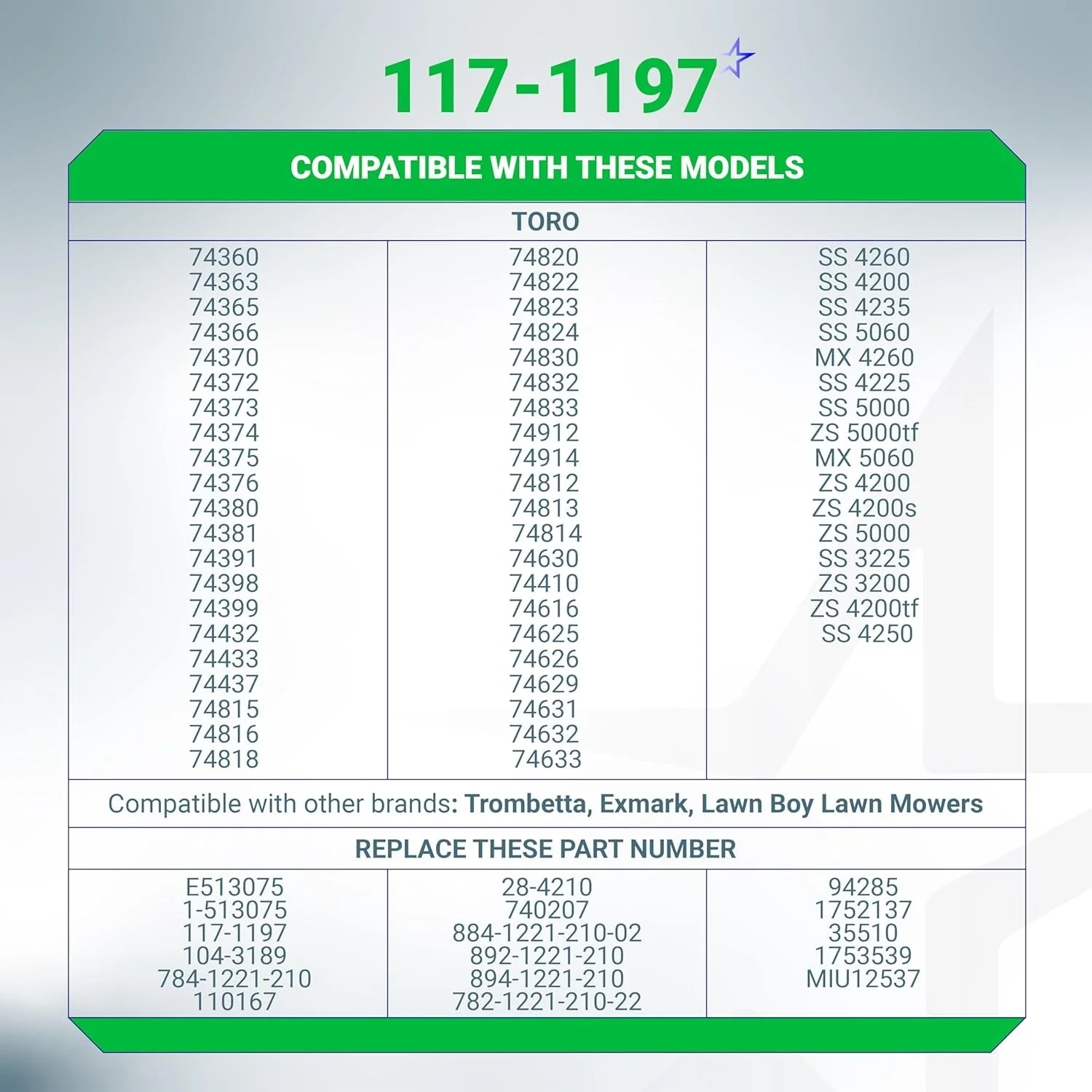

Compatibility & Fitment

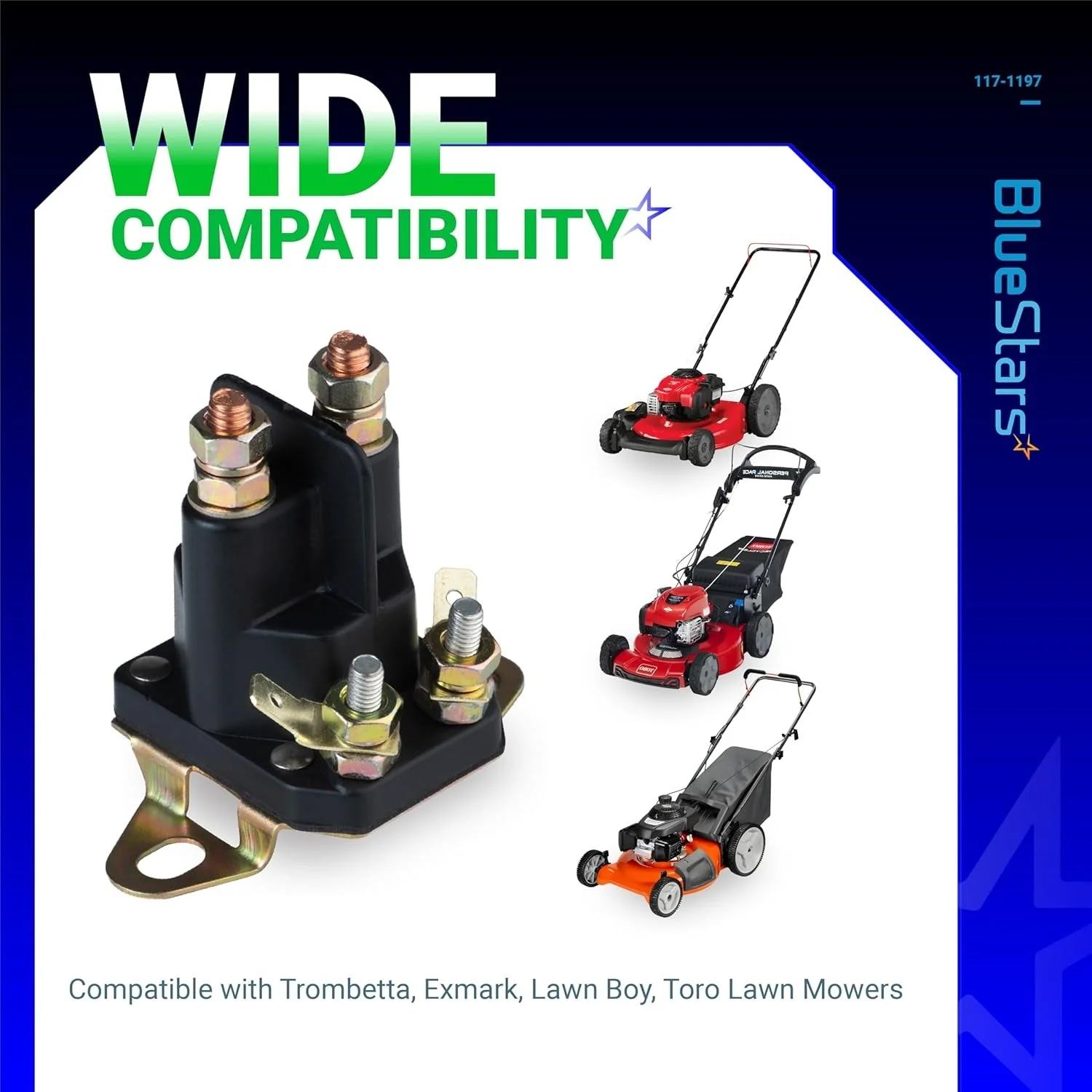

- Fits various models from brands including Toro, Exmark, and Lawn Boy.
-
Select Toro Models:
- TimeCutter: SS 4200, SS 4225, SS 4235, SS 4260, SS 5000, SS 5060, MX 4260
- Titan
- GrandStand
- Commercial Walk-Behind Mowers
When to Replace
- Engine does not crank when the ignition key is turned.
- An audible clicking sound is heard from the solenoid, but the starter does not engage.
- Starter motor continues to run after the ignition key is released.
- Intermittent starting problems.

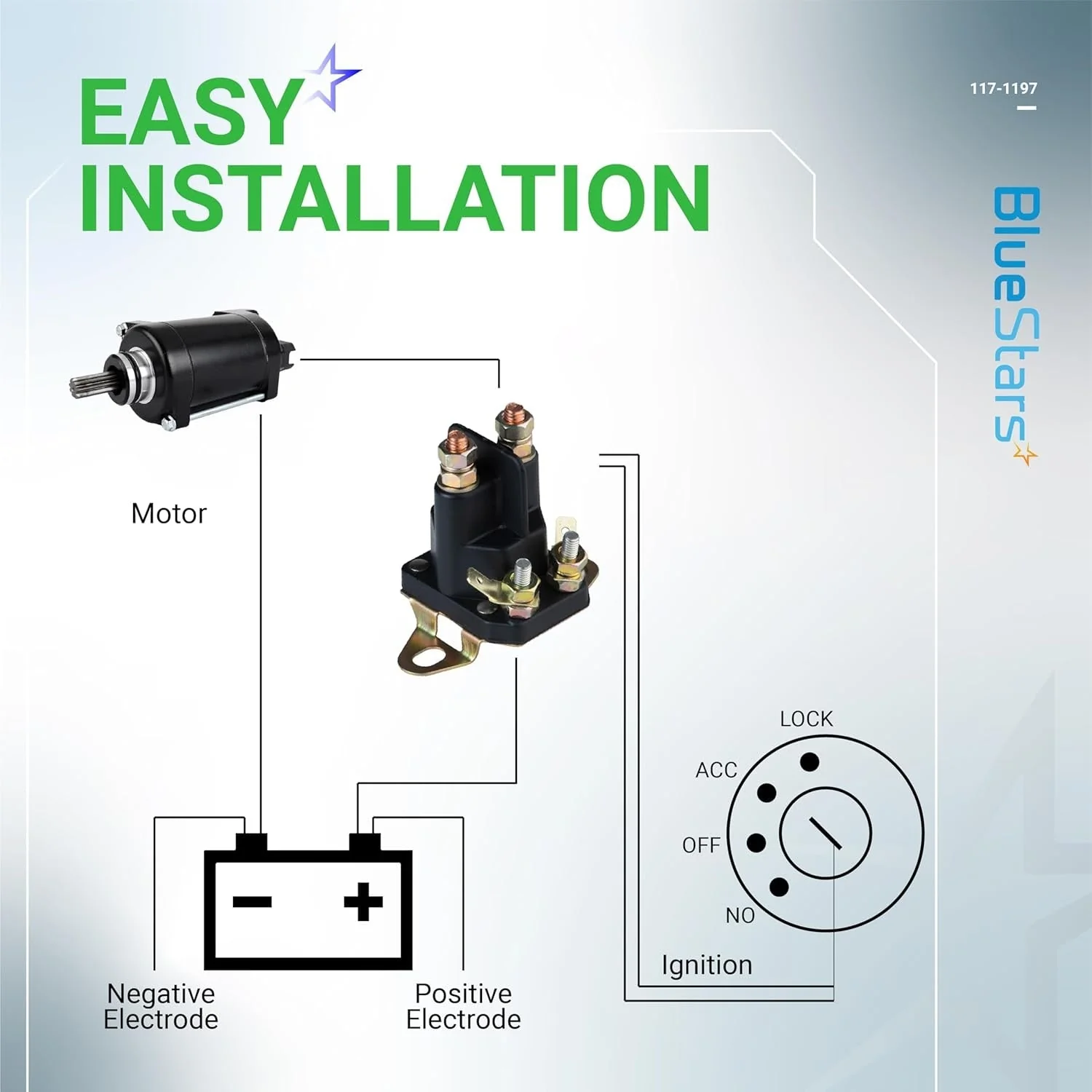

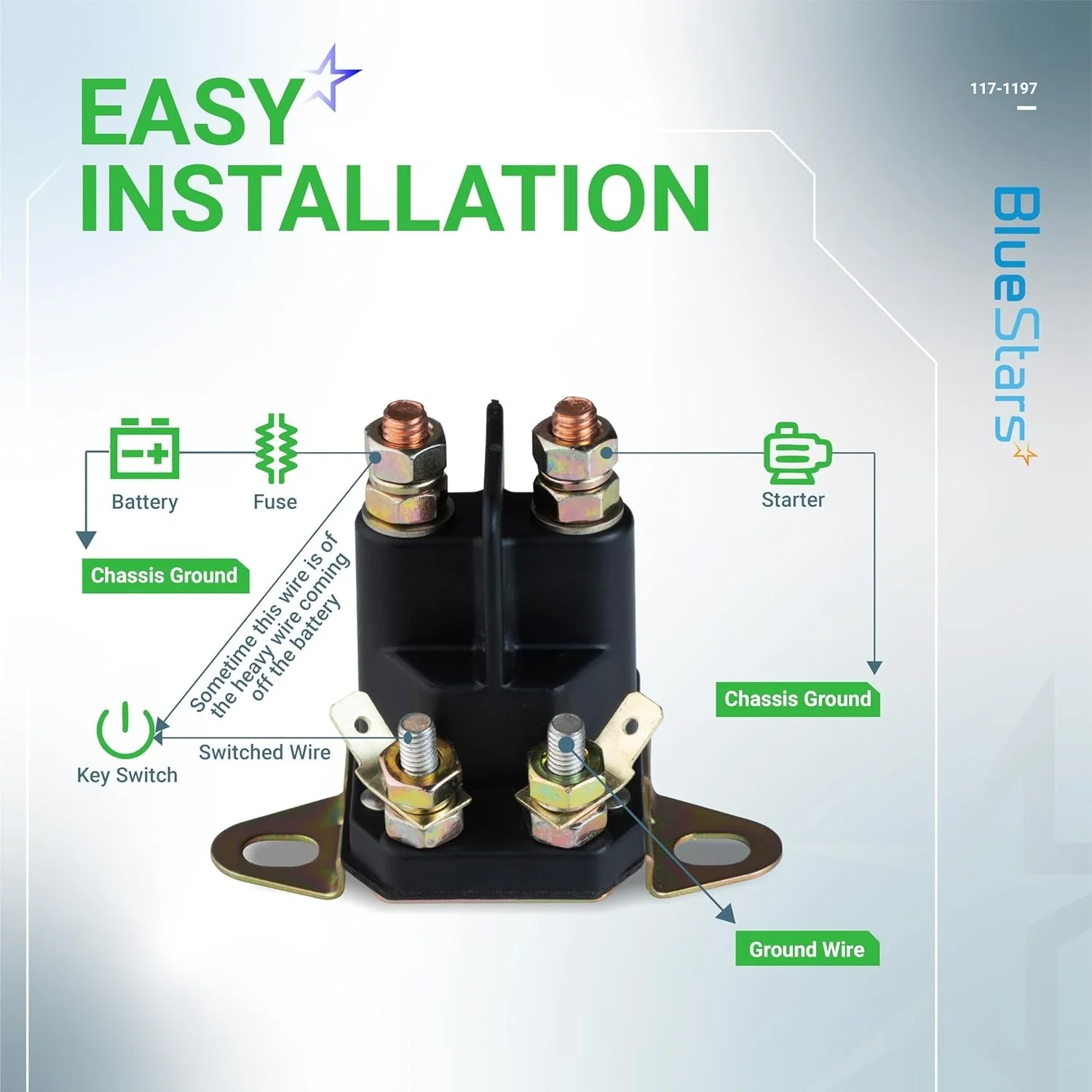

Installation Tips
- Disconnect the negative battery terminal before beginning installation.
- Photograph or label the wiring connections before removing the old solenoid.
- Ensure all electrical connections are clean and secure to prevent poor contact and overheating.
- Mount the solenoid securely to its designated location on the chassis.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
[Lifetime Warranty] 12V 4-Terminal 117-1197 Starter Solenoid - Compatible with Exmark Toro TimeCutter SS5000 Z4200 SS4225 SS4235 Zero-Turn Lawn Mower 784-1221-210 104-3189 E513075 1-513075 212655 28-4210
[Lifetime Warranty] 12V 4-Terminal 117-1197 Starter Solenoid - Compatible with Exmark Toro TimeCutter SS5000 Z4200 SS4225 SS4235 Zero-Turn Lawn Mower 784-1221-210 104-3189 E513075 1-513075 212655 28-4210
12V 4-Terminal 117-1197 Starter Solenoid
Key Features
- Voltage: 12V DC
- Terminals: 4
- Upper Stud Thread: 5/16 inch
- Lower Stud Thread: 3/16 inch
- Constructed with a brass coil and silver-plated contacts for electrical conductivity and corrosion resistance.
Replaces / Cross-Reference Part Numbers
- Toro: 117-1197
Compatibility & Fitment
- Fits various models from brands including Toro, Exmark, and Lawn Boy.
-
Select Toro Models:
- TimeCutter: SS 4200, SS 4225, SS 4235, SS 4260, SS 5000, SS 5060, MX 4260
- Titan
- GrandStand
- Commercial Walk-Behind Mowers
When to Replace
- Engine does not crank when the ignition key is turned.
- An audible clicking sound is heard from the solenoid, but the starter does not engage.
- Starter motor continues to run after the ignition key is released.
- Intermittent starting problems.
Installation Tips
- Disconnect the negative battery terminal before beginning installation.
- Photograph or label the wiring connections before removing the old solenoid.
- Ensure all electrical connections are clean and secure to prevent poor contact and overheating.
- Mount the solenoid securely to its designated location on the chassis.
