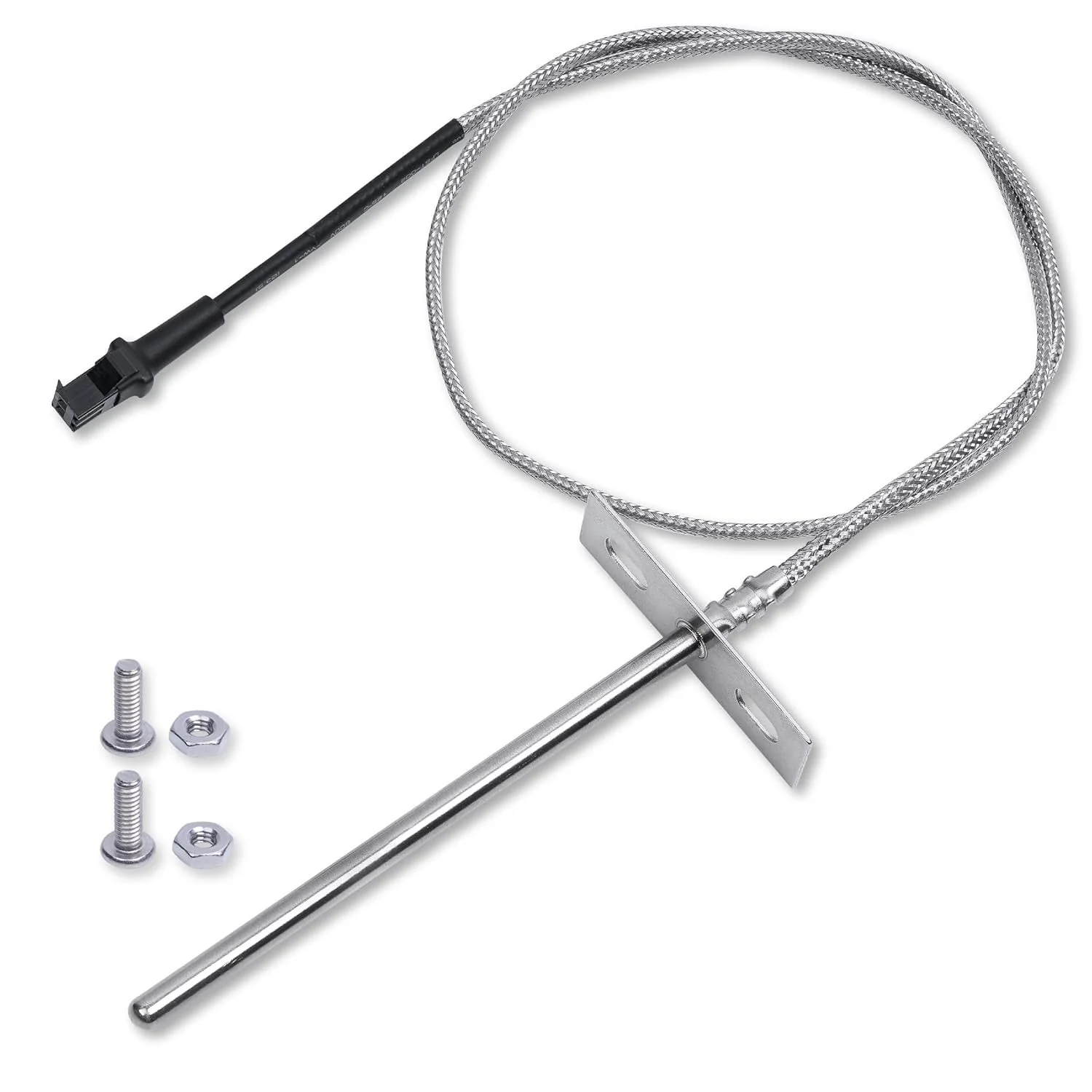

RTD Temperature Probe Sensor, Compatible with Pit Boss Pellet Grills and Smoker, Temp Probe Replacement, Meat Probe Sensor PB1000XL-025-R00 V2 (70123-AMP)

Key Features

• Monitors the internal temperature of your pellet grill or smoker.

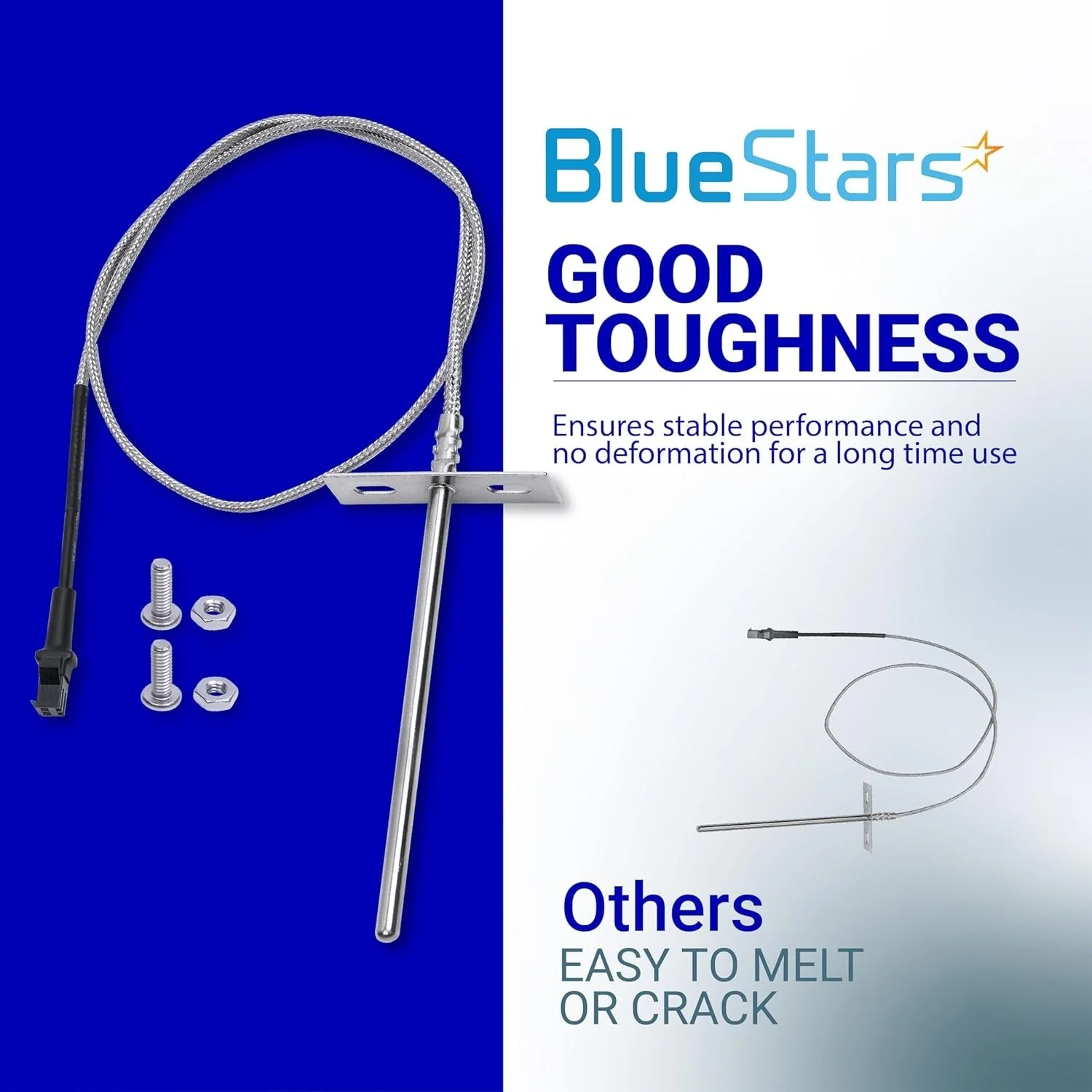

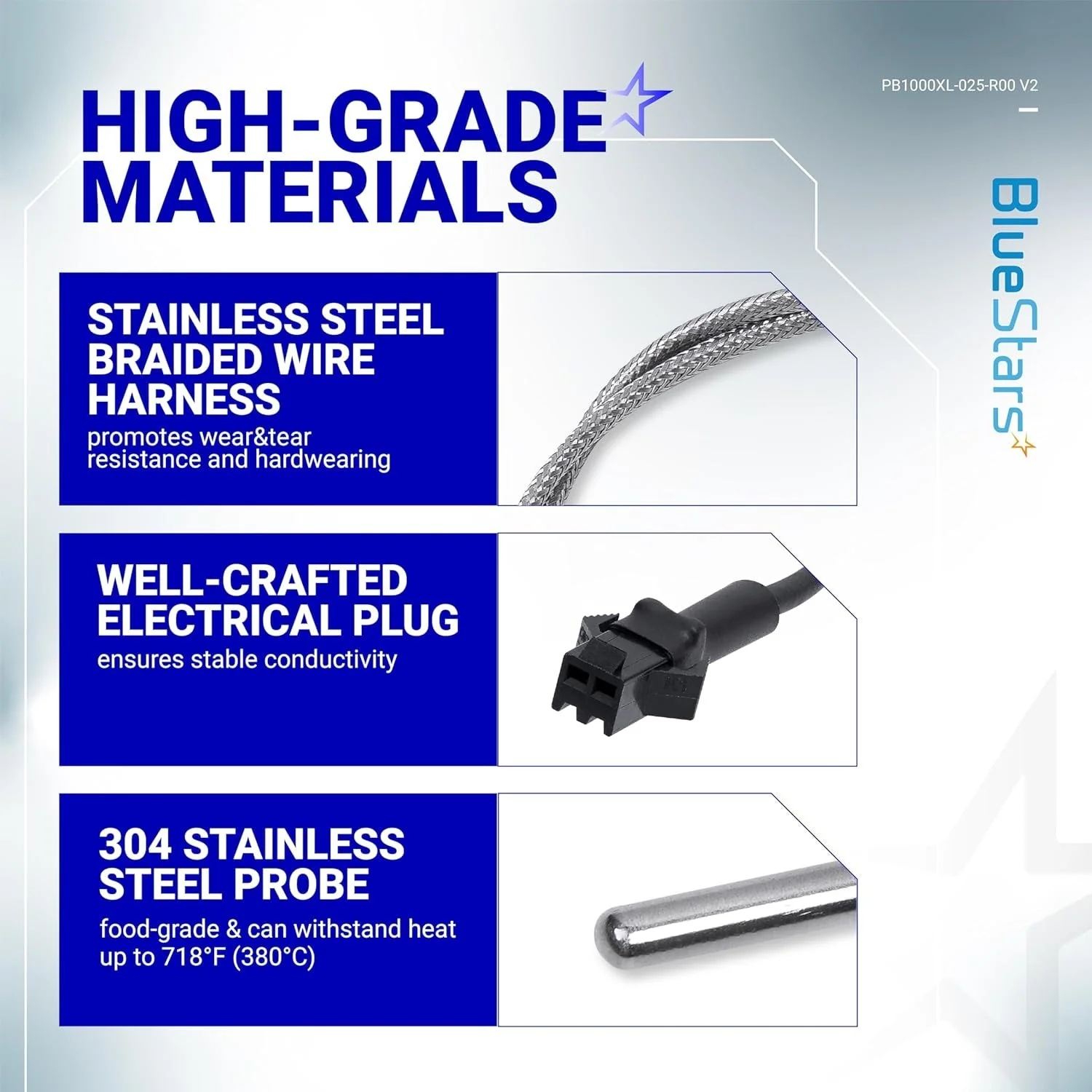

• Constructed with a stainless steel probe and a high-temperature wire lead.
• Includes one temperature probe, two screws, and two spade connectors for a complete replacement.
• Designed to provide consistent temperature data to the digital control board.

Replaces / Cross-Reference Part Numbers

• 70123-AMP
• PB1000XL-025-R00 V2

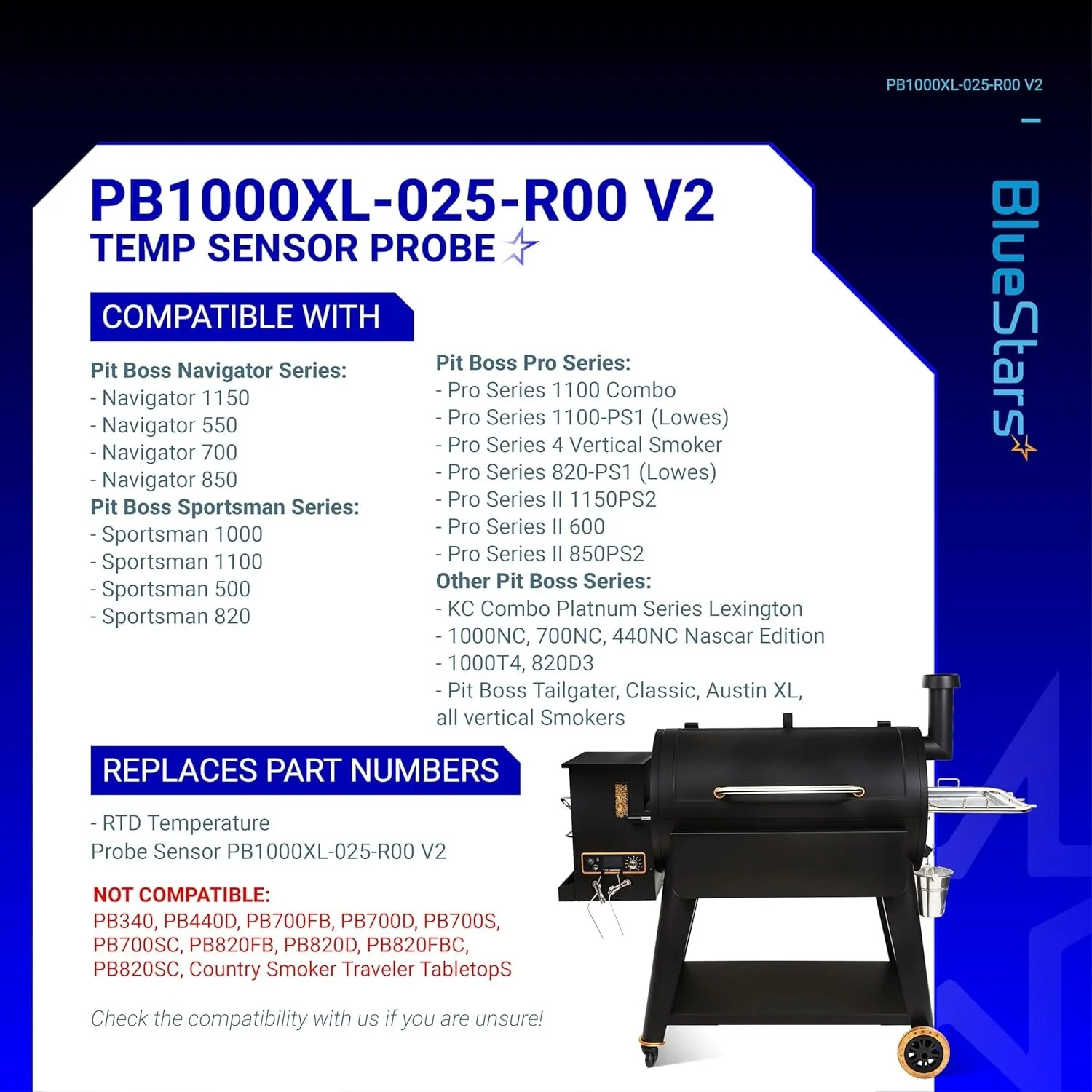

Compatibility & Fitment

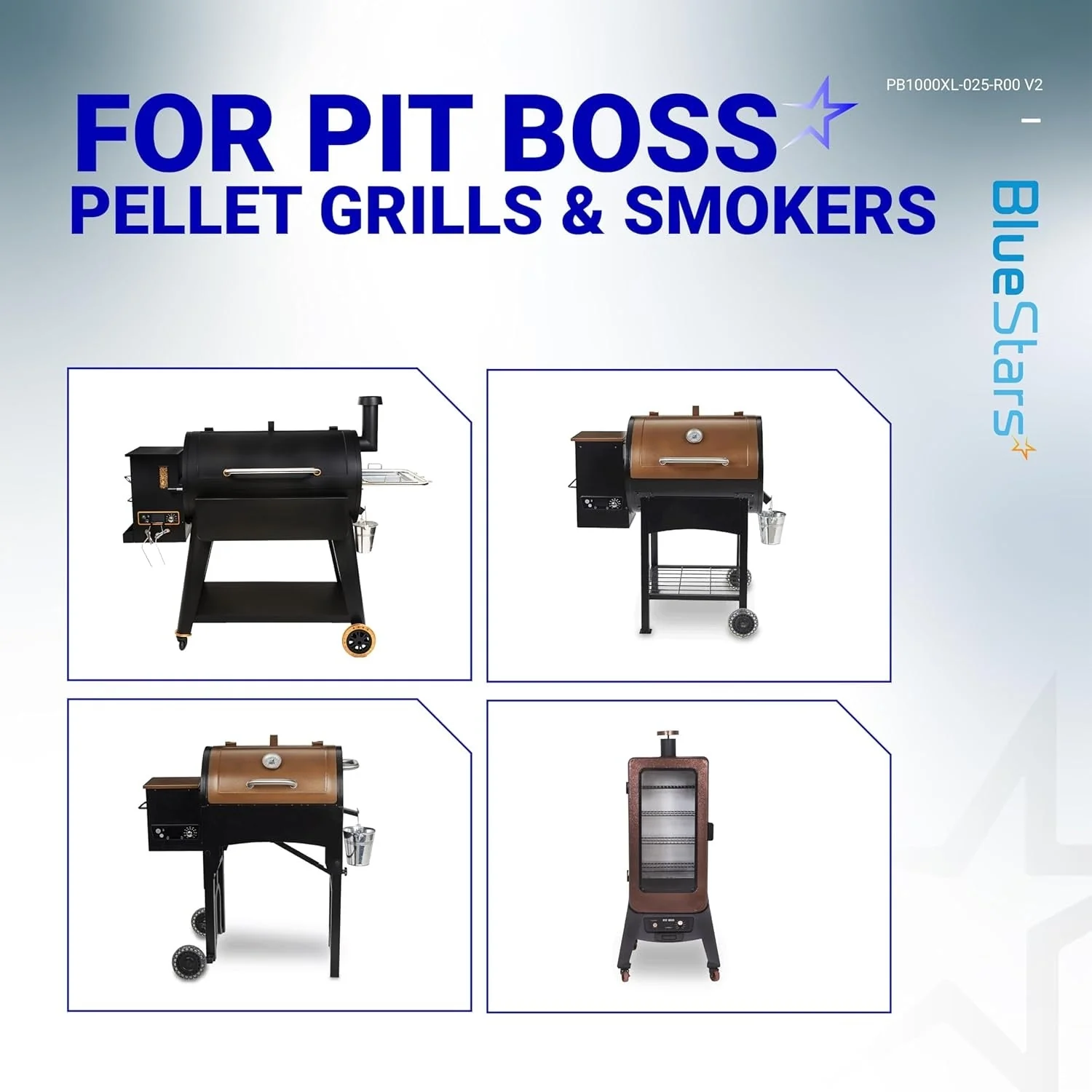

• Brand: Pit Boss
• Compatible with models using horizontal control boards such as CAT-02-PG or AC03P9.
• Fits various models including the 700 Series, 820 Series, Tailgater, Classic, Austin XL, and all vertical smokers.

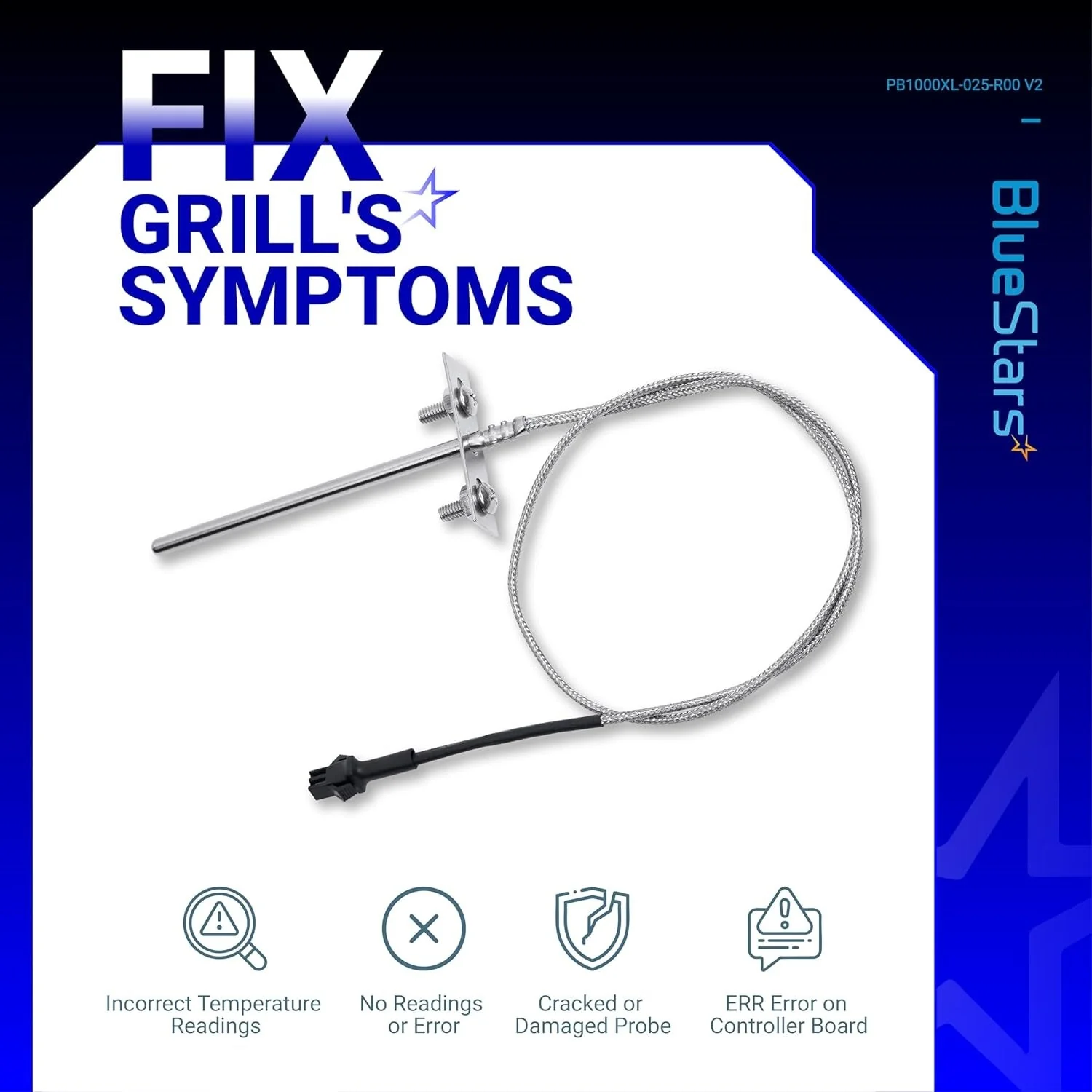

When to Replace

• The digital controller displays "ErP" or other probe-related error codes.
• The grill experiences large, erratic temperature swings.
• The displayed temperature is inaccurate compared to a calibrated thermometer.
• The probe or its wiring is physically damaged, frayed, or broken.

Installation Tips

• Disconnect the grill from its power source before beginning installation.
• Locate the existing RTD probe inside the main cooking chamber.
• Unscrew the old probe and disconnect its wiring from the controller.
• Secure the new probe in place using the included screws.
• Connect the new probe's wires to the corresponding terminals on the control board.
• Ensure the probe tip does not touch any internal components for accurate readings.
