M110978 Mower Drive Belt - for John Deere LX176 LX188 LX178 LX172 LX173 LX186 - Replaces 22431-V09-A01 Honda | 102" x 0.5"

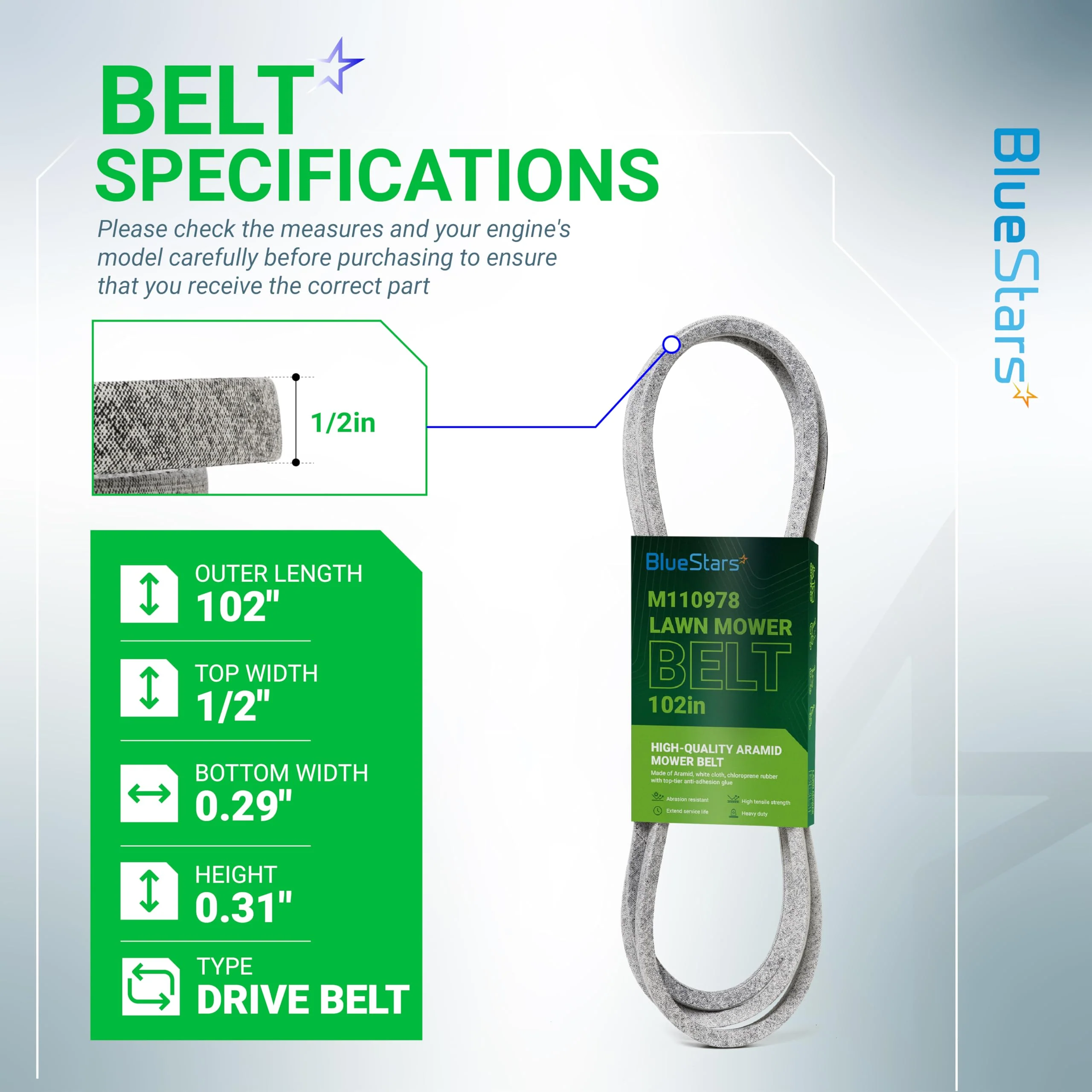

Key Features

• Type: Transmission Drive Belt
• Length: 102 inches
• Width: 0.5 inches (1/2")
• Material: Constructed with aramid fibers for enhanced durability and heat resistance.

Replaces / Cross-Reference Part Numbers

• John Deere: M110978
• Honda: 22431-V09-A01

Compatibility & Fitment

• John Deere LX172
• John Deere LX173
• John Deere LX176
• John Deere LX178
• John Deere LX186
• John Deere LX188

When to Replace

• Visible signs of wear such as cracking, fraying, glazing, or separating layers.
• Noticeable slipping or loss of power to the transmission.
• Incorrect belt tension that cannot be adjusted.
• As part of scheduled preventative maintenance per your equipment's service manual.

Installation Tips

• Always disconnect the spark plug wire before performing any service.
• Consult your mower's owner or service manual for the correct belt routing diagram.
• Ensure all pulleys are clean, aligned, and turn freely before installing the new belt.
• Verify proper belt tension after installation to prevent slipping or premature wear.
