W400BWHP Free Rotating Vacuum Lock Safety Wall Fitting

Key Features

• Designed for connecting suction-side automatic pool cleaners to a dedicated vacuum line.

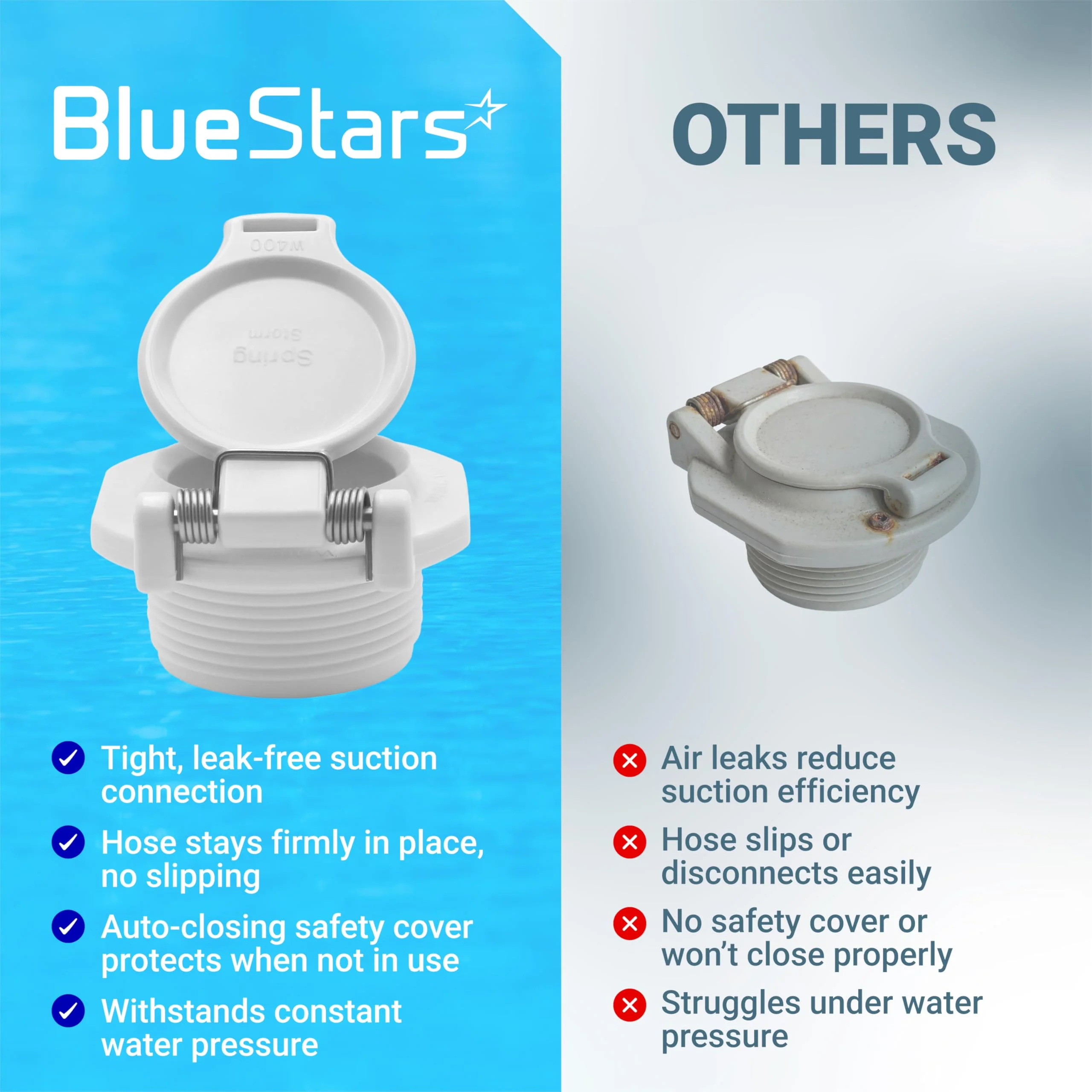

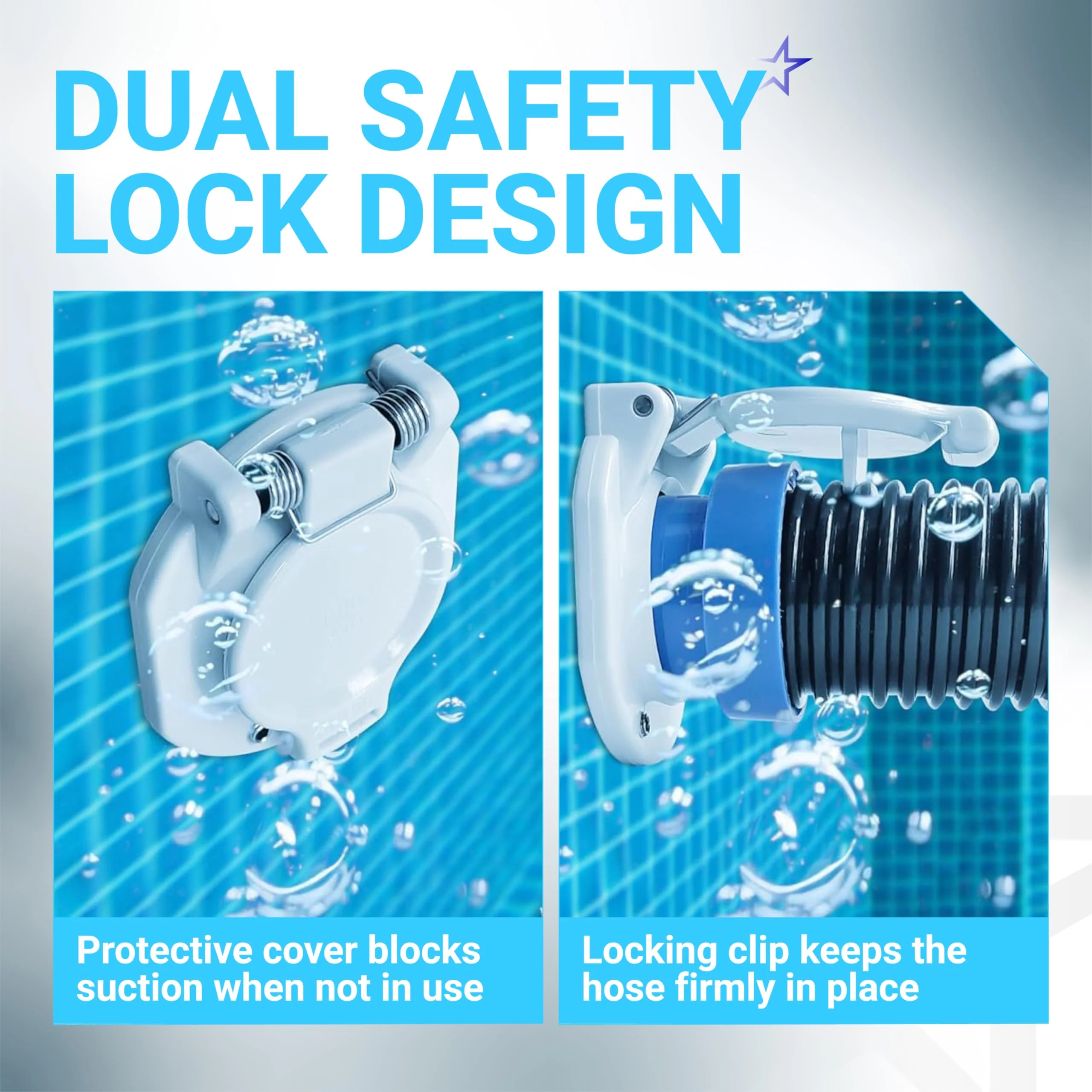

• Integrated safety mechanism automatically closes the suction port when the vacuum hose is removed.
• Free-rotating collar prevents hose tangling and twisting during cleaner operation.

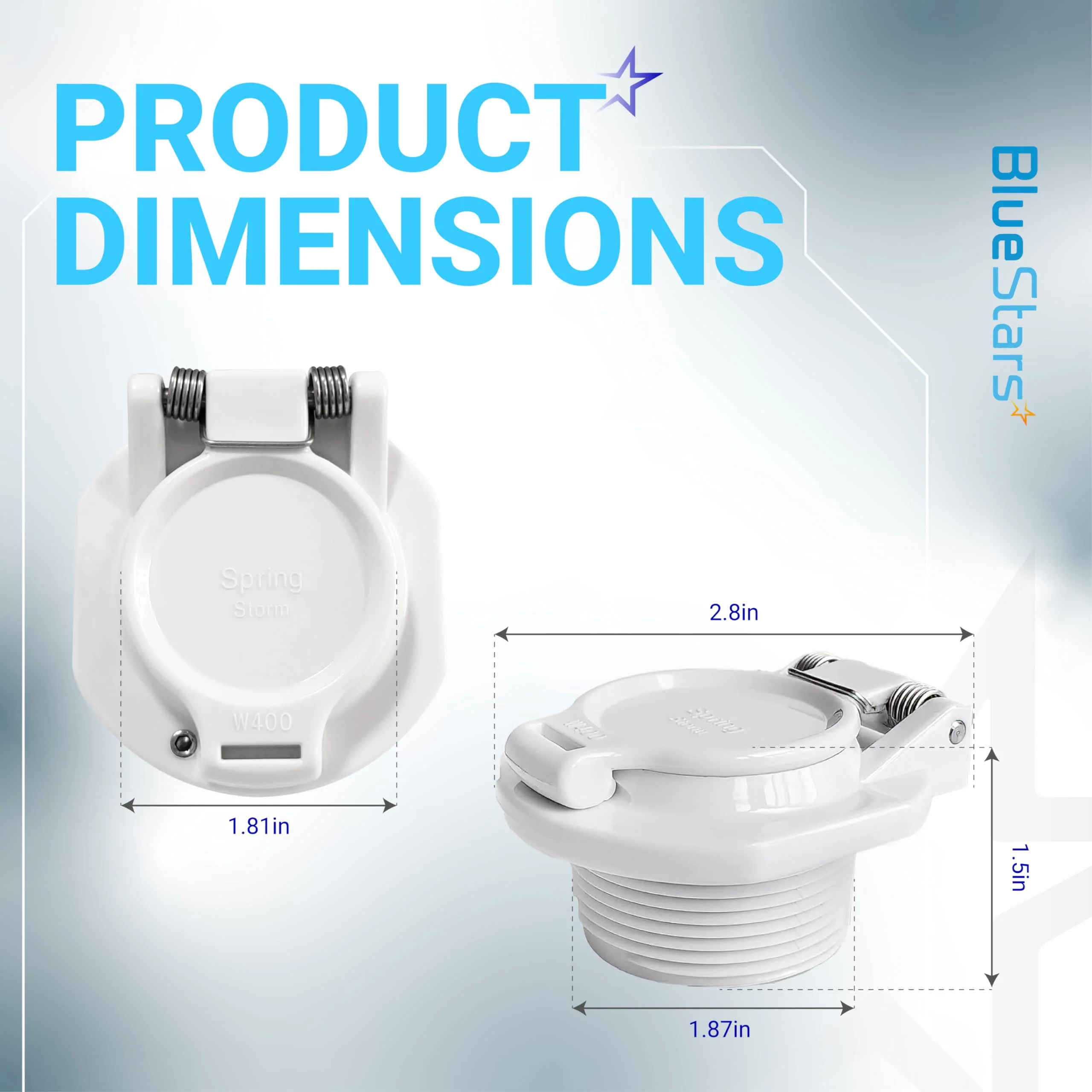

• Fits standard 1-1/2 inch female threaded pool wall suction ports.
• Durable construction resistant to pool chemicals and UV exposure.

Replaces / Cross-Reference Part Numbers

• W400BWHP
• W400BLGP
• W400BBKP
• K1250 / K12500
• GW9530

Compatibility & Fitment

• Compatible with standard 1-1/2 inch female threaded suction wall ports.
• Compatible with suction-side automatic pool cleaners from Hayward, Zodiac, and Pentair.
• Suitable for use with various suction cleaners, including Navigator, Navigator Pro, Ultra, and Pool Vac XL models.

When to Replace

• If the internal spring mechanism fails to seal the port when the hose is removed.
• If the rotating collar becomes stuck, cracked, or difficult to turn.
• If the threaded base shows signs of stripped plastic or stress fractures.
• If the unit fails to maintain a proper airtight seal, resulting in loss of suction power for the cleaner.

Installation Tips

• Ensure the pool pump is turned off before removing the existing fitting.
• Clean the pool wall suction port threads of any debris or old sealant tape before installation.
• Hand-tighten the fitting into the wall port; do not overtighten with tools to avoid cracking the plastic.
• Apply a thin layer of pool-safe silicone lubricant to the threads if the fit is excessively tight.
• Verify the safety spring mechanism functions properly by inserting and removing the hose before turning the pump back on.
