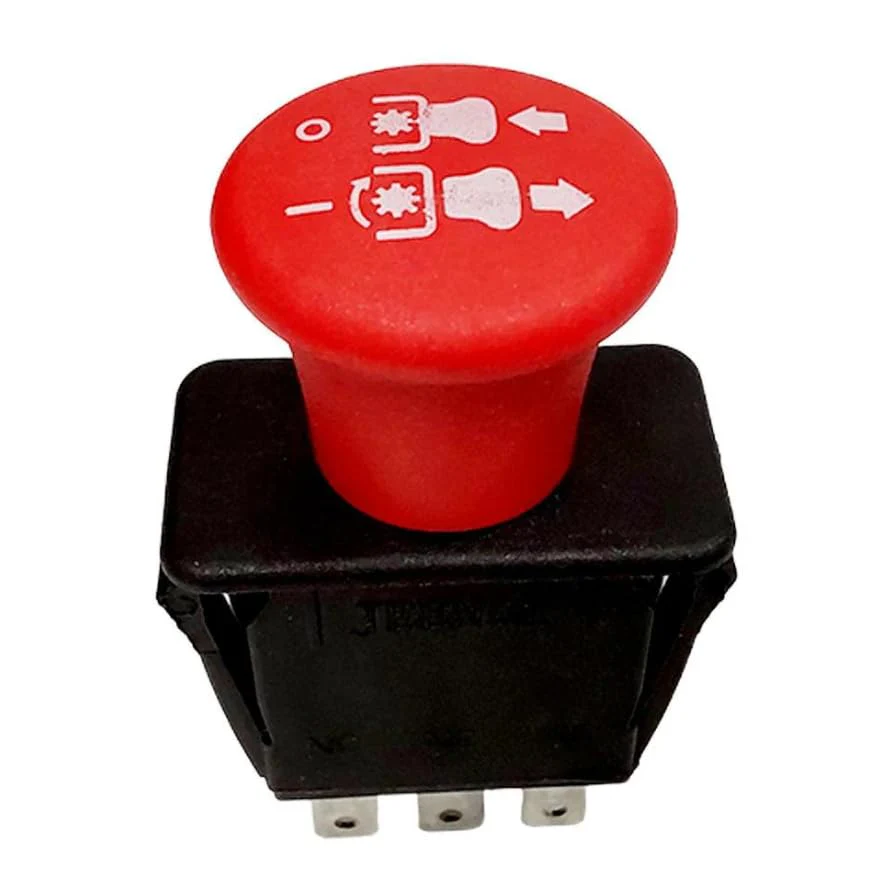

8 Terminals 10 AMP Clutch PTO Switch 4174684 500016

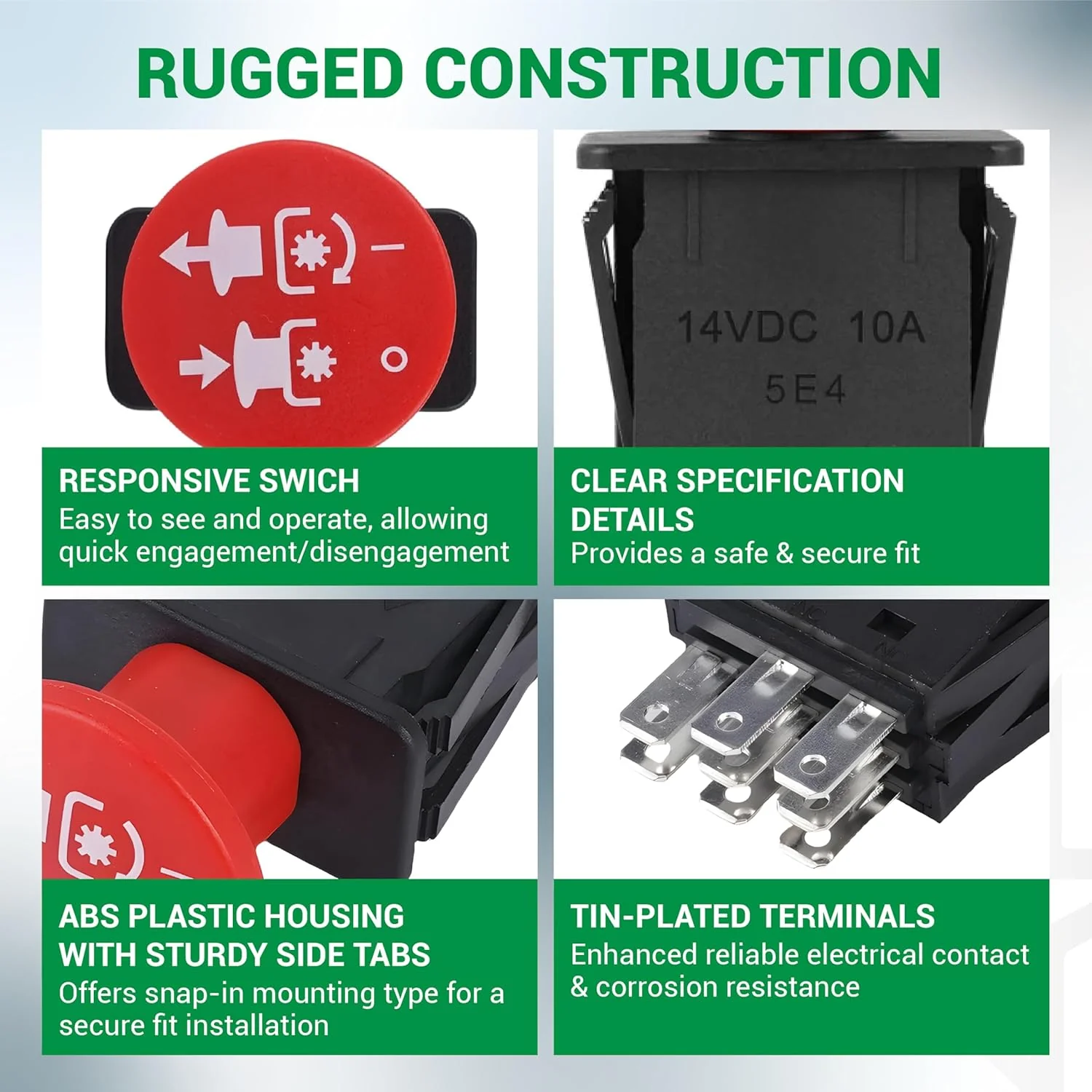

Key Features

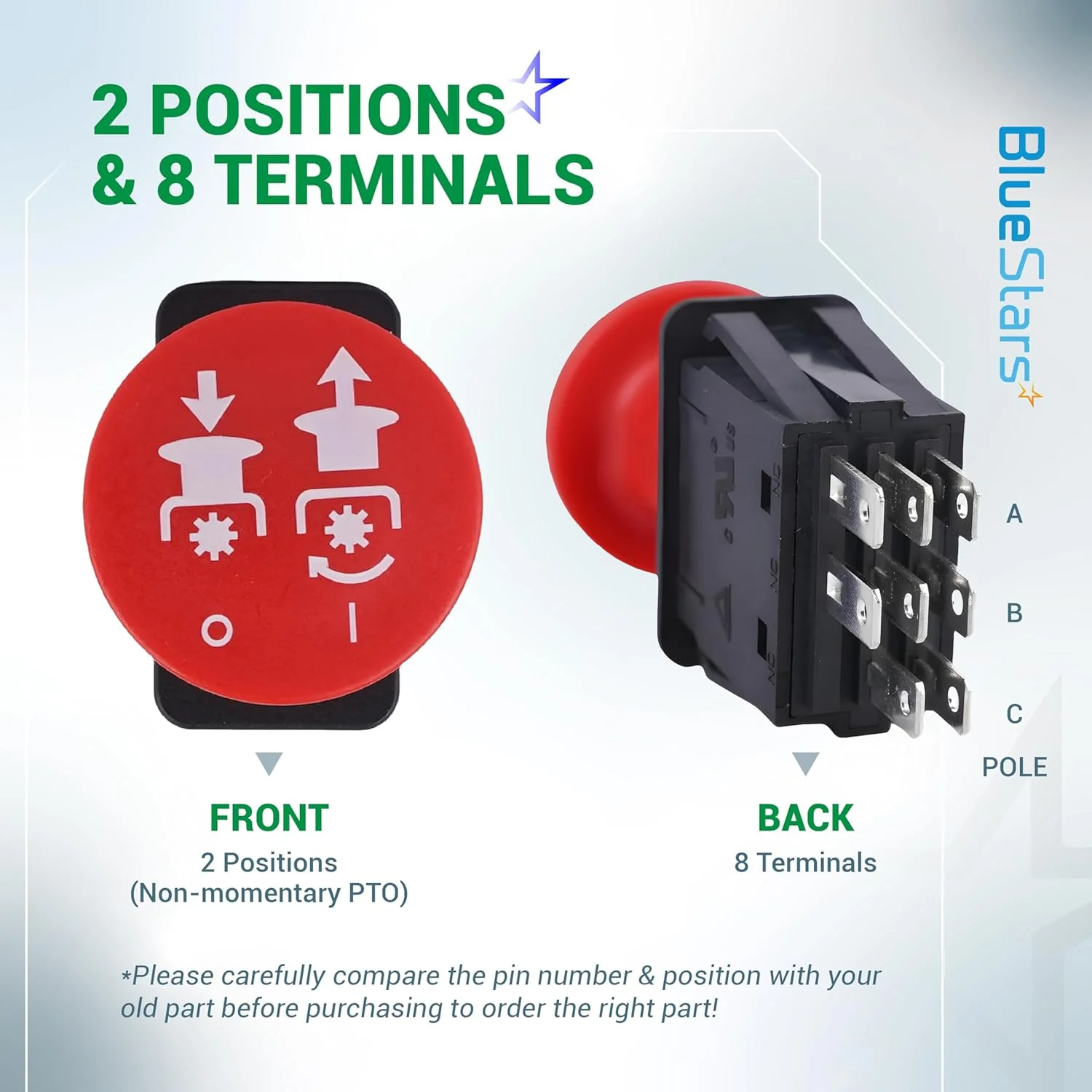

• Two-position switch design
• Eight-terminal configuration

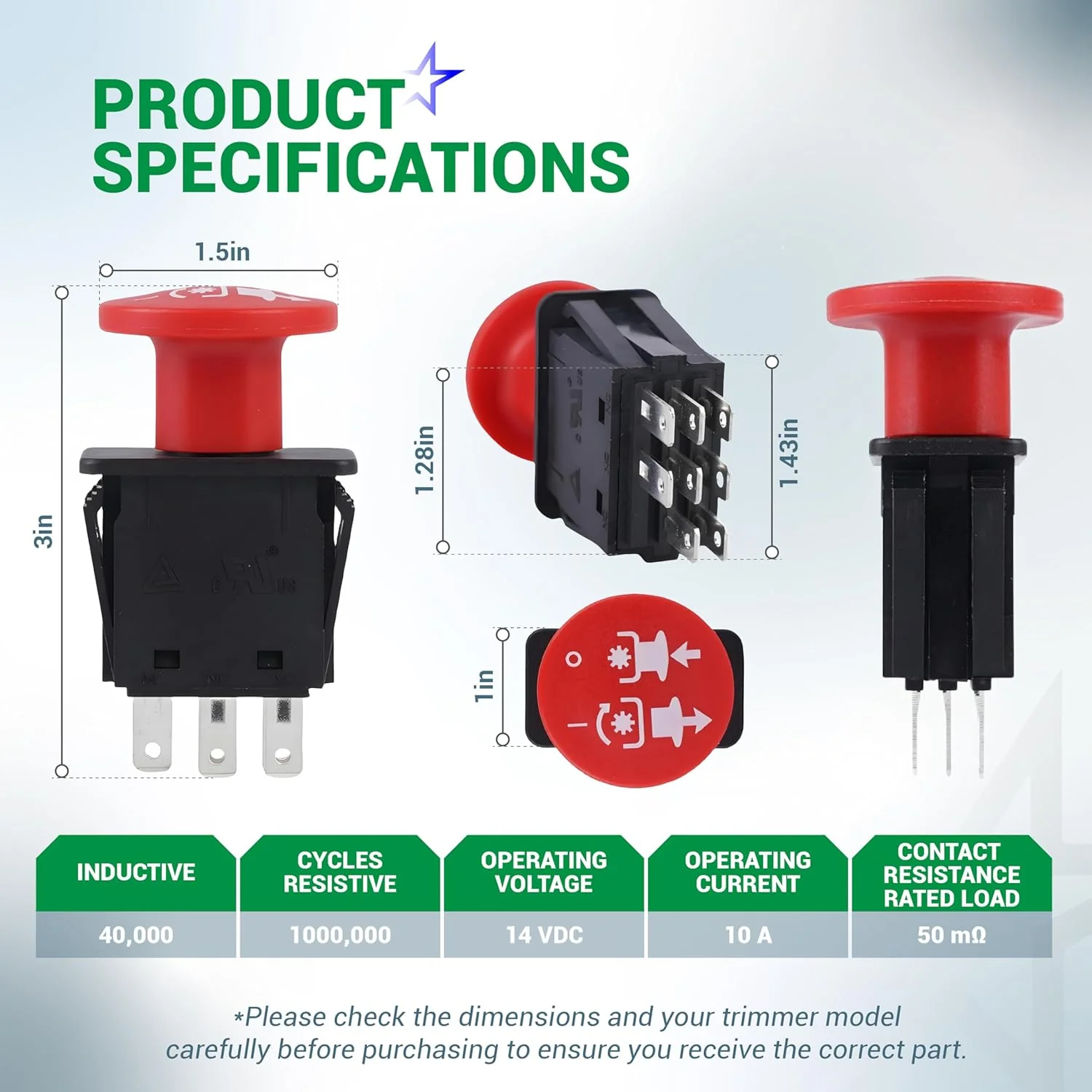

• Rated for 14VDC at 10 Amps
• Snap-mount design for secure installation
• Red knob finish

Replaces / Cross-Reference Part Numbers

• Dixie Chopper: 4174684, 500016
• Bobcat: 2721505
• Stens: 430-528
• Delta: 6204, 6201

Compatibility & Fitment

• Compatible with Dixie Chopper models including Classic, RZT, Pro Series, SZT, and Zee 2
• Suitable for various lawn mowers utilizing Delta Series 6204/6201 switches
• Compatible with select units from Hustler, Husqvarna, Craftsman, Cub Cadet, Exmark, Ferris, and Bobcat

When to Replace

• Engine fails to engage the cutting deck
• Intermittent blade operation during use
• Switch knob feels loose, stuck, or unresponsive
• Visible damage to the housing or electrical terminals
• Visible electrical burns or melting at the terminal connection points

Installation Tips

• Disconnect the negative battery cable before performing any electrical work
• Take a photograph of the current wire harness orientation before removing the old switch to ensure correct reconnection
• Ensure the snap-mount tabs are fully seated in the mounting hole to prevent vibration-induced movement
• Verify that the wire harness connector is free of debris or corrosion before attaching it to the new switch
• Test the blade engagement function at low engine RPM immediately after installation
