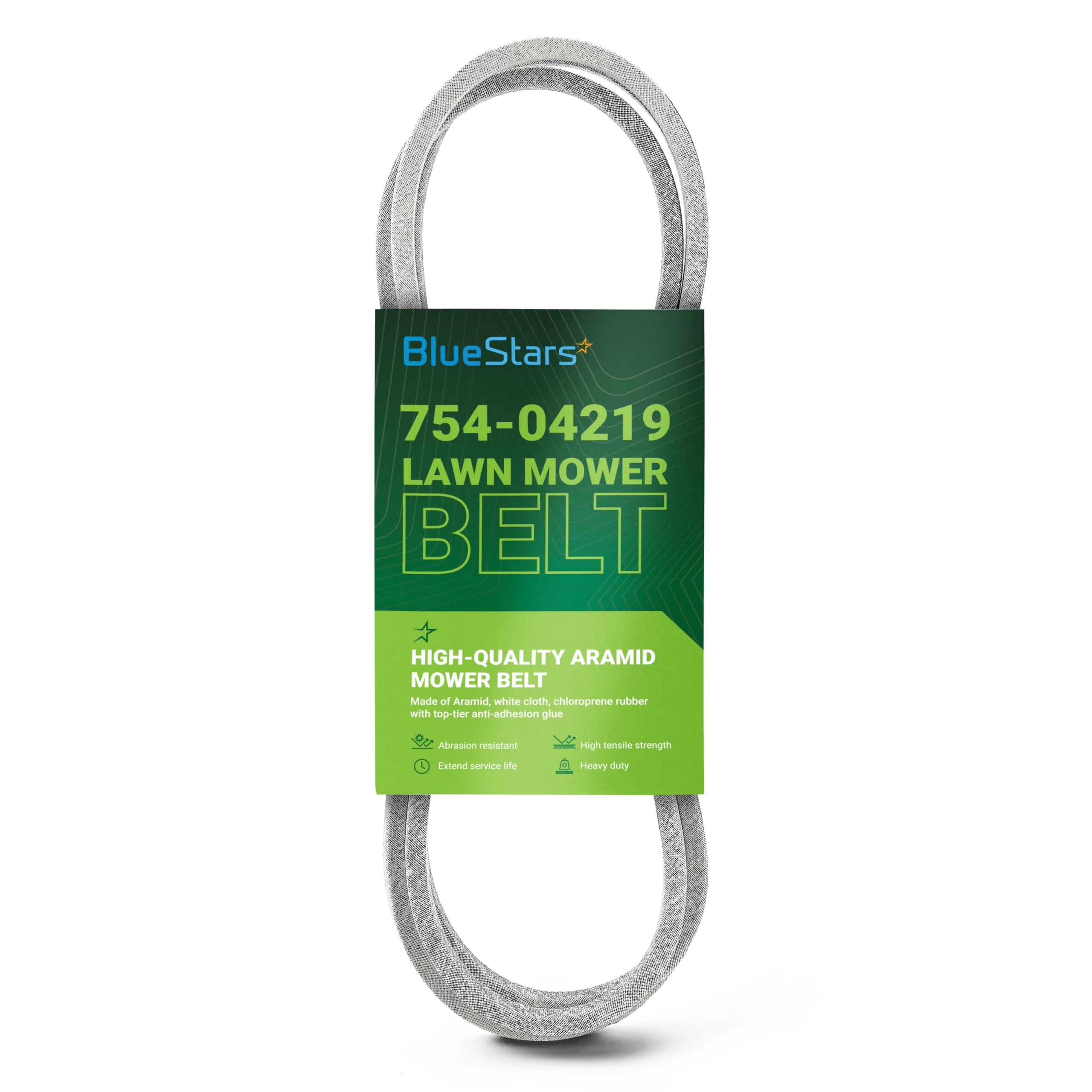

754-04219 / 954-04219 Mower Deck Belt (1/2" x 103.25")

Key Features

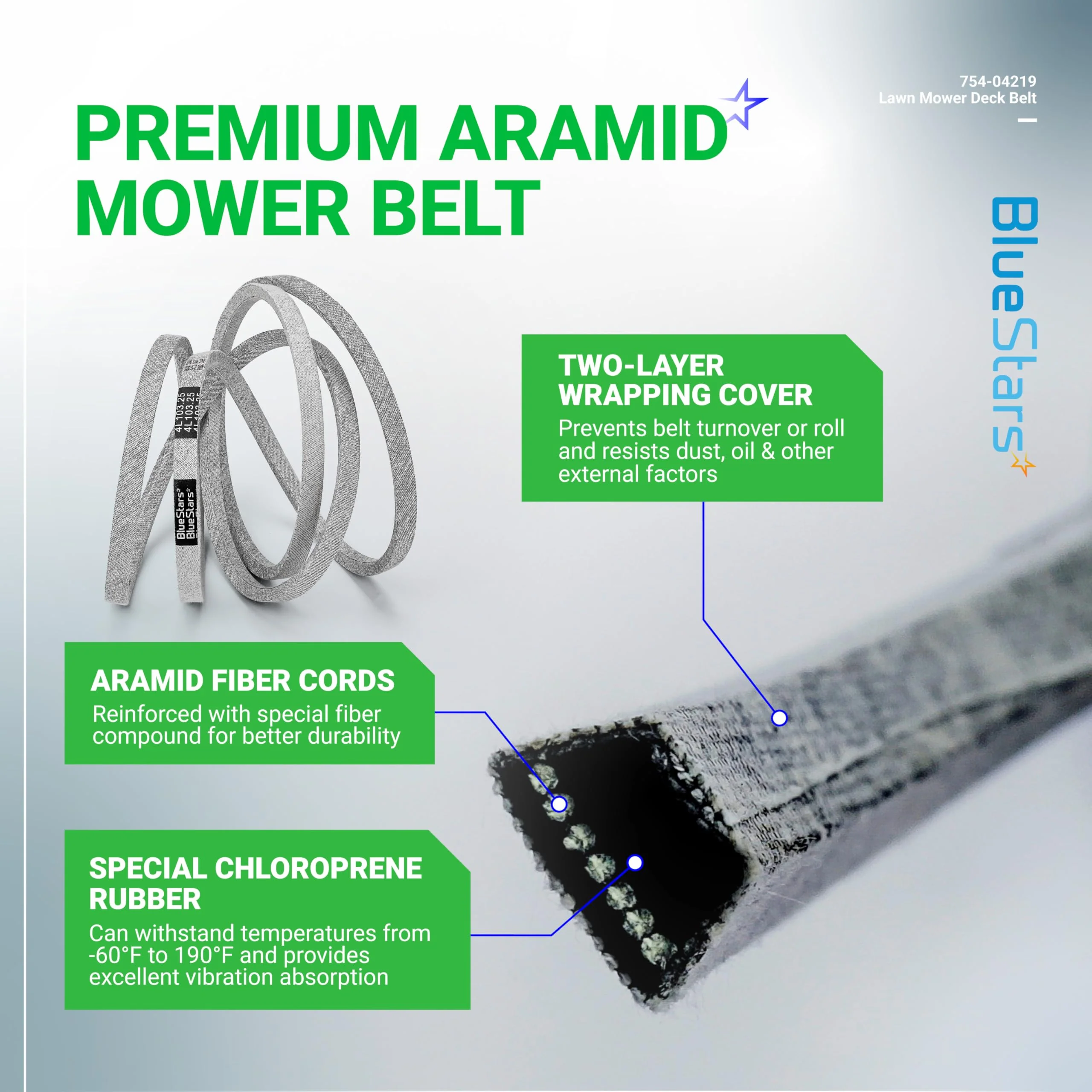

• High-Tensile Aramid Cord Construction: Engineered with high-strength Aramid (Kevlar) fibers to handle the high-torque stresses of 46-inch cutting decks, preventing stretching and snapping under heavy grass loads.
• Heat & Oil Resistant Wrap: Features a specialized dry-cover fabric that provides superior resistance to the intense heat and oil spray common in garden tractor engine compartments, extending the life of the rubber core.

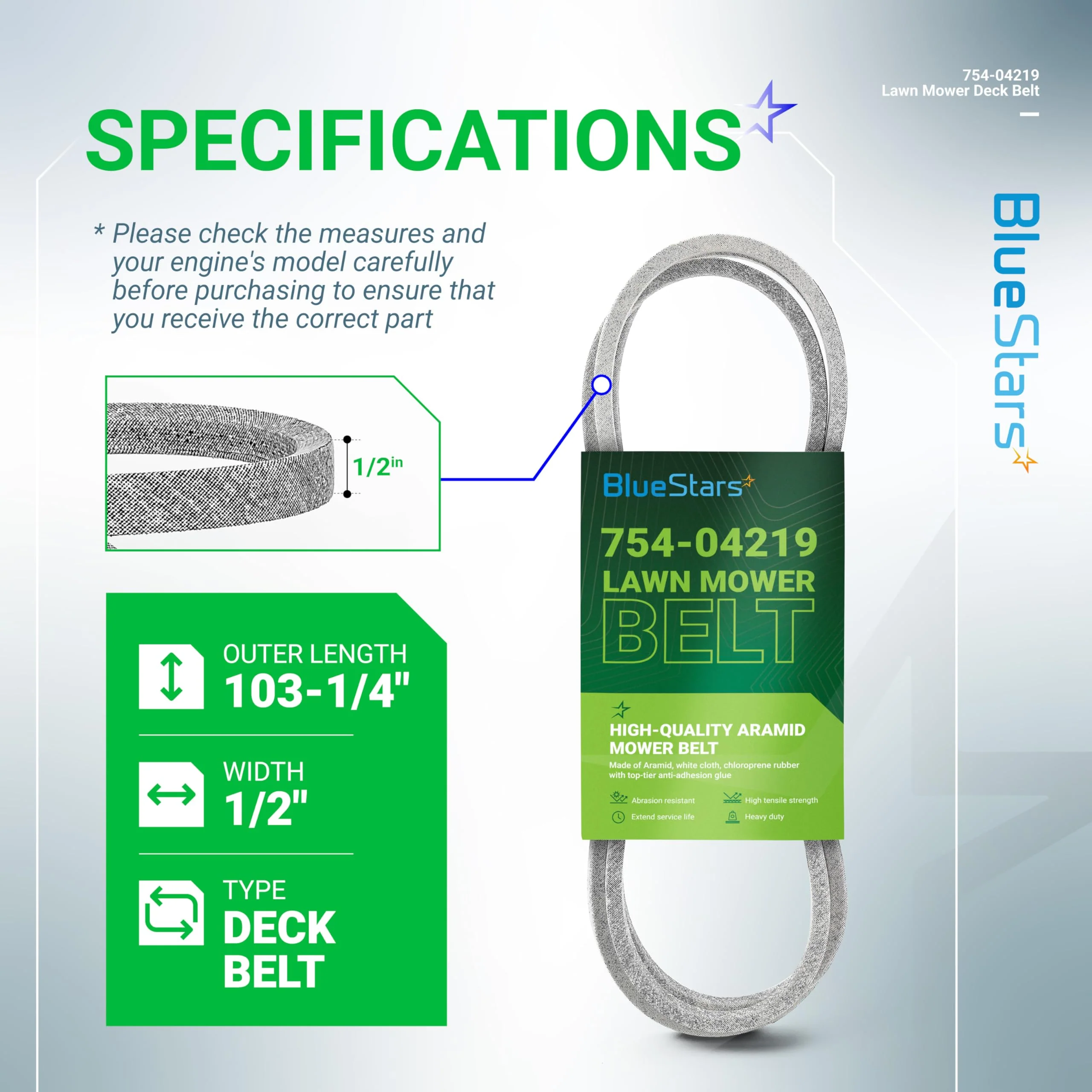

• Precise OEM Dimensional Match: Manufactured to the exact 103.25-inch length and 1/2-inch top width specifications required for perfect tensioning, ensuring the blades stop quickly when the PTO is disengaged.
• Vibration Dampening Technology: The multi-layered rubber compound is designed to absorb mechanical vibrations from the spindles, leading to a smoother, quieter cut and less wear on the idler pulleys.
• Enhanced Flexibility: Designed to navigate the complex "S-curves" of the mower deck's routing path without developing internal cracks or "glazing" on the outer edges.

Replaces / Cross-Reference Part Numbers

• Primary Part Numbers: 954-04219, 754-04219.
• Updated Versions: 954-04219A, 754-04219A.
• Brand Specifics: Cub Cadet 954-04219, Troy-Bilt 754-04219, MTD 954-04219.
• Aftermarket Cross-Reference: Stens 265-201, Oregon 75-813, Rotary 12754.

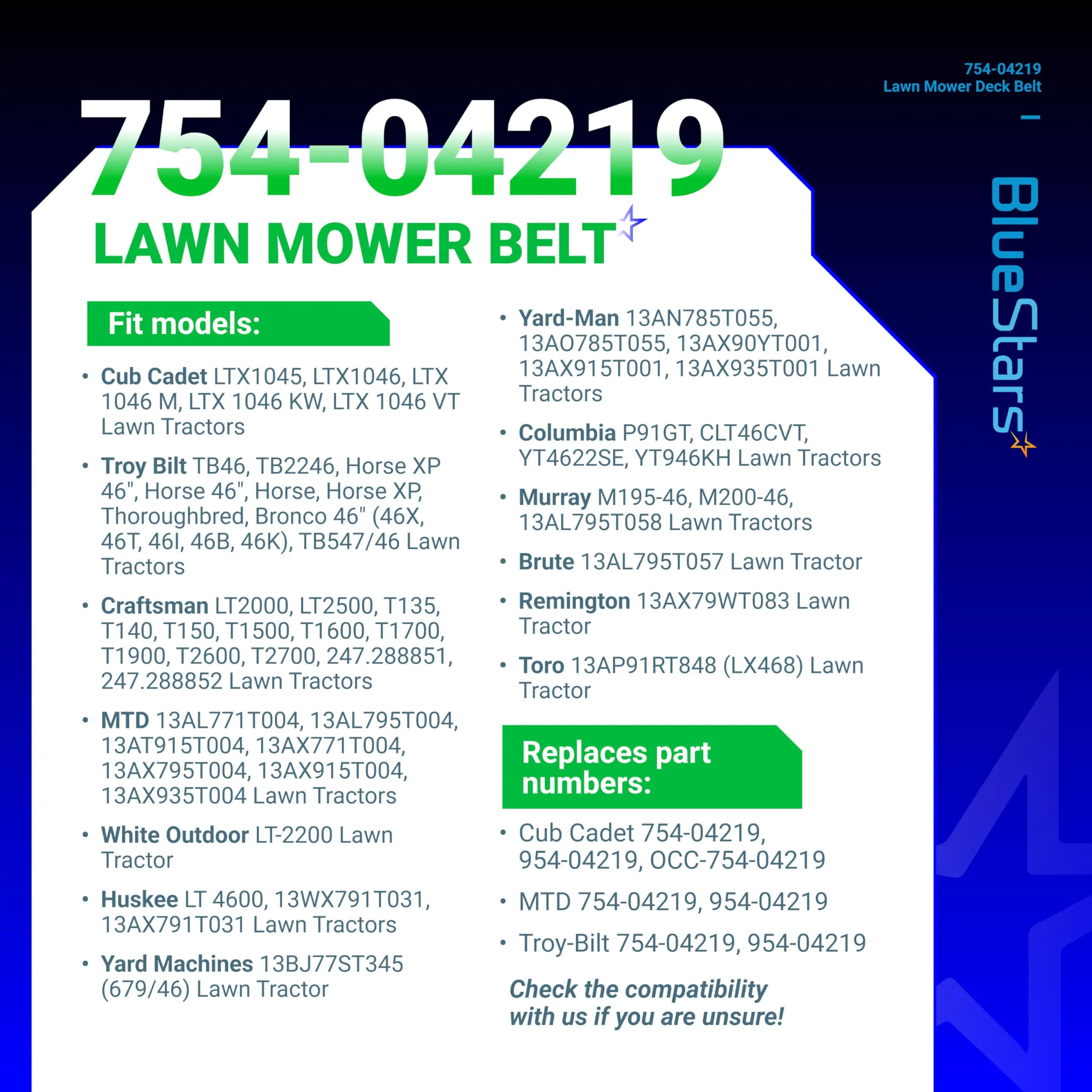

Compatibility & Fitment

This belt is the standard drive link for most MTD-manufactured 46-inch side-discharge mower decks produced from 2009 to the present. Key compatible models include:

• Cub Cadet: LTX1045, LTX1046, LTX1046VT, LTX1046KW, XT1-LT46, XT2-LX46 (Select models with 46" decks).
• Troy-Bilt: Horse, Horse XP, Bronco, Thoroughbred, Range Rider (46-inch deck configurations).
• MTD / Yard Machines / Craftsman: Fits various "LT" and "T" series tractors with a 46-inch cutting width (e.g., Craftsman T1500, T1600).
• Note: This is a Deck Belt (spindle to engine). It is not the "Drive Belt" (transmission to engine). Please verify your deck size before ordering.

When to Replace

• Visible Fraying or Cracking: Small "teeth-like" cracks on the inside of the belt or loose threads on the outer wrap indicate imminent failure.
• Deck Won't Engage: When you pull the PTO lever, the blades don't spin, or they spin very slowly, suggesting the belt has stretched beyond the idler's take-up capacity.
• Squealing Noise: A high-pitched screech when the blades are engaged often means the belt is slipping or has become "glazed" (burned) from friction.
• Excessive Deck Vibration: If the mower feels like it's shaking more than usual, the belt may have developed a "flat spot" or "thrown" a chunk of rubber.
• Smell of Burning Rubber: Usually occurs when the belt is rubbing against a belt keeper or if a spindle bearing has seized, causing the belt to drag.

Installation Tips

• Safety First: CRITICAL: Remove the ignition key and disconnect the spark plug wire. Mower blades can move unexpectedly if the engine turns over.
• Check the Spindles: PRO TIP: While the belt is off, spin each mandrel (spindle) by hand. If you hear a grinding noise or feel resistance, your spindle bearings are failing and will quickly burn out your new belt.
• Clear the Debris: Use a leaf blower or compressed air to clear dried grass and sticks from the top of the deck. Debris trapped in the pulleys is the leading cause of "belt jumping."
• The Routing Secret: Always refer to the routing sticker on the deck. Ensure the belt is inside all belt keepers (the small metal pins near the pulleys).
• Spring Tension: Ensure the idler arm moves freely and the tension spring is not rusted or stretched. If the idler is stuck, the belt will not have the proper tension to cut thick grass.
