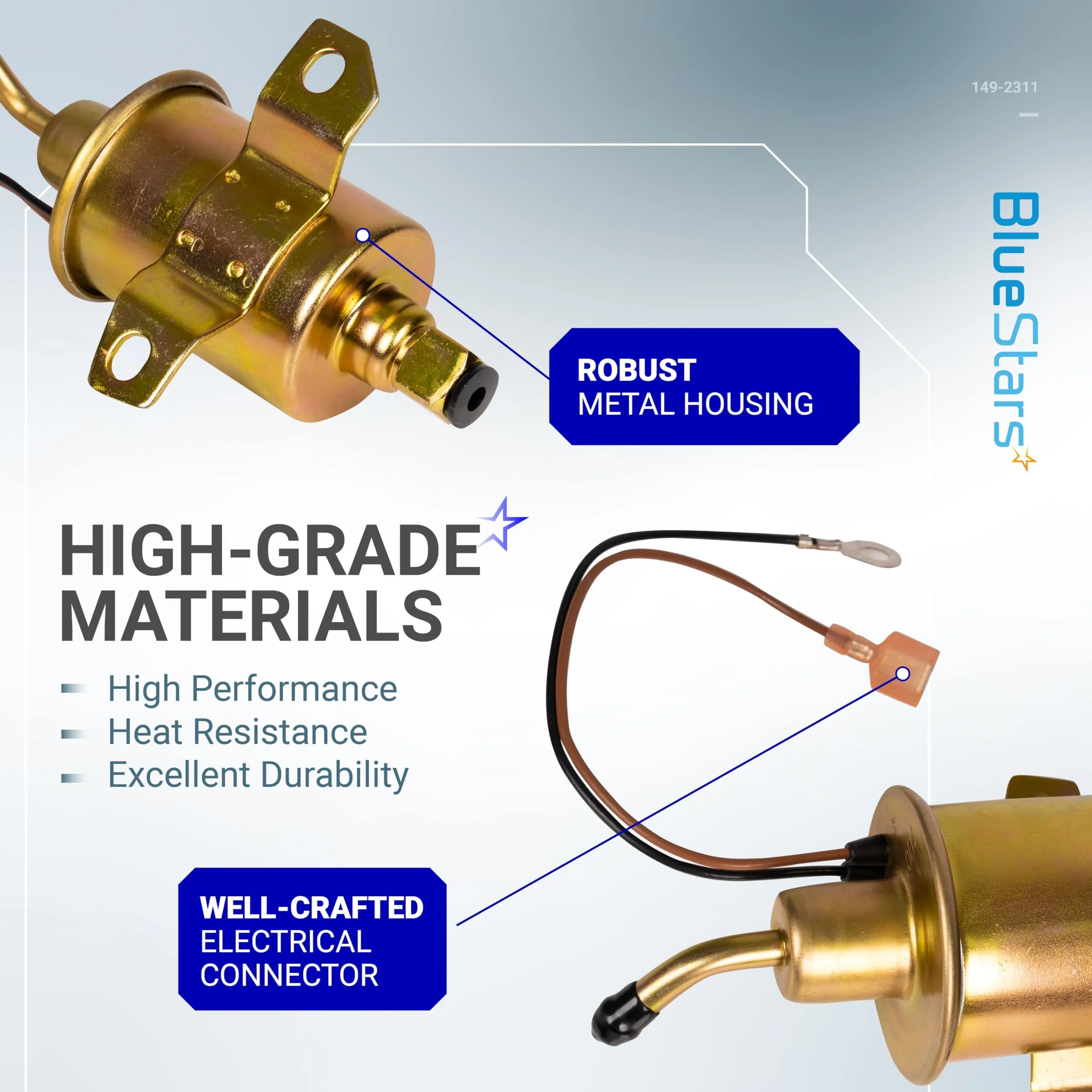

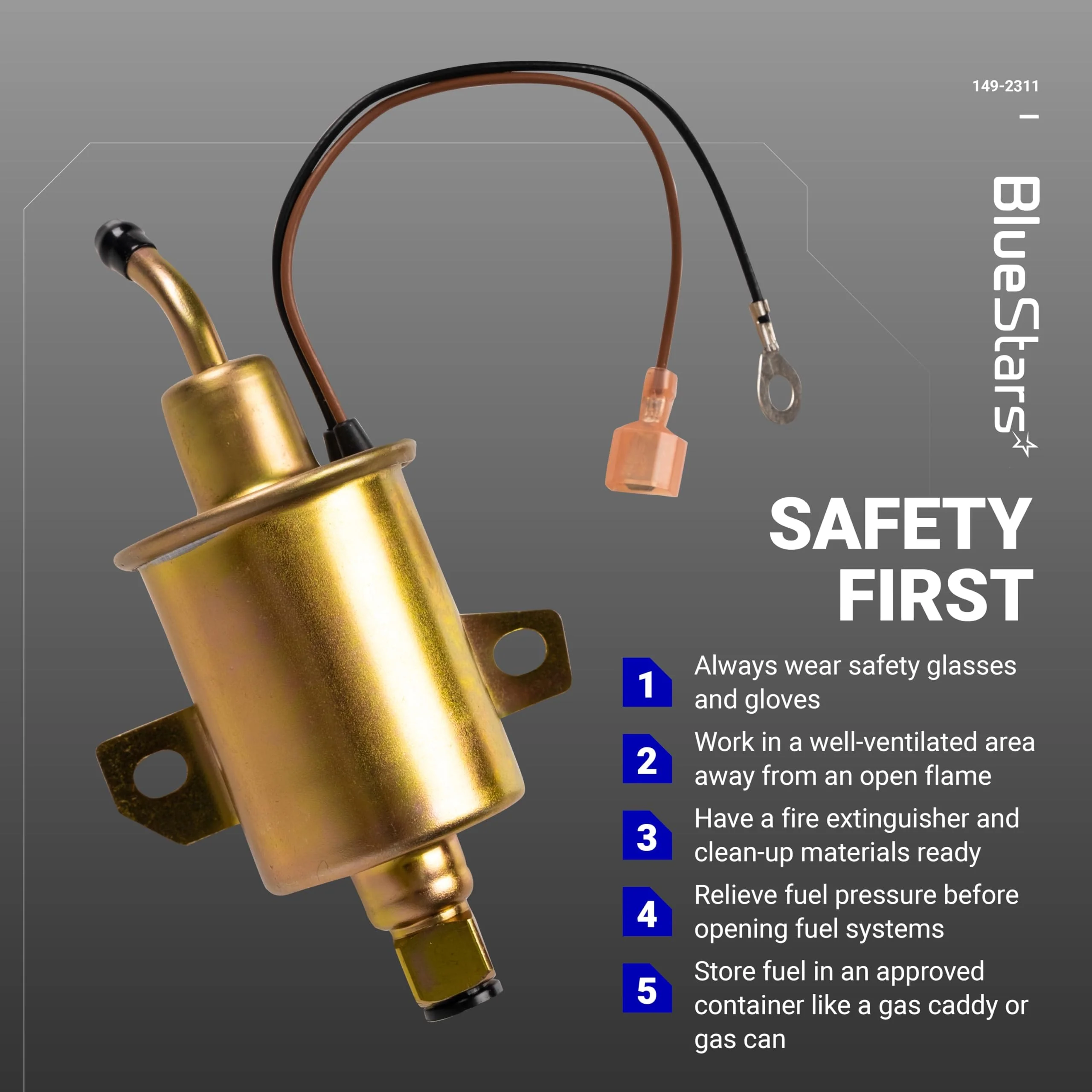

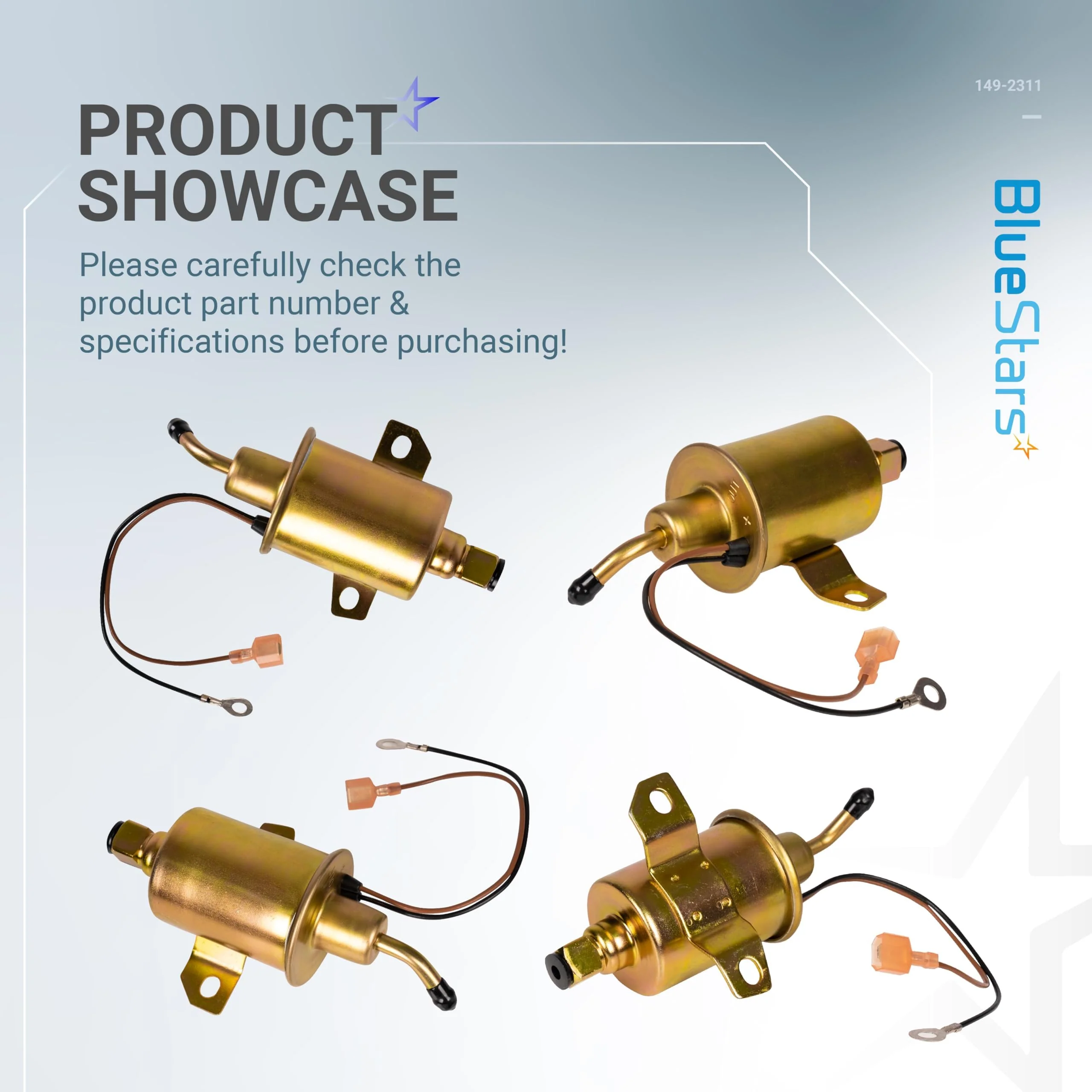

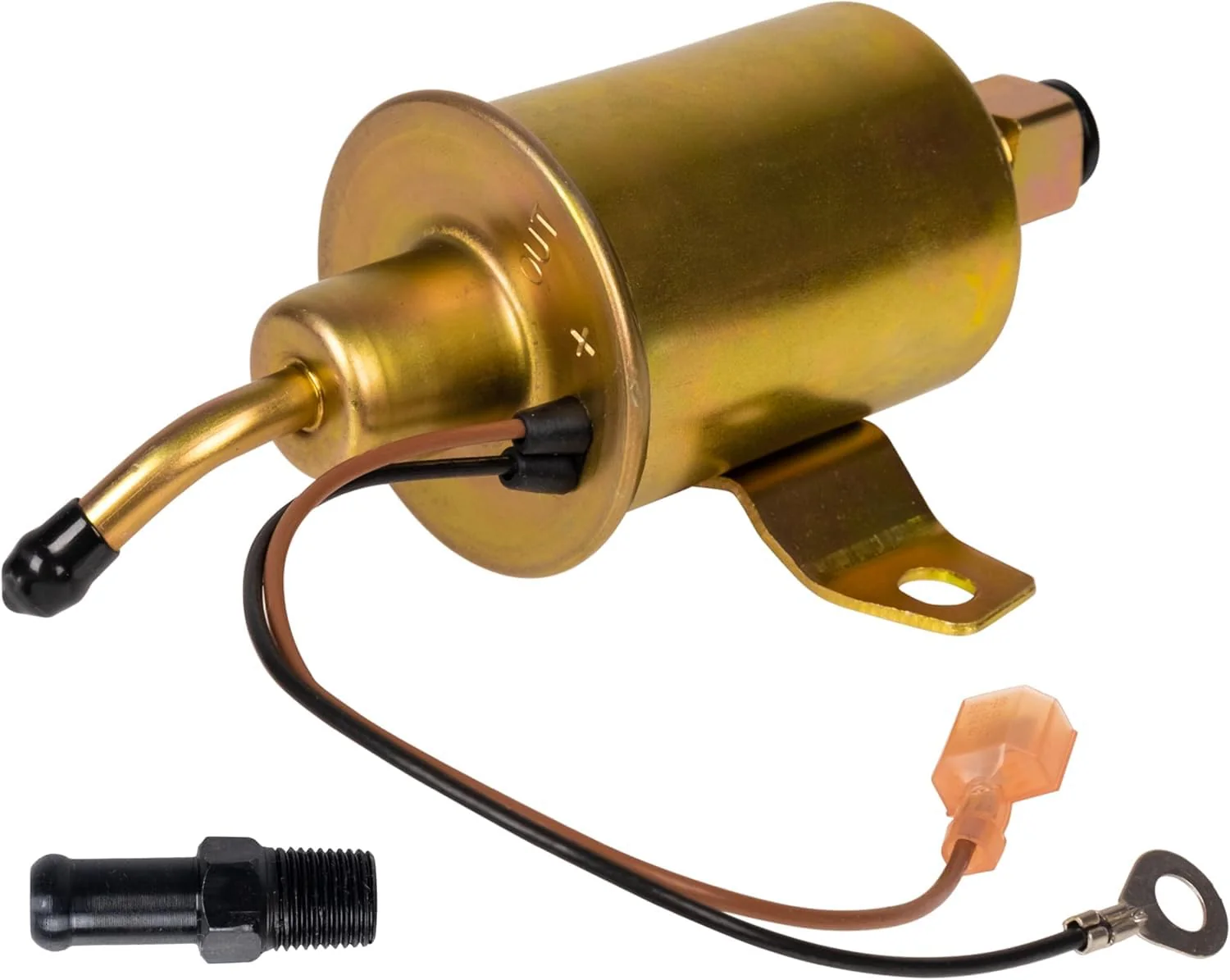

149-2311 Electric 12V Fuel Pump

Key Features

• Electric 12V DC operation
• Pressure: 2.5 to 4 PSI
• Flow Rate: 15 to 25 GPH
• Approximate Dimensions: 3.5 in x 3.5 in x 4 in
• Approximate Weight: 1.1 lbs

Replaces / Cross-Reference Part Numbers

• 149-2311-01
• 149-2311-02
• A029F889
• A047N926
• AR522
• E11006
• E11007

Compatibility & Fitment

• Fits select Onan / Cummins 4000-watt (4KW) gas generators
• Commonly used in Microlite and MicroQuiet series RV generators

When to Replace

• Generator fails to start
• Engine sputters or stalls under load
• Noticeable loss of power or surging
• Audible whining or clicking from the existing fuel pump

Installation Tips

• Disconnect the negative battery terminal before beginning work.
• Safely relieve fuel system pressure prior to disconnecting lines.
• Note the orientation and connection of all fuel lines and electrical wires on the old pump.
• Consider replacing the fuel filter (such as part 149-2457) during installation.
• After installation, prime the system and carefully check for any fuel leaks before starting the generator.
