DC47-00019A Dryer Heating Element & Multi-Fuse Safety Kit for Samsung

Key Features

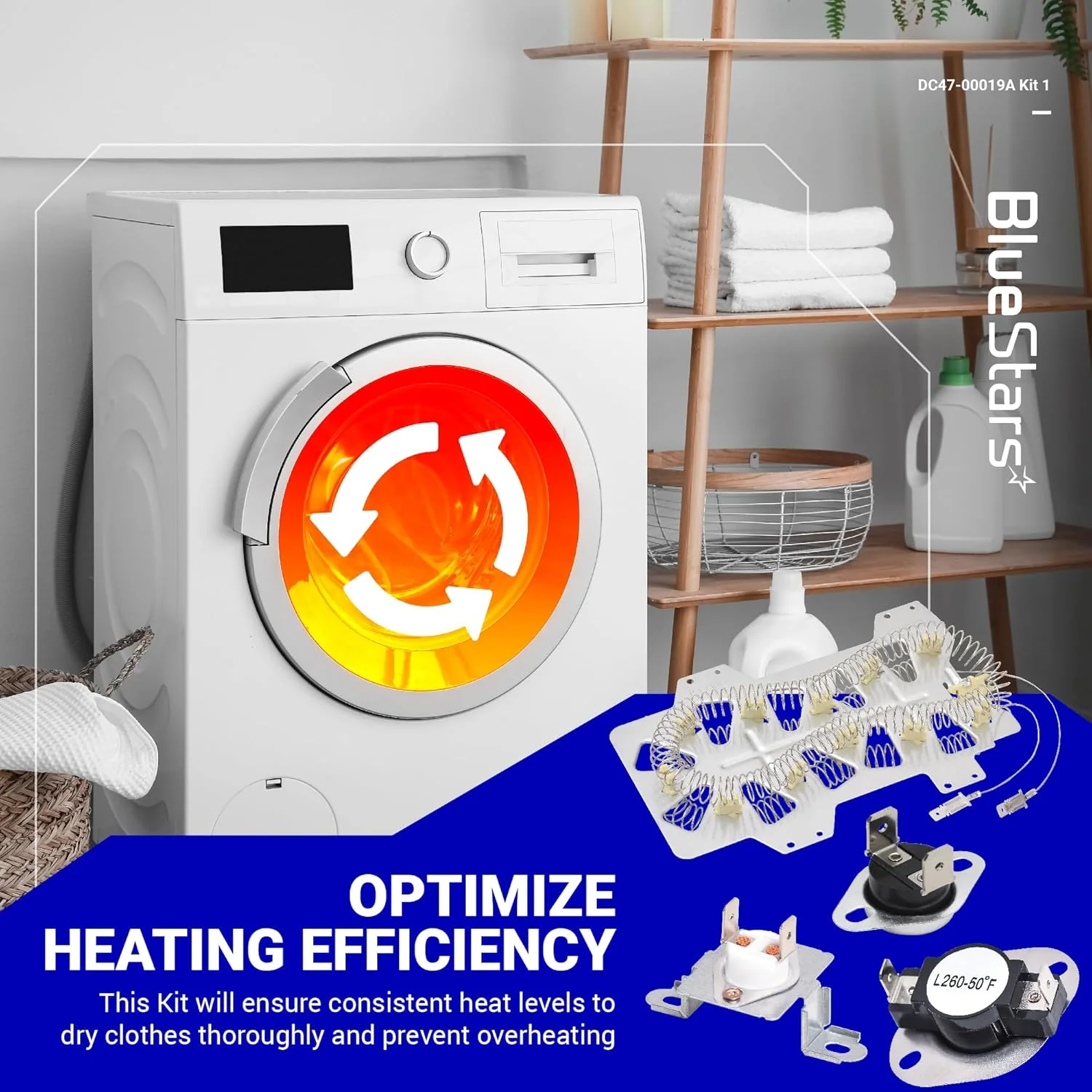

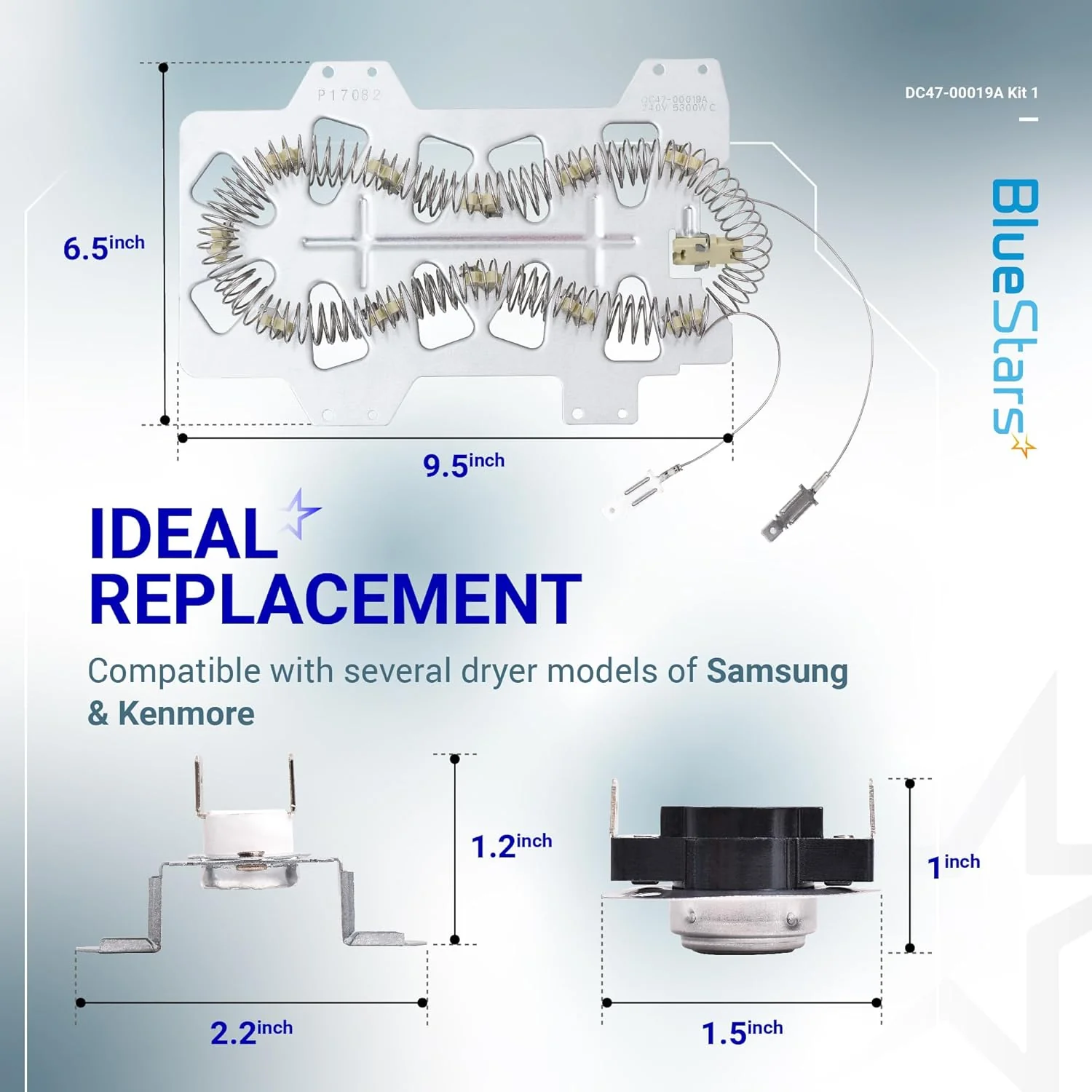

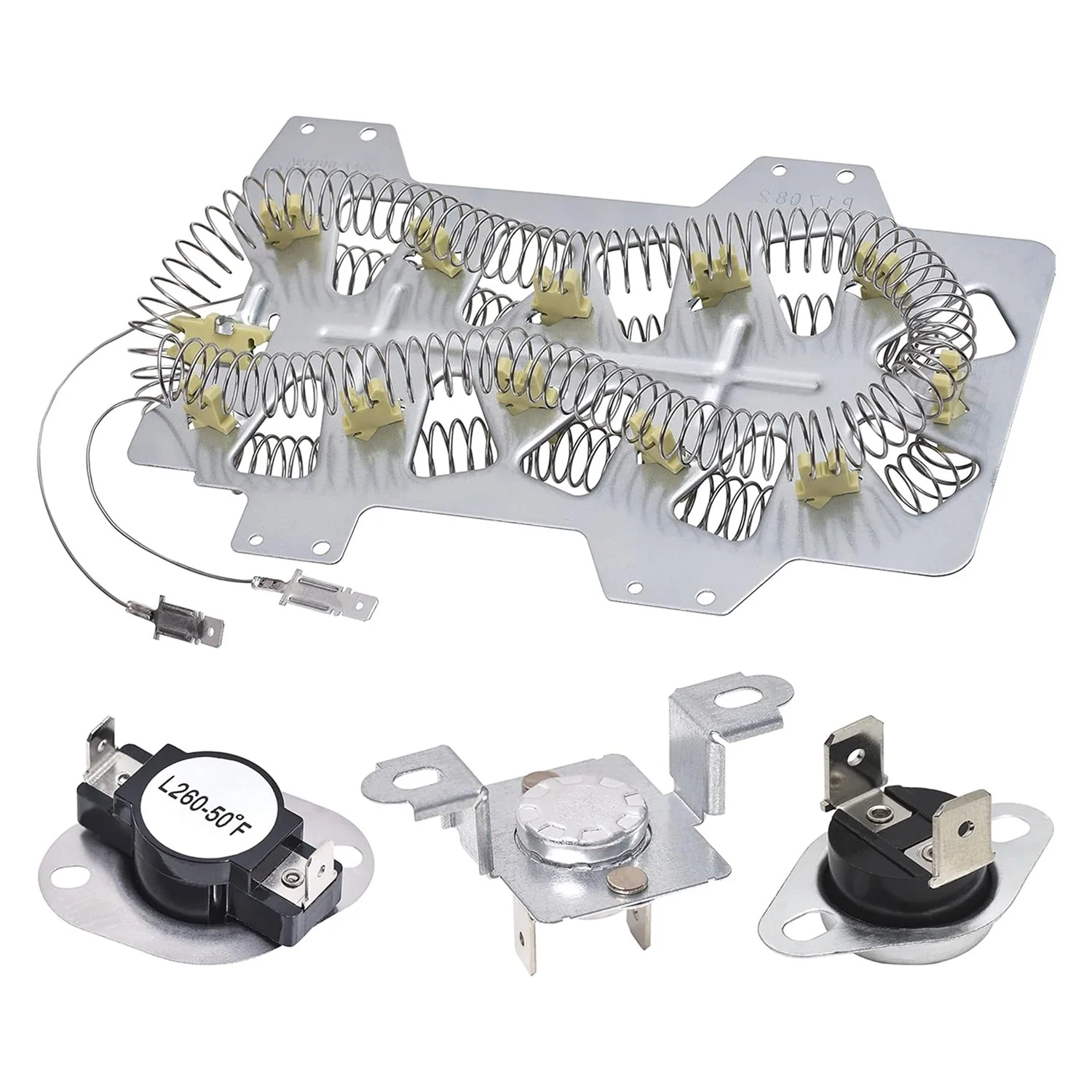

• Full Kit Set: 1 x DC47-00019A Dryer Heating Element, 1 x DC47-00018A Dryer Thermostat, 1 x DC96-00887A Dryer Thermal Fuse (Bracket), 1 x DC47-00016A Dryer Thermal Fuse (In-Line).

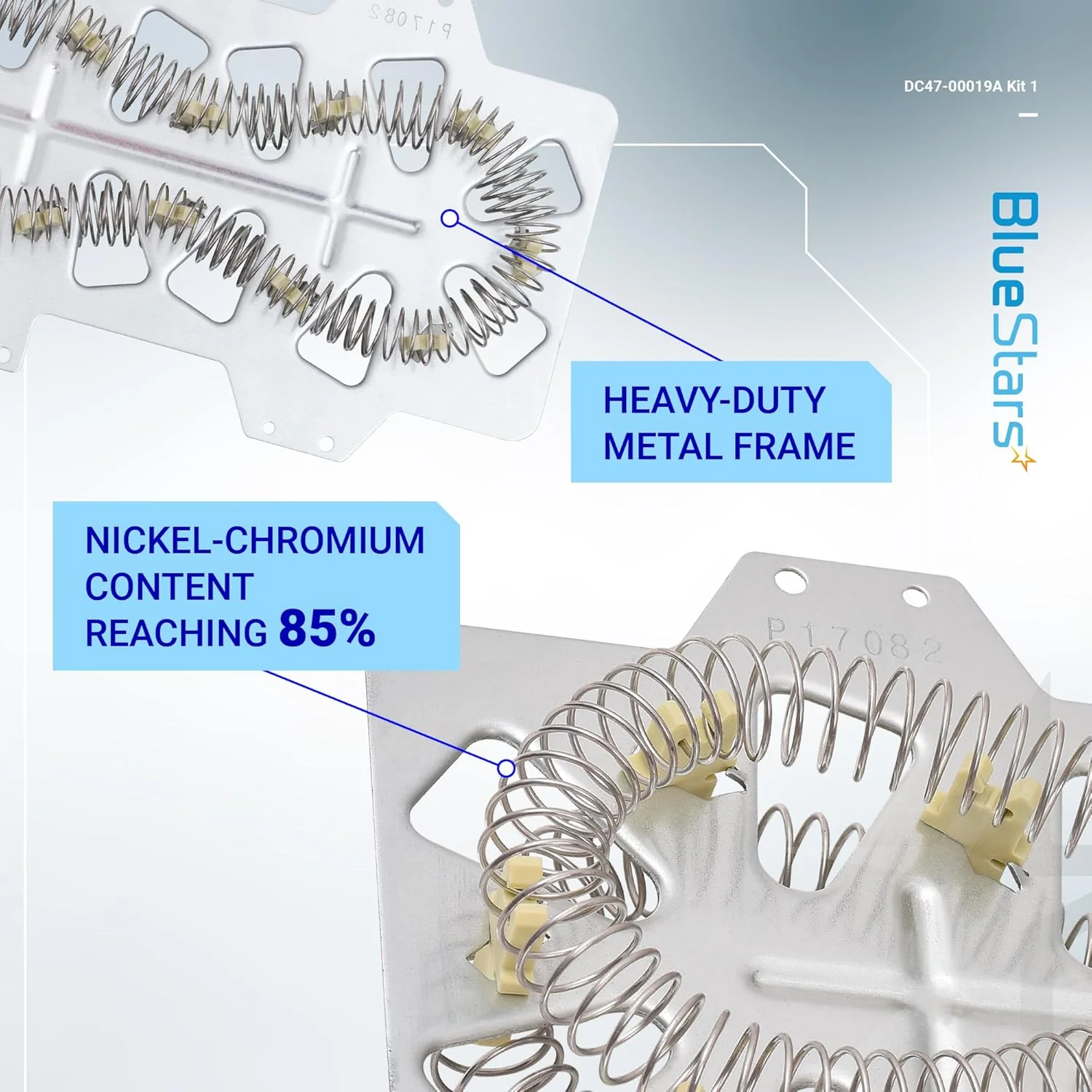

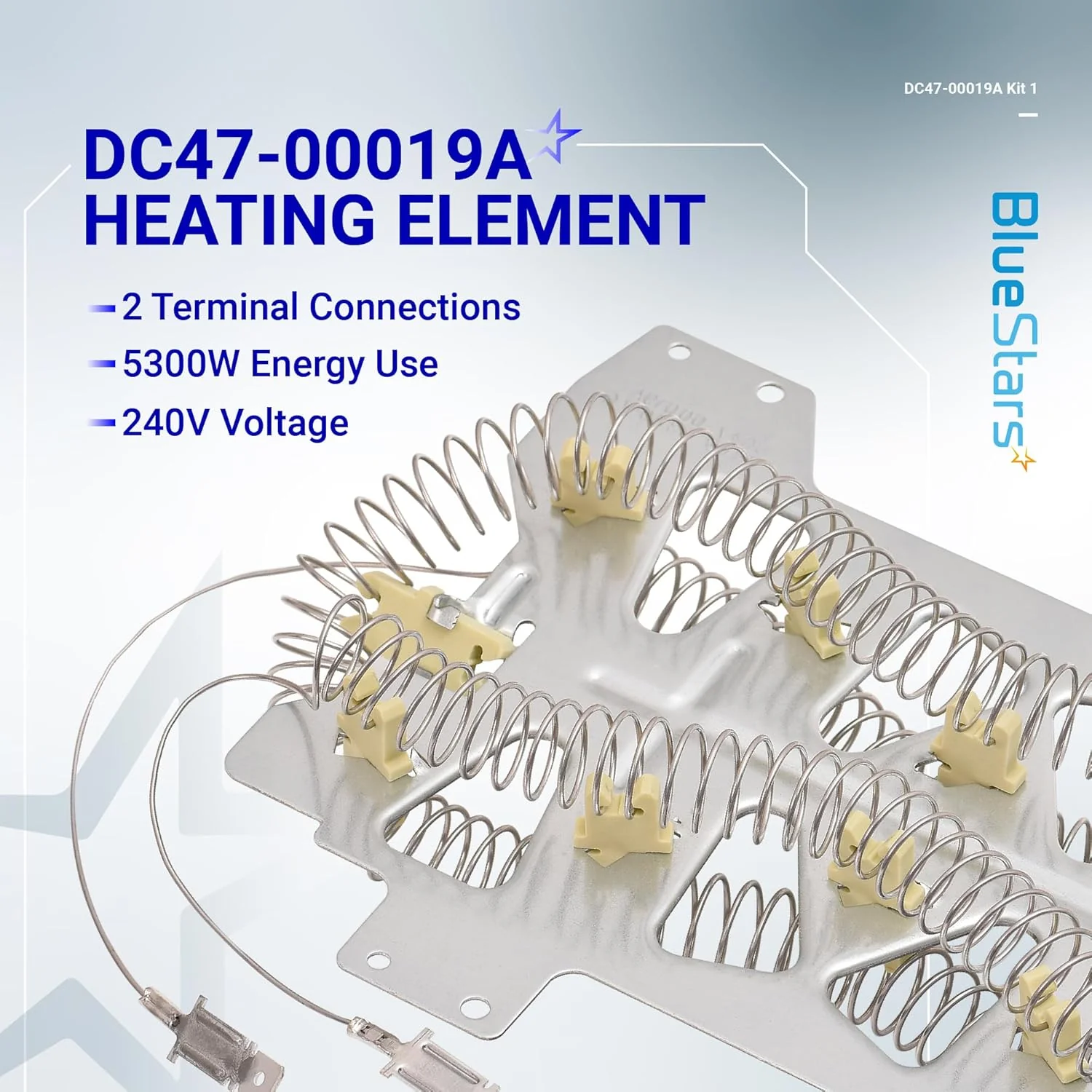

• High-Efficiency Ni-Cr Coil: The DC47-00019A element features an upgraded Nickel-Chromium alloy coil with 25% more surface area for faster heat-up times and increased thermal durability.
• Quad-Layer Thermal Protection: This complete kit provides an exhaustive safety overhaul, including the DC47-00018A high-limit thermostat and two distinct thermal fuses (DC96-00887A and DC47-00016A).
• Enhanced Ceramic Insulators: Built with high-density ceramic standoffs that prevent the heating coil from sagging or shorting against the metal heater housing during high-heat cycles.
• Plug-and-Play Installation: Designed with standard spade-terminal connectors and pre-drilled brackets for a 1:1 direct fit in Samsung 27-inch electric dryers.

Replaces / Cross-Reference Part Numbers

• Heating Element: DC47-00019A, 35001247, 35001119, AP4201899.
• Thermostat: DC47-00018A, 35001092, AP4201898.
• Thermal Fuse (Bracket): DC96-00887A, AP4207213, PS2430930.
• Thermal Fuse (In-Line): DC47-00016A, AP4201894, PS2430925.

Compatibility & Fitment

This kit is the primary heating repair solution for Samsung high-capacity electric dryers. Key compatible models include:

• Samsung DVE Series: DVE50R5200W/A3, DVE50R5400V/A3, DVE45R6100W, DVE45R6100C.
• Samsung DV42/DV45 Series: DV42H5200EP/A3, DV42H5000EW/A3, DV42H5200EW/A3, DV42H5200EF/A3, DV45H7000EW/A2.
• Samsung DV40 Series: DV40J3000EW/A2, DV400EWHDWR/AA.
• Note: Specifically for Electric dryers. If you have a gas model (DLG), this heating element will not be compatible.

When to Replace

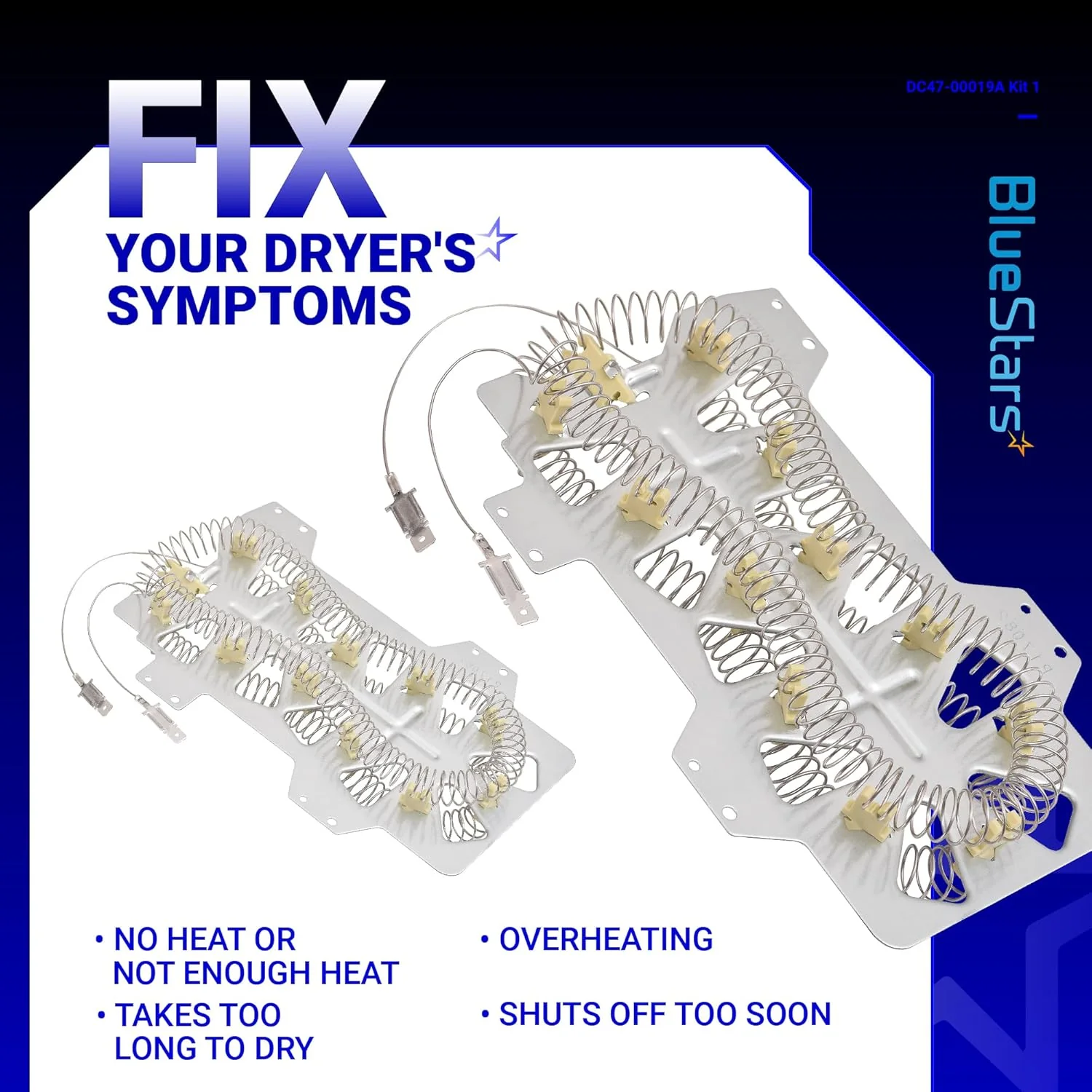

• No Heat / Cold Drum: The dryer spins normally but the air remains cold, usually indicating a snapped heating coil or a blown thermal fuse.
• Takes Multiple Cycles to Dry: A partially grounded or sagged element can produce reduced heat, significantly increasing drying times and energy costs.
• Dryer Shuts Down Mid-Cycle: One of the safety fuses has tripped due to excessive internal heat, often caused by a restricted exhaust vent.
• Visible Coil Damage: Upon inspection, the heating wire inside the metal housing is visibly broken, burnt, or touching the side of the heater box.
• Tripped Circuit Breaker: A grounded heating element can cause the dryer to trip your home’s 240V circuit breaker immediately when the heat cycle starts.

Installation Tips

• Safety First: You MUST unplug the dryer from the 240V power outlet before beginning. Testing a live heating element is extremely dangerous.
• Clean the Vent Line: Before installing the new element, professionally clean your dryer's exhaust duct. 90% of heating element failures are caused by lint buildup restricting airflow.
• Vacuum the Cabinet: While the dryer is open, vacuum out all accumulated lint from the bottom of the cabinet and the blower wheel to prevent a fire hazard for your new parts.
• Check the Terminals: Ensure the wire connectors are tight. Loose or corroded spade connectors create high resistance, which can melt the new thermostat or thermal fuse.
• Dual Fuse Inspection: When the element fails, it often takes out both the heater-mounted fuse (DC96-00887A) and the blower-mounted fuse (DC47-00016A). Always replace both when doing a full overhaul.
