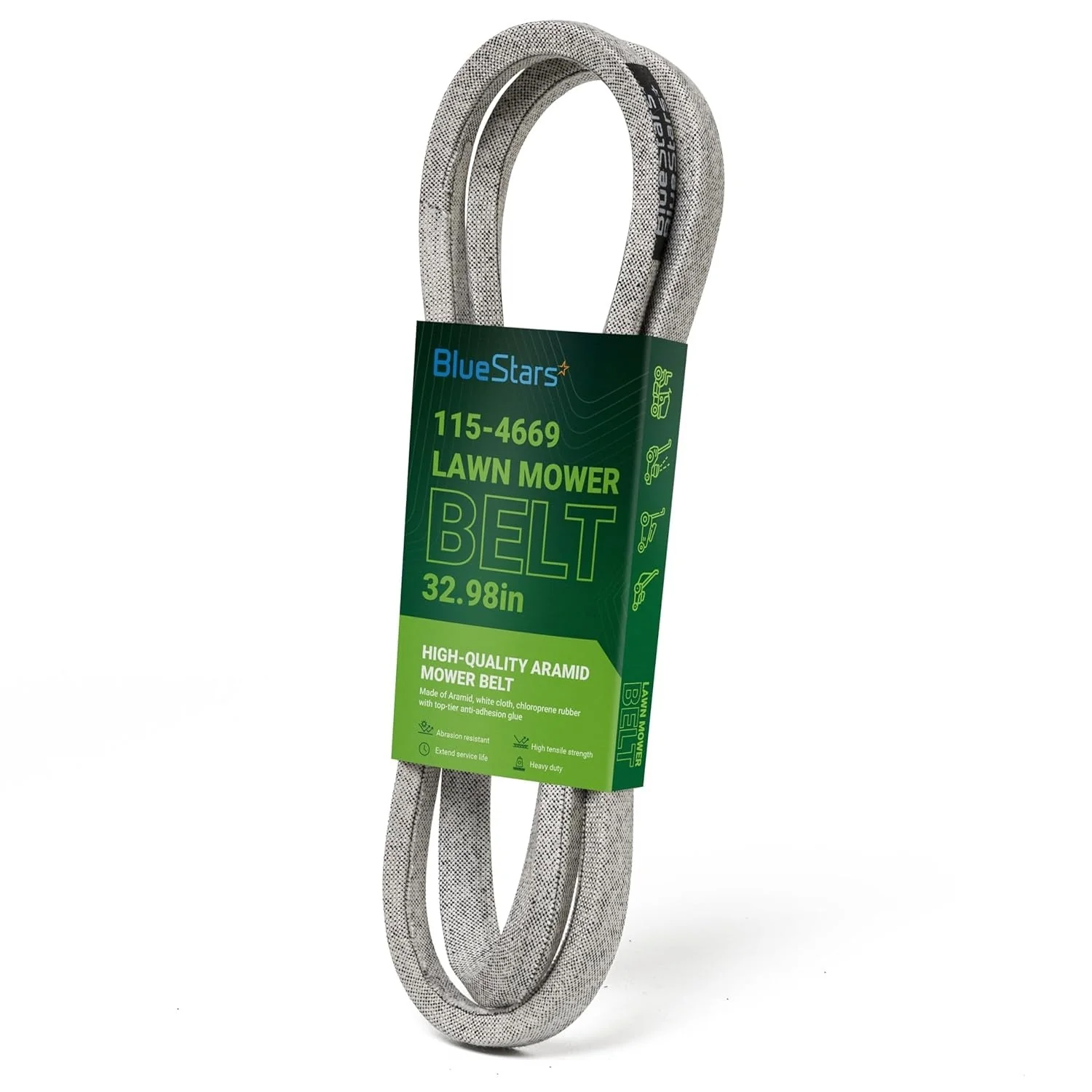

115-4669 Drive Belt - Compatible with 22 inch Toro Recycler Lawn Mower

Key Features

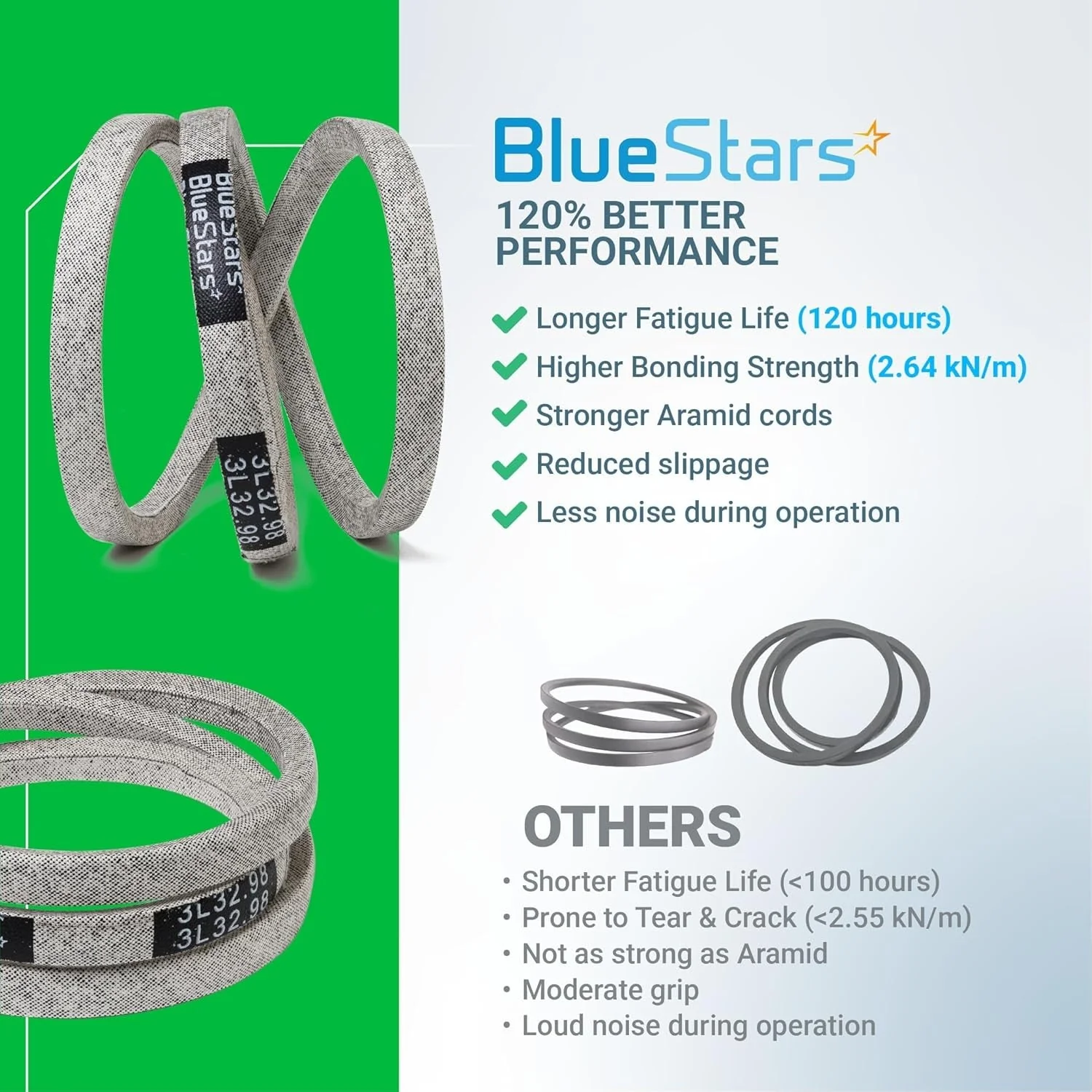

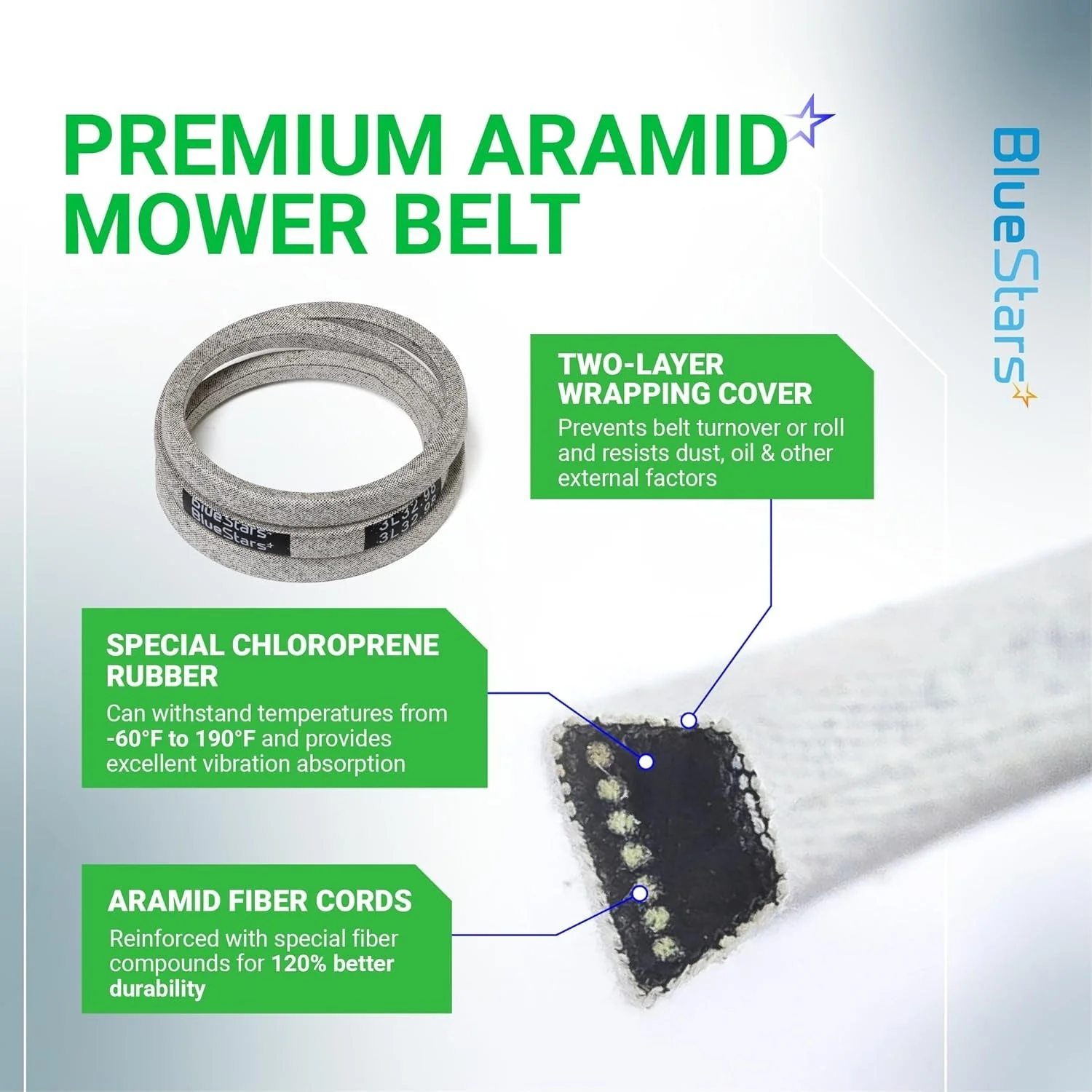

• Construction: Chloroprene rubber compound with aramid fiber tensile cords.
• Design: Features a two-ply cover for enhanced durability and heat resistance.

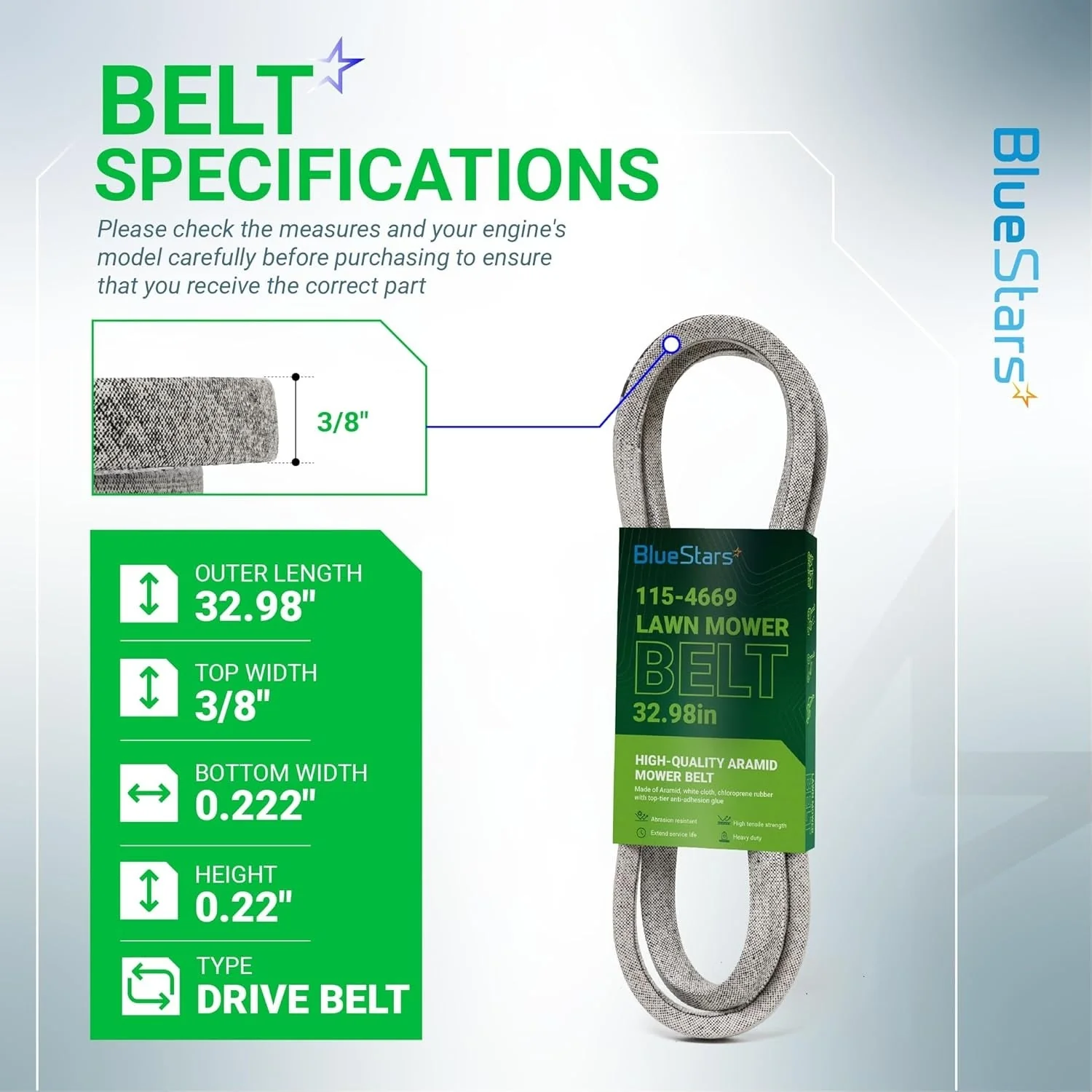

• Dimensions: 32.98 inches (Length) x 3/8 inches (Width).
• Type: V-Belt for self-propel drive systems.

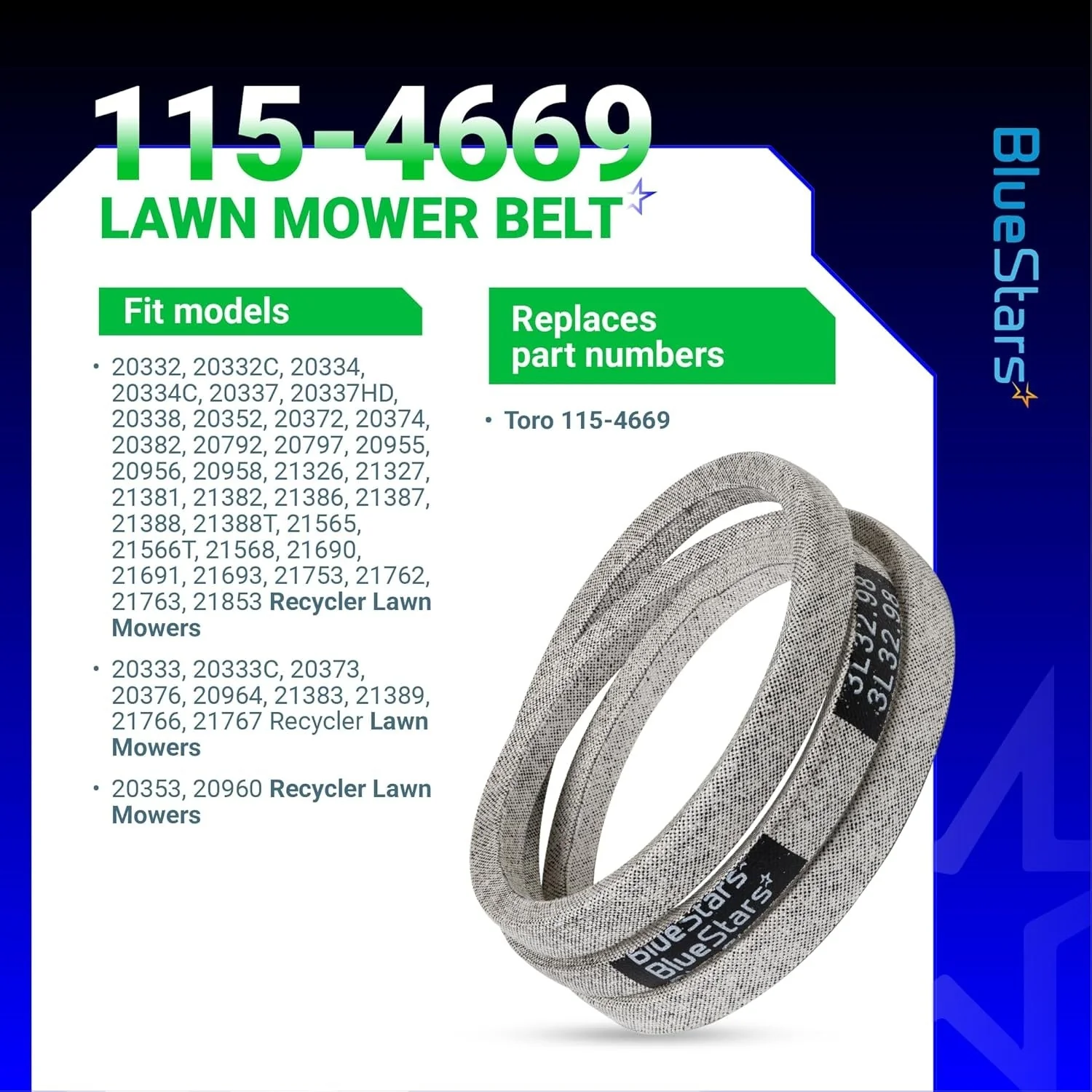

Replaces / Cross-Reference Part Numbers

• Toro: 115-4669, 131-4509

Compatibility & Fitment

• Brand: Toro
• Fits select 22-inch Recycler walk-behind lawn mower models, including but not limited to:
• 20332, 20333, 20334, 20338, 20352, 20372, 20373, 20374, 20955, 20956, 20958, 21462, 21464, 21465

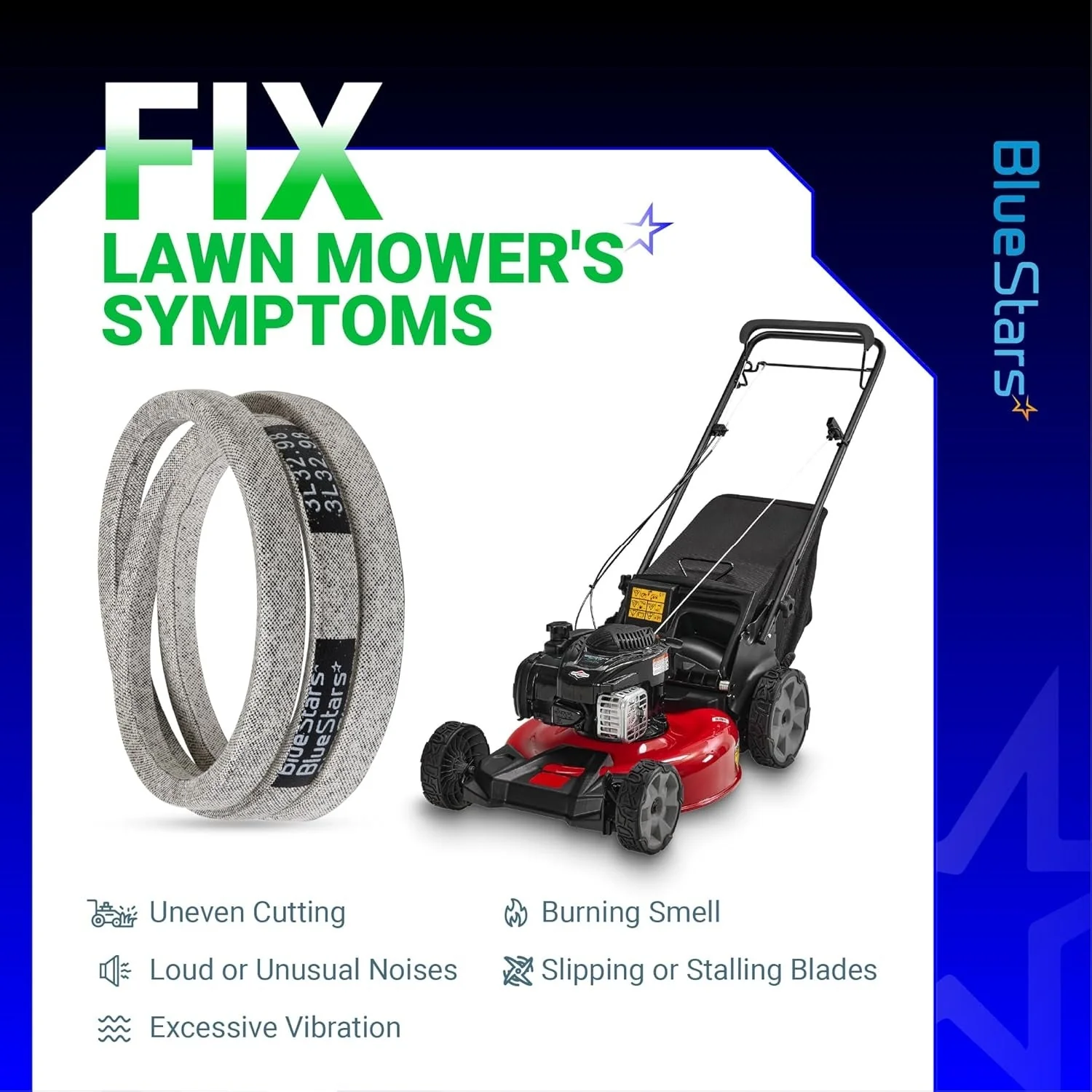

When to Replace

• Visible signs of wear such as cracking, fraying, glazing, or separation.
• Noticeable loss of self-propel power or inconsistent drive engagement.
• Loud squealing or chirping noises during operation.
• Excessive vibration originating from the drive system.
• Uneven or poor quality of cut due to inconsistent blade speed.

Installation Tips

• Before starting, disconnect the spark plug wire for safety.
• Consult your mower's operator manual for specific disassembly instructions.

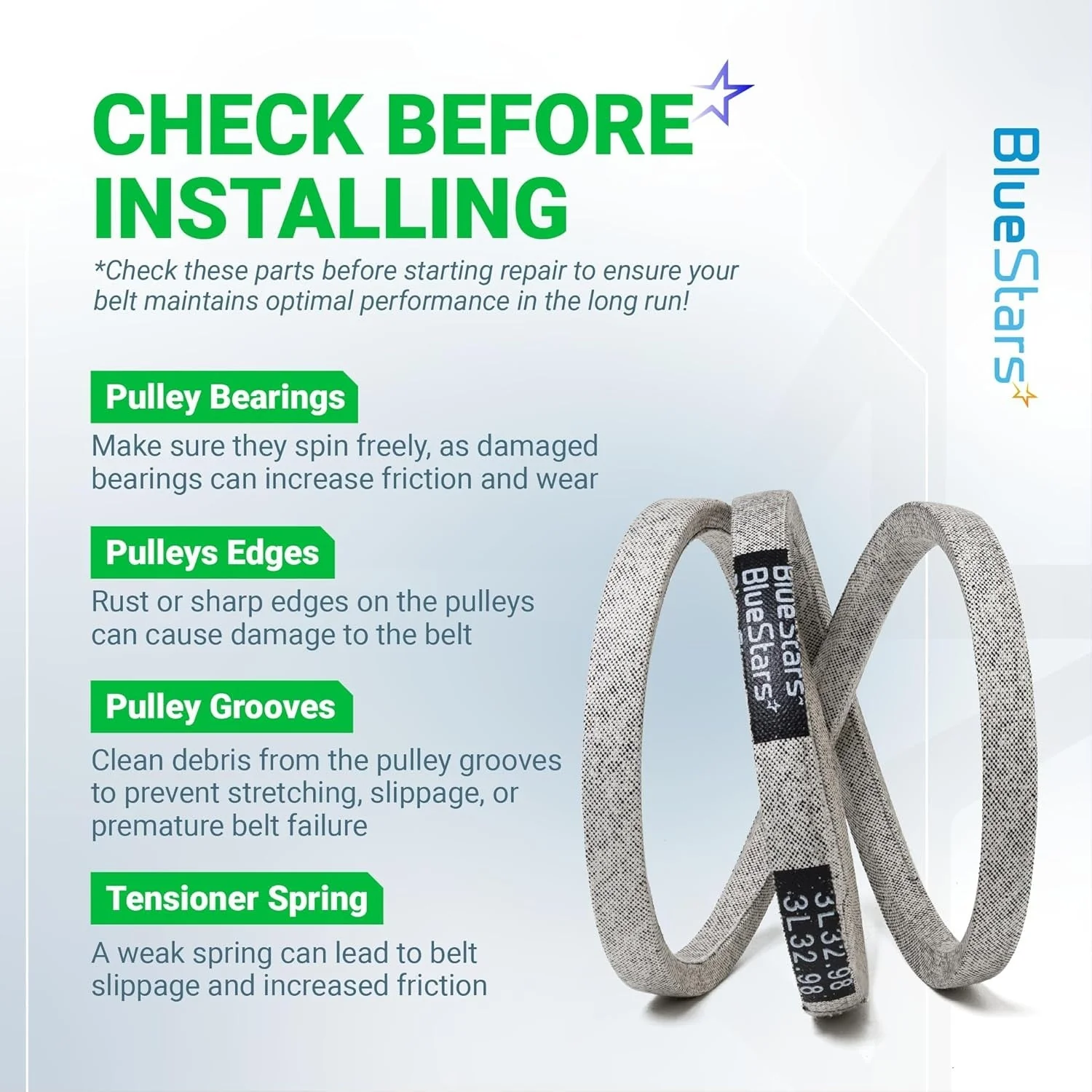

• Inspect drive pulleys for damage or wear and clean them before installing the new belt.
• Ensure the belt is routed correctly around all pulleys and guides.
• Verify proper tension after installation; the belt should not be too loose or too tight.
