DC Motor Speed Controller 9–60V 20A 25KHZ PWM

DC Motor Speed Controller with wide voltage support from 9V to 60V, designed for precise and stable DC motor speed control. It features PWM technology, an adjustable potentiometer, and a Forward–Brake–Reverse switch for flexible operation.

Product Features

• Precision speed control using Pulse-Width-Modulated (PWM) technology
• Wide input voltage range: DC 9–60V
• Supports DC motors within 20A
• Adjustable potentiometer knob for smooth speed regulation
• Forward–Brake–Reverse switch for convenient motor direction control
• High PWM frequency of 25KHZ for smooth motor operation

Specifications

• Input Voltage: DC 9–60V
• Output Voltage: Linearity under load
• Input Current: 20A
• Rated Current: 0–20A
• Speed Range: 5%–100%
• Speed Type: Regulating Current
• PWM Frequency: 25KHZ
• Potentiometer: Linear
• Wiring Type: Terminal
• Dimensions: 92 × 52 × 36 mm
• Weight: 155g

Wide Application

The adjustable voltage range is smooth and adjustable from 9V to 60V. It is suitable for DC motors within 20A.

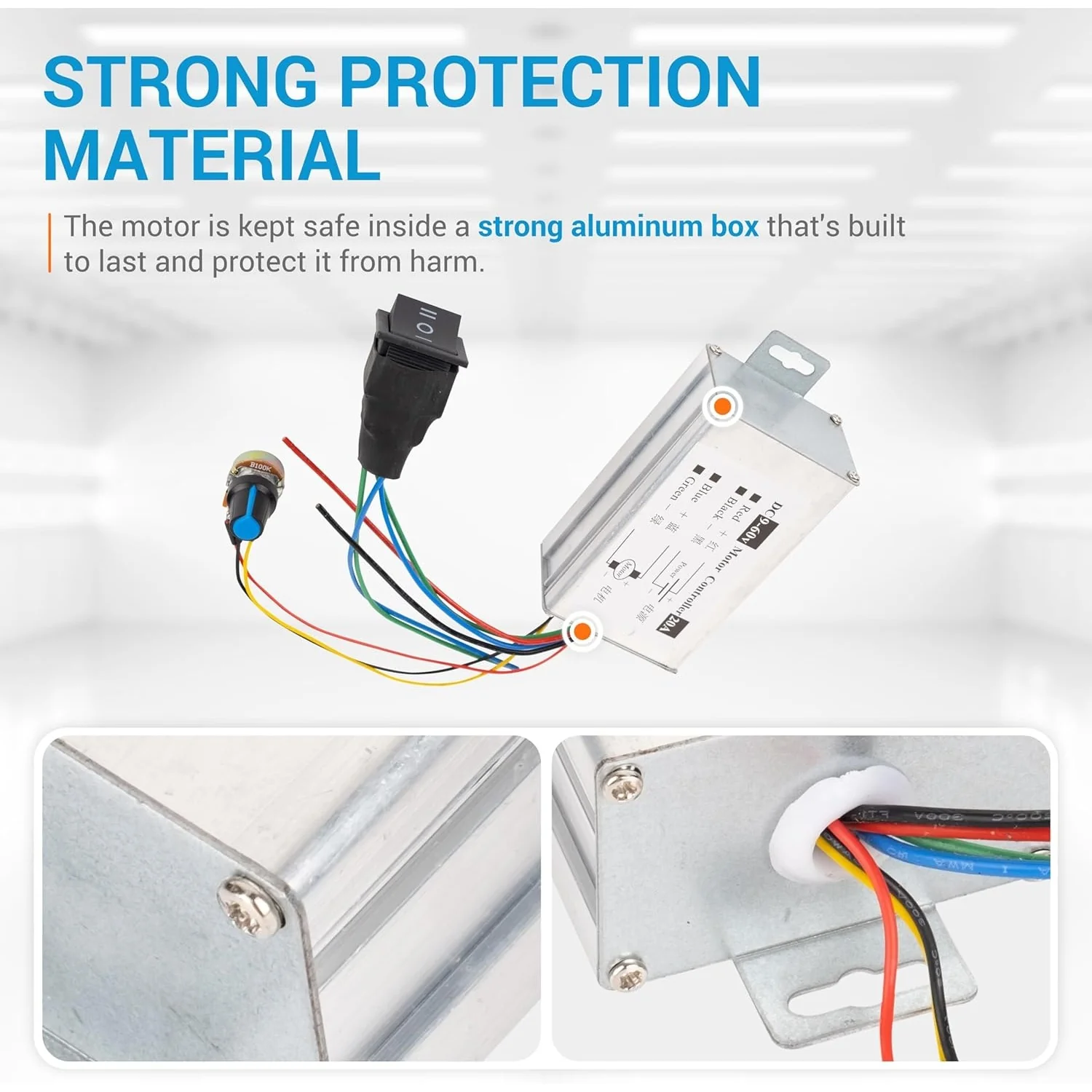

High-Quality Material

The motor speed controller is enclosed in a strong aluminum box designed for durability and protection. Ventilation holes on the sides and top help dissipate heat and ensure stable performance.

Lifetime Protection

Enjoy reliable performance with our lifetime protection, ensuring that your product will always be covered for any defects or issues that may arise.
