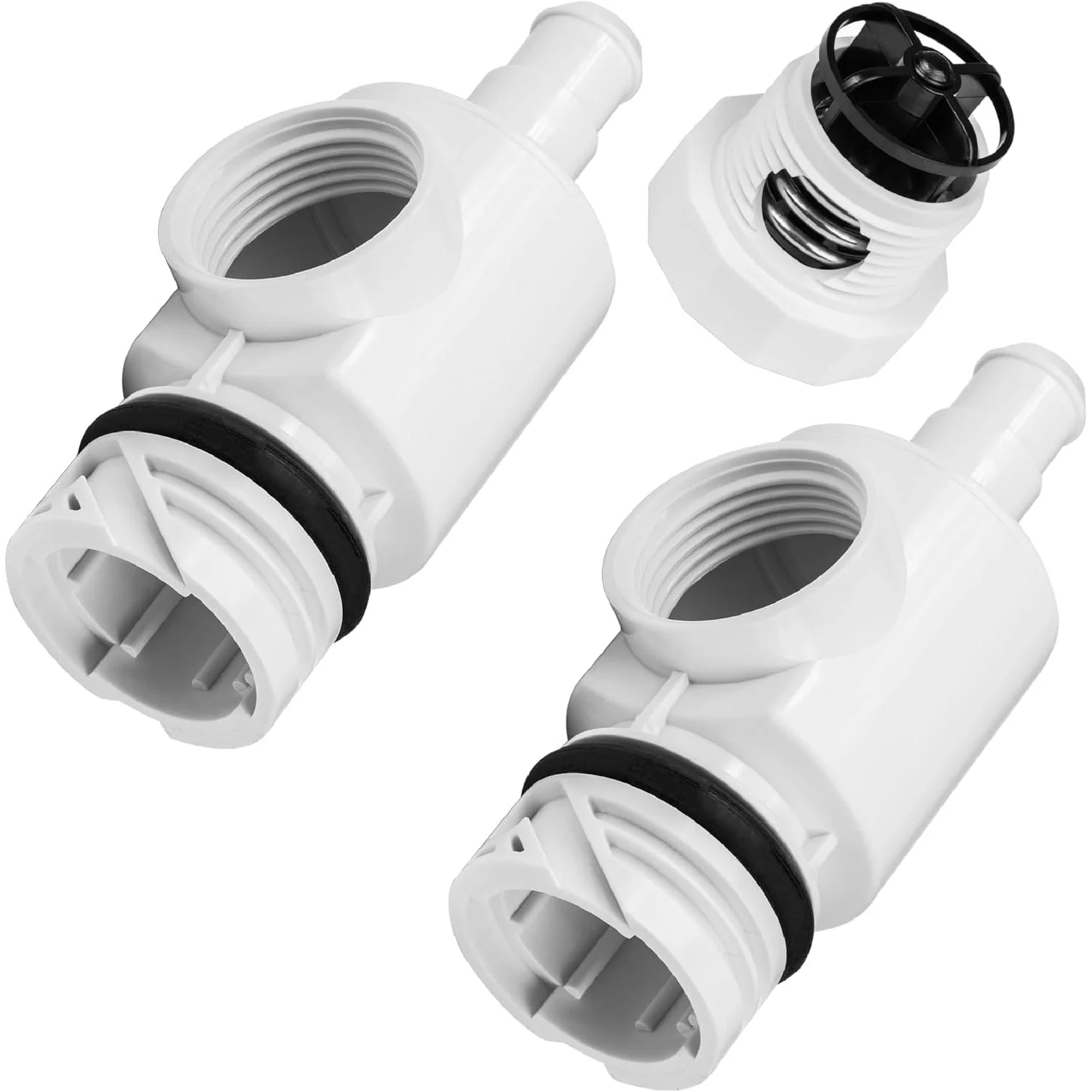

D29 UWF Quick Disconnect And 9-100-9002 Pressure Relief Valve

Key Features

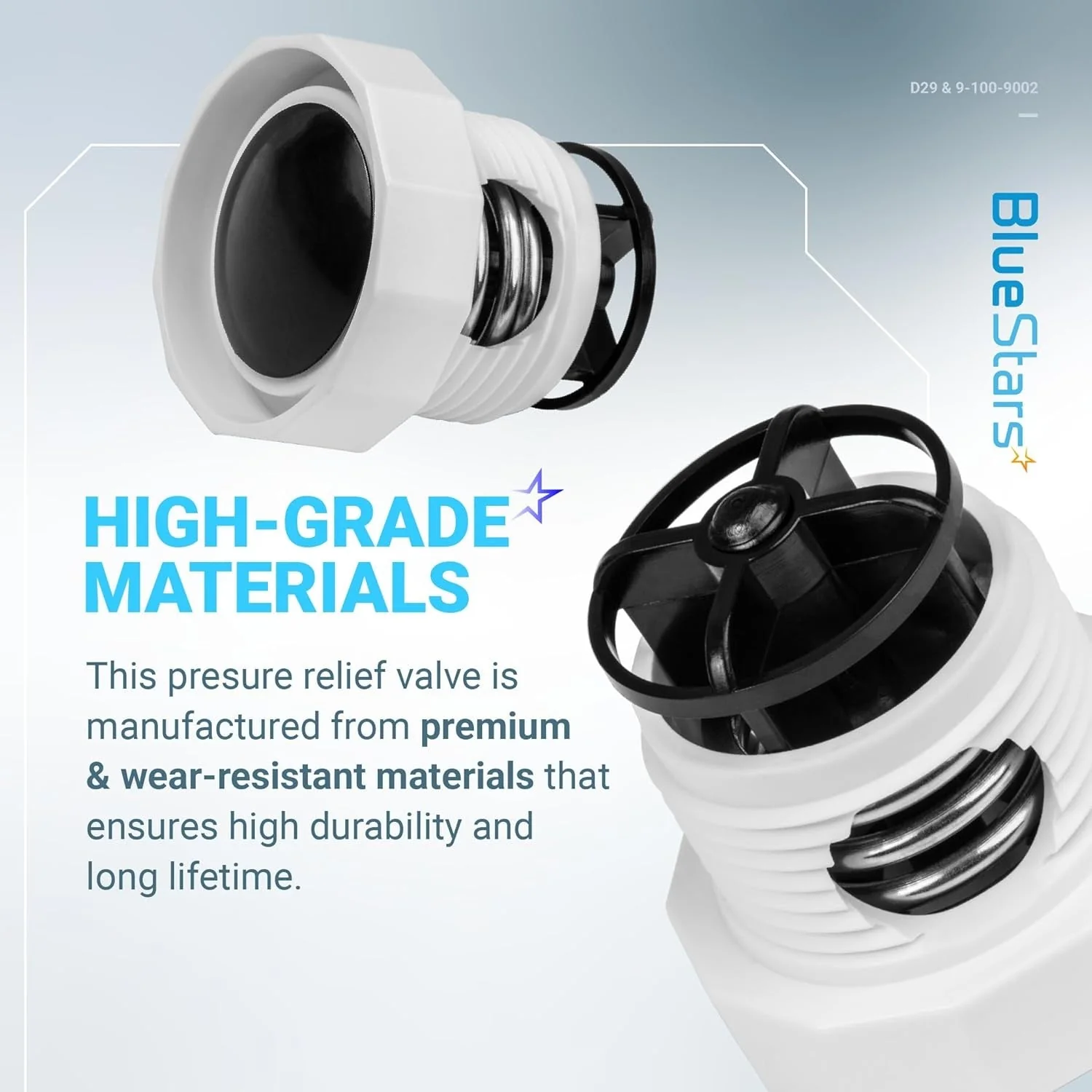

• Constructed from durable, wear-resistant ABS plastic.
• Includes one (1) D29 Universal Wall Fitting (UWF) quick disconnect.
• Includes one (1) 9-100-9002 pressure relief valve.

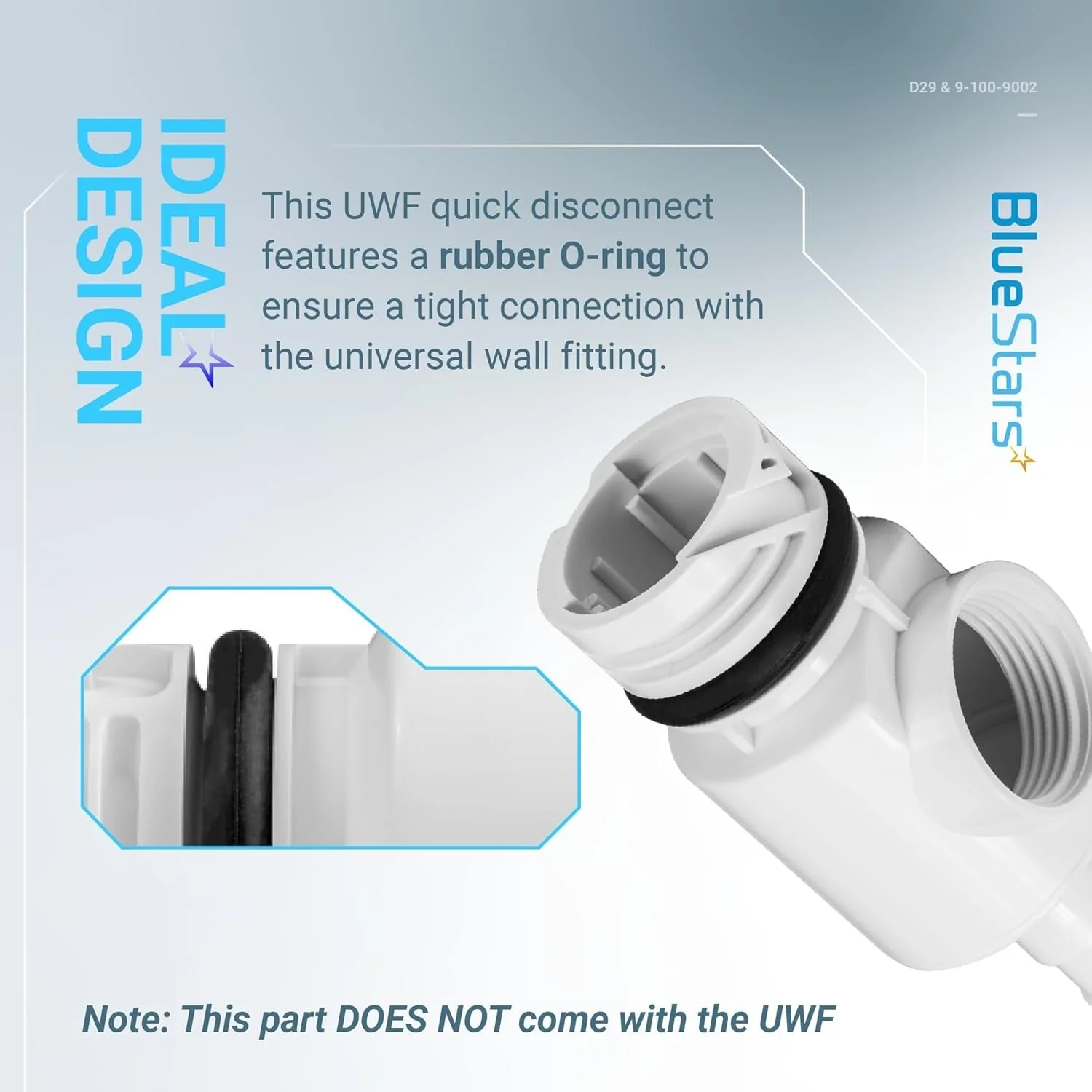

• Comes with a 6-505-00 rubber O-ring to ensure a leak-free seal.

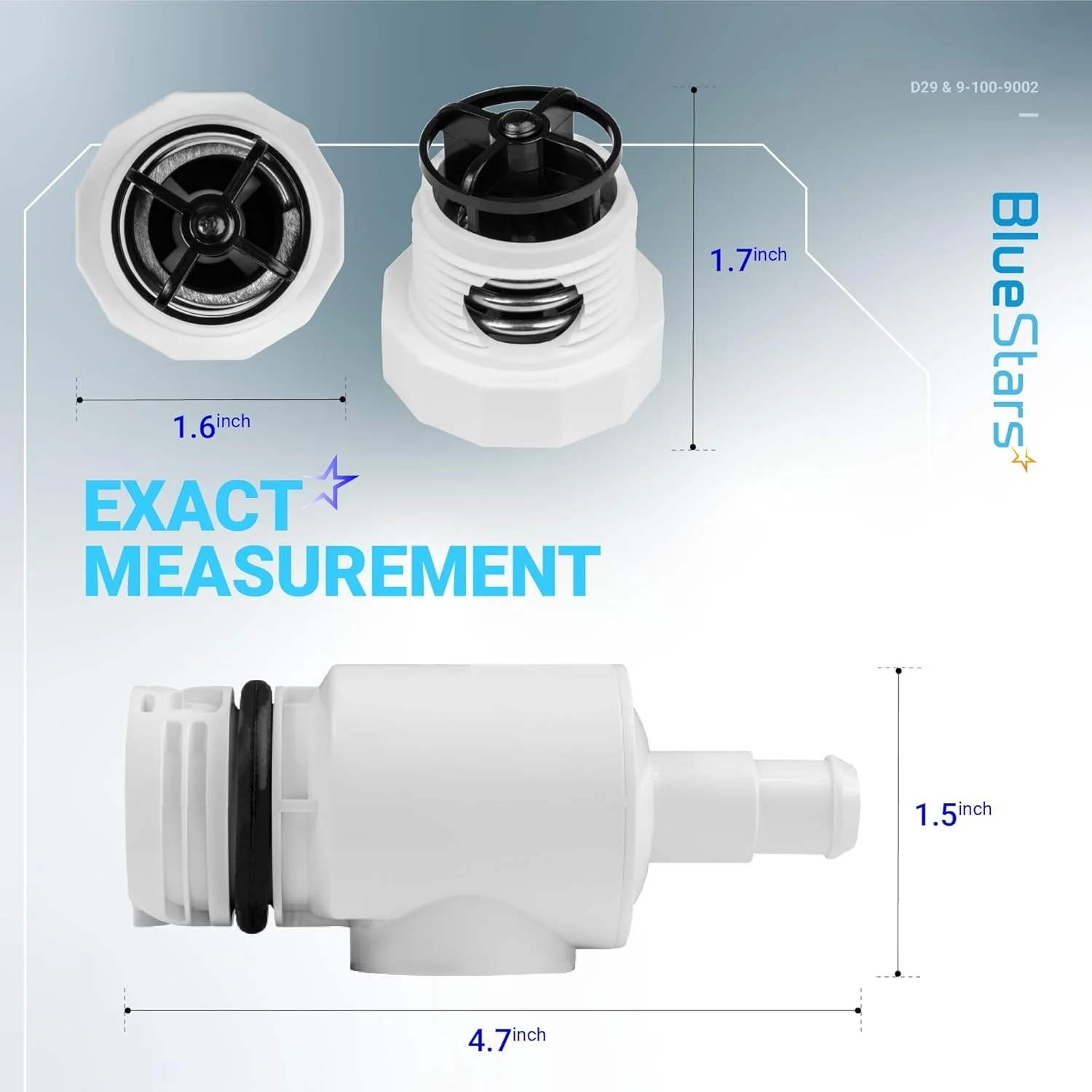

• Features a standard 1.5-inch threaded inlet connection.

Replaces / Cross-Reference Part Numbers

• UWF Quick Disconnect: D29, 25563-029-000, POL2017561
• Pressure Relief Valve: 9-100-9002
• O-Ring: 6-505-00

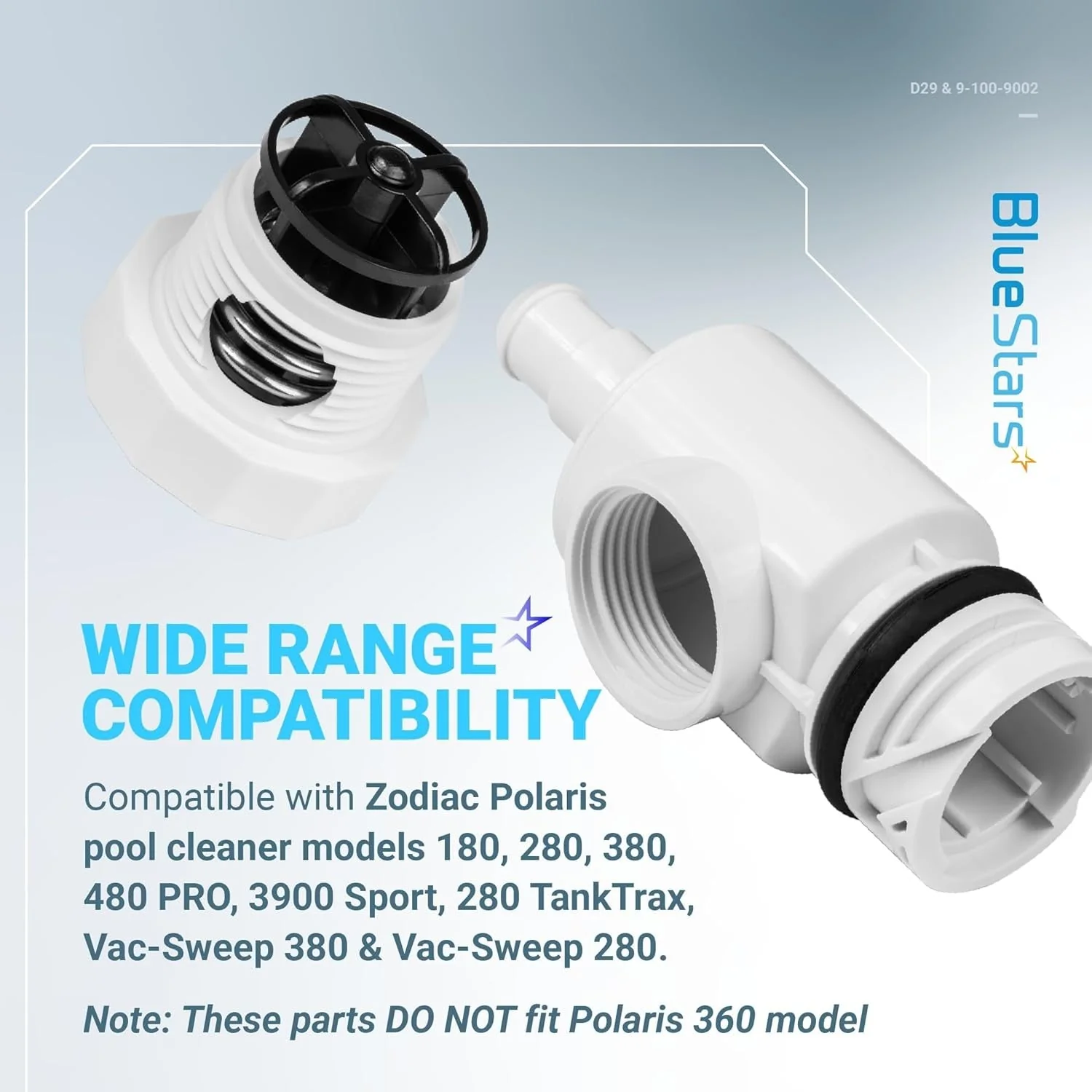

Compatibility & Fitment

• Designed for Zodiac Polaris pressure-side pool cleaners.
• Direct fit for models: 180, 280, 380, 480 PRO, 3900 Sport.
• Connects to any standard 1.5-inch threaded pool wall return line.

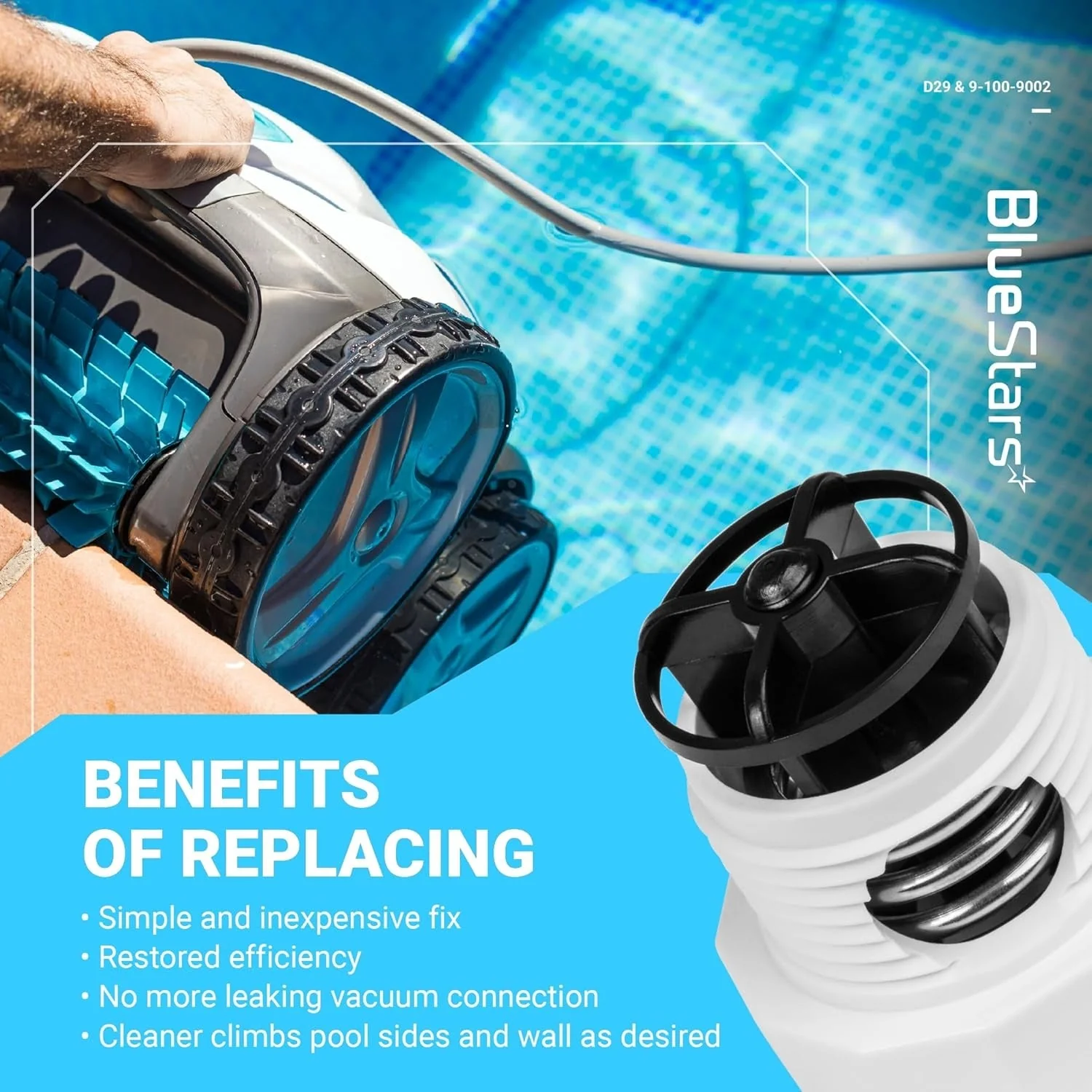

When to Replace

• Visible cracks, discoloration, or physical damage on the fitting.
• Water leaking or spraying from the wall connection during operation.
• Cleaner hose does not securely lock into place or disconnects easily.
• Reduced water pressure to the cleaner, causing sluggish or no movement.

Installation Tips

• Turn off the pool pump before starting installation.
• Apply thread sealant tape to the male threads of the wall fitting for a watertight seal.
• Ensure the O-ring is correctly seated within its groove before connecting the hose.
• Hand-tighten the fitting into the wall; avoid over-tightening with tools to prevent cracking the plastic.
