954-05001 Deck Belt for 30-inch Deck Cub Cadet TB30R TB30 CC30 CR30 Craftsman R110 R1000 Lawn Mowers - Replaces CMXGZAM501065 490-501-C065 490-501-M065 | 1/2" x 43.5"

Key Features

• Type: Deck Belt

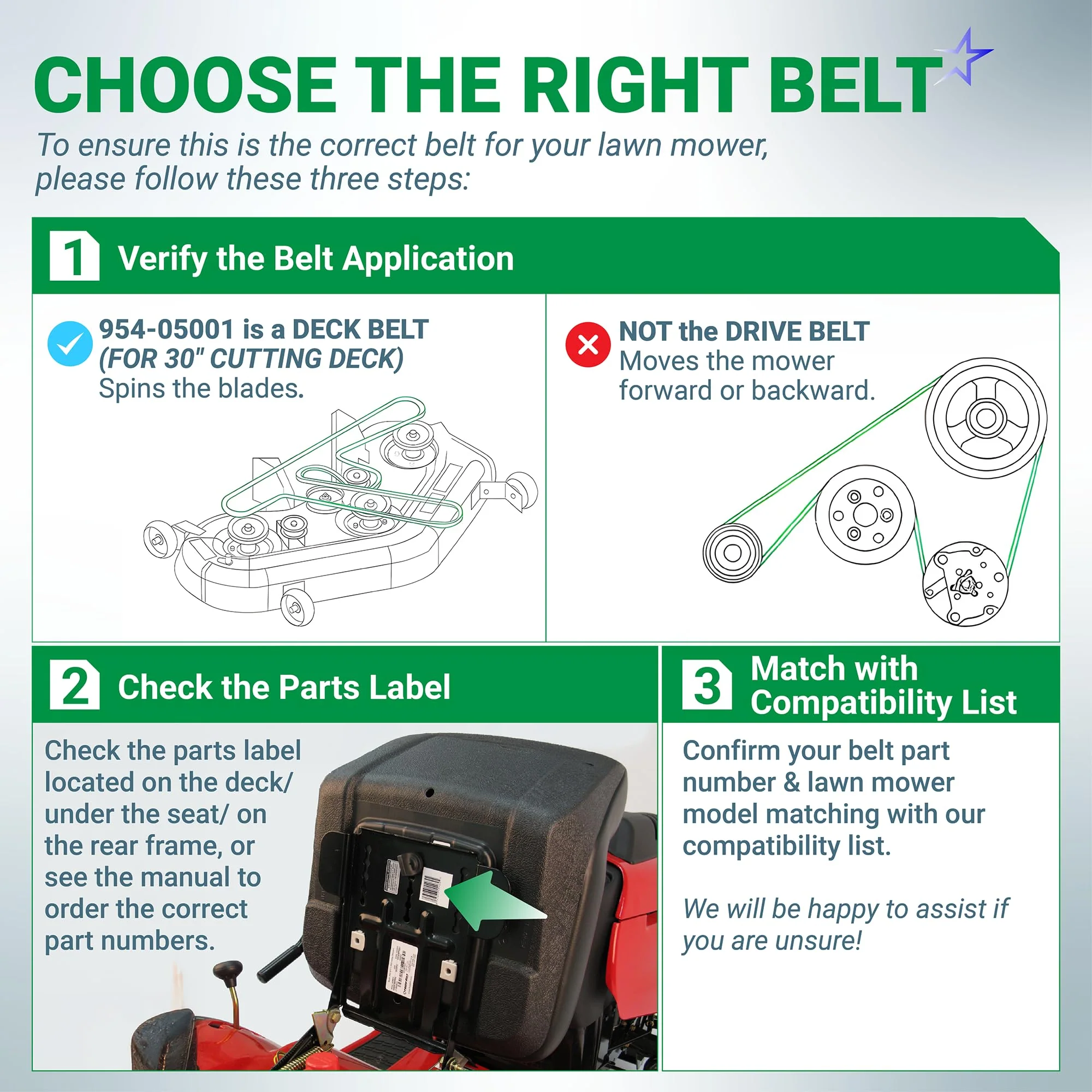

• Application: Engages the mower blades by connecting the engine pulley to the deck pulley.

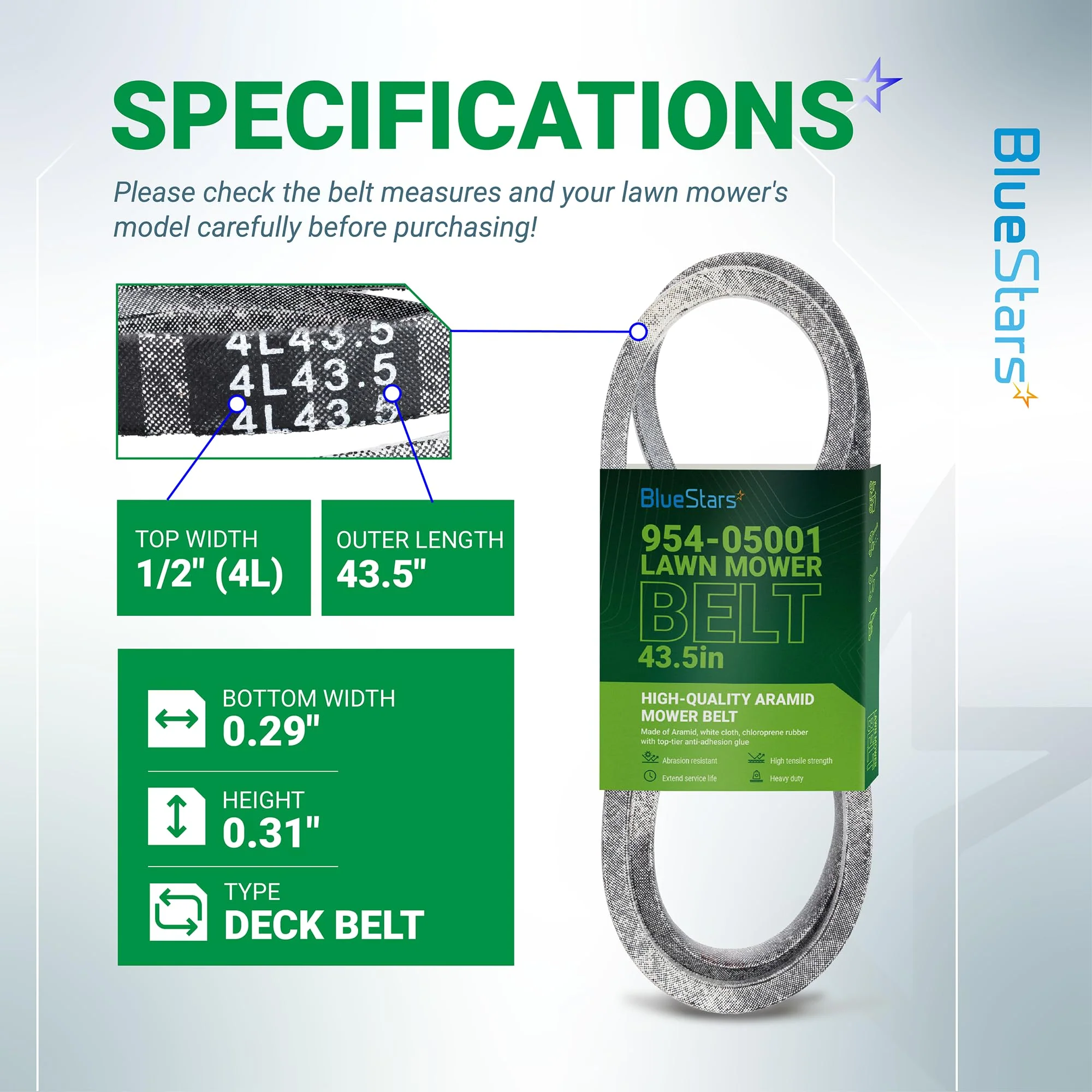

• Dimensions: 1/2 inch width, 43.5 inch outer circumference.
• Construction: Engineered for durability and resistance to wear, heat, and oil.

Replaces / Cross-Reference Part Numbers

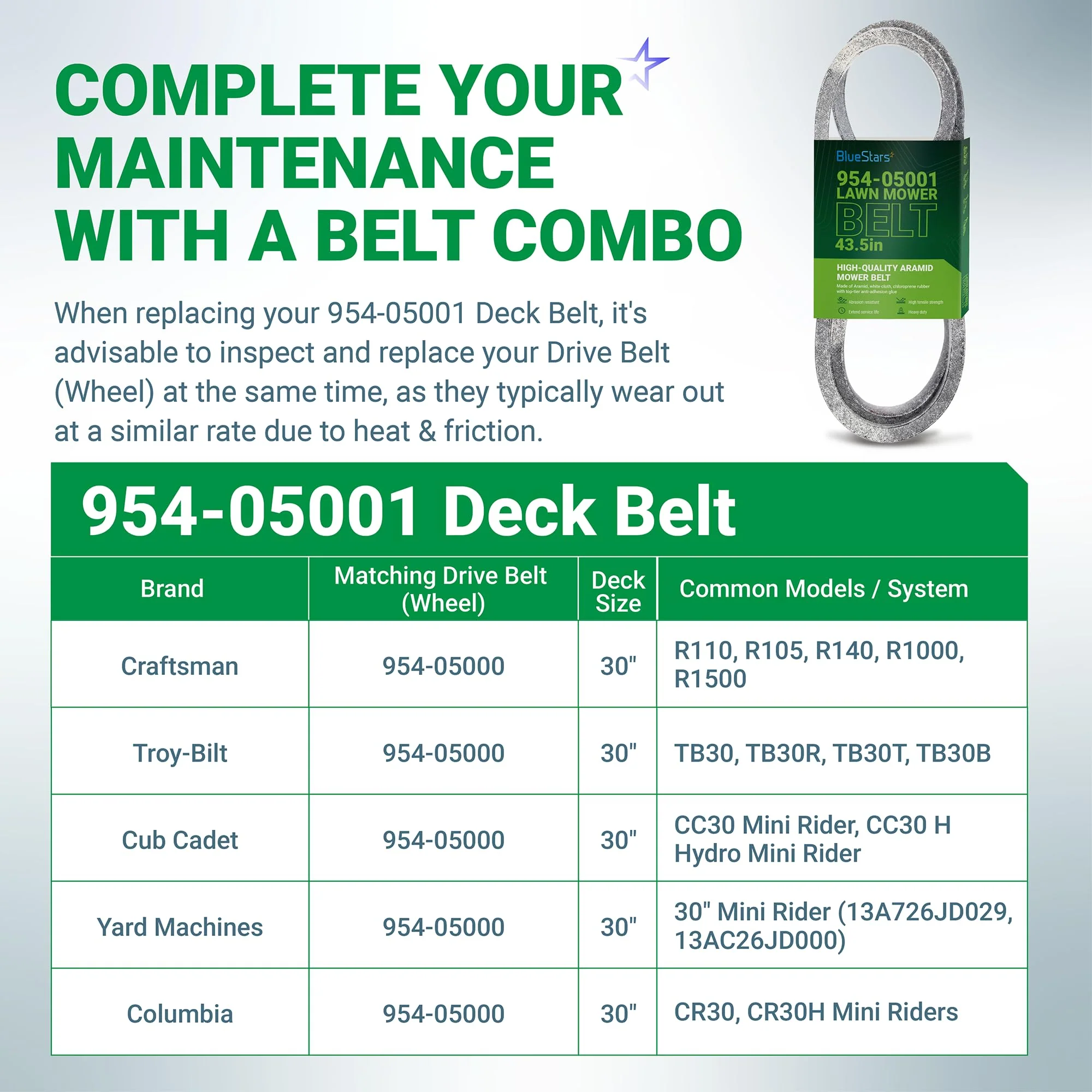

• Cub Cadet / MTD / Troy-Bilt: 954-05001, 754-05001, 490-501-M065
• Craftsman: CMXGZAM501065, 490-501-C065

Compatibility & Fitment

• Deck Size: Designed for 30-inch cutting decks.
• Cub Cadet Models: TB30R, TB30, CC30, CC30H, CR30
• Craftsman Models: R110, R1000
• Also fits select MTD and Troy-Bilt riding mowers with 30-inch decks.

When to Replace

• Visible signs of wear such as cracking, fraying, glazing, or stretching.
• Squealing or slipping noises during mower operation.
• Inconsistent blade speed or failure of blades to engage.
• Uneven or poor quality of cut.

Installation Tips

• Before installation, disconnect the spark plug wire for safety.
• Refer to your mower's operator manual for the specific belt routing diagram and replacement procedure.

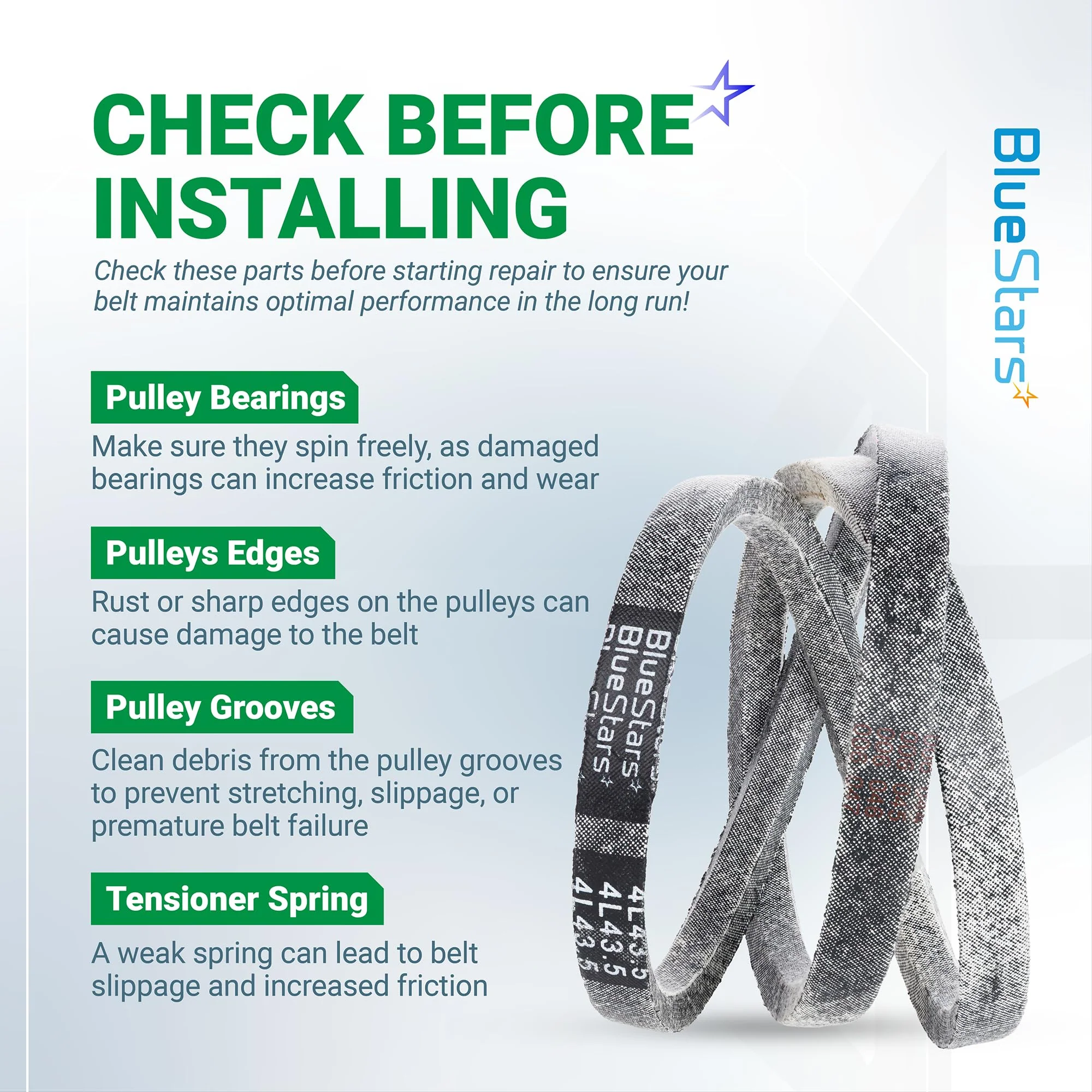

• Inspect pulleys for damage, debris, or excessive wear before installing the new belt.
• Ensure the new belt is properly seated in all pulley grooves.
• Verify correct tension after installation; the belt should not be too loose or too tight.
