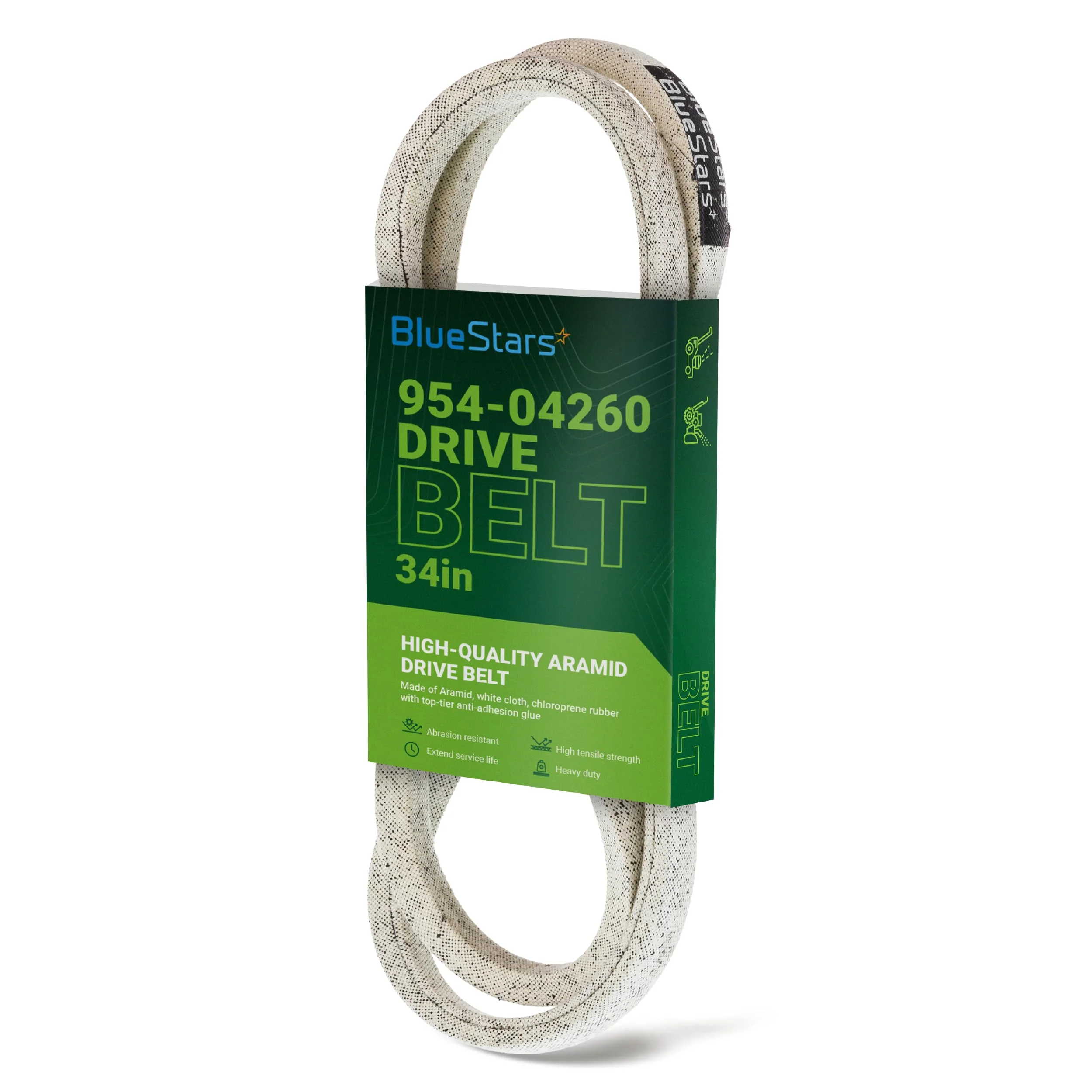

954-04260 Drive Belt 3/8'' x 34''

Key Features

• Type: V-Belt
• Application: Wheel Drive
• Length: 34 in
• Width: 3/8 in
• Material: Rubber compound with aramid fiber reinforcement cords for tensile strength and durability.

Replaces / Cross-Reference Part Numbers

• MTD / Cub Cadet / Troy-Bilt: 954-04260, 754-04260, 954-04259A, 754-04259
• Craftsman: CMXGZAM501005
• Aftermarket: 265-472

Compatibility & Fitment

• Brands: Fits select models from MTD, Cub Cadet, Troy-Bilt, and Craftsman.
• Lawn Mowers: Designed for 21-inch self-propelled, walk-behind mowers.
• Snow Throwers: Fits various two-stage snow thrower models, manufactured 2010 and later.
• Other Equipment: Also used on select chipper-shredder vacuums.
• Example Models: 526 SWE, C224, Cub Cadet 12ABB2M5710 (2017) Sc 300 Hw.
• Note: Always verify the part number required for your specific model by checking the owner's manual or original part.

When to Replace

• Visible wear such as cracking, fraying, glazing, or deep abrasions.
• Belt has become stretched, causing slippage or loss of drive engagement.
• Audible squealing or chirping from the drive system during operation.
• Scheduled preventative maintenance as recommended by the equipment manufacturer.

Installation Tips

• Before installation, disconnect the spark plug wire for safety.
• Refer to your equipment's owner's manual for specific belt routing and replacement procedures.
• Ensure all pulleys are clean and free of debris.
• Verify correct belt tension after installation to prevent slippage or excessive wear. Do not over-tighten.
