[Lifetime Warranty] 925-0267 STD365402 Ignition Switch 3 Position 5 Terminals - Compatible with MTD Craftsman John Deere Toro Snapper Scag Craftsman Riding Lawn Mowers - Replaces 24688 24695 925-0267A 725-0267

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

[Lifetime Warranty] 925-0267 STD365402 Ignition Switch 3 Position 5 Terminals - Compatible with MTD Craftsman John Deere Toro Snapper Scag Craftsman Riding Lawn Mowers - Replaces 24688 24695 925-0267A 725-0267

[Lifetime Warranty] 925-0267 STD365402 Ignition Switch 3 Position 5 Terminals - Compatible with MTD Craftsman John Deere Toro Snapper Scag Craftsman Riding Lawn Mowers - Replaces 24688 24695 925-0267A 725-0267

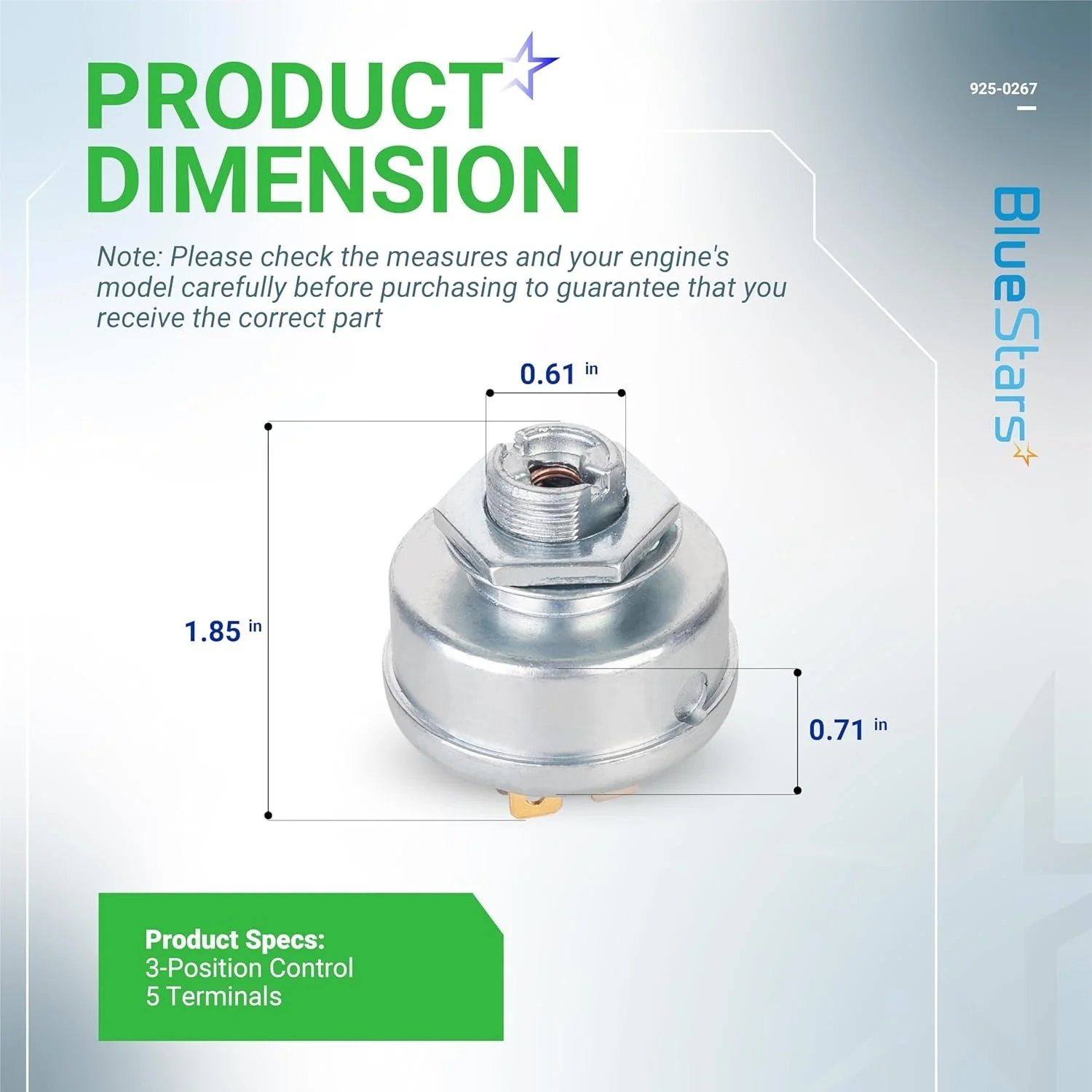

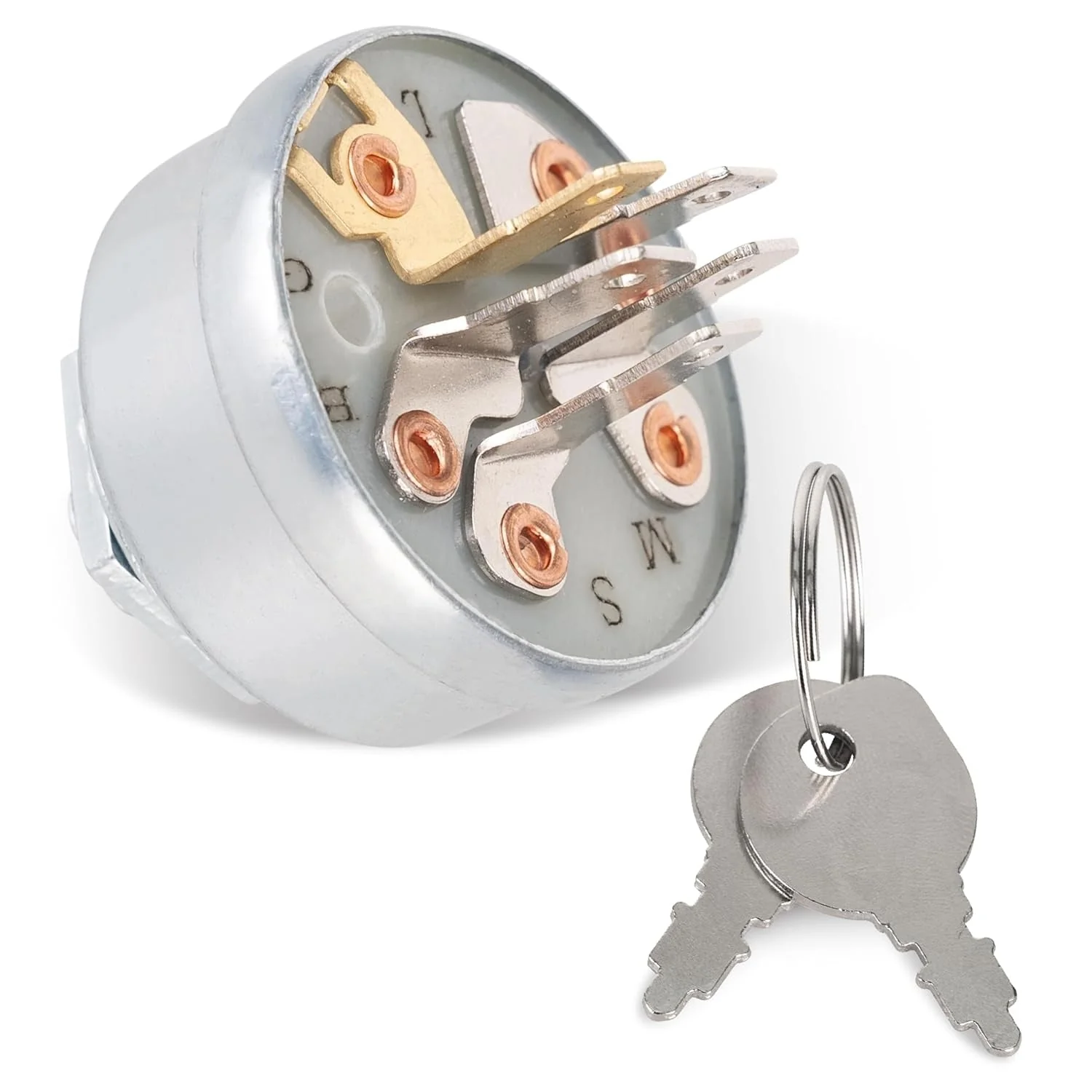

925-0267 STD365402 Ignition Switch

Key Features

  • Function: 3-position ignition switch (Off, Run, Start)
  • Terminals: 5 spade-style electrical terminals
  • Ignition Type: Magneto
  • Construction: Zinc alloy switch body with copper terminals
  • Includes: Ignition switch and two matching keys

Replaces / Cross-Reference Part Numbers

  • AYP: 4406R, STD365402
  • Craftsman: STD365402, 532365402
  • Dixie Chopper: 20245
  • Husqvarna: 532365402
  • MTD / Cub Cadet / Troy-Bilt: 725-0267, 725-0267A, 925-0267, 925-0267A, 925-0267B
  • Murray: 21064, 21064PA

Compatibility & Fitment

Fits various riding lawn mowers, lawn tractors, and garden tractors from brands including:

  • Craftsman (e.g., GT6000)
  • Cub Cadet
  • Dixon (e.g., H1011)
  • Husqvarna
  • John Deere (e.g., 320, RX75, RX95)
  • MTD
  • Murray
  • Scag
  • Toro
  • Troy-Bilt

When to Replace

  • The engine does not crank or fails to start.
  • The key is stuck, broken, or difficult to turn in the ignition.
  • Power to the mower's electrical system is intermittent.
  • The switch only functions in certain key positions.
  • Electrical accessories do not receive power when the key is on.

Installation Tips

  • Disconnect the negative battery terminal before beginning work.
  • Photograph or label the wiring arrangement before removing the old switch.
  • Ensure the wire terminals are clean and make secure contact with the new switch.
  • Mount the new switch firmly to the dash panel.
  • After installation, reconnect the battery and test all switch functions before operating the equipment.
$6.59

Original: $18.83

-65%
[Lifetime Warranty] 925-0267 STD365402 Ignition Switch 3 Position 5 Terminals - Compatible with MTD Craftsman John Deere Toro Snapper Scag Craftsman Riding Lawn Mowers - Replaces 24688 24695 925-0267A 725-0267—

$18.83

$6.59

Product Information

Shipping & Returns

Description

925-0267 STD365402 Ignition Switch

Key Features

  • Function: 3-position ignition switch (Off, Run, Start)
  • Terminals: 5 spade-style electrical terminals
  • Ignition Type: Magneto
  • Construction: Zinc alloy switch body with copper terminals
  • Includes: Ignition switch and two matching keys

Replaces / Cross-Reference Part Numbers

  • AYP: 4406R, STD365402
  • Craftsman: STD365402, 532365402
  • Dixie Chopper: 20245
  • Husqvarna: 532365402
  • MTD / Cub Cadet / Troy-Bilt: 725-0267, 725-0267A, 925-0267, 925-0267A, 925-0267B
  • Murray: 21064, 21064PA

Compatibility & Fitment

Fits various riding lawn mowers, lawn tractors, and garden tractors from brands including:

  • Craftsman (e.g., GT6000)
  • Cub Cadet
  • Dixon (e.g., H1011)
  • Husqvarna
  • John Deere (e.g., 320, RX75, RX95)
  • MTD
  • Murray
  • Scag
  • Toro
  • Troy-Bilt

When to Replace

  • The engine does not crank or fails to start.
  • The key is stuck, broken, or difficult to turn in the ignition.
  • Power to the mower's electrical system is intermittent.
  • The switch only functions in certain key positions.
  • Electrical accessories do not receive power when the key is on.

Installation Tips

  • Disconnect the negative battery terminal before beginning work.
  • Photograph or label the wiring arrangement before removing the old switch.
  • Ensure the wire terminals are clean and make secure contact with the new switch.
  • Mount the new switch firmly to the dash panel.
  • After installation, reconnect the battery and test all switch functions before operating the equipment.
