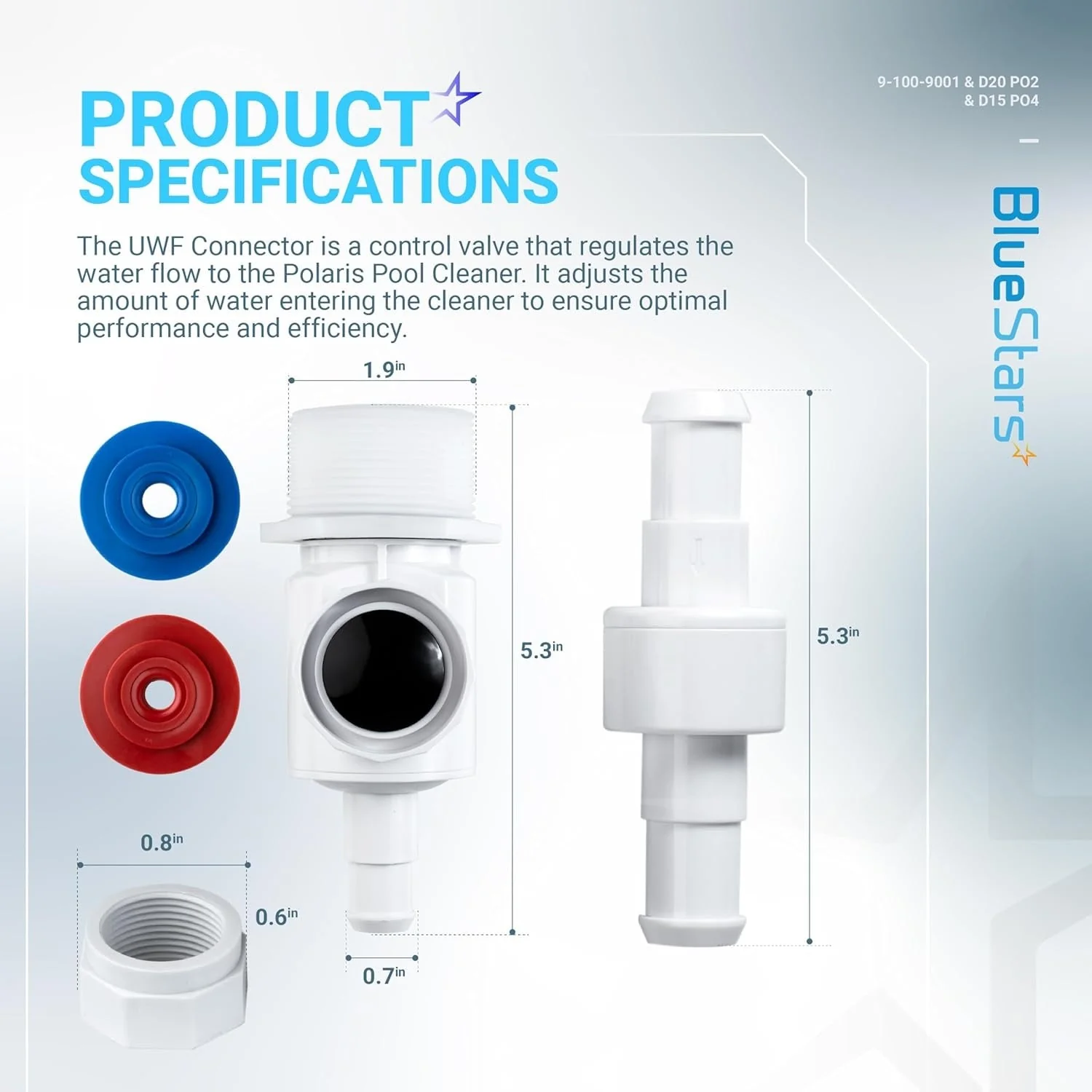

9-100-9001 UWF Connector Assembly and D20 Hose Swivel, D15 Feed Hose Nut

Key Features

• Connects the pool cleaner's feed hose directly to the dedicated pressure-side return line.
• Facilitates pressurized water flow to operate pressure-side pool cleaners.

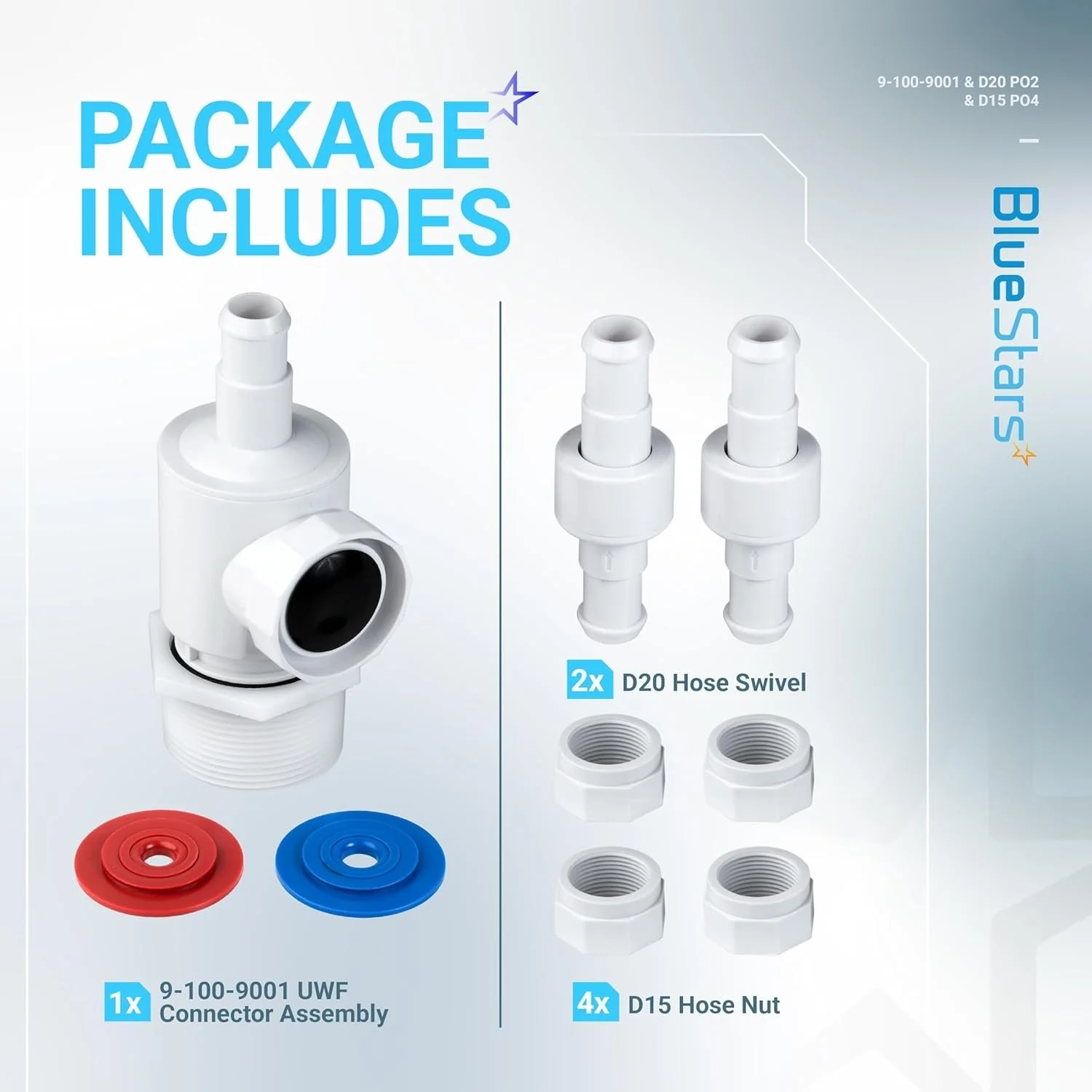

• Kit includes the primary universal wall fitting (UWF), hose swivels, and feed hose nuts.
• Durable polymer construction resists pool chemicals and wear.

Replaces / Cross-Reference Part Numbers

• Universal Wall Fitting (UWF) Connector: 9-100-9001, EW22
• Hose Swivel: D20
• Feed Hose Nut: D15

Compatibility & Fitment

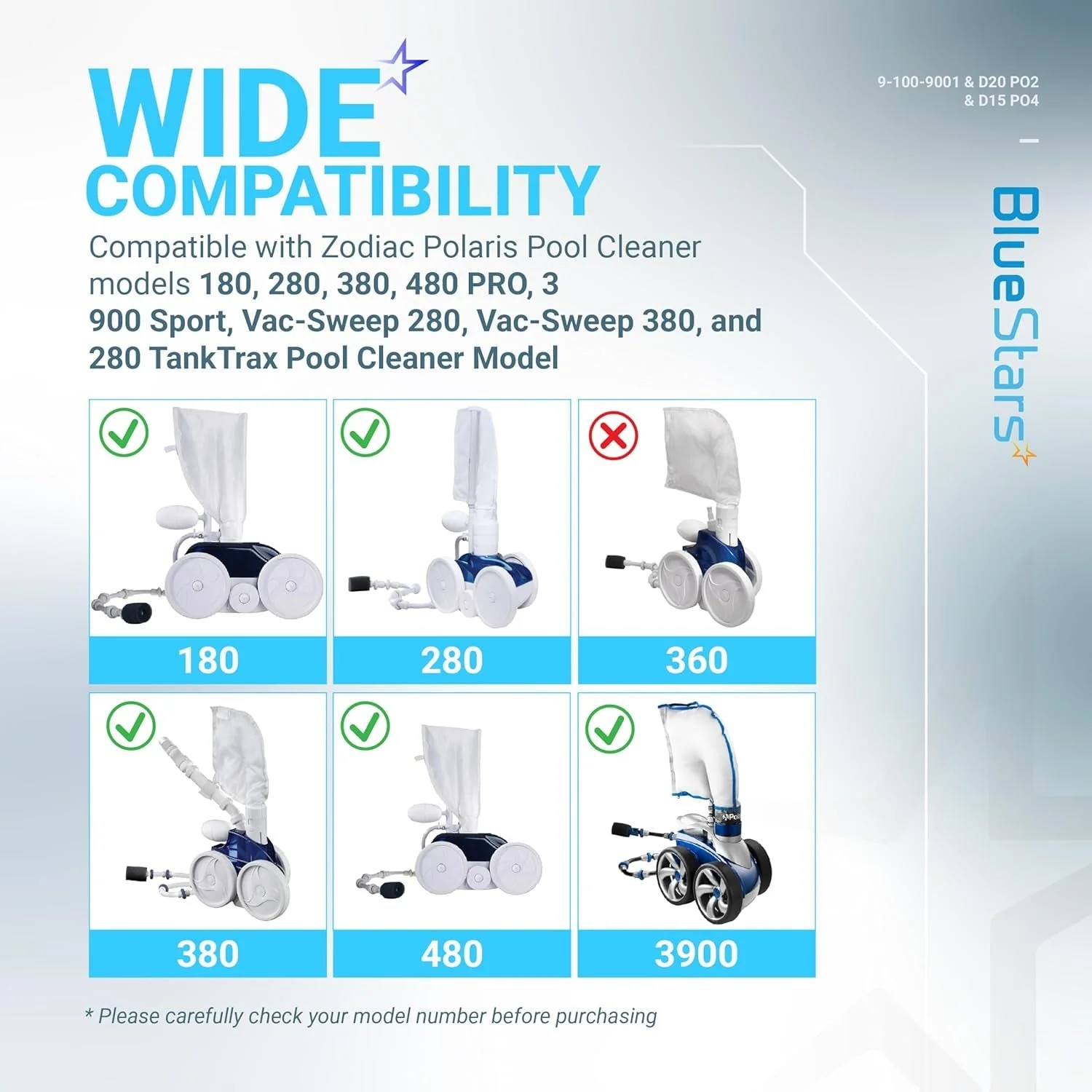

• Zodiac Polaris Models: 180, 280, 380, 480 PRO, 3900 Sport
• Zodiac Polaris Vac-Sweep Models: Vac-Sweep 180, Vac-Sweep 280, Vac-Sweep 380

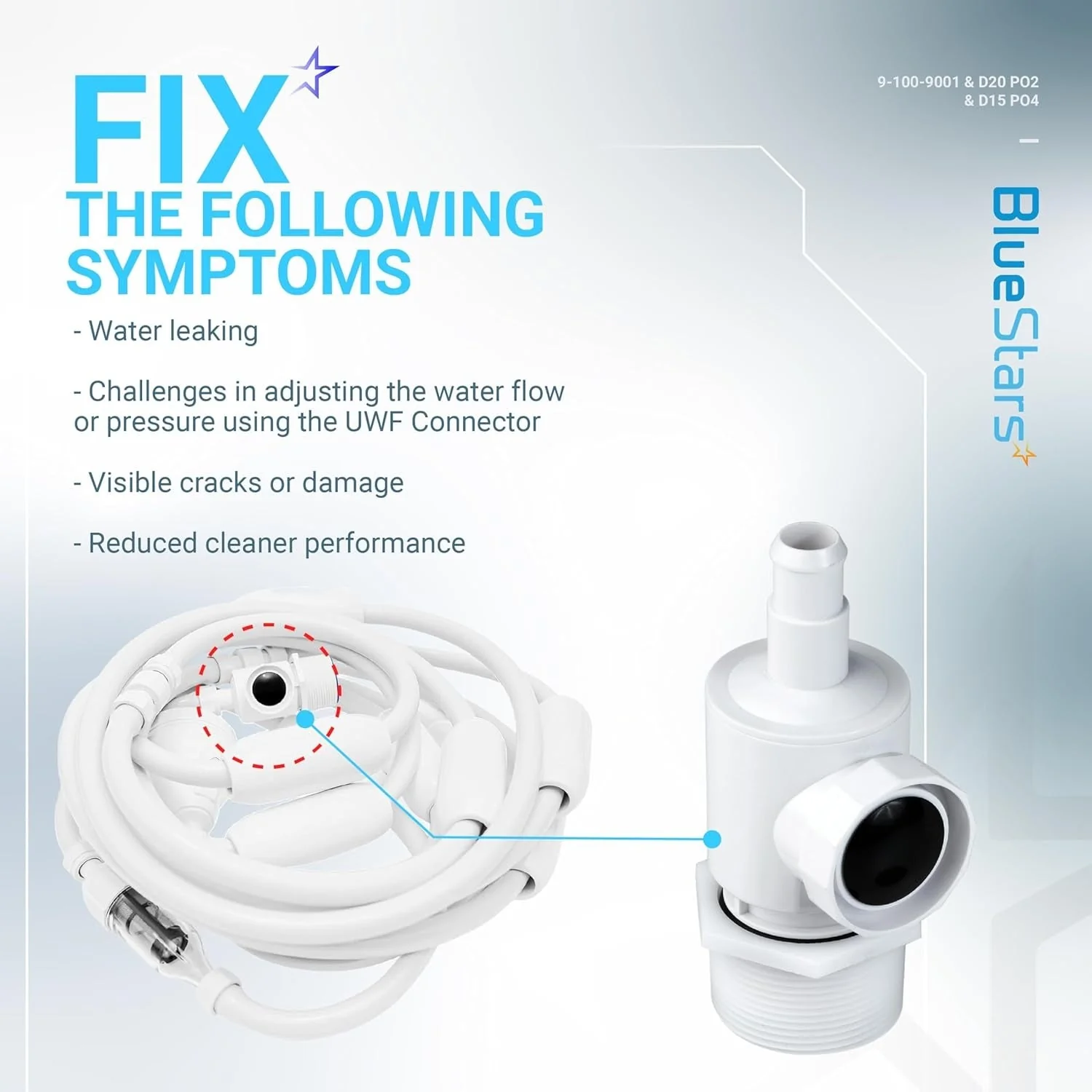

When to Replace

• Visible cracks, discoloration, or physical damage to the connector, swivels, or nuts.
• Water leaks at the wall connection point or between hose sections.
• Reduced water pressure to the cleaner, resulting in slow or erratic movement.
• Cleaner hose becomes tangled, indicating a seized or failing D20 swivel.
• D15 hose nuts are stripped and can no longer secure the hose sections.

Installation Tips

• Always turn off the pool booster pump before starting installation.
• Unthread the old wall fitting from the pool's return line.
• For a secure, leak-free seal, apply a suitable thread sealant to the new fitting's threads.
• Screw the new 9-100-9001 connector into the wall fitting until hand-tight. Avoid over-tightening.
• Attach the feed hose using the D15 nuts and D20 swivels. Ensure connections are snug.
• After installation, turn the pump on and check all connection points for leaks.
