D29 UWF Universal Wall Fitting Quick Disconnect

Key Features

• Connects pressure-side pool cleaner hose to the dedicated return line.
• Enables simple, one-turn attachment and detachment of the cleaner hose.
• Includes one universal wall fitting, one o-ring (6-505-00), and two flow-regulating restrictor disks (red and blue).

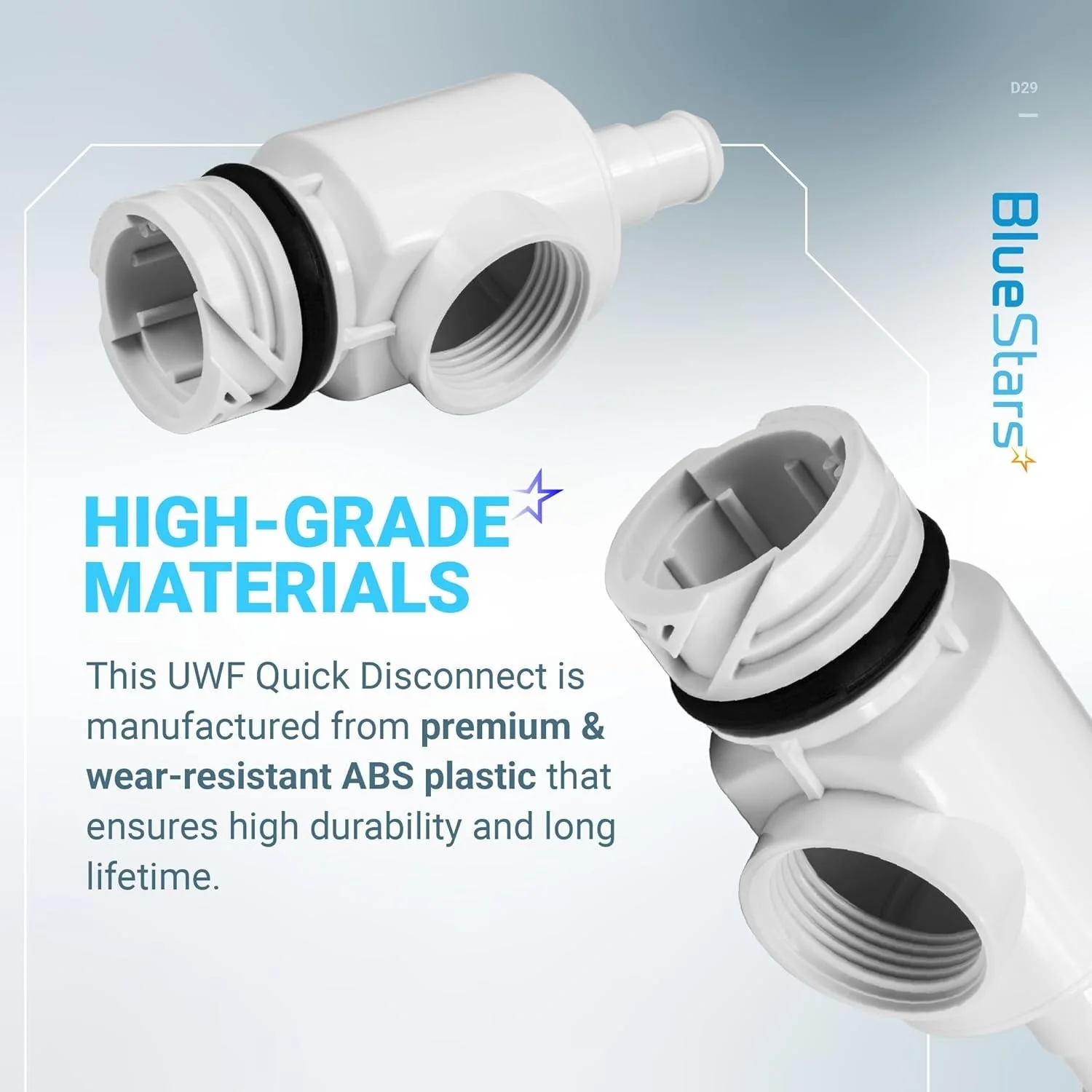

• Durable, chemical-resistant construction for extended service life in pool environments.

Replaces / Cross-Reference Part Numbers

• D29
• 25563-029-000

Compatibility & Fitment

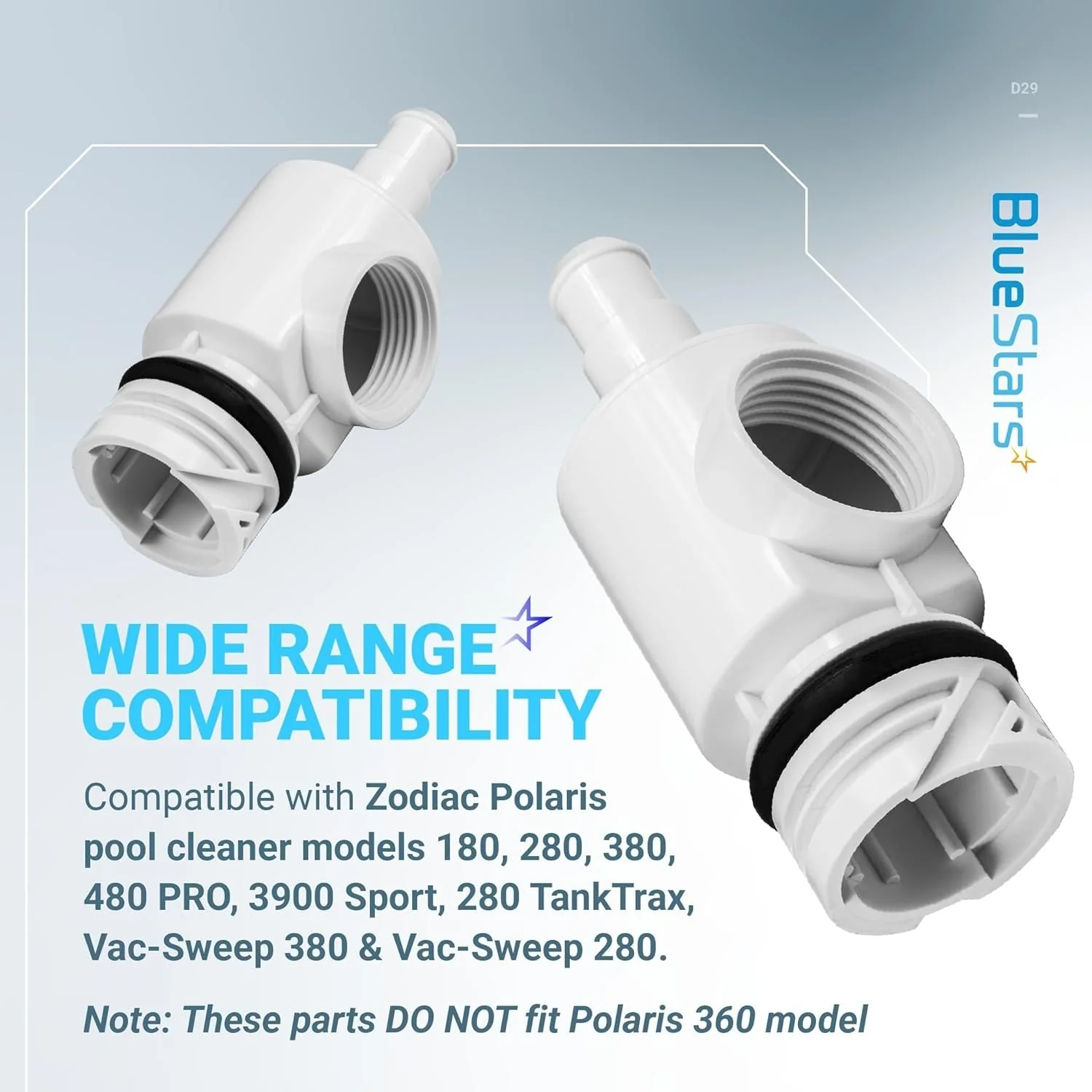

• Fits Zodiac Polaris pressure-side pool cleaner models: 180, 280, 280 TankTrax, TR28P, 380, 480 PRO, and 3900 Sport.
• Also compatible with Zodiac Polaris Quattro P40 and Quattro Sport models.

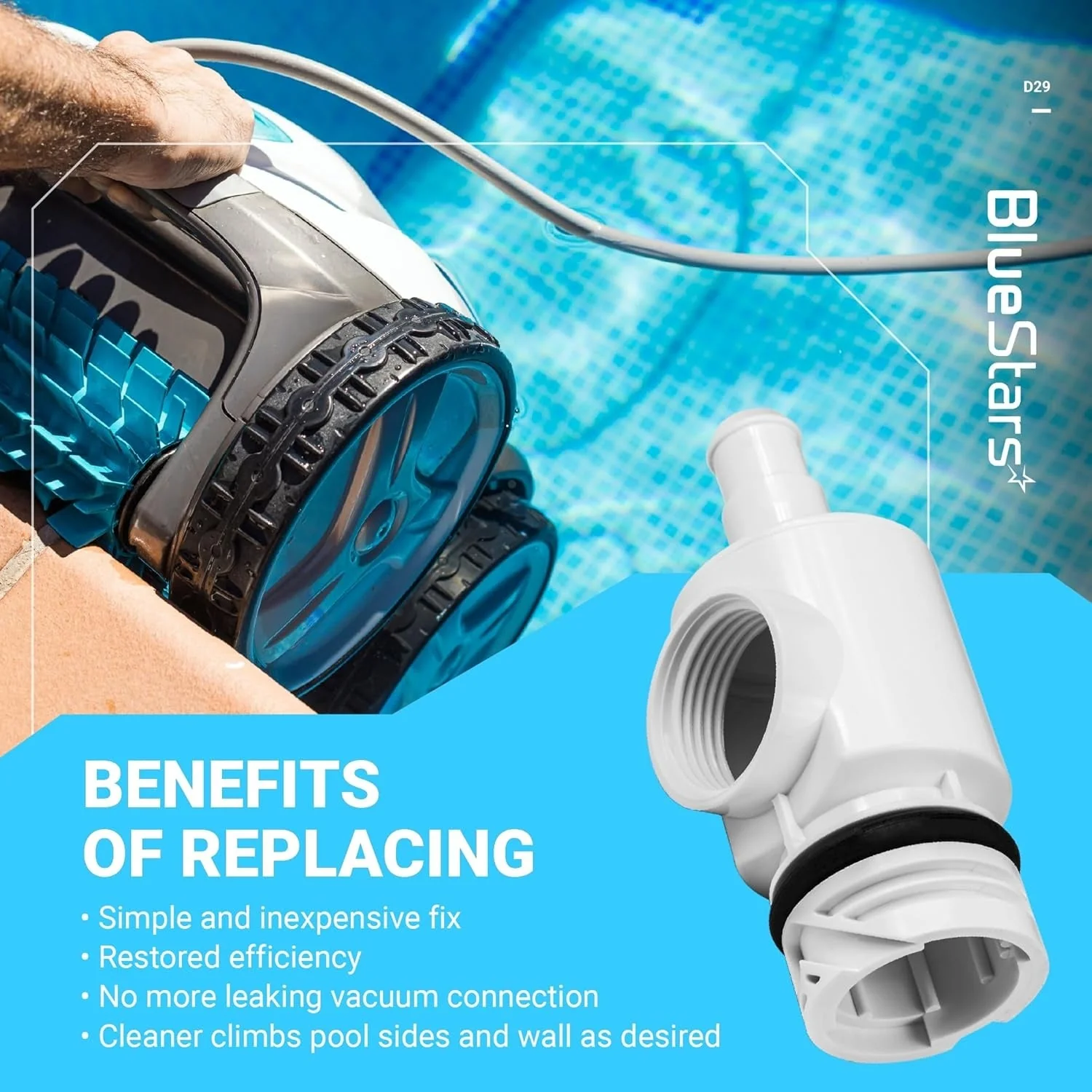

When to Replace

• Water leaks at the connection point when the hose is attached.
• Difficulty connecting or disconnecting the cleaner hose.
• Visible cracks, discoloration, or physical damage to the fitting.
• Reduced cleaner performance due to a poor seal or internal wear.

Installation Tips

• Turn off the pool booster pump before installation.
• Unthread the old fitting from the wall port.

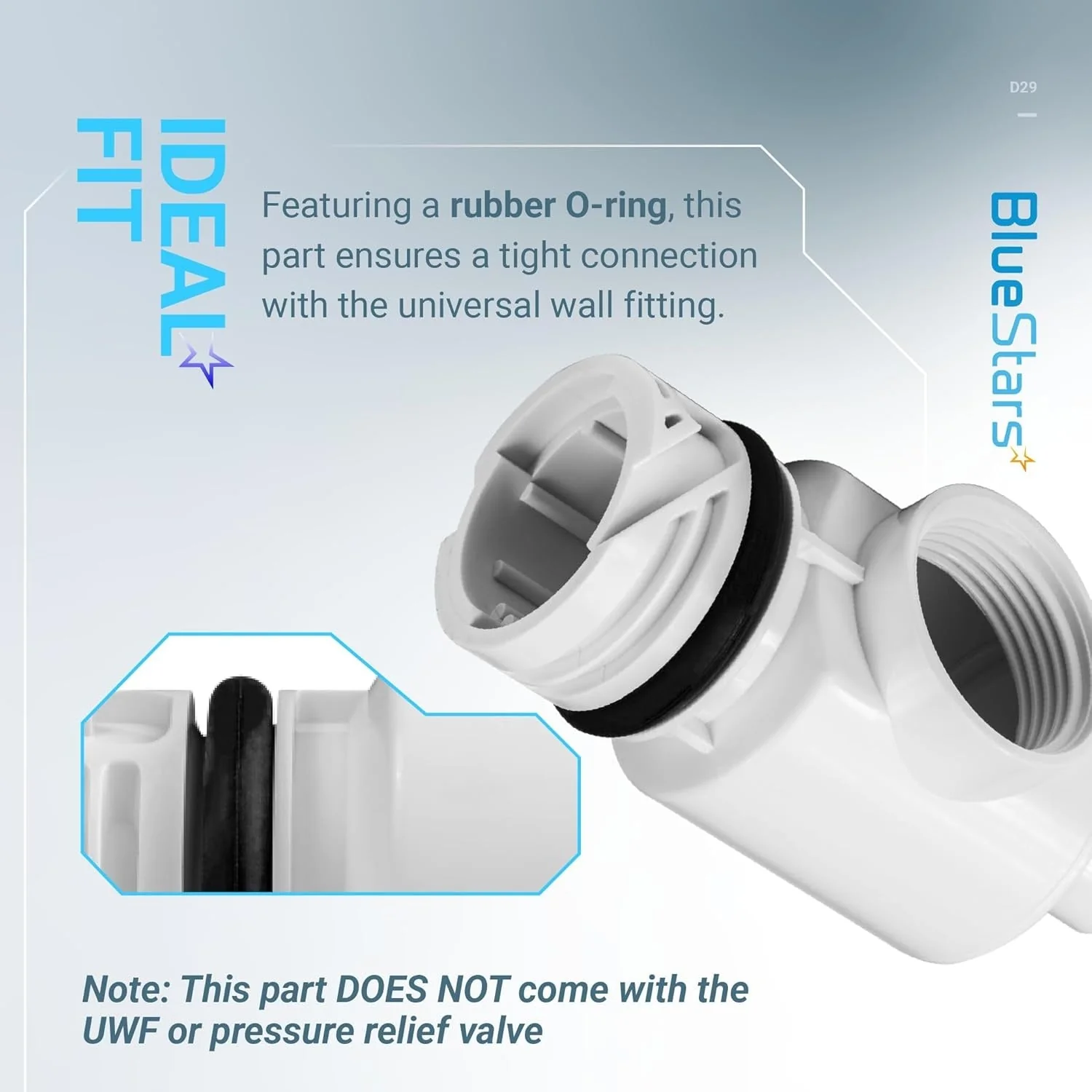

• Ensure the o-ring is correctly seated on the new fitting before threading it in.
• Hand-tighten the new fitting into the wall; do not over-tighten.
• If cleaner operates too fast or too slow, insert the appropriate restrictor disk to adjust water flow.
