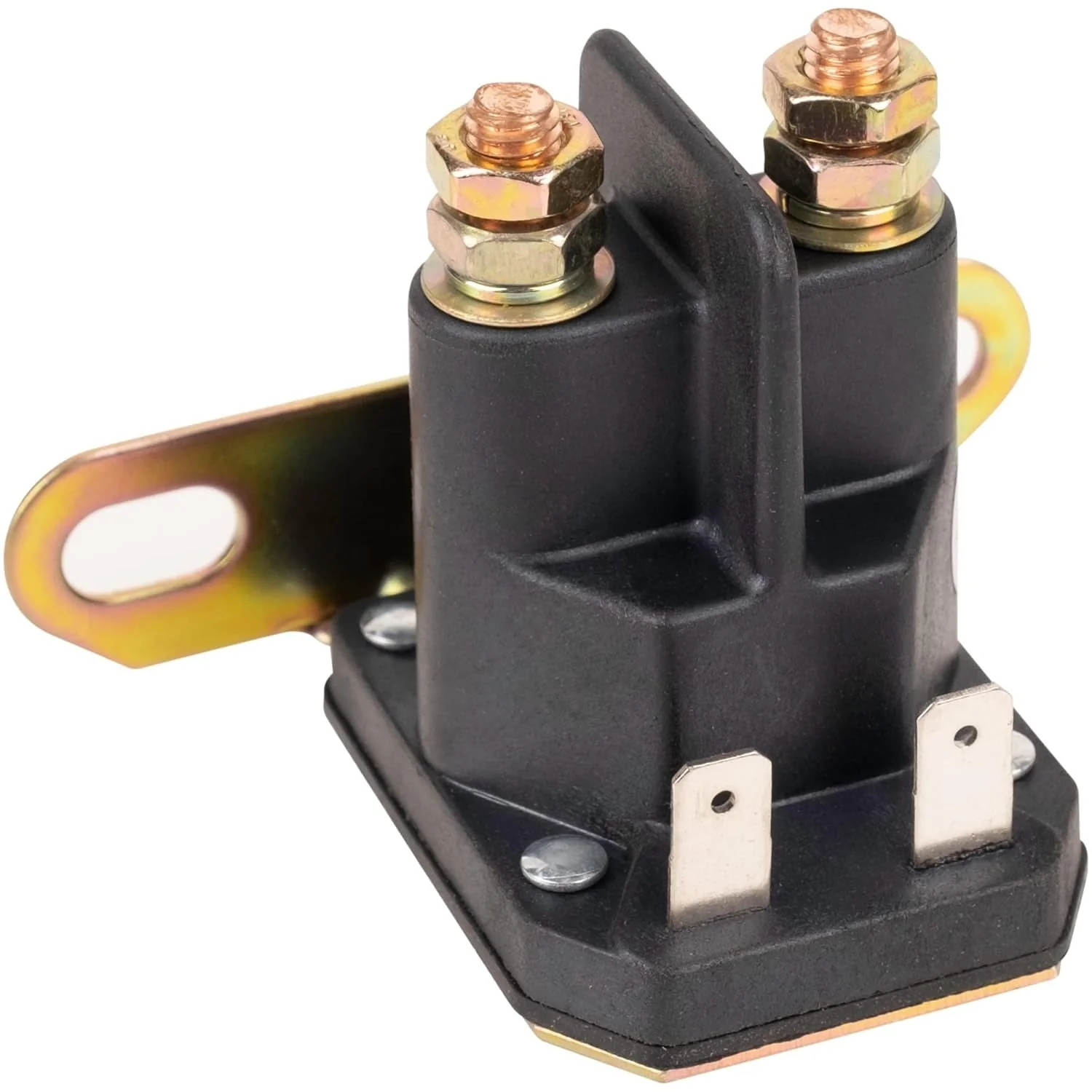

862-1211-211-16 AM138068 Starter Solenoid Relay 12V

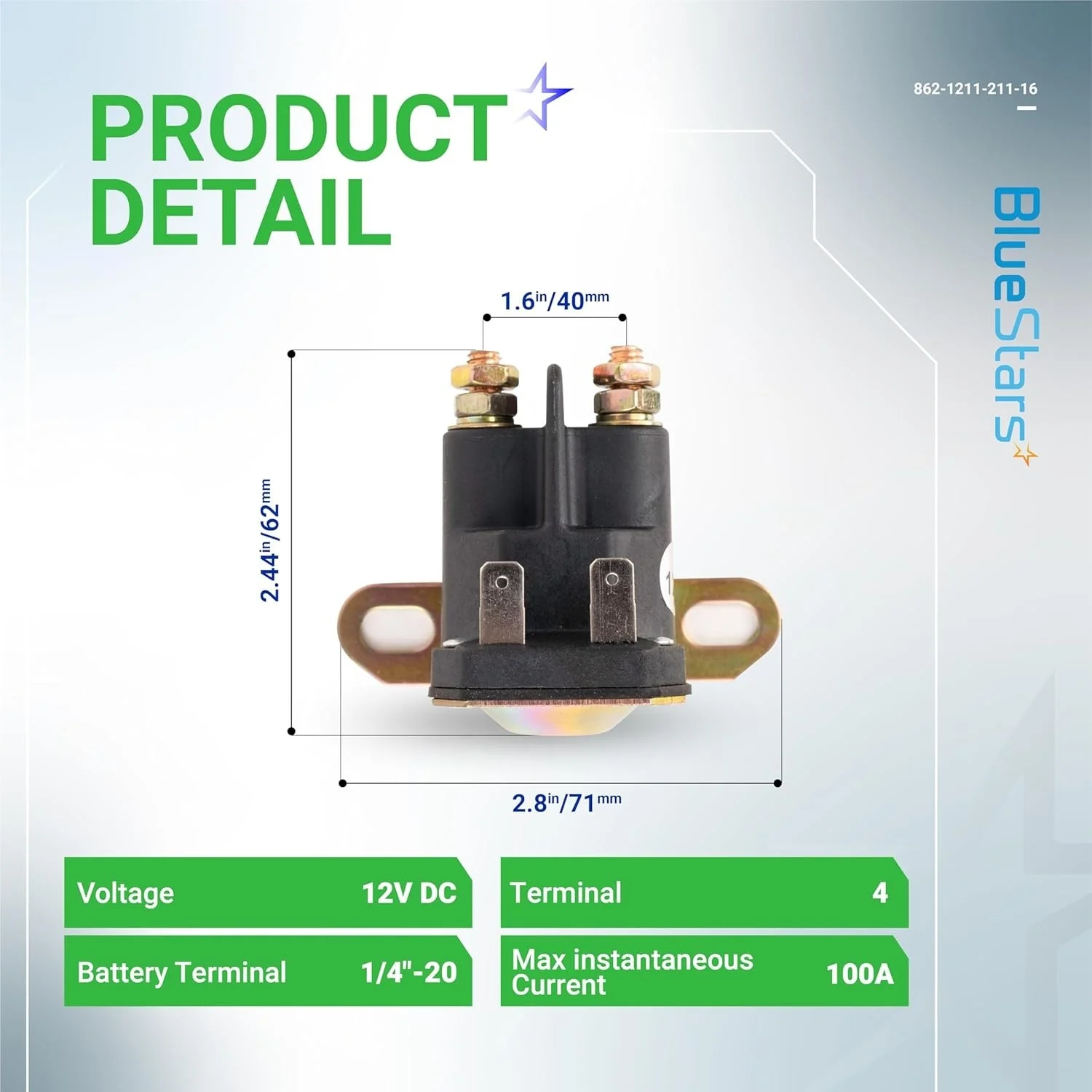

Key Features

• Operating Voltage: 12V DC
• Terminal Configuration: 4-post design
• Function: Relays high current from the battery to the starter motor
• Construction: Direct-fit replacement for original equipment specifications

Replaces / Cross-Reference Part Numbers

• Trombetta: 862-1211-211-16
• John Deere: AM138068
• MTD / Cub Cadet: 725-04439

Compatibility & Fitment

• Fits various lawn tractors and mowers from MTD, Cub Cadet, and John Deere.
• John Deere Models Include: LA100, LA105, LA110, LA115, LA120, LA125
• Confirm fitment by cross-referencing your original part number.

When to Replace

• Engine makes a single click sound but does not crank or turn over.
• No sound or action when the ignition key is turned.
• Intermittent starting problems.
• Starter motor continues to run after the engine has started.

Installation Tips

• Disconnect the negative battery cable before starting the installation.
• Take a photo or label the wires before disconnecting the old solenoid.
• Ensure the solenoid mounting bracket has a clean, solid ground connection to the frame.
• Clean wire terminals and ensure all nuts are tightened securely to prevent poor connections.
