8544771 Dryer Heating Element 280148 Thermal Cut-Off (8557403 High Limit Thermostat 8318314 Thermal Fuse)

Key Features

• Complete repair kit for non-heating electric dryers.
• Restores heat generation and provides critical thermal protection.
• Kit Contents:

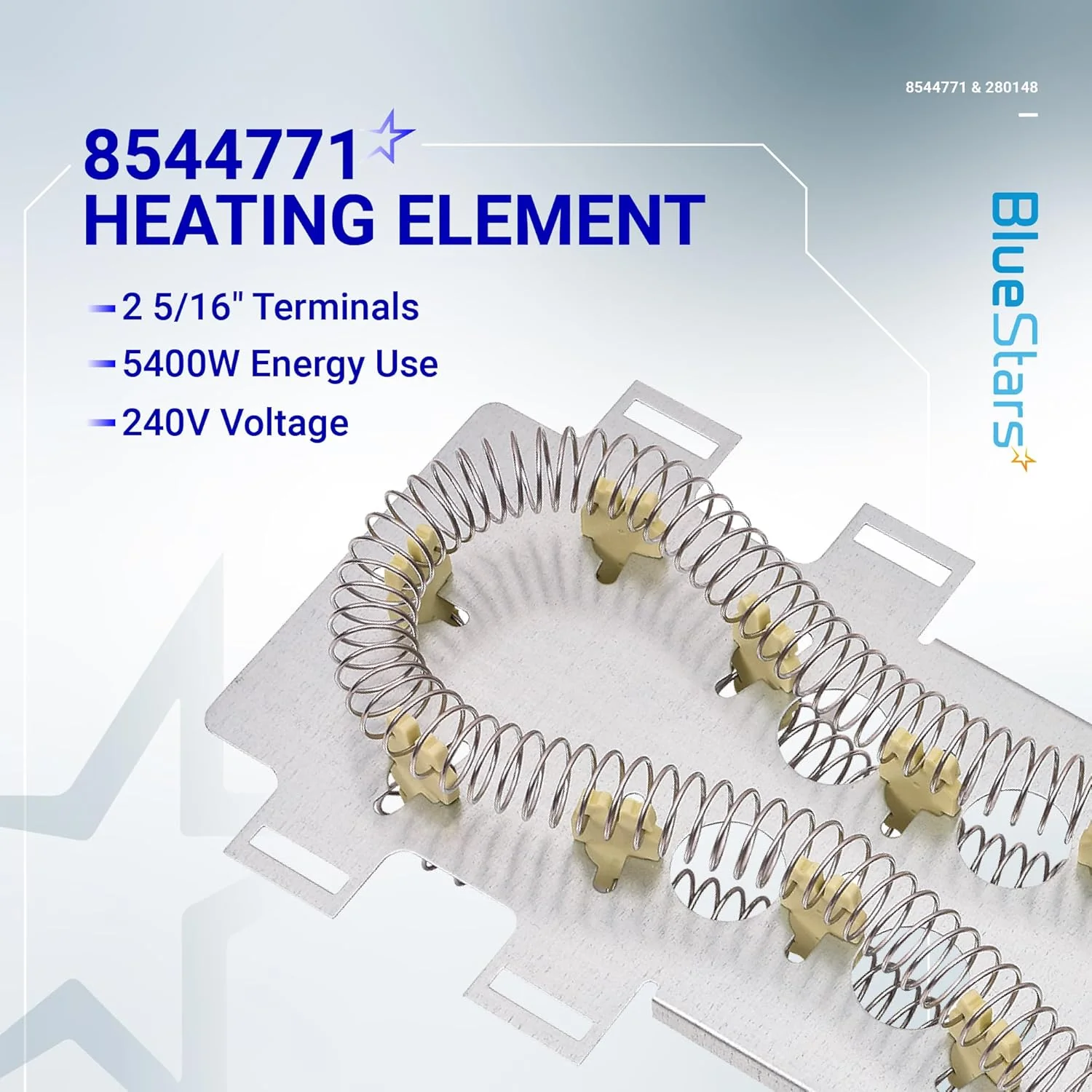

• 1 x 8544771 Heating Element
• 1 x 8557403 High-Limit Thermostat
• 1 x 8318314 Thermal Fuse

Replaces / Cross-Reference Part Numbers

• Heating Element: 8544771, WP8544771
• Thermal Cut-Off Kit (Thermostat & Fuse): 280148, 280148VP, 1175772
• High-Limit Thermostat: 8557403
• Thermal Fuse: 8318314

Compatibility & Fitment

• Designed for select electric dryer models.
• Compatible with major brands including:
• Amana
• Crosley
• Kenmore
• Maytag
• Whirlpool
• Verify fitment by checking your appliance's original part numbers.

When to Replace

• Dryer runs but does not produce any heat.
• Drying cycles are excessively long.
• Dryer shuts off prematurely mid-cycle.
• Heating element coil is visibly broken or has lost continuity.

Installation Tips

• Disconnect the dryer from its power source before starting the installation.
• For safety and system reliability, it is recommended to replace the heating element, thermostat, and fuse at the same time.
• A multimeter can be used to test the continuity of the original components to confirm failure.
• Ensure the dryer's exhaust vent is completely clear of lint and obstructions to prevent future overheating.
