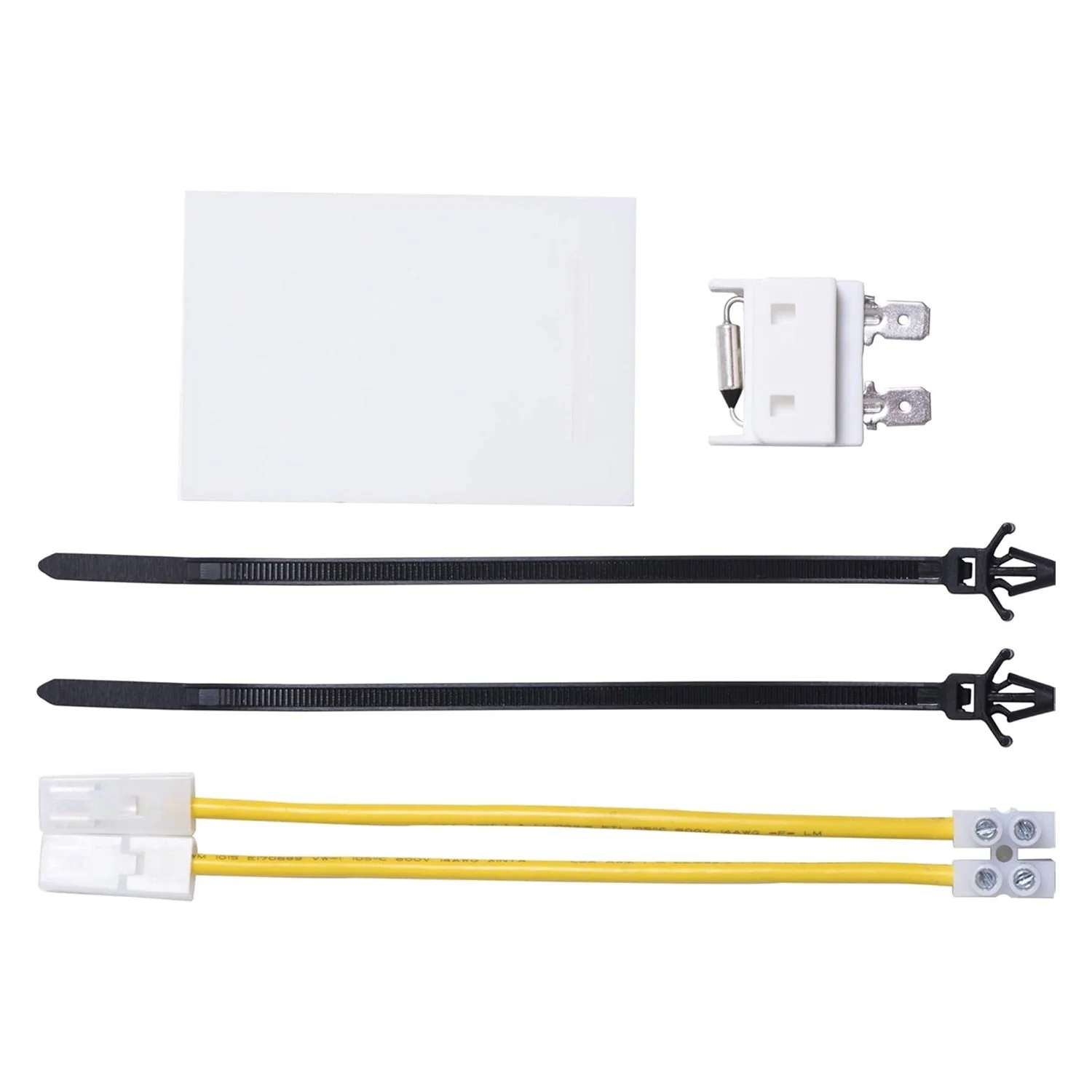

8193762 8193762VP Dishwasher Thermal Fuse & Shield Restoration Kit

Key Features

• Critical Thermal Overheat Protection: Engineered as a high-precision safety cut-off that permanently breaks the electrical circuit if the dishwasher's internal temperatures reach dangerous levels, protecting the control board and your home from fire hazards.
• Enhanced Protective Heat Shield: Includes a specialized black plastic shield designed to protect the fuse from localized heat spikes and steam from the vent, preventing "nuisance" trips and extending the life of the replacement.

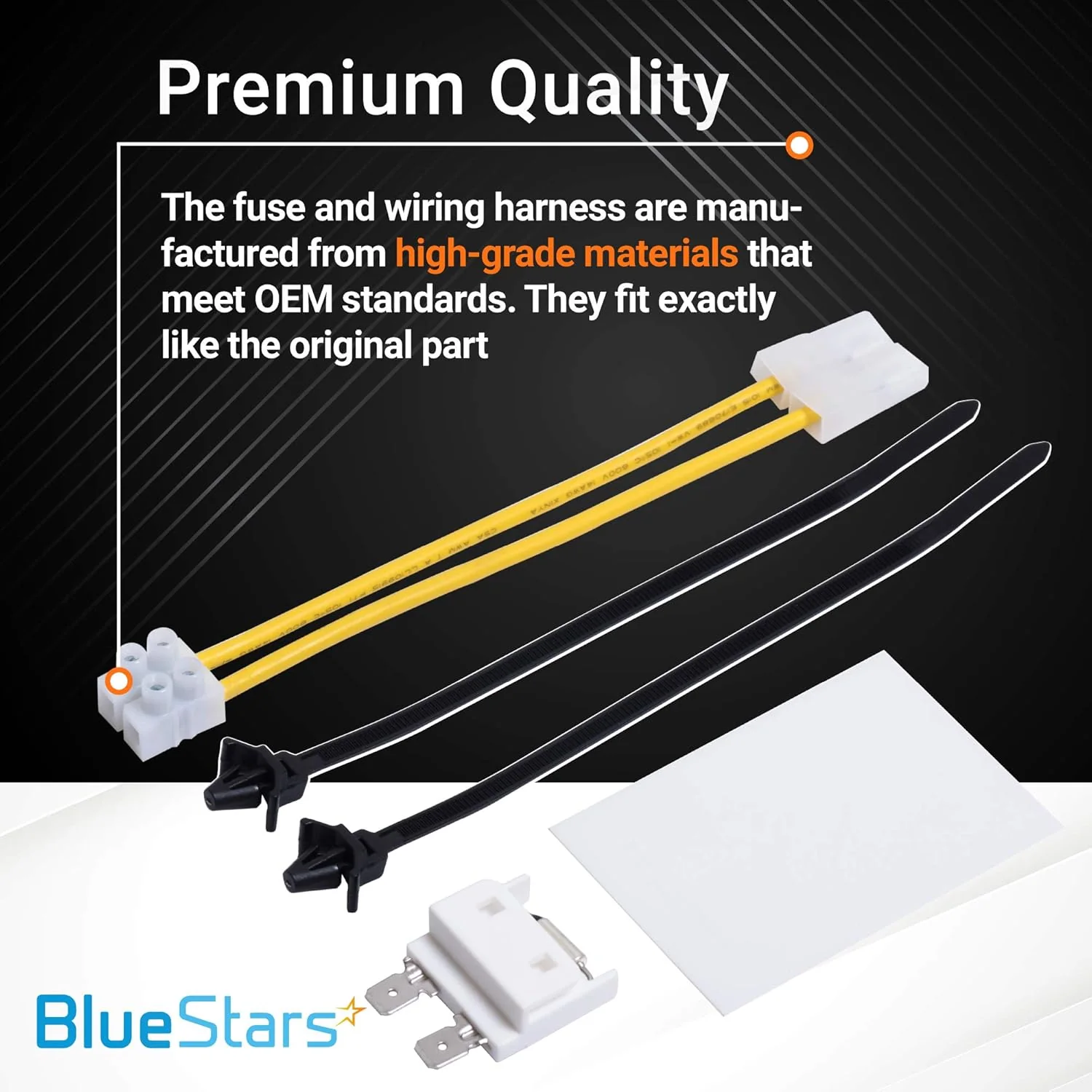

• Upgraded High-Temp Harness: Features pre-crimped, high-temperature wire leads designed to replace original wiring that may have suffered microscopic heat damage or high-resistance oxidation at the terminals.
• Vibration-Resistant Mounting: Includes heat-resistant zip ties to securely anchor the fuse and shield to the wire harness, ensuring it remains in the optimal sensing position behind the control console.

Replaces / Cross-Reference Part Numbers

• Primary Parts: 8193762, 8193762VP, 8269213.
• Industry Standards: AP3178588, PS774514.
• Legacy Codes: AH774514, ER8193762.

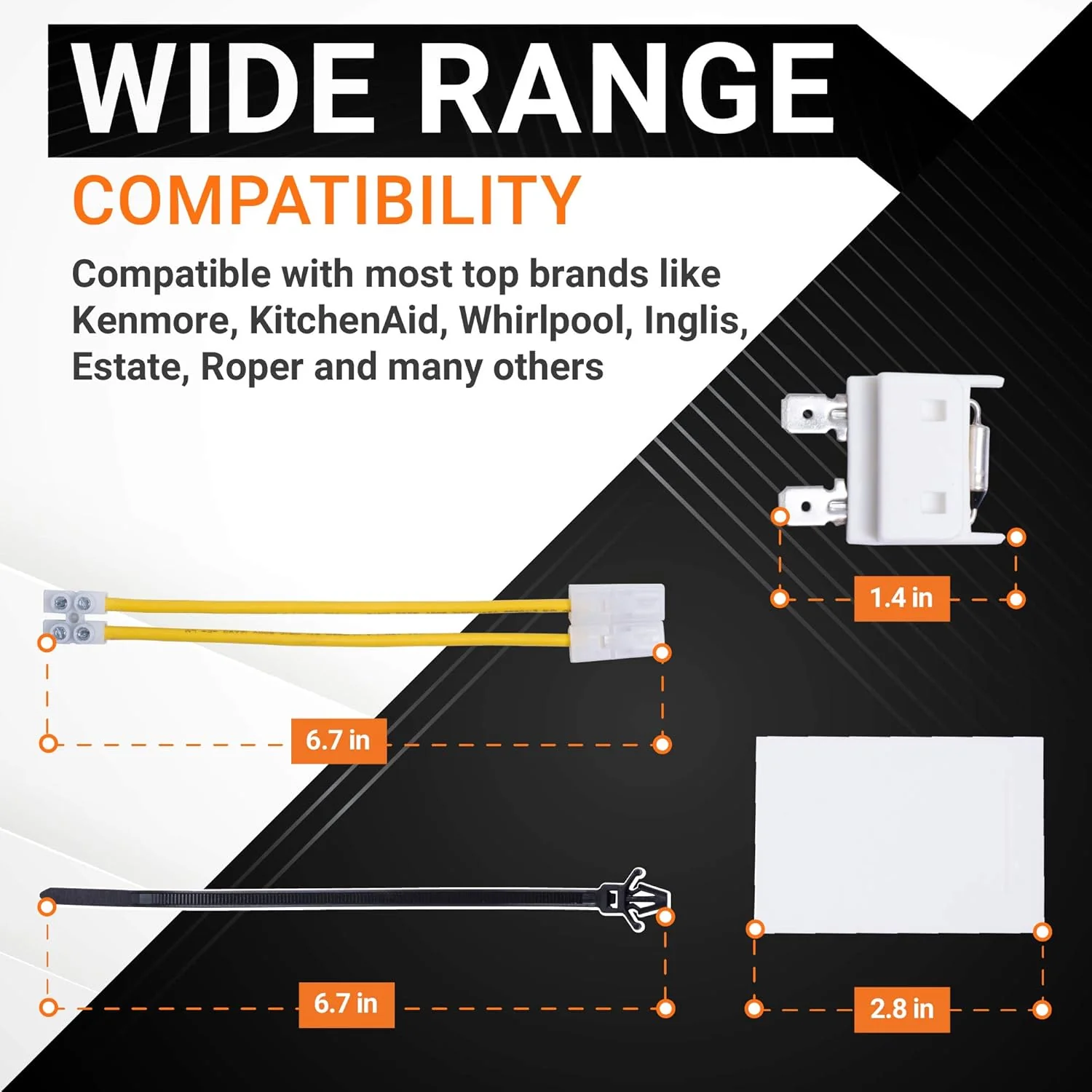

Compatibility & Fitment

This thermal fuse kit is the standard safety replacement for Whirlpool-manufactured dishwashers produced between 2004 and 2012. Key compatible brands include:

• Whirlpool & Maytag: Fits hundreds of DU, DP, GU, and MDB series models (e.g., GU2400XTPB, MDBH949AWB).
• Kenmore (665 Series): Compatible with various 665-prefix "Elite" and standard dishwashers (e.g., 665.1573291, 665.16362).
• KitchenAid: Fits many KUD, KSRS, and KUDI series units (e.g., KUDI01FKSS, KUDC20CVSS).
• Amana, Roper, & Estate: Direct fit for dozens of ADB and DU series models utilizing the 8193762 fuse style.
• Note: This fuse is typically located at the Top of the Inner Door, tucked inside the plastic control console.

When to Replace

• No Power / Dead Console: The dishwasher is plugged in and the breaker is on, but there are no lights on the control panel and the machine will not respond to any buttons.
• Mid-Cycle Shutdown: The dishwasher stops abruptly during a high-heat cycle (like "Sani-Wash") and will not turn back on.
• Visible Heat Damage: Upon opening the console, the plastic fuse housing or the wire connectors look discolored, charred, or melted.
• Continuity Test Failure: Using a multimeter, the fuse shows "Open" (no continuity), indicating it has tripped to protect the control board.
• Smell of Burning Plastic: An early warning sign that the wire terminals are overheating and the fuse is about to fail.

Installation Tips

• Safety First: You MUST unplug the dishwasher or turn off the circuit breaker. This repair involves working directly with 120V line voltage behind the control console.

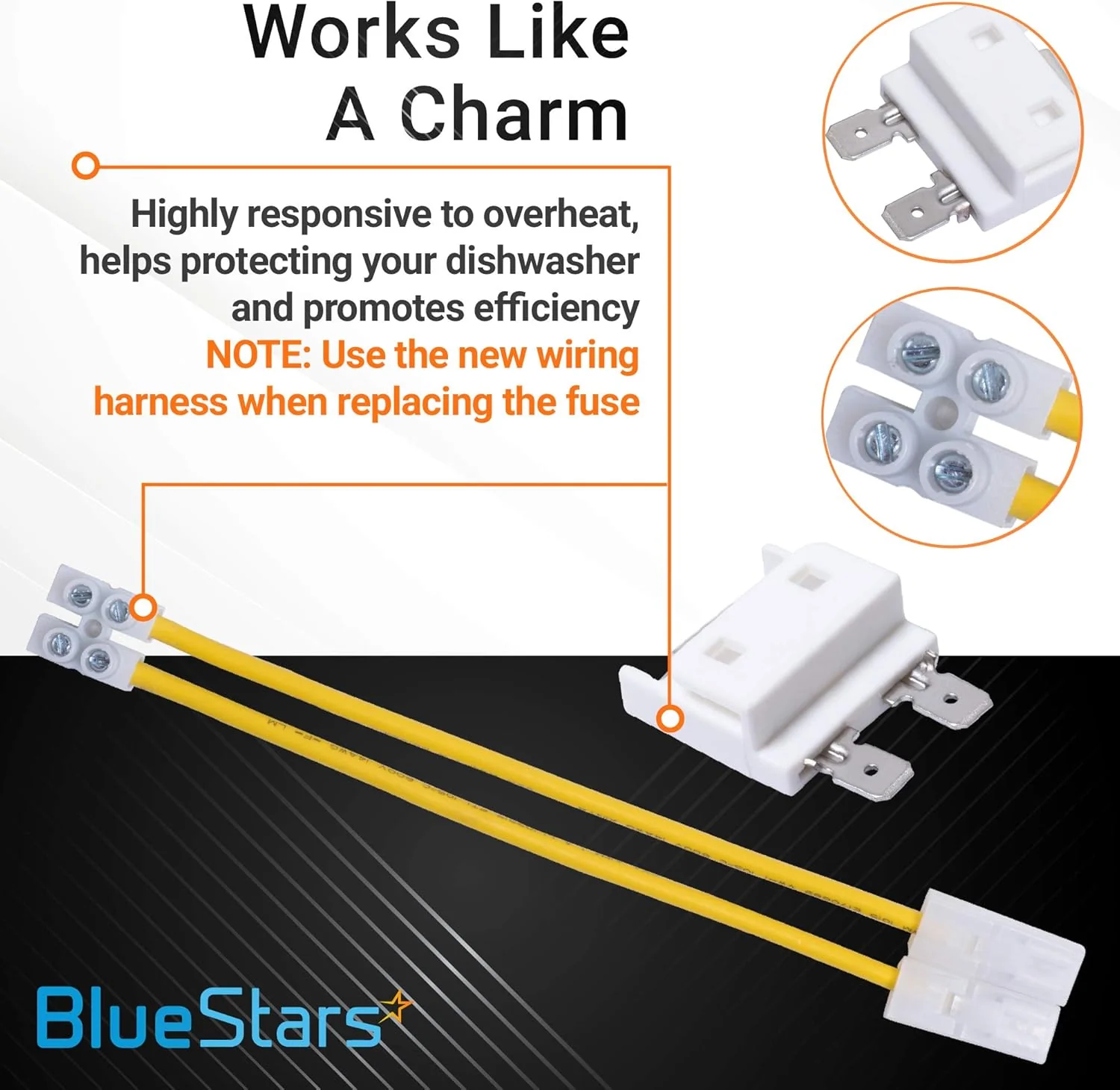

• Install the New Harness: Do not just swap the fuse! You **must** install the new wire leads included in the kit. The original wires often have microscopic heat damage that will cause your new fuse to blow immediately.
• Attach the Protective Shield: Ensure the black plastic shield is snapped onto the fuse correctly. This shielding is critical to prevent steam from the vent from causing a premature fuse failure.
• Secure with Zip Ties: Use the included zip ties to keep the wires and fuse assembly away from the venting area and the plastic door latch mechanism.
• Inspect the Heater: After replacing the fuse, check the **Heating Element** at the bottom of the tub. A cracked or grounded element is the #1 reason thermal fuses blow during a wash cycle.
