754-04033 Deck Belt - for Cub Cadet LT1046 RZT S42 RZT L42 754-04033 MTD Troy Bilt Lawn Mower 754-04033A OCC-754-04033 954-04033A | 1/2” x 118”

Key Features

• Belt Type: Deck Belt (V-Belt)

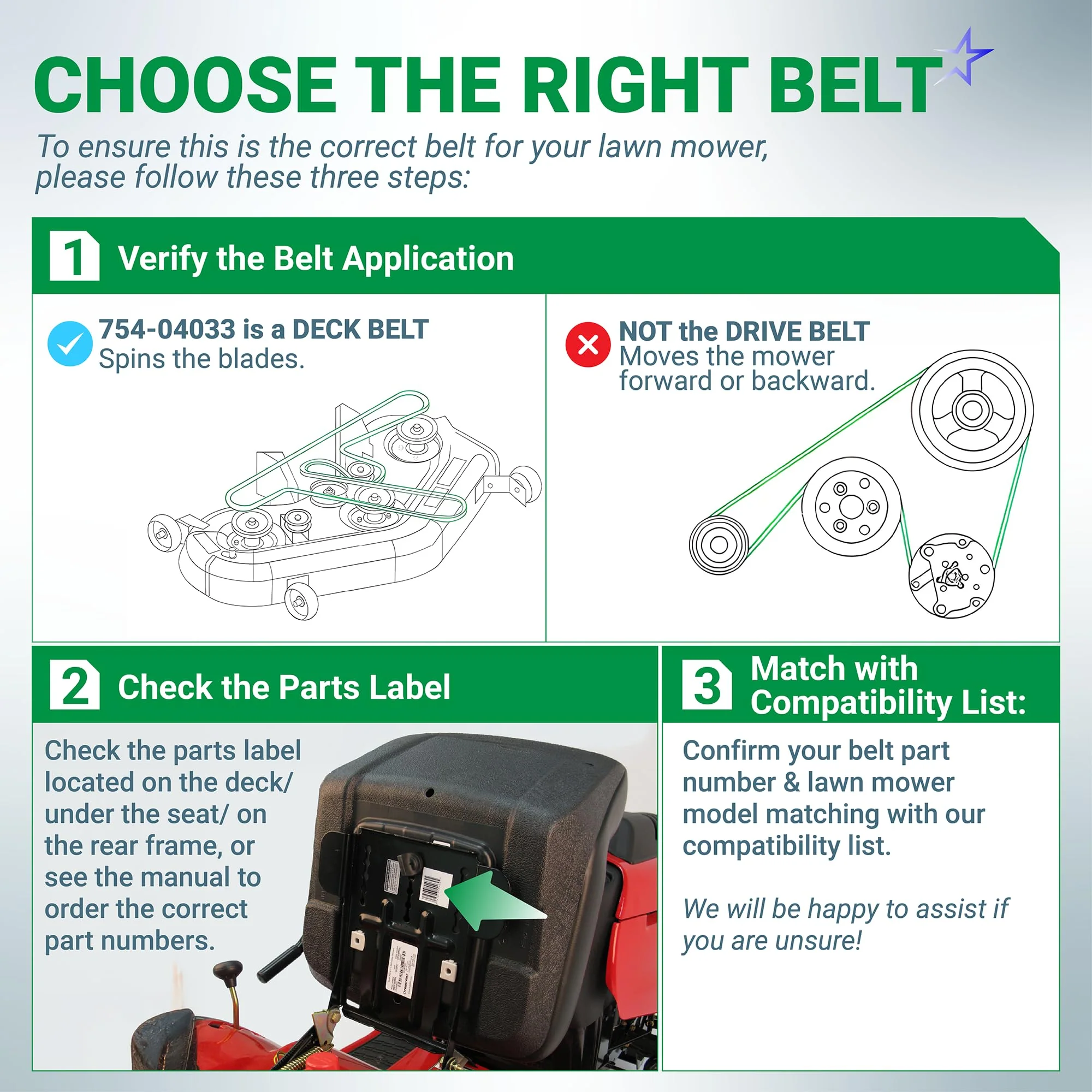

• Application: Connects engine pulley to the mower deck blade spindles

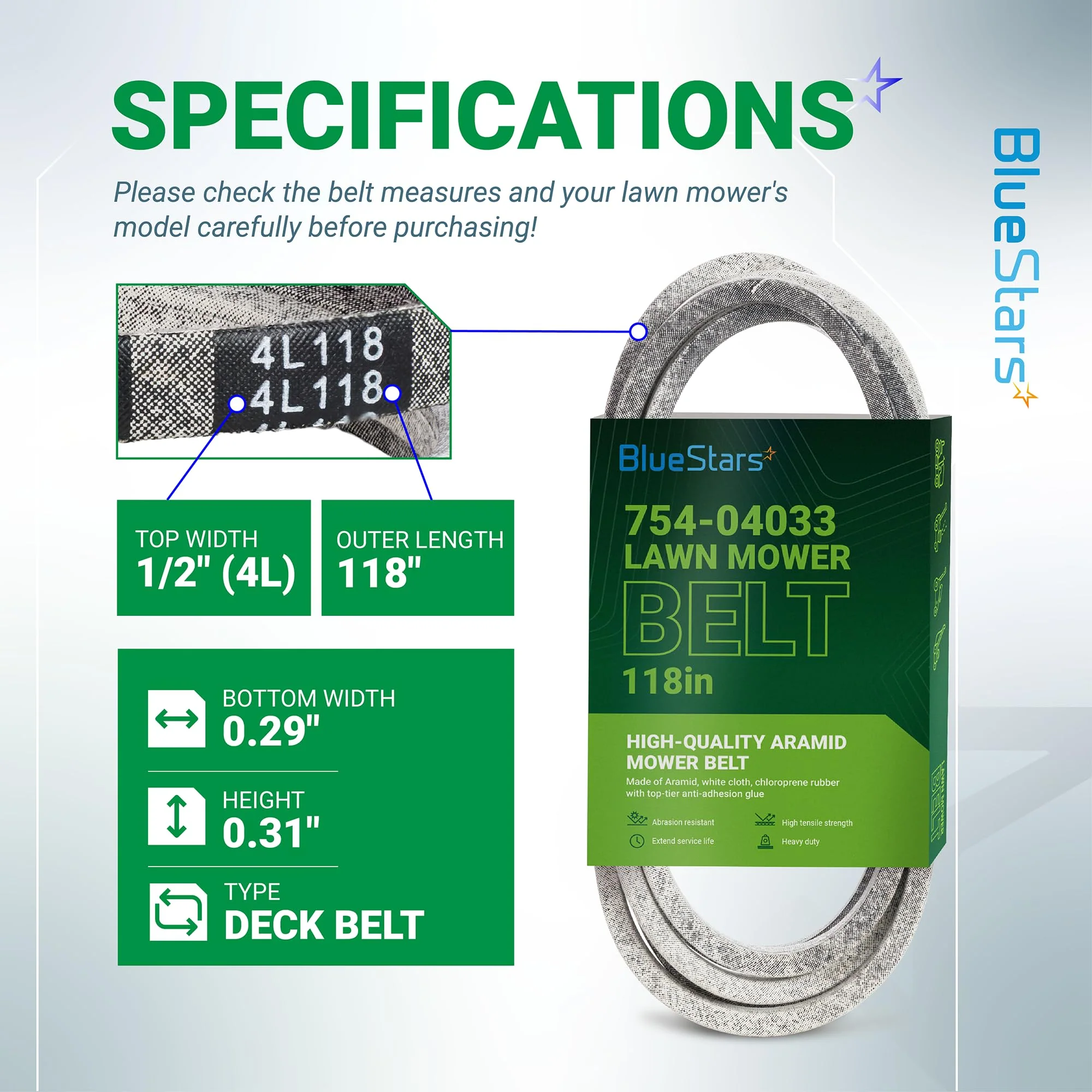

• Dimensions: 1/2 inch width x 118 inches outer circumference
• Material: Constructed with reinforced cord for durability and resistance to stretching

Replaces / Cross-Reference Part Numbers

• Cub Cadet / MTD / Troy-Bilt: 754-04033, 754-04033A, 954-04033, 954-04033A, OCC-754-04033
• AYP: 574173003
• Ferris / Simplicity / Snapper: 1732956

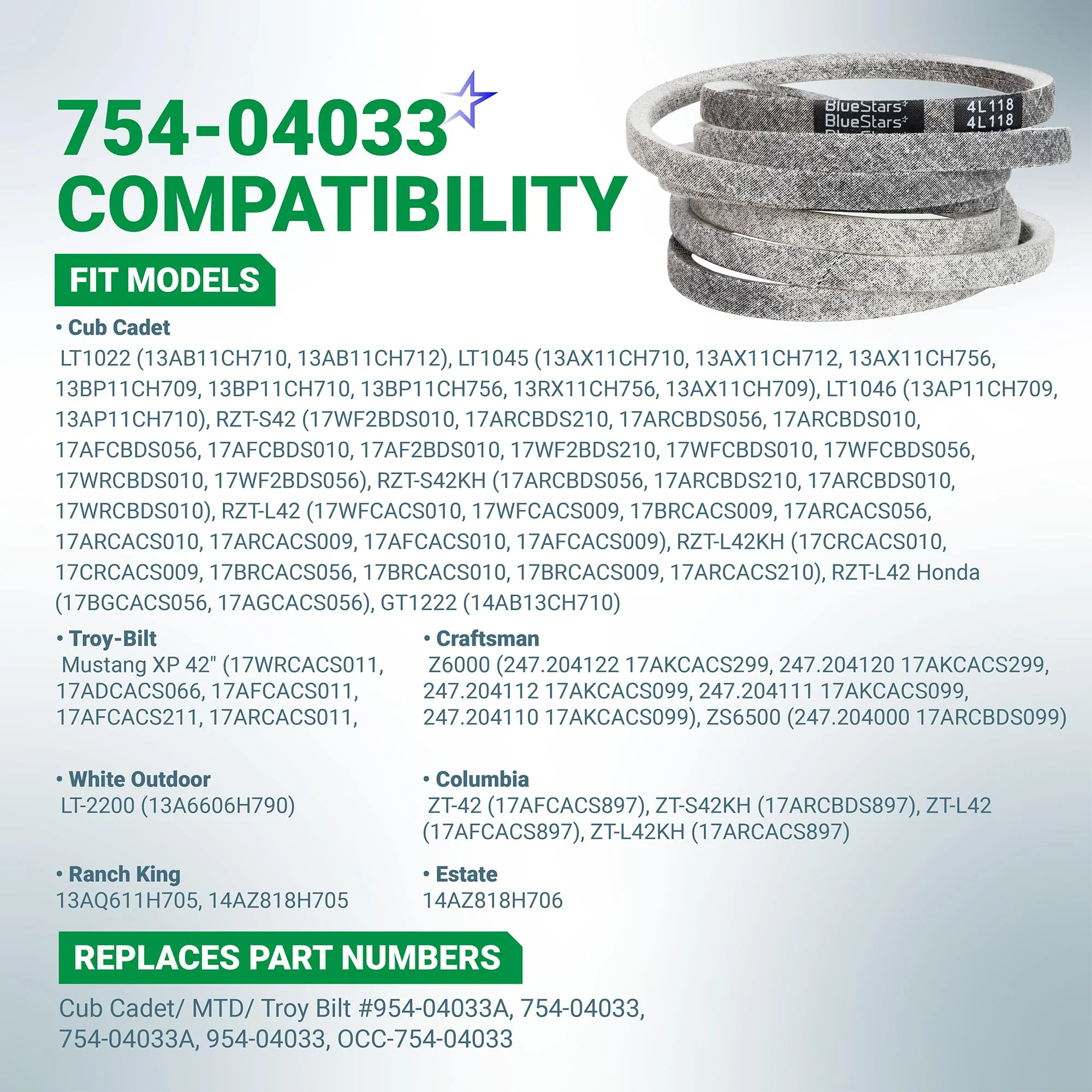

Compatibility & Fitment

• Designed primarily for 46-inch mower decks.
• Cub Cadet Models: LT1022, LT1045, LT1046, RZT-L42, RZT-S42
• MTD / Troy-Bilt: Fits various models using the specified part numbers.
• Always verify fitment by checking your equipment's original part number.

When to Replace

• Visible signs of wear such as cracking, fraying, glazing, or separation.
• Decreased cutting performance or uneven cut.
• Audible squealing or slipping from the deck area during operation.
• Belt has stretched and no longer maintains proper tension.

Installation Tips

• Before installation, disconnect the spark plug wire for safety.
• Photograph or sketch the existing belt's routing path around all pulleys.
• Release the deck's tensioner mechanism to remove the old belt.

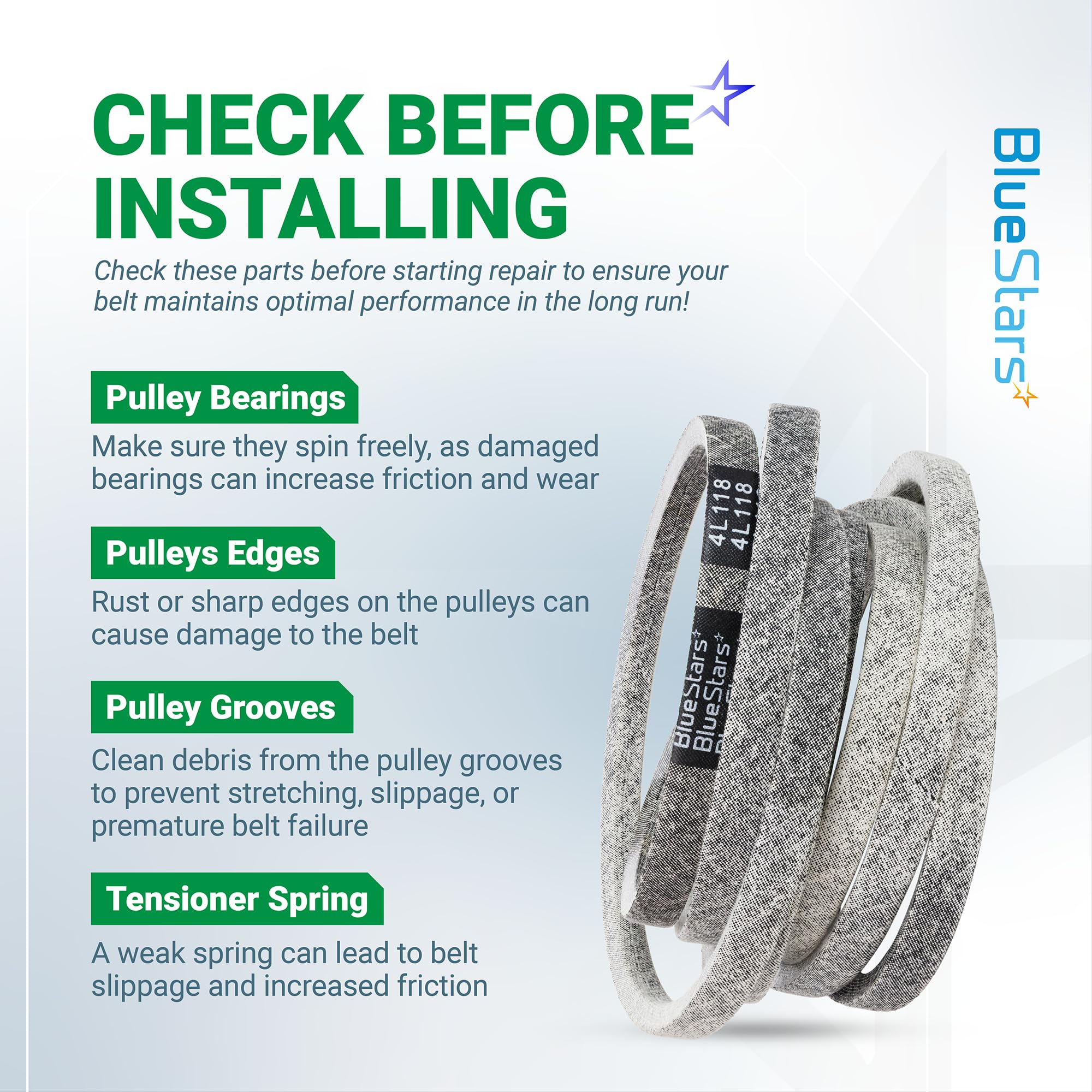

• Clean any debris from the pulley grooves before installing the new belt.
• Ensure the new belt is correctly seated in all pulleys and that tension is properly restored.
