[Lifetime Warranty] 725-12066 Ignition Switch 3 Position 6 Pin with Keys - Compatible with Cub Cadet ZT1-42 ZT1-46 ZT1-50 ZT1-54 ZT2-50 ZT2-54 MTD Z510 Z530 Z550 Z560 Z5200 - Replaces 725P12066 925-12066

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9

[Lifetime Warranty] 725-12066 Ignition Switch 3 Position 6 Pin with Keys - Compatible with Cub Cadet ZT1-42 ZT1-46 ZT1-50 ZT1-54 ZT2-50 ZT2-54 MTD Z510 Z530 Z550 Z560 Z5200 - Replaces 725P12066 925-12066

[Lifetime Warranty] 725-12066 Ignition Switch 3 Position 6 Pin with Keys - Compatible with Cub Cadet ZT1-42 ZT1-46 ZT1-50 ZT1-54 ZT2-50 ZT2-54 MTD Z510 Z530 Z550 Z560 Z5200 - Replaces 725P12066 925-12066

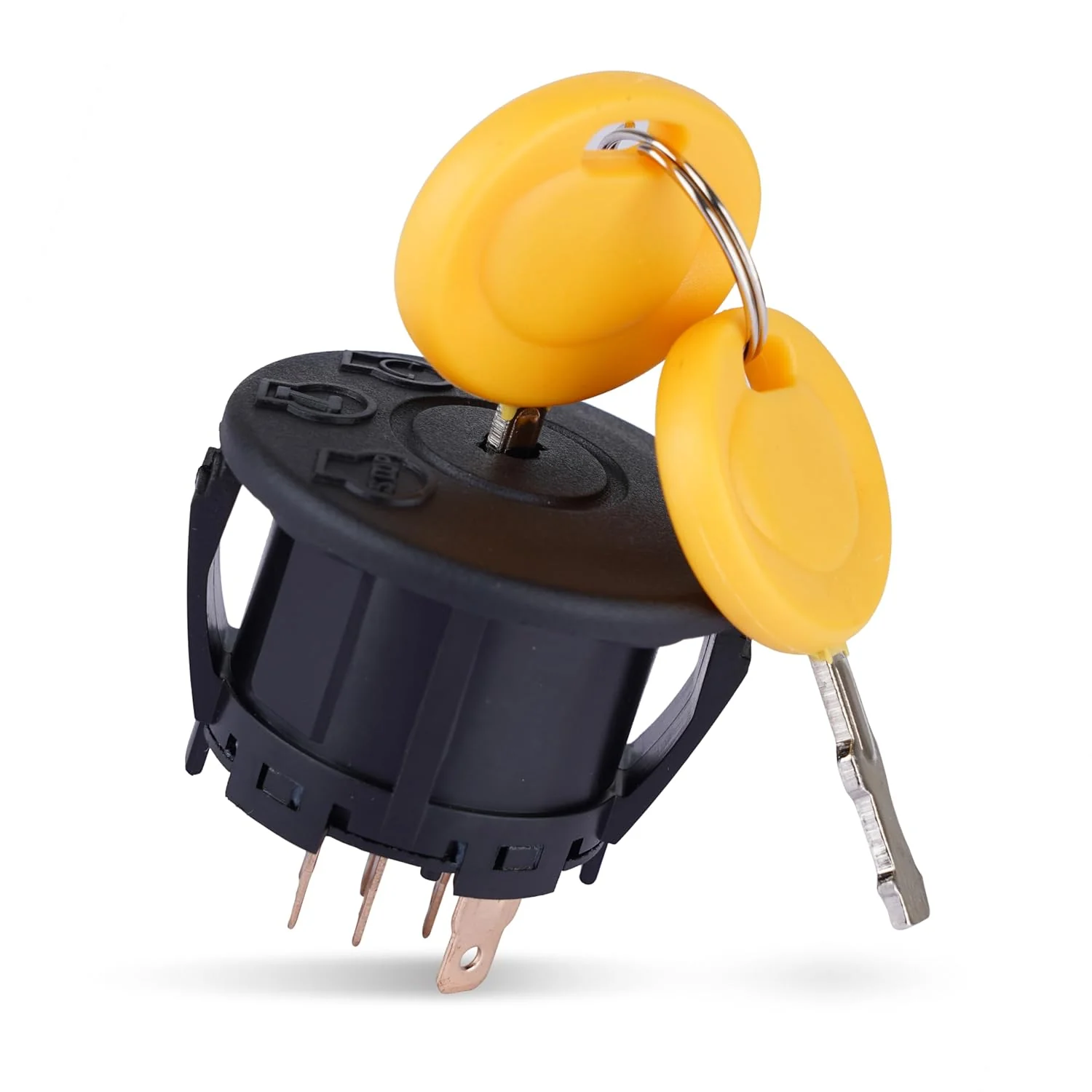

725-12066 Ignition Starter Switch

Key Features

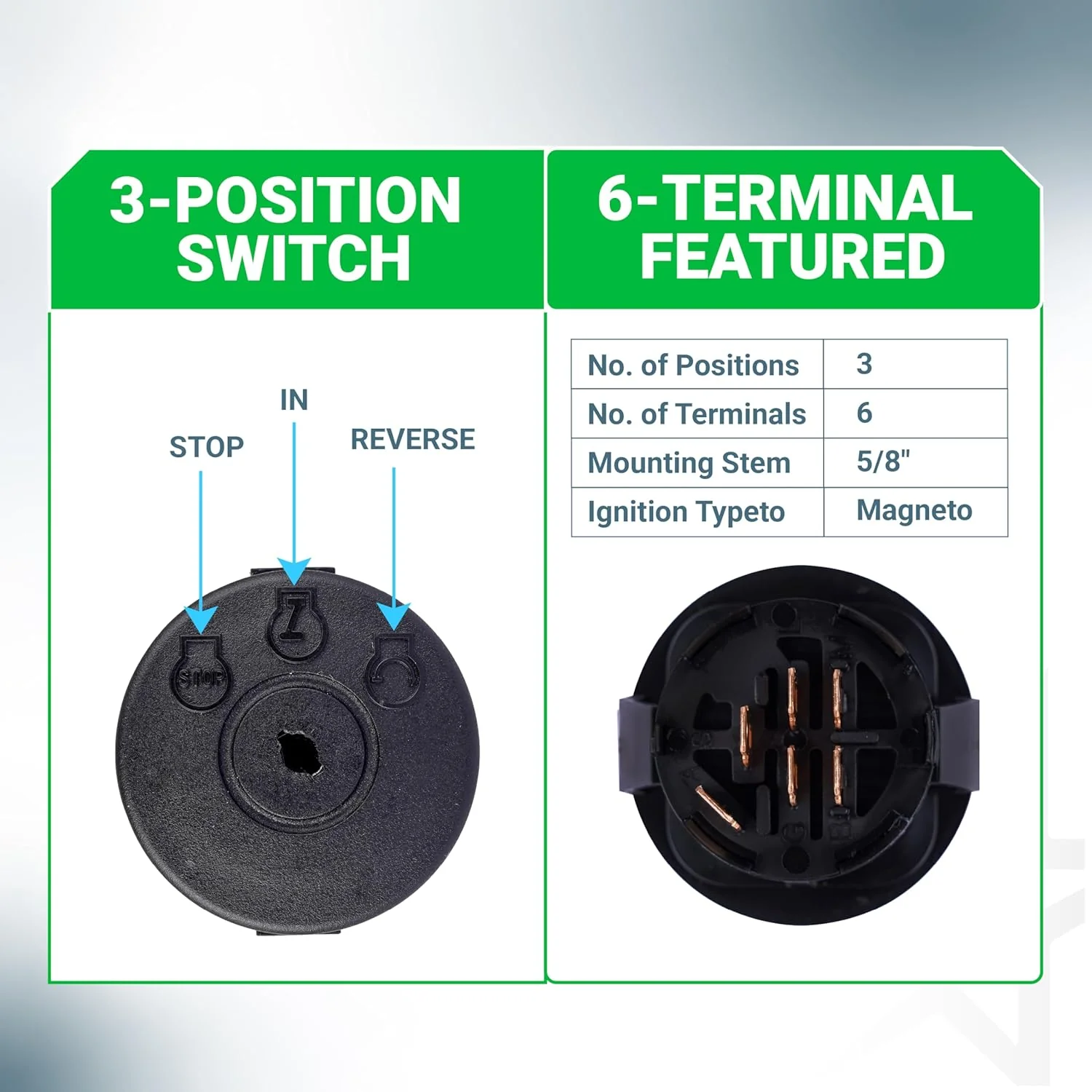

  • 3-position switch: Off, On, Start
  • 6-pin electrical connector
  • Operating Voltage: 12 Volts (DC)
  • Includes two matching keys
  • Designed for direct, plug-in installation

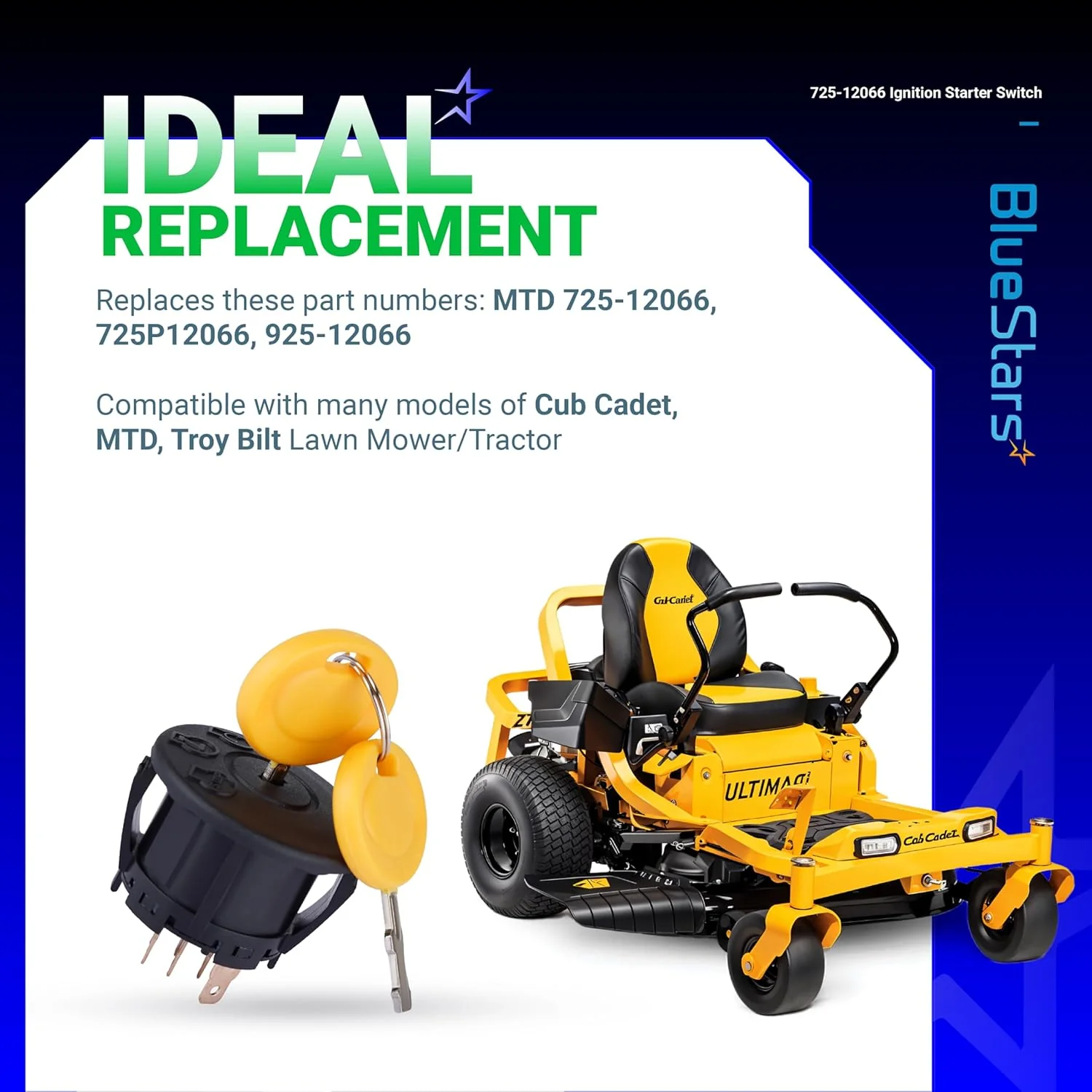

Replaces / Cross-Reference Part Numbers

  • MTD: 725-12066, 925-12066, 725P12066

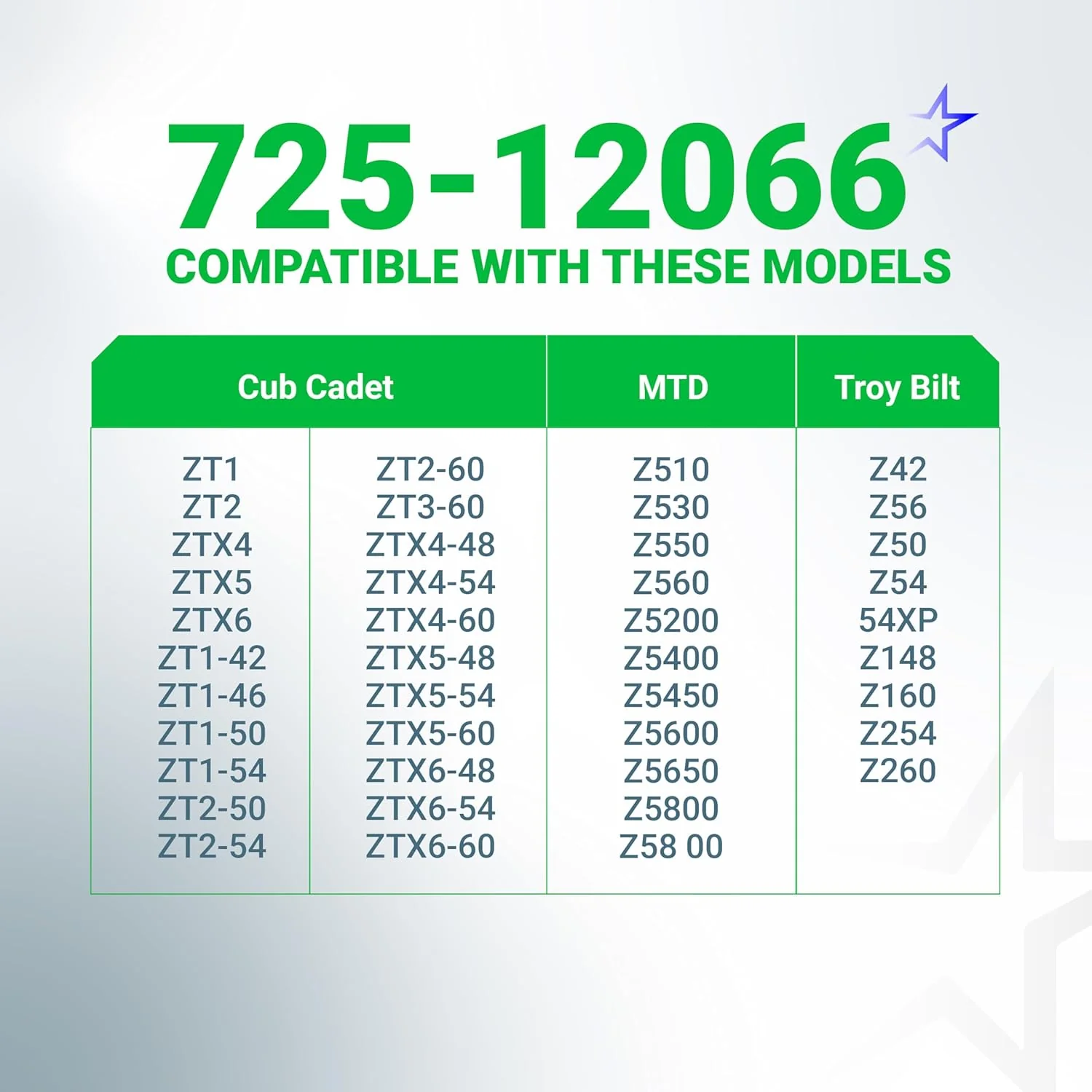

Compatibility & Fitment

  • Cub Cadet Models: ZT1-42, ZT1-46, ZT1-50, ZT1-54, ZT2-50, ZT2-54, ZTX6-60
  • MTD Models: Z510, Z5200, Z530, Z5450, Z550, Z560
  • Troy-Bilt Models: Z42, Z50, Z54, 54XP

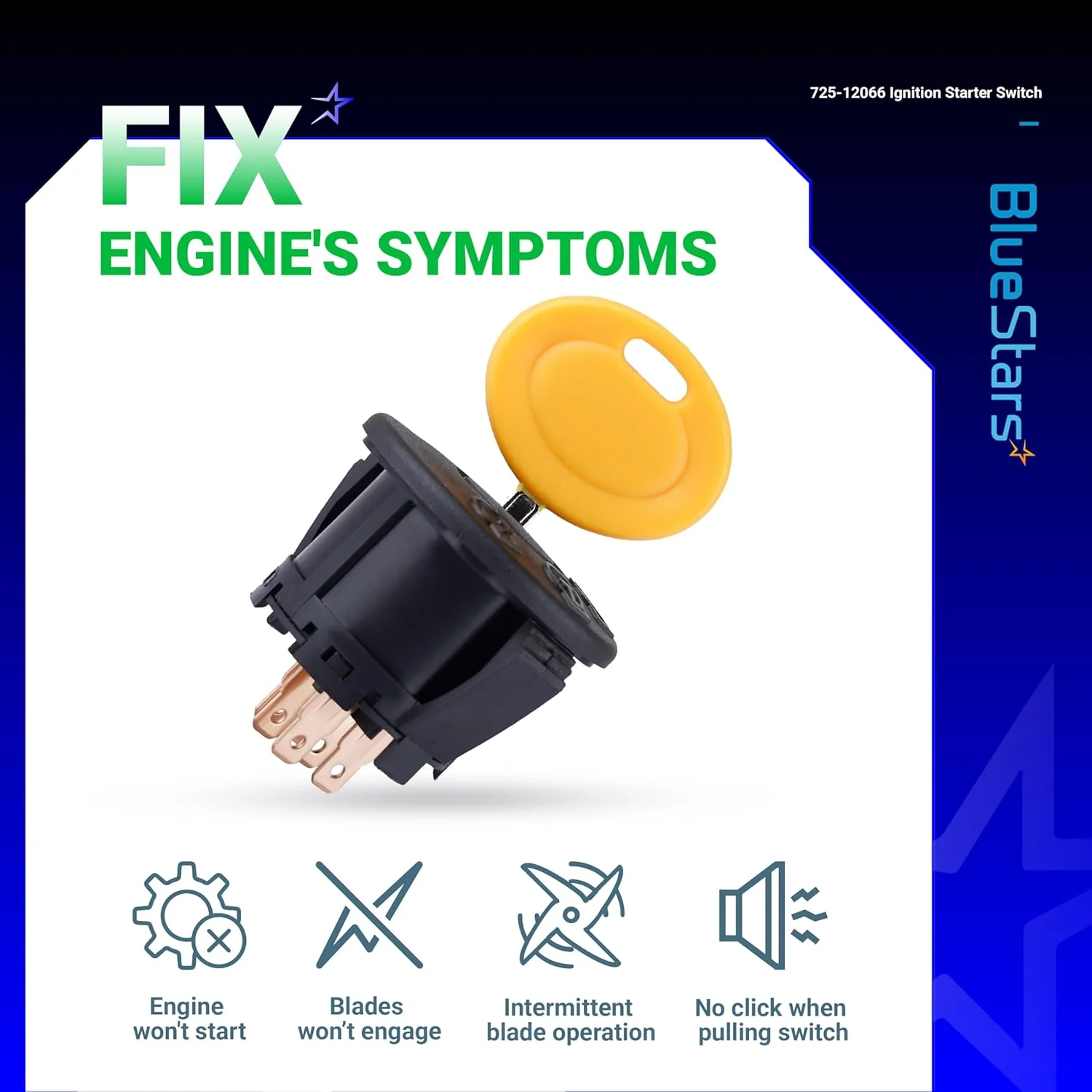

When to Replace

  • Engine fails to crank or start
  • Power is intermittent to the electrical system
  • Key is loose, broken, or will not turn properly
  • No "click" or response when turning the key to the start position
  • Visible corrosion or damage to switch terminals

Installation Tips

  • Disconnect the negative battery terminal before beginning installation.
  • Photograph the wiring harness connection to the old switch for reference.
  • Ensure the replacement switch is securely seated in the dash panel.
  • Confirm all pins are correctly aligned and the connector is fully seated.
  • Reconnect the battery and test all key positions before operating the machine.
$22.82
[Lifetime Warranty] 725-12066 Ignition Switch 3 Position 6 Pin with Keys - Compatible with Cub Cadet ZT1-42 ZT1-46 ZT1-50 ZT1-54 ZT2-50 ZT2-54 MTD Z510 Z530 Z550 Z560 Z5200 - Replaces 725P12066 925-12066—
$22.82

Product Information

Shipping & Returns

Description

725-12066 Ignition Starter Switch

Key Features

  • 3-position switch: Off, On, Start
  • 6-pin electrical connector
  • Operating Voltage: 12 Volts (DC)
  • Includes two matching keys
  • Designed for direct, plug-in installation

Replaces / Cross-Reference Part Numbers

  • MTD: 725-12066, 925-12066, 725P12066

Compatibility & Fitment

  • Cub Cadet Models: ZT1-42, ZT1-46, ZT1-50, ZT1-54, ZT2-50, ZT2-54, ZTX6-60
  • MTD Models: Z510, Z5200, Z530, Z5450, Z550, Z560
  • Troy-Bilt Models: Z42, Z50, Z54, 54XP

When to Replace

  • Engine fails to crank or start
  • Power is intermittent to the electrical system
  • Key is loose, broken, or will not turn properly
  • No "click" or response when turning the key to the start position
  • Visible corrosion or damage to switch terminals

Installation Tips

  • Disconnect the negative battery terminal before beginning installation.
  • Photograph the wiring harness connection to the old switch for reference.
  • Ensure the replacement switch is securely seated in the dash panel.
  • Confirm all pins are correctly aligned and the connector is fully seated.
  • Reconnect the battery and test all key positions before operating the machine.
