W10208631A Microwave Grease Filter (5.78" x 12.91") - Pack of 5

Key Features

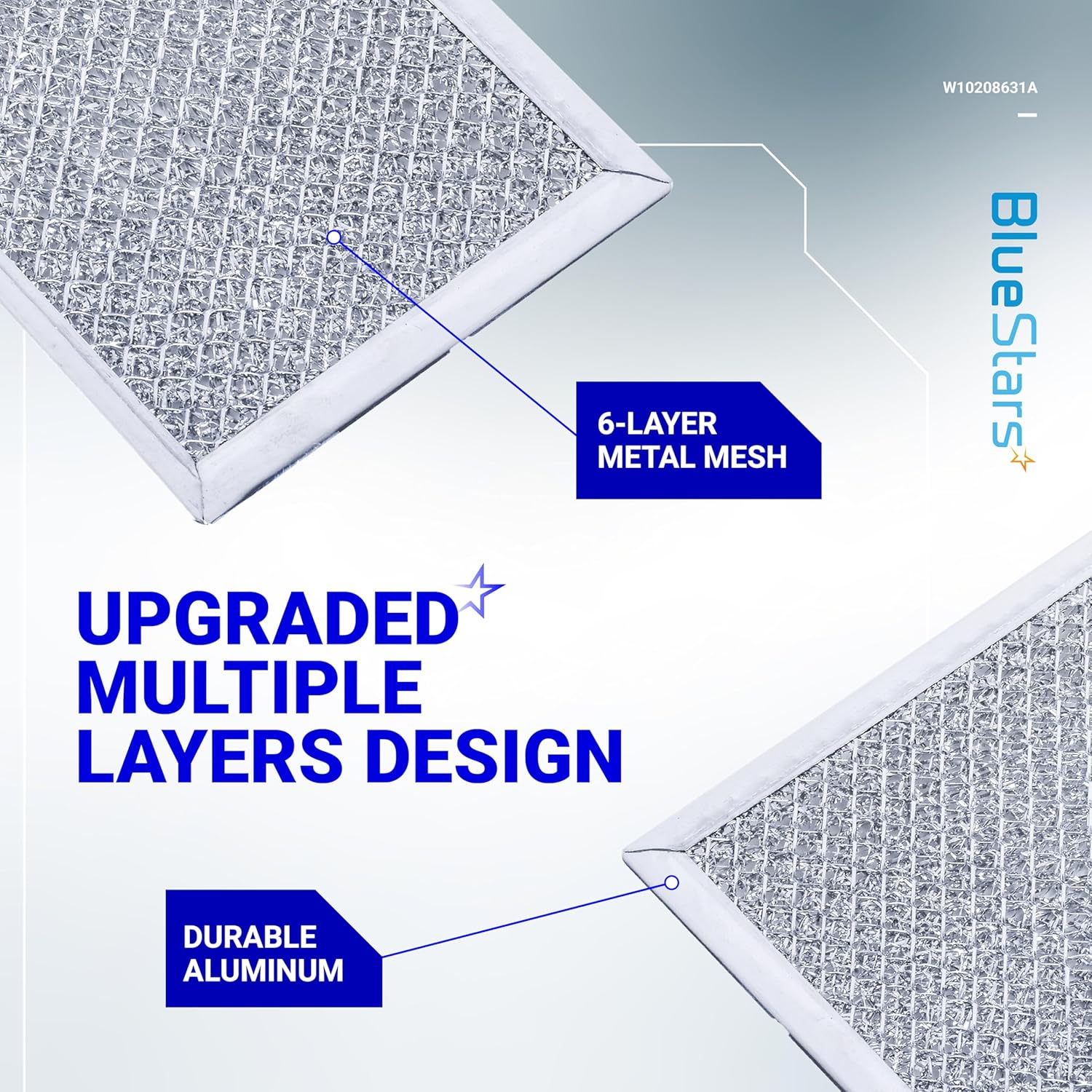

• Enhanced Aluminum Mesh: Constructed with multiple layers of expanded aluminum to provide a high surface area for trapping grease, soot, and steam, preventing them from clogging the internal venting system.

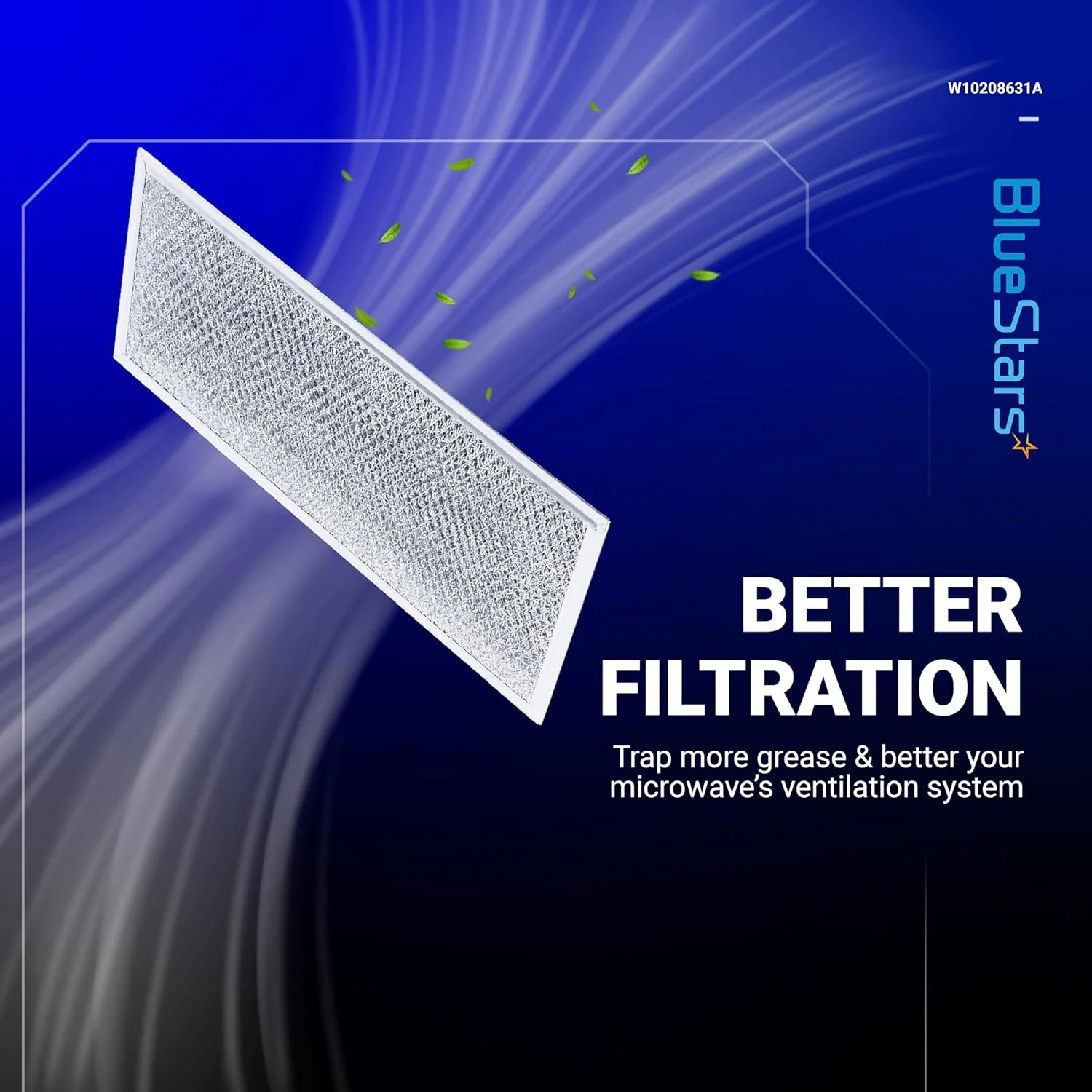

• High Airflow Efficiency: Specifically designed to allow maximum air extraction while maintaining filtration standards, ensuring your over-the-range microwave or vent hood operates at peak suction power.
• Washable and Reusable: The aluminum frame and mesh are resistant to rust and can be cleaned periodically with warm water and degreasing soap to maintain filtration efficiency.
• Foldable Metal Pull Tab: Features a durable, integrated pull tab for easy, tool-free installation and removal, making regular maintenance faster and more convenient.
• Heat-Resistant Construction: Built to withstand the high temperatures generated by stovetop cooking directly beneath the microwave without warping or degrading.

Replaces / Cross-Reference Part Numbers

• Primary Part Number: W10208631A.
• Cross-References: W10208631, AP4419910, PS2351225, 1550993.
• Manufacturer Equivalents: EAP2351225, PD00002891.

Compatibility & Fitment

This grease filter is widely used in Whirlpool-built and GE over-the-range microwaves. Key compatible models include:

• Whirlpool: Fits many WMH series models including WMH31017AS, WMH31017AW, WMH31017AB, WMH32519AS, and WMH53520AS.
• GE (General Electric): Compatible with JVM and CVM series such as JVM3160RFSS, JVM3160DFWW, and JVM3160DFCC.
• Maytag: Fits specific MMV series units including MMV1174DS and MMV4205DS.
• Amana & Estate: Direct fit for many AMV and KHMS series over-the-range microwaves.
• Note: Always measure your existing filter's length and width before purchasing, as OTR microwaves can have different filter slot sizes even within the same model series.

When to Replace

• Sticky or Gummy Residue: If the filter feels excessively sticky even after a deep soak in degreaser, the internal layers are likely saturated with old oil.
• Reduced Suction: If steam from your stovetop is no longer being pulled into the microwave vent, the filter is likely clogged with grease and dust.
• Bent or Warped Frame: If the aluminum frame is twisted or dented, it may not sit flush in the mounting bracket, allowing unfiltered air to bypass the mesh.
• Discolored Mesh: Severe yellowing or dark brown staining that won't wash off indicates that the aluminum has been heat-damaged or permanently fouled by cooking oils.
• Standard Maintenance: To protect your microwave's exhaust motor, it is recommended to clean these filters once a month and replace them every 6 to 12 months depending on cooking frequency.

Installation Tips

• Safety First: Ensure the microwave fan is turned off and the cooktop below is cool to the touch before reaching for the filters.
• Correct Orientation: PRO TIP: Most W10208631A filters are directional. Slide the side without the tab into the rear or side slot first, then pivot the tabbed side into the locking clip.
• Cleaning Recommendation: To extend the life of your filters, soak them in a mixture of hot water and a high-quality grease-cutting dish soap (like Dawn) for 15 minutes before rinsing.
• Dry Completely: Always allow your filters to air dry completely before reinstalling them. Moisture trapped in the mesh can be pulled into the fan motor, potentially causing electrical issues.
• Check the Top Vent: While you are maintaining the grease filters, check the top vent grille of your microwave for dust buildup to ensure proper air circulation for the internal electronics.
