[Lifetime Warranty] 285811 Medium Cam Agitator Repair Kit - Compatible with Whirlpool, Kenmore Washers - Replaces AP3138838, 2744, 285746, 285811VP, 3347410, 3351001, 3363663, AH334650, EA334650
285811 Medium Cam Agitator Repair Kit
Key Features
- Complete repair kit for washing machine agitators

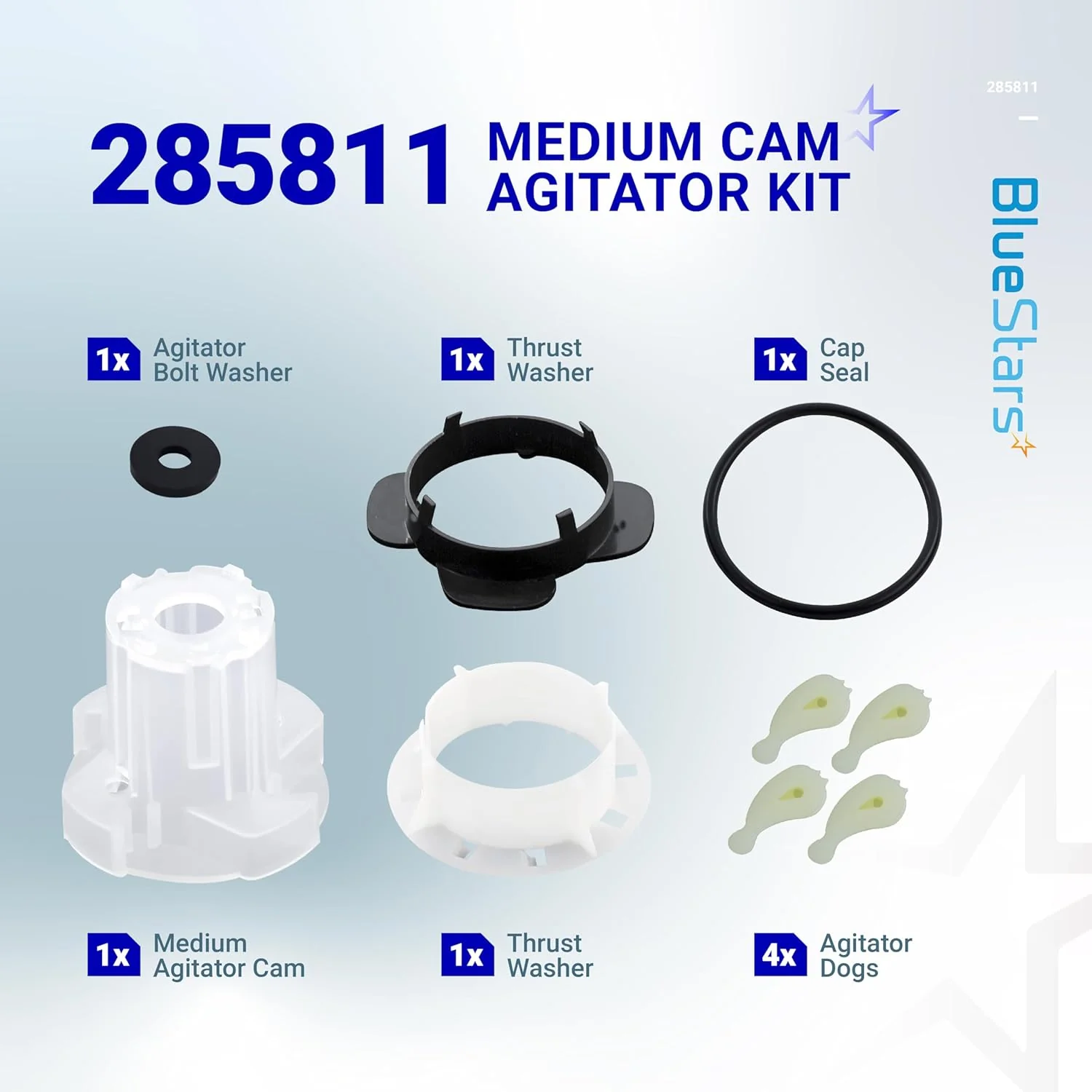

- Includes: 1 medium cam, 4 directional dogs, 1 bearing, and 1 retainer
- Material: Plastic / Rubber
- Restores dual-action agitator function

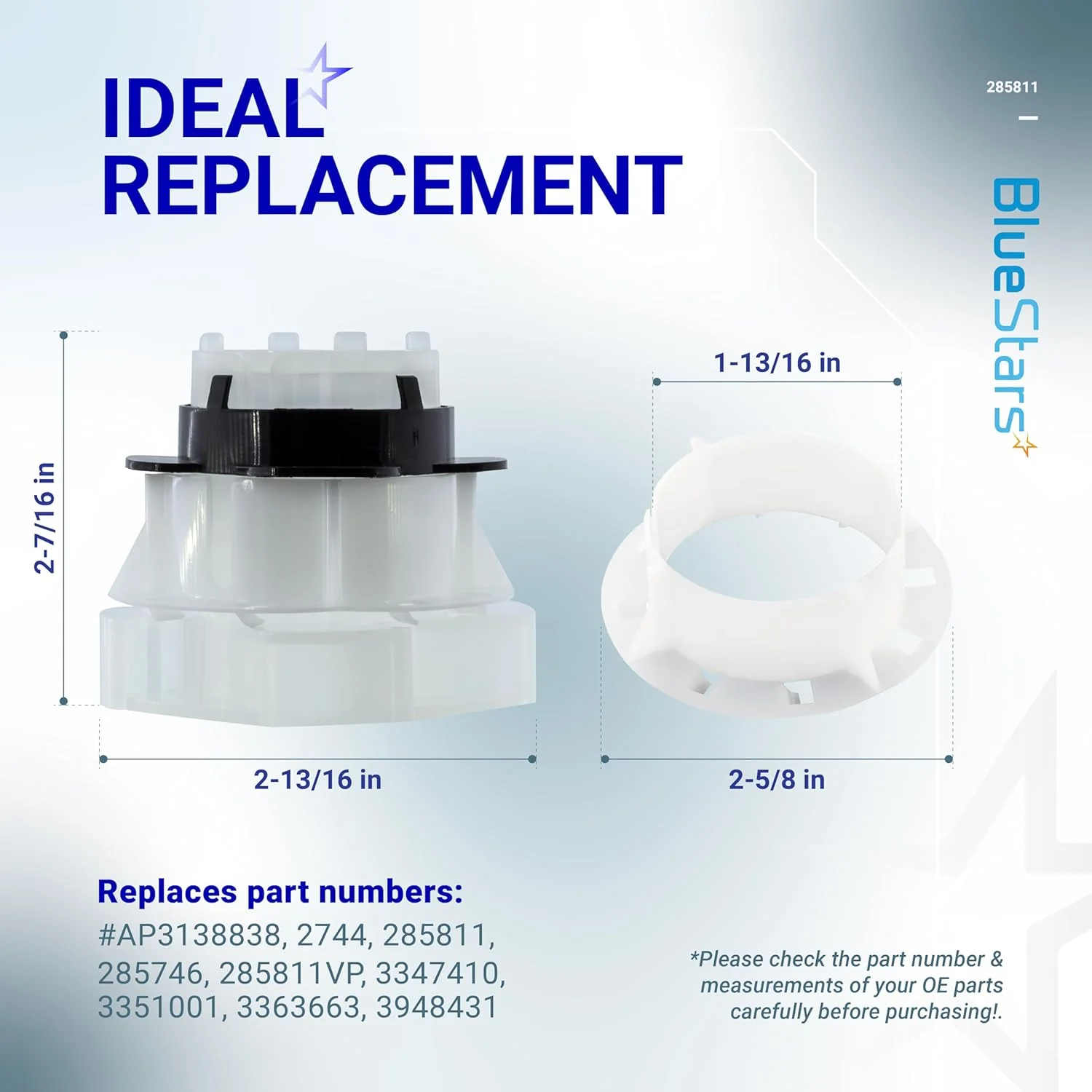

- Cam Dimensions: 2.81 in L x 2.81 in W x 2.44 in H
Replaces / Cross-Reference Part Numbers
- 285811
- 3362002
- 3951311
- 80040
- AP3094537
- PS334650
- TJ90LP227

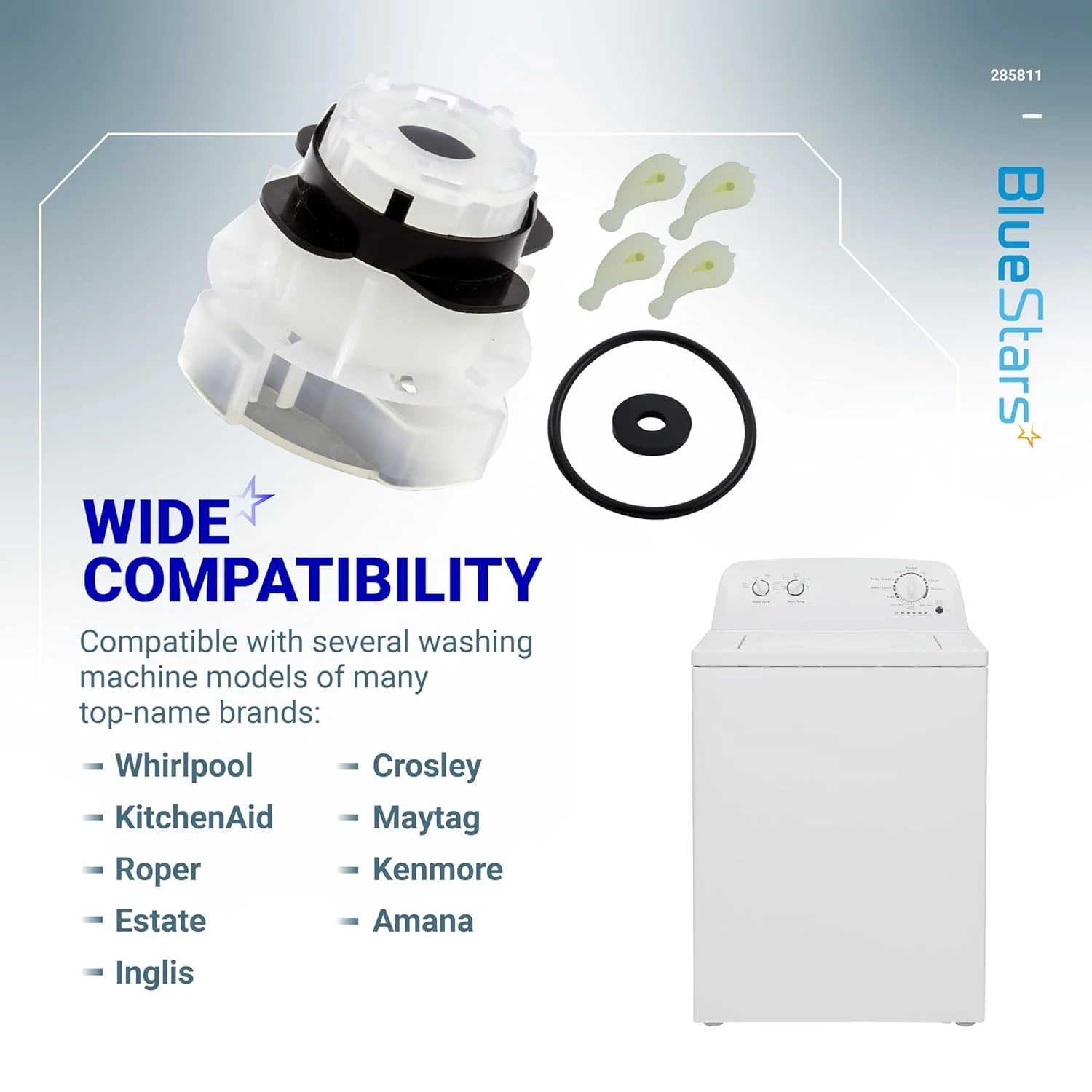

Compatibility & Fitment
- Fits most direct-drive top-load washing machines
- Compatible with major brands including Whirlpool, Kenmore, Roper, Estate, KitchenAid, and Inglis
When to Replace
- The top portion of the agitator does not move or moves intermittently
- Washer makes a grinding or clicking noise during the agitate cycle
- Clothes are not being agitated or cleaned effectively
- The agitator base moves but the upper section is stationary

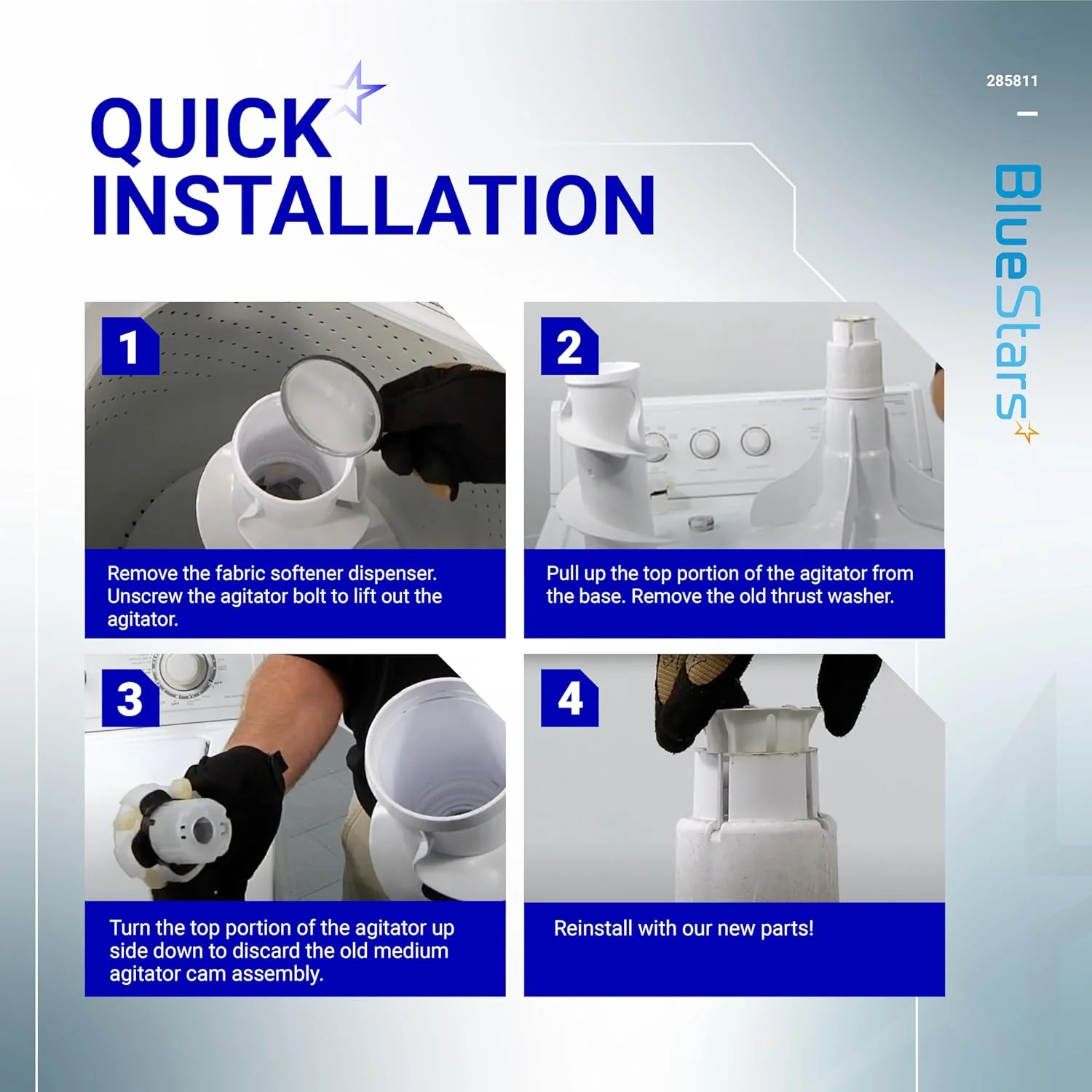

Installation Tips
- Disconnect the washer from power and water supplies before beginning installation
- Required tool: Extended 7/16-inch socket and ratchet
- Remove the agitator cap or fabric softener dispenser to access the center bolt
- Lift the agitator assembly out of the tub to access and replace the internal components
Product Information
Product Information
Shipping & Returns
Shipping & Returns
[Lifetime Warranty] 285811 Medium Cam Agitator Repair Kit - Compatible with Whirlpool, Kenmore Washers - Replaces AP3138838, 2744, 285746, 285811VP, 3347410, 3351001, 3363663, AH334650, EA334650
[Lifetime Warranty] 285811 Medium Cam Agitator Repair Kit - Compatible with Whirlpool, Kenmore Washers - Replaces AP3138838, 2744, 285746, 285811VP, 3347410, 3351001, 3363663, AH334650, EA334650
285811 Medium Cam Agitator Repair Kit
Key Features
- Complete repair kit for washing machine agitators
- Includes: 1 medium cam, 4 directional dogs, 1 bearing, and 1 retainer
- Material: Plastic / Rubber
- Restores dual-action agitator function
- Cam Dimensions: 2.81 in L x 2.81 in W x 2.44 in H
Replaces / Cross-Reference Part Numbers
- 285811
- 3362002
- 3951311
- 80040
- AP3094537
- PS334650
- TJ90LP227
Compatibility & Fitment
- Fits most direct-drive top-load washing machines
- Compatible with major brands including Whirlpool, Kenmore, Roper, Estate, KitchenAid, and Inglis
When to Replace
- The top portion of the agitator does not move or moves intermittently
- Washer makes a grinding or clicking noise during the agitate cycle
- Clothes are not being agitated or cleaned effectively
- The agitator base moves but the upper section is stationary
Installation Tips
- Disconnect the washer from power and water supplies before beginning installation
- Required tool: Extended 7/16-inch socket and ratchet
- Remove the agitator cap or fabric softener dispenser to access the center bolt
- Lift the agitator assembly out of the tub to access and replace the internal components
$17.43
[Lifetime Warranty] 285811 Medium Cam Agitator Repair Kit - Compatible with Whirlpool, Kenmore Washers - Replaces AP3138838, 2744, 285746, 285811VP, 3347410, 3351001, 3363663, AH334650, EA334650—
$17.43
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
285811 Medium Cam Agitator Repair Kit
Key Features
- Complete repair kit for washing machine agitators
- Includes: 1 medium cam, 4 directional dogs, 1 bearing, and 1 retainer
- Material: Plastic / Rubber
- Restores dual-action agitator function
- Cam Dimensions: 2.81 in L x 2.81 in W x 2.44 in H
Replaces / Cross-Reference Part Numbers
- 285811
- 3362002
- 3951311
- 80040
- AP3094537
- PS334650
- TJ90LP227
Compatibility & Fitment
- Fits most direct-drive top-load washing machines
- Compatible with major brands including Whirlpool, Kenmore, Roper, Estate, KitchenAid, and Inglis
When to Replace
- The top portion of the agitator does not move or moves intermittently
- Washer makes a grinding or clicking noise during the agitate cycle
- Clothes are not being agitated or cleaned effectively
- The agitator base moves but the upper section is stationary
Installation Tips
- Disconnect the washer from power and water supplies before beginning installation
- Required tool: Extended 7/16-inch socket and ratchet
- Remove the agitator cap or fabric softener dispenser to access the center bolt
- Lift the agitator assembly out of the tub to access and replace the internal components
