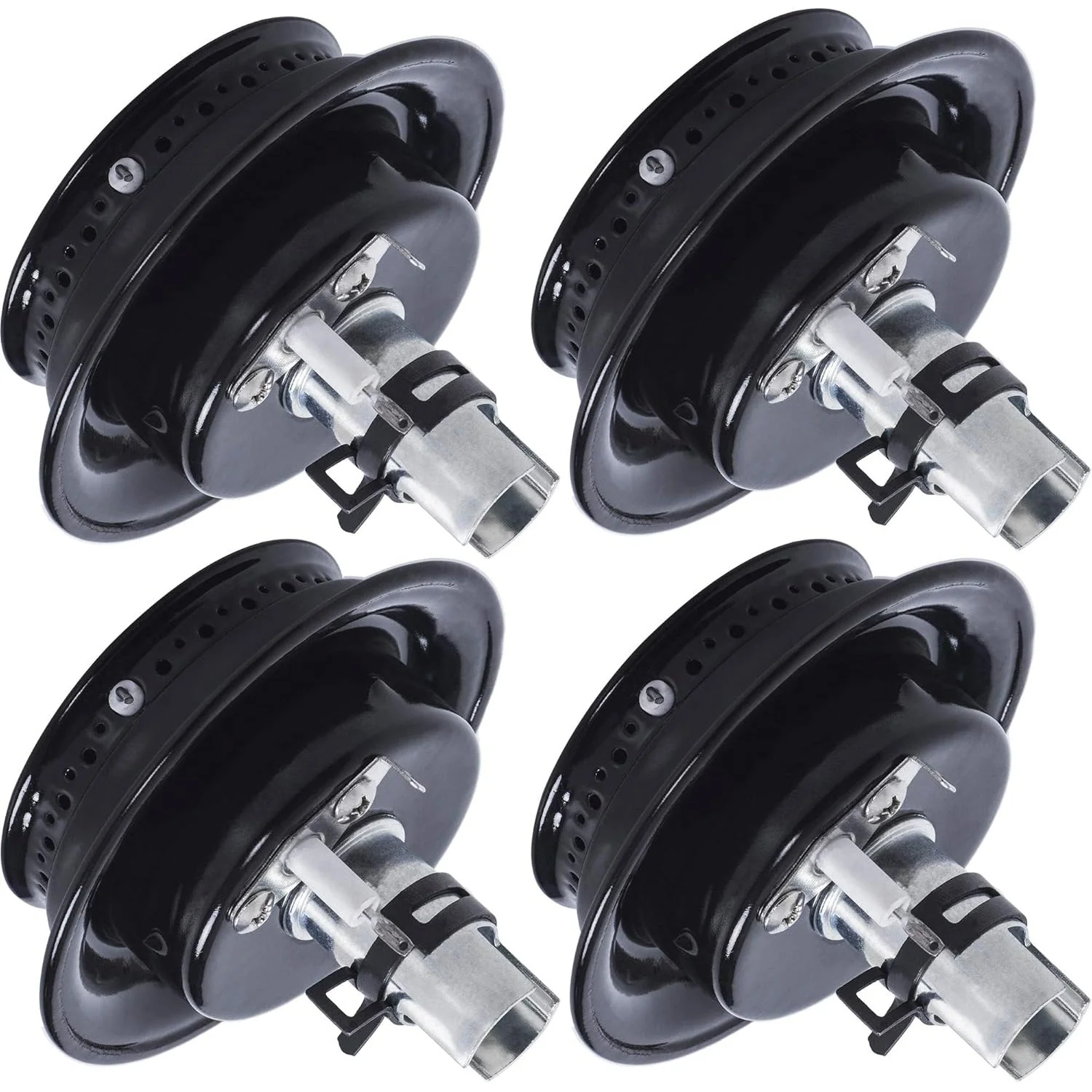

3412D024-09 Gas Range Sealed Burner Head & Igniter Assembly - Pack of 4

Key Features

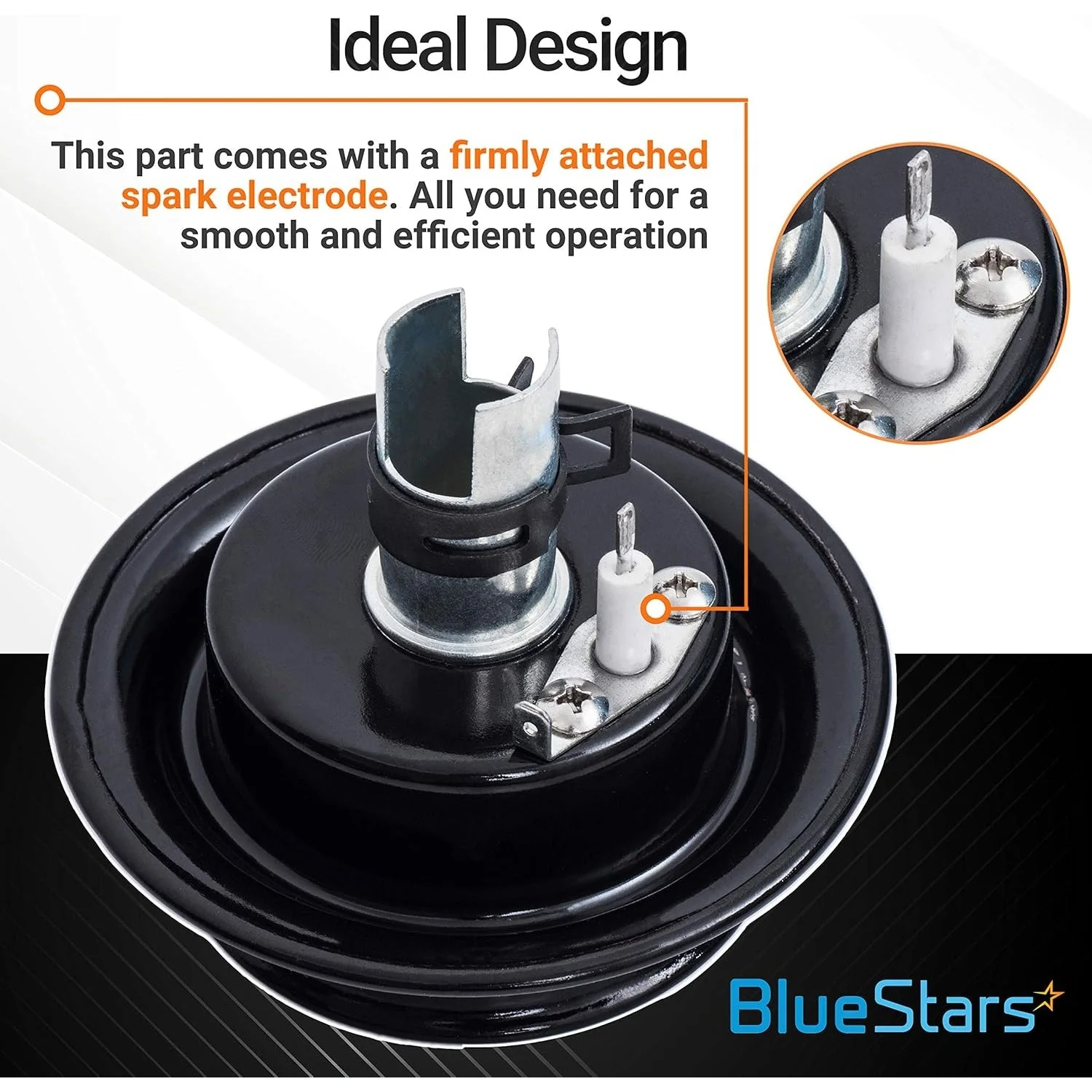

• Complete sealed burner head and igniter assembly
• Package includes four burner head assemblies
• Distributes gas for a consistent, even flame
• Approximate dimensions: 4 in. diameter x 3.25 in. length

Replaces / Cross-Reference Part Numbers

• 12500050
• 1531074
• 3412D007-00
• 3412D007-09
• 3412D014-09
• 3412D015-09
• 3412D016-09
• 3412D018-09
• 74003963
• AP4415505
• WP3412D024-09

Compatibility & Fitment

Fits specific gas range models from major brands including:

• Admiral
• Amana
• Crosley
• Hardwick
• Jenn-Air
• KitchenAid
• Magic Chef
• Maytag
• Norge
• Whirlpool


Note: Always verify fitment by checking your appliance's model number.

When to Replace

• Burner fails to ignite or produces no spark.
• Igniter sparks weakly, intermittently, or in the wrong location.
• Flame is uneven, yellow, or noisy.
• Visible cracks, corrosion, or blockages on the burner head.

Installation Tips

• Disconnect the range from power and shut off the gas supply before installation.
• Remove the burner grate and cap to access the burner head assembly.
• Handle the ceramic portion of the new igniter with care to prevent breakage.
• Ensure the new assembly is seated correctly before restoring power and gas.
