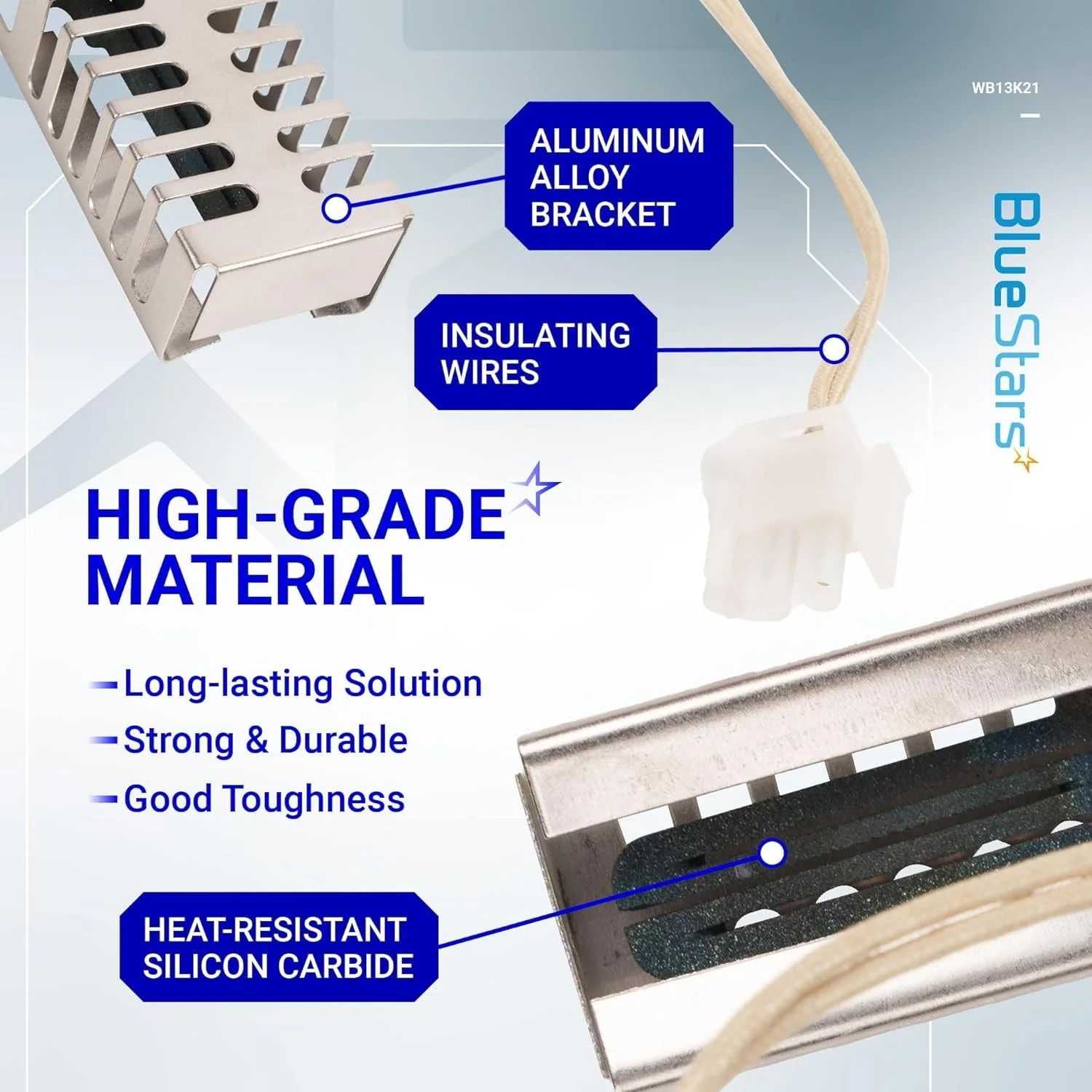

WB13K21 Gas Range Oven Igniter

Key Features

• Flat Style Design: Features a flat glow bar construction designed for efficient heat distribution and rapid ignition.
• High-Temperature Durability: Manufactured with heat-resistant materials to withstand consistent thermal cycling in gas ovens.
• Amperage Regulation: Draws sufficient current to open the safety gas valve, ensuring reliable burner ignition.
• Standard Connector: Equipped with a pre-terminated plug for direct connection, though splicing may be required for certain models.
• Complete Assembly: Includes the igniter element and protective cage/bracket for secure mounting.

Replaces / Cross-Reference Part Numbers

• WB13K21
• WB13K0021
• WB13K12
• WB13K13
• WB13K14
• WB13K10009
• WB13K10026
• AP2020569
• PS231280
• EAP231280

Compatibility & Fitment

This part is designed to fit specific gas ranges and ovens from the following manufacturers:

• General Electric (GE)
• Hotpoint
• RCA
• Kenmore / Sears (Select models manufactured by GE)

When to Replace

Consider replacing the igniter if the appliance exhibits the following symptoms:

• Oven fails to heat: The oven shows "On" but no heat is generated.
• Igniter glows but no flame: The glow bar turns orange/red but fails to draw enough amperage to open the gas valve.
• Slow ignition: The oven takes significantly longer than usual to reach the set temperature.
• Physical damage: The heating element is cracked, blistered, or broken.

Installation Tips

• Disconnect Power: Always unplug the range or flip the circuit breaker before servicing.
• Shut Off Gas: Ensure the gas supply valve is turned off.
• Handle with Care: The glowing element is extremely fragile. Do not touch the grey element portion with bare fingers, as body oils can create hot spots and shorten part life.
• Verify Wiring: If the connector does not match your existing harness, use ceramic wire nuts to splice the new igniter wires to the existing range wiring.
