285809 Washer Short Cam Agitator - Pack of 2

Key Features

• Restores rotational function to the upper portion of the washer agitator.
• Ensures proper clothing turnover for an effective wash cycle.
• Each kit contains: 1 short cam, 4 agitator dogs, and 1 bearing retainer.
• Package includes two complete repair kits.

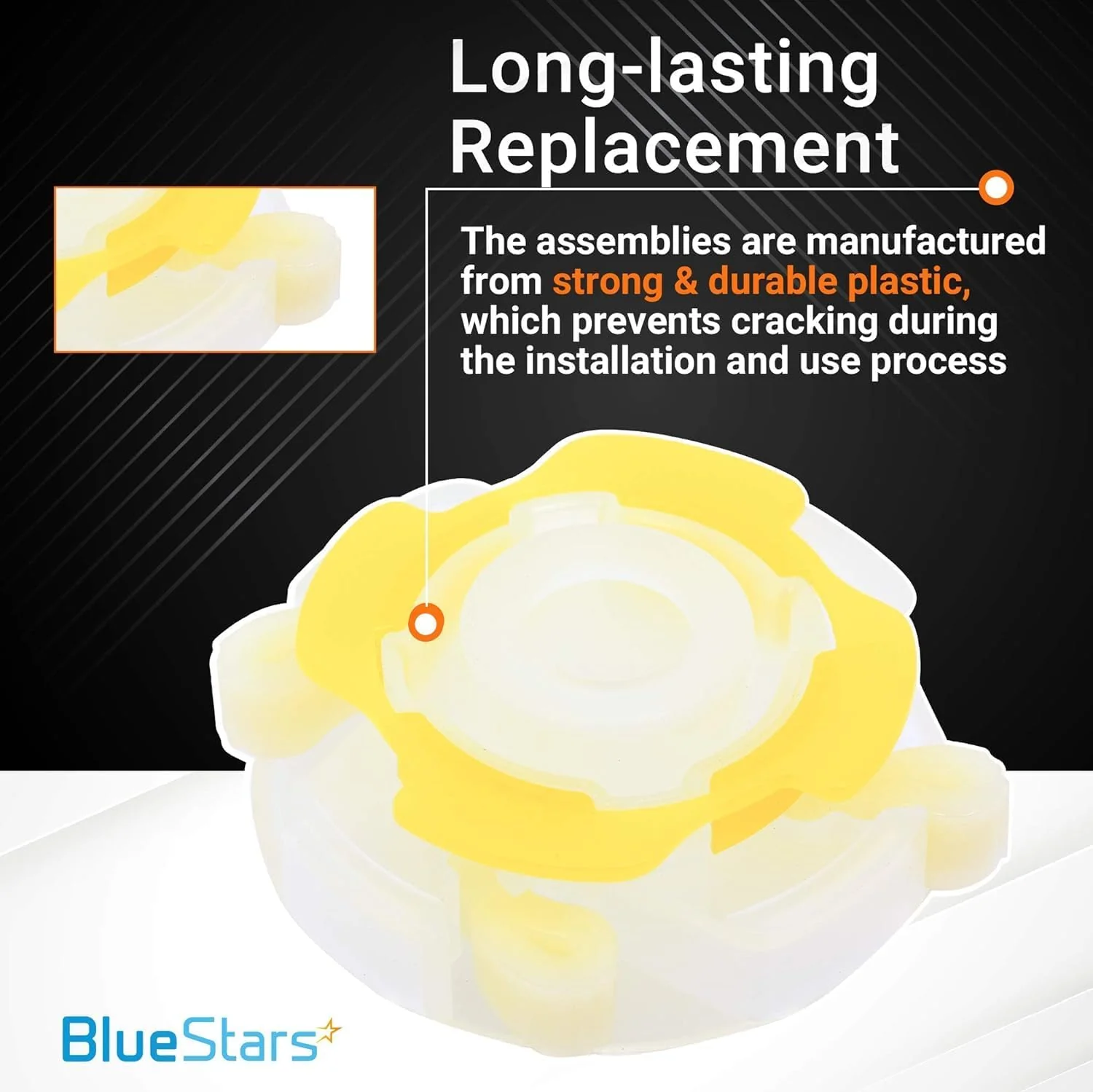

• Constructed from durable polymer materials for longevity.

Replaces / Cross-Reference Part Numbers

• 285809
• AP3119063
• 285748
• 3362409
• 3948432
• 62680
• 62681
• AH334412
• EA334412
• PS334412

Compatibility & Fitment

• Fits many direct-drive top-load washing machines.
• Compatible with select models from brands including:
  • Whirlpool
  • Kenmore
  • KitchenAid
  • Maytag
  • Amana
  • Crosley
  • Estate
  • Roper
• Confirm compatibility by matching your appliance's model number or original part number.

When to Replace

• The top section of the agitator does not move or moves intermittently.
• The washer agitates at the bottom but not at the top.
• Clothes are not being cleaned thoroughly.
• A clicking or grinding sound occurs during the wash cycle.

Installation Tips

• Disconnect the washer from power and water sources before starting.
• Remove the fabric softener dispenser or agitator cap.
• Unscrew the bolt securing the top agitator section.
• Lift the upper agitator to access and replace the worn components.
• Reassemble in reverse order once the new parts are installed.
