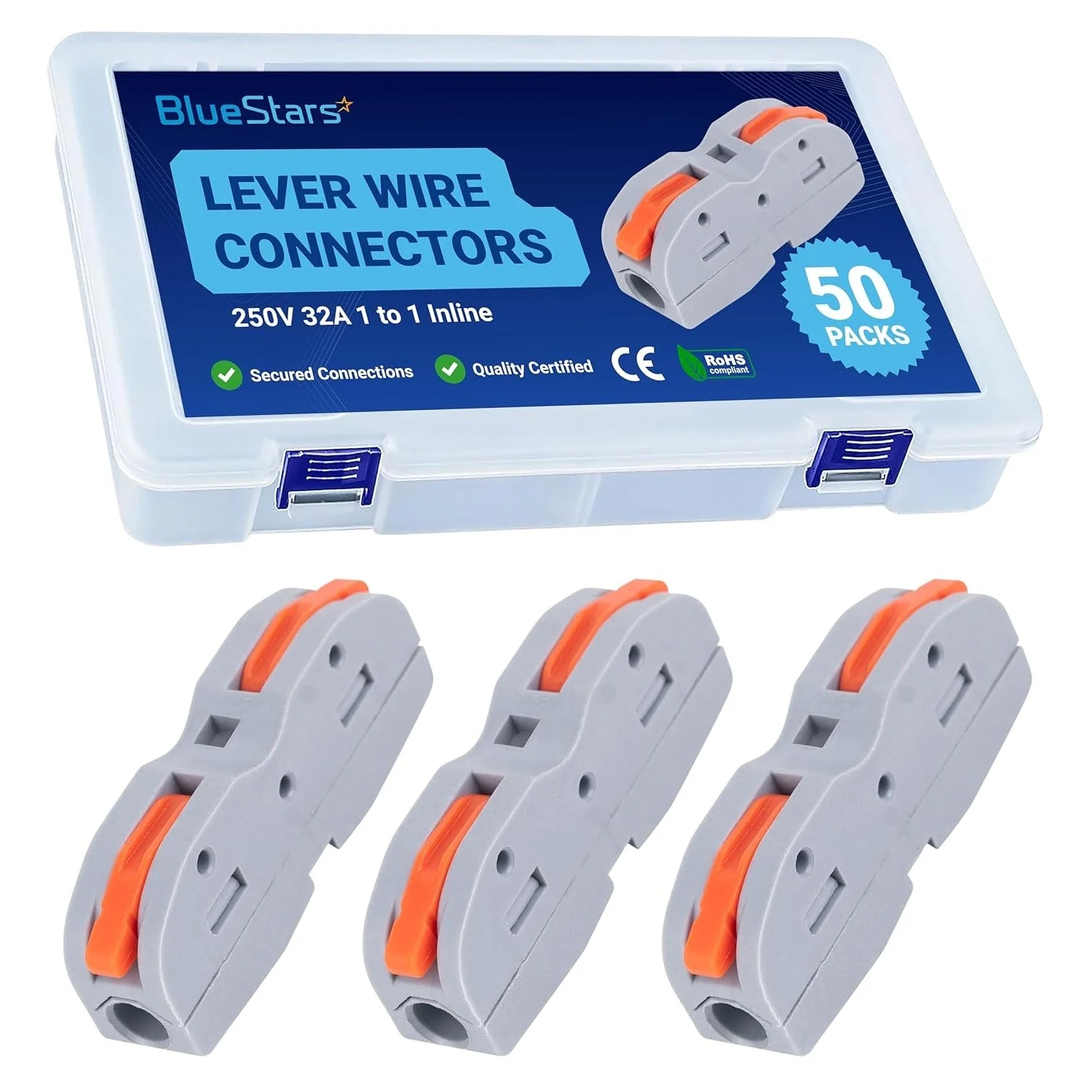

250V 32A Compact Splicing Lever Wire Connector

Key Features

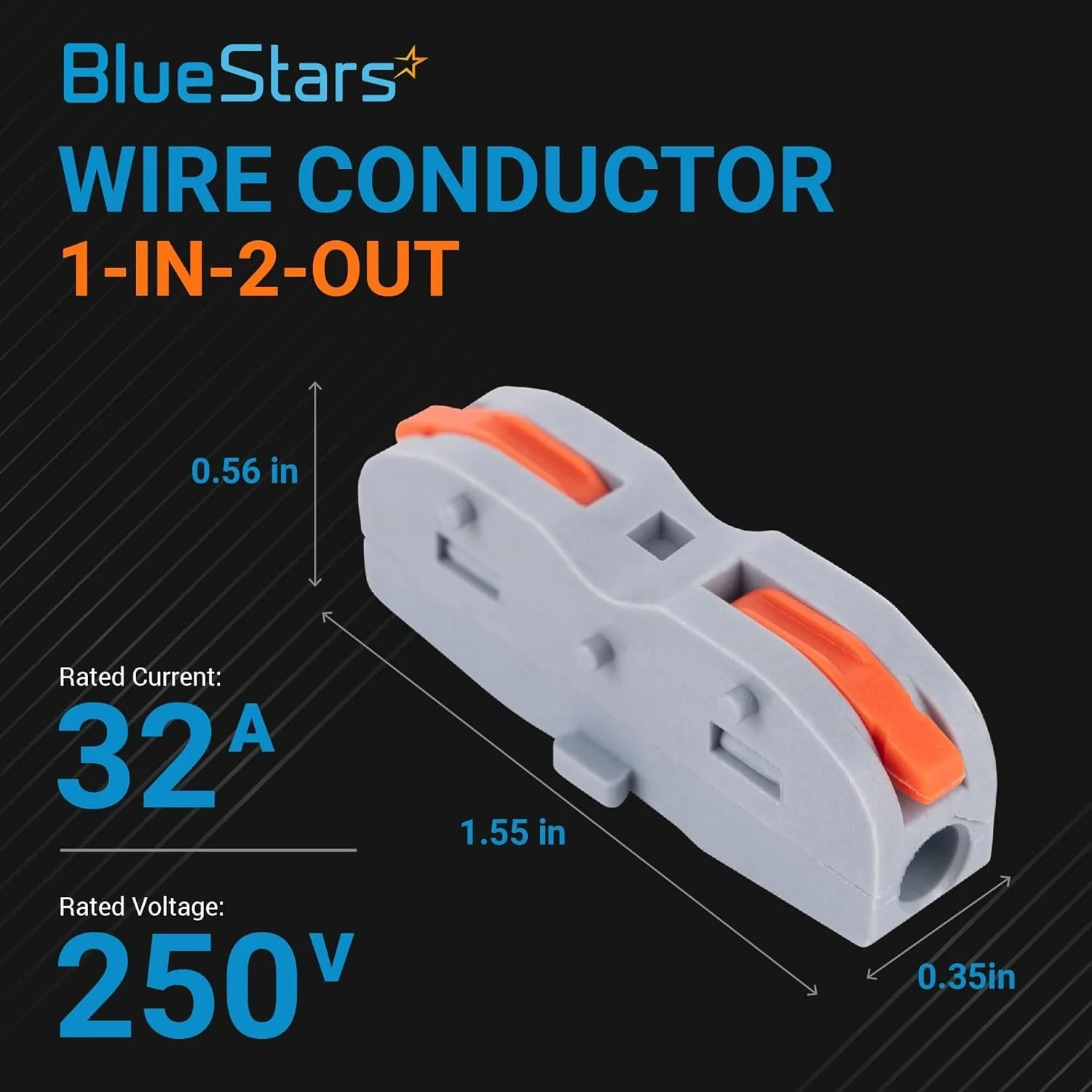

• Electrical Rating: 250V maximum voltage, 32A maximum current.
• Wire Compatibility: Accommodates a wide range of wire sizes from 28-12 AWG solid and 28-14 AWG stranded conductors.
• Lever-Operated Design: Allows for fast, secure, and tool-free wire connections.

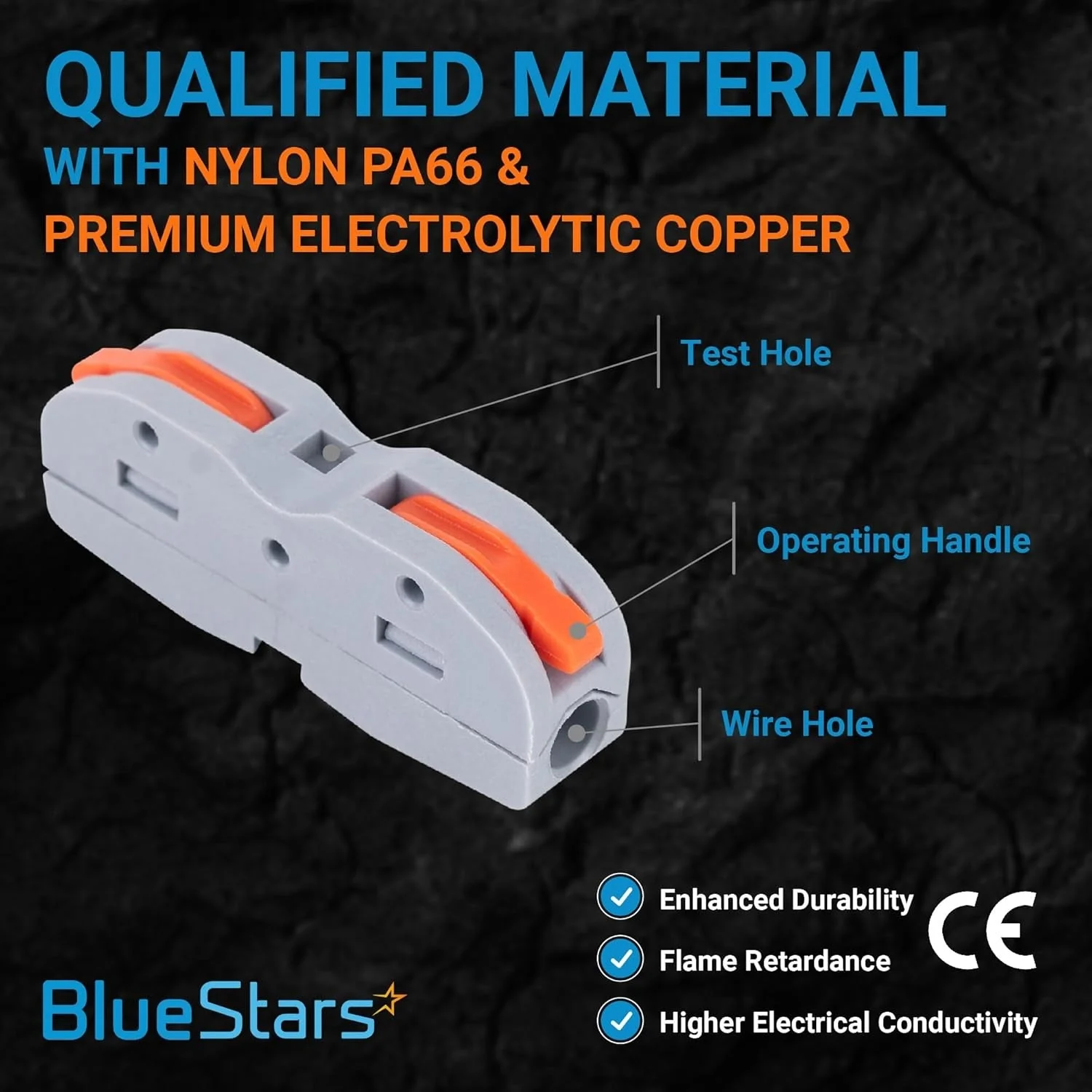

• Integrated Test Point: Provides a convenient port for voltage testing with standard multimeter probes.
• Construction: Housed in a flame-retardant, insulating material for safety.
• Reusable: Connectors can be opened and closed repeatedly to add or change wires.

Replaces / Cross-Reference Part Numbers

• KV230
• LT-211
• 2-port compact splicing connector
• 3-port compact splicing connector

Compatibility & Fitment

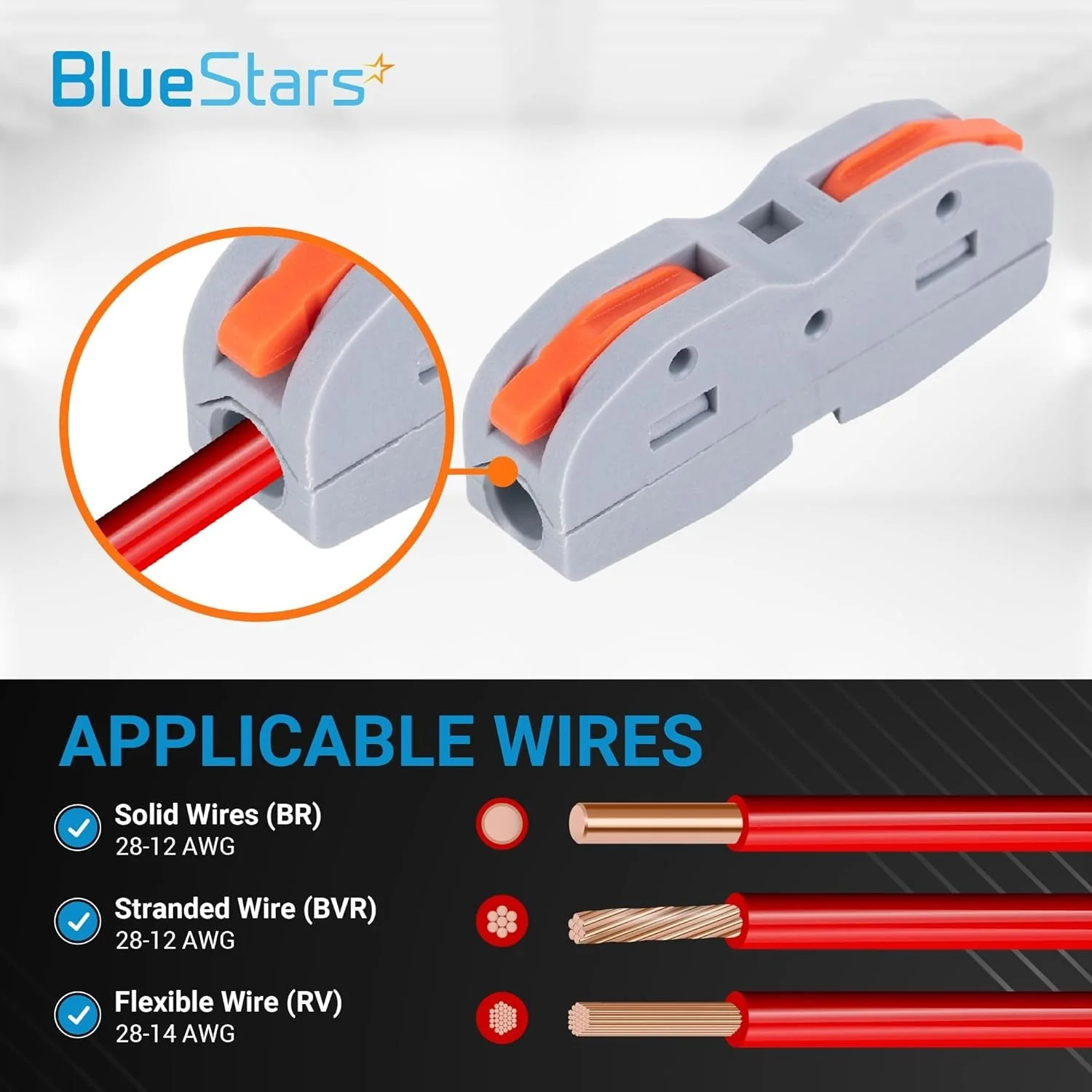

• Solid Wires: 28-12 AWG (0.08 - 4.0 mm²)
• Stranded Wires: 28-14 AWG (0.08 - 2.5 mm²)
• Conductor Material: For use with solid or stranded copper wires.
• Applications: Suitable for junction boxes, lighting fixtures, control circuits, and general residential or commercial electrical wiring.

When to Replace

• For creating new, secure wire splices in electrical installations.

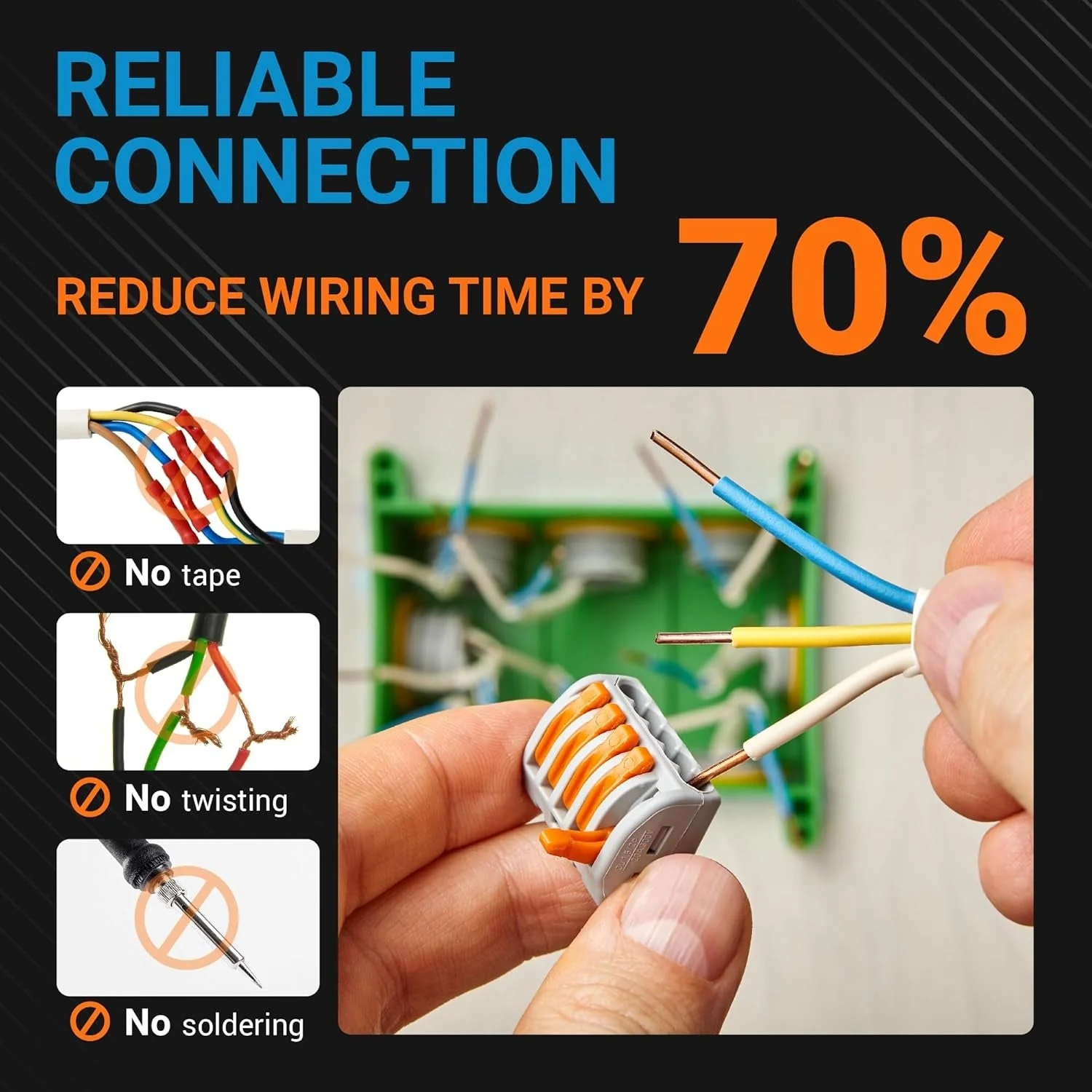

• When upgrading or replacing traditional wire nuts or tape-based connections.
• If an existing connector shows signs of melting, charring, or physical damage.
• If the locking lever is broken or no longer holds the wire firmly in place.

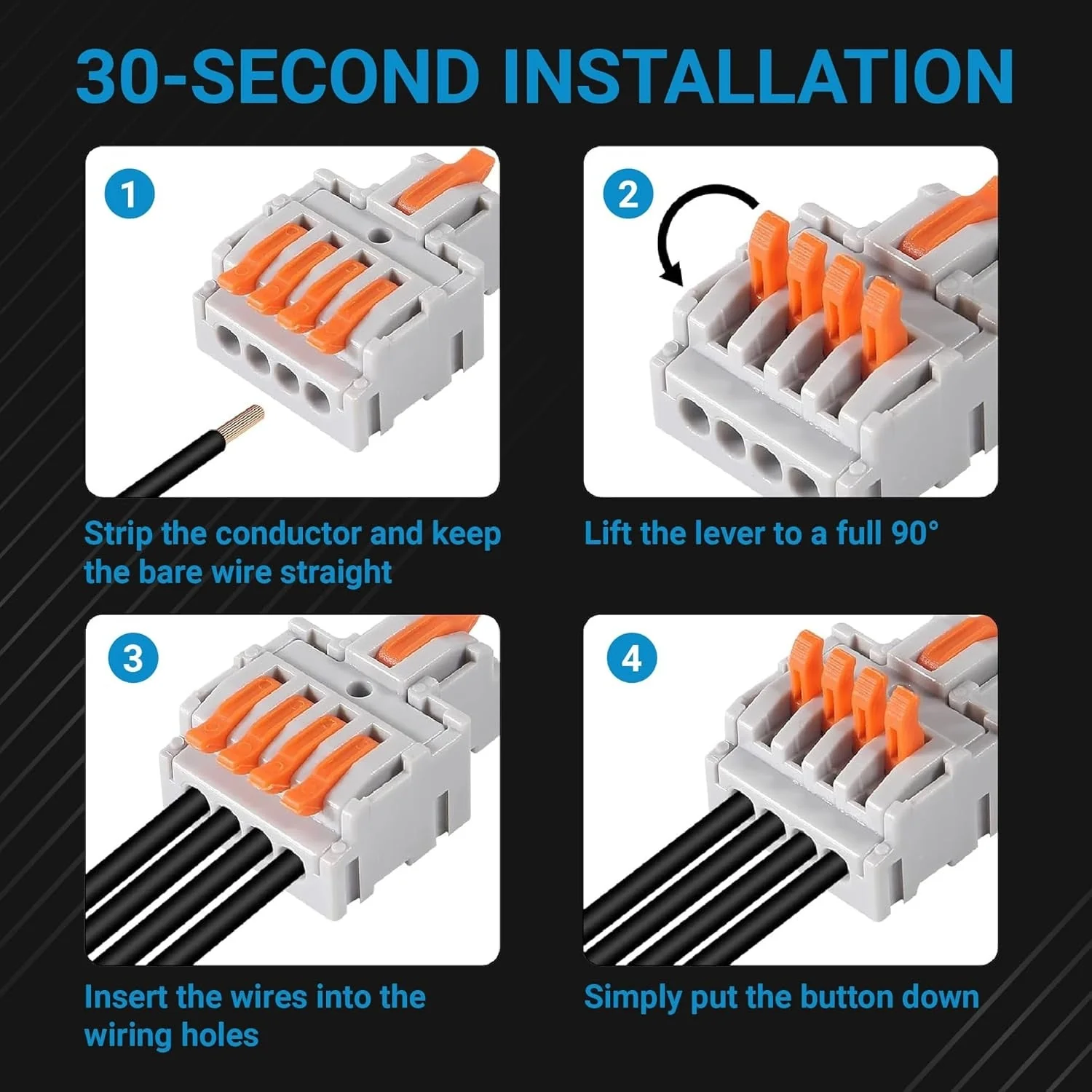

Installation Tips

• Strip wire insulation to the length specified by the strip guide on the connector housing.
• Lift the colored operating lever to the fully open position (90 degrees).
• Insert the stripped conductor straight into the connector port until it hits the backstop.
• Lower the lever until it snaps closed, flush with the connector body.
• Confirm a secure connection by gently tugging on the wire.
• Place all finished connections inside an approved electrical enclosure.
