15W 12V LED Power Supply Driver 1.25A, 120V AC to 12V DC, IP67 Waterproof, 2-Pack

Key Features

• Package Contents: 2 power supply drivers
• Input Voltage: 100-240V AC
• Output Voltage: 12V DC (Constant Voltage)
• Max Output Power: 15W
• Max Output Current: 1.25A

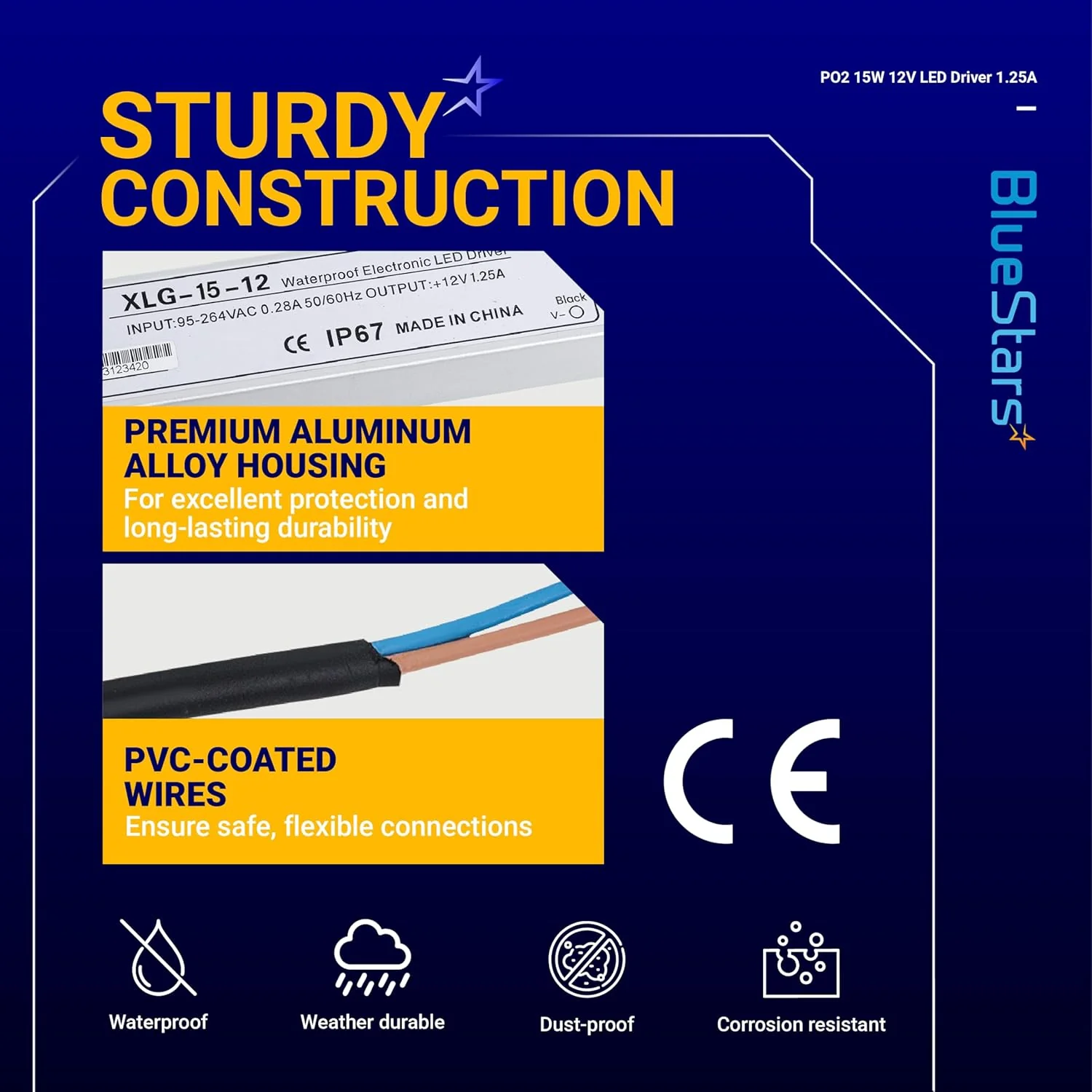

• Ingress Protection Rating: IP67 (dust-tight and waterproof)
• Provides stable power to prevent LED flickering or premature failure
• Dimensions (L x W x H): 2.59 in x 1.18 in x 0.78 in

Replaces / Cross-Reference Part Numbers

• Replaces any 12V DC power supply with a maximum power rating of 15W and a maximum current draw of 1.25A.
• Ensure voltage, wattage, and physical dimensions match the unit being replaced.

Compatibility & Fitment

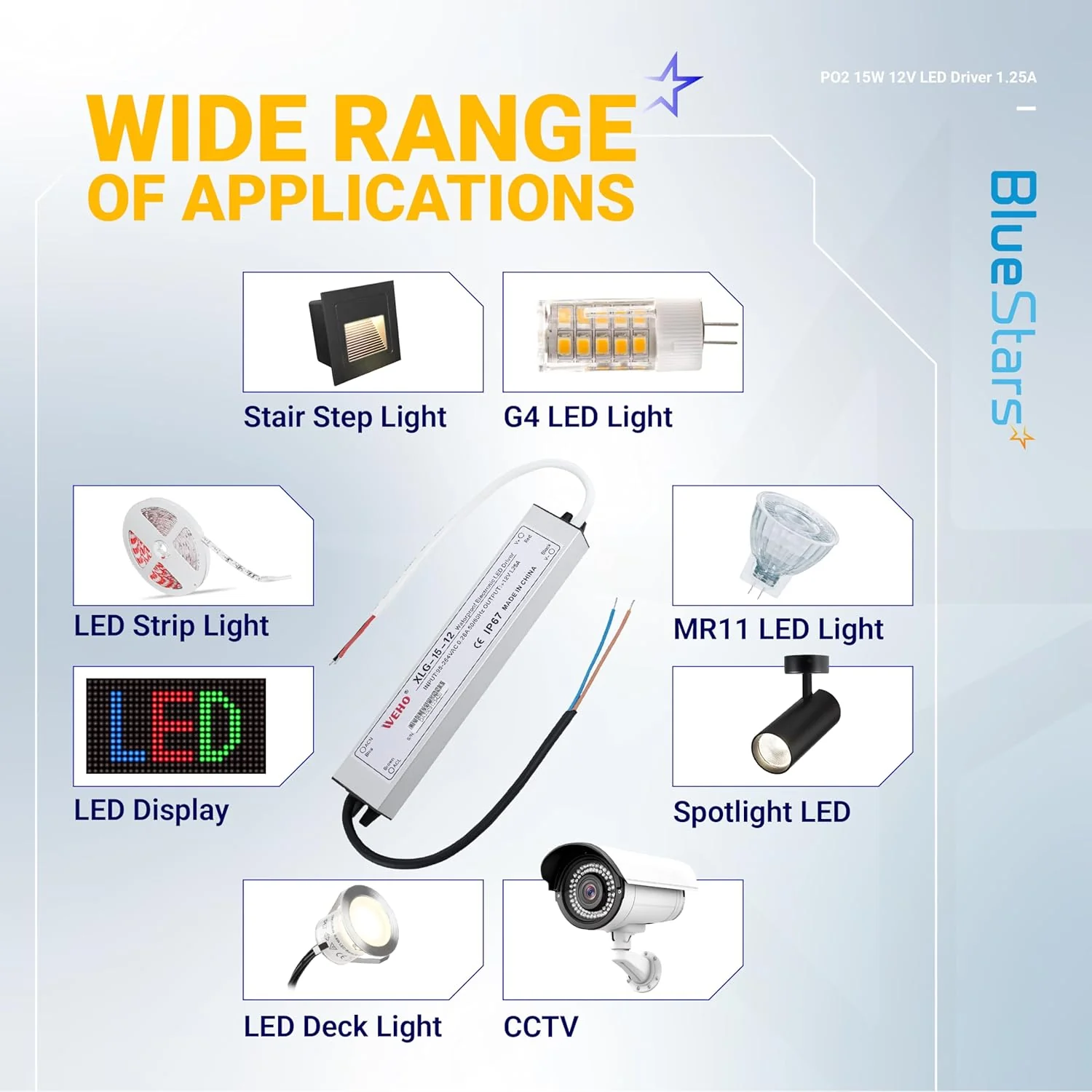

• Suitable for indoor and outdoor low-voltage 12V DC lighting systems.
• Compatible with LED strip lights, cabinet lights, puck lights, and landscape lighting.
• Powers G4, MR11, and MR16 type LED bulbs.
• Can be used for other 12V DC applications such as CCTV cameras and illuminated signs, provided the load does not exceed 15W.

When to Replace

• Connected lights are flickering, dim, or do not turn on.
• Existing power supply is physically damaged, cracked, or shows signs of water ingress.
• The power supply unit emits a humming or buzzing sound.
• The unit overheats or fails to provide a consistent 12V DC output.

Installation Tips

• Disconnect the main power source before installation or removal.
• Verify the input (AC) and output (DC) wires are connected to the correct terminals.
• Do not exceed 80% of the 15W capacity (12W recommended max load) to ensure longevity and prevent overheating.
• Ensure all wire connections are secure and properly insulated, especially in outdoor or wet locations.
• Allow for adequate ventilation around the power supply to dissipate heat.
