10-Value Ceramic Capacitor Assortment Kit 650 pcs

Key Features

• Total Quantity: 650 pieces
• Voltage Rating: 50V DC
• Capacitor Type: Multilayer Monolithic Ceramic
• Capacitance Tolerance: ±10%
• Lead Spacing: 5.08mm
• Included Values (Capacitance / Quantity):
• 0.1µF (104) / 100 pcs
• 0.15µF (154) / 50 pcs
• 0.22µF (224) / 50 pcs
• 0.33µF (334) / 50 pcs
• 0.47µF (474) / 50 pcs
• 0.68µF (684) / 50 pcs
• 1µF (105) / 100 pcs
• 2.2µF (225) / 50 pcs
• 4.7µF (475) / 50 pcs
• 10µF (106) / 100 pcs

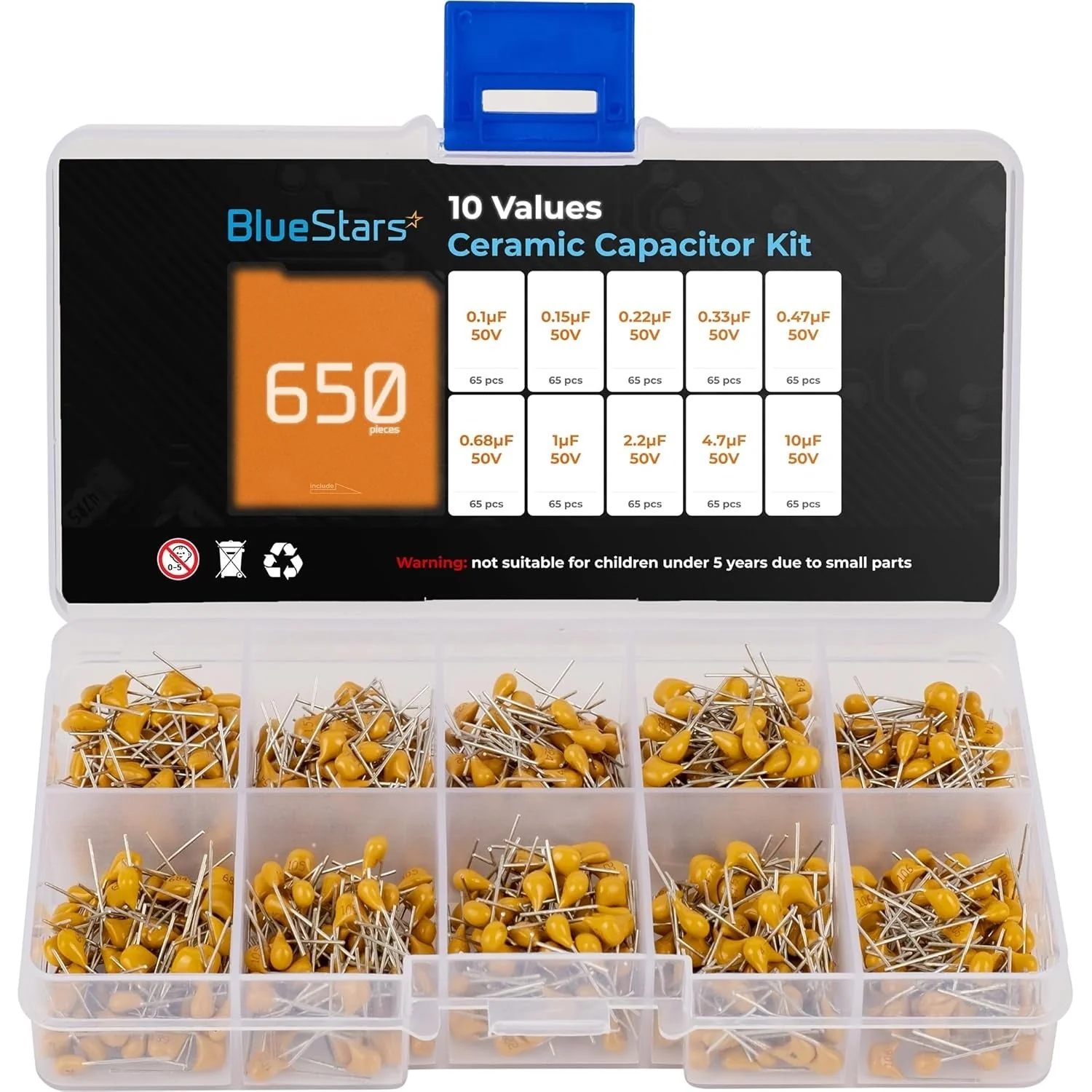

• Packaging: Components are sorted by value in a partitioned plastic storage case.

Replaces / Cross-Reference Part Numbers

• This assortment provides common values for replacing capacitors marked with standard three-digit EIA codes: 104, 154, 224, 334, 474, 684, 105, 225, 475, 106.

Compatibility & Fitment

• Suitable for a wide range of electronic applications including prototyping, repair, and DIY projects.
• Commonly used for signal filtering, power supply decoupling, energy storage, timing circuits, and signal coupling in consumer and industrial electronics.

When to Replace

• Replace existing capacitors during electronic repair or troubleshooting if they are tested as open, shorted, or out of their specified tolerance range.
• Visible physical damage such as cracks or burns on the component body.
• To address circuit instability, excessive noise, or incorrect timing behavior where a faulty capacitor is the diagnosed cause.

Installation Tips

• Verify capacitance value and voltage rating against circuit schematic or the original component before installation.
• These ceramic capacitors are non-polarized and can be installed in any orientation.
• Use appropriate soldering temperature to prevent damage to the capacitor and the printed circuit board (PCB).
• Ensure the circuit is de-energized and any high-voltage capacitors are safely discharged before performing replacement.
• Trim leads to the appropriate length after soldering to prevent short circuits.
