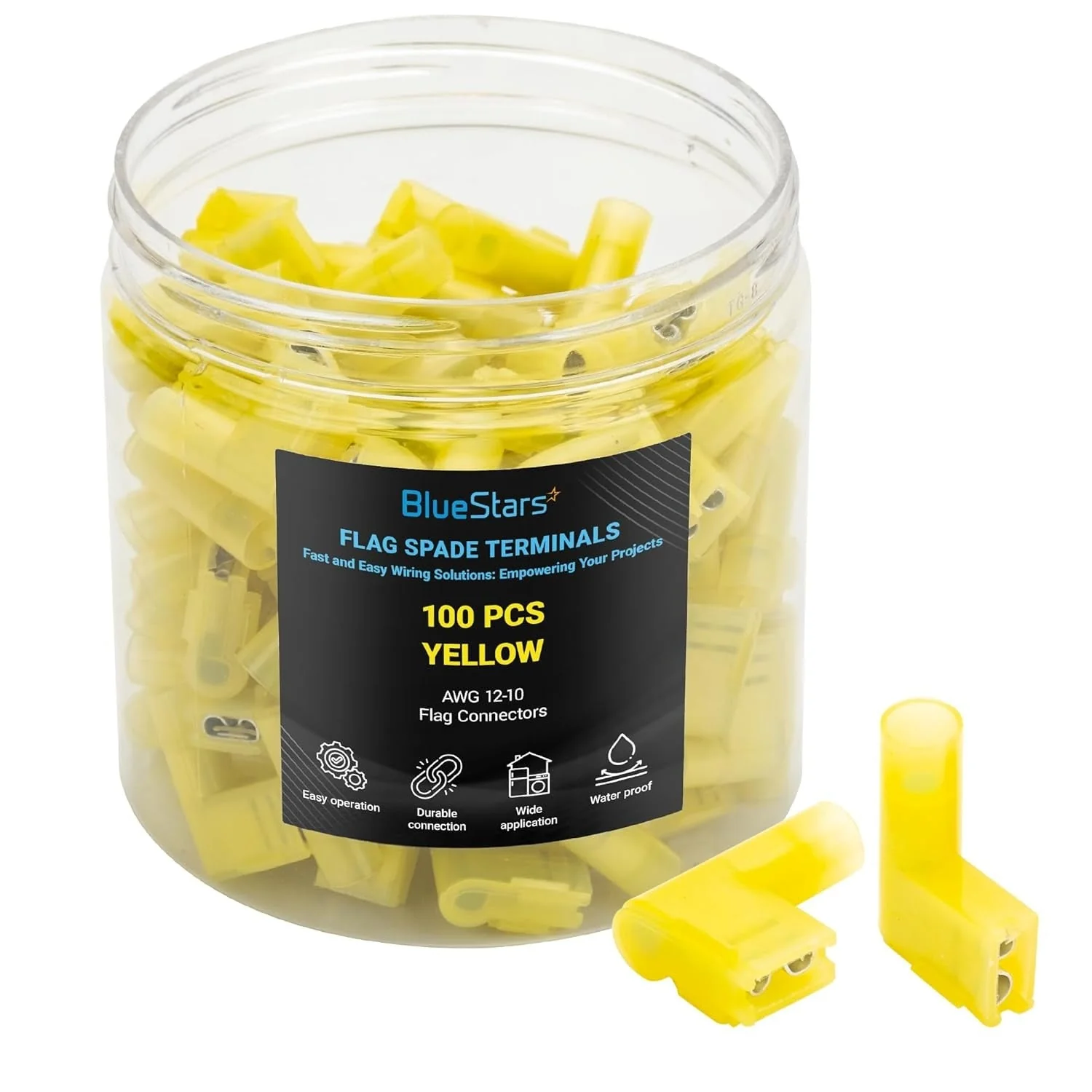

100 PCS Yellow Flag Spade Terminals Female

Key Features

• Quantity: 100 pieces
• Terminal Type: Female quick disconnect spade
• Design: 90-degree right-angle flag configuration
• Wire Gauge: 12-10 AWG
• Insulation: Yellow color-coded nylon housing
• Electrical Rating: 400V, 24A
• Tab Size Fitment: 6.35mm x 0.8mm (0.250 in x 0.032 in)

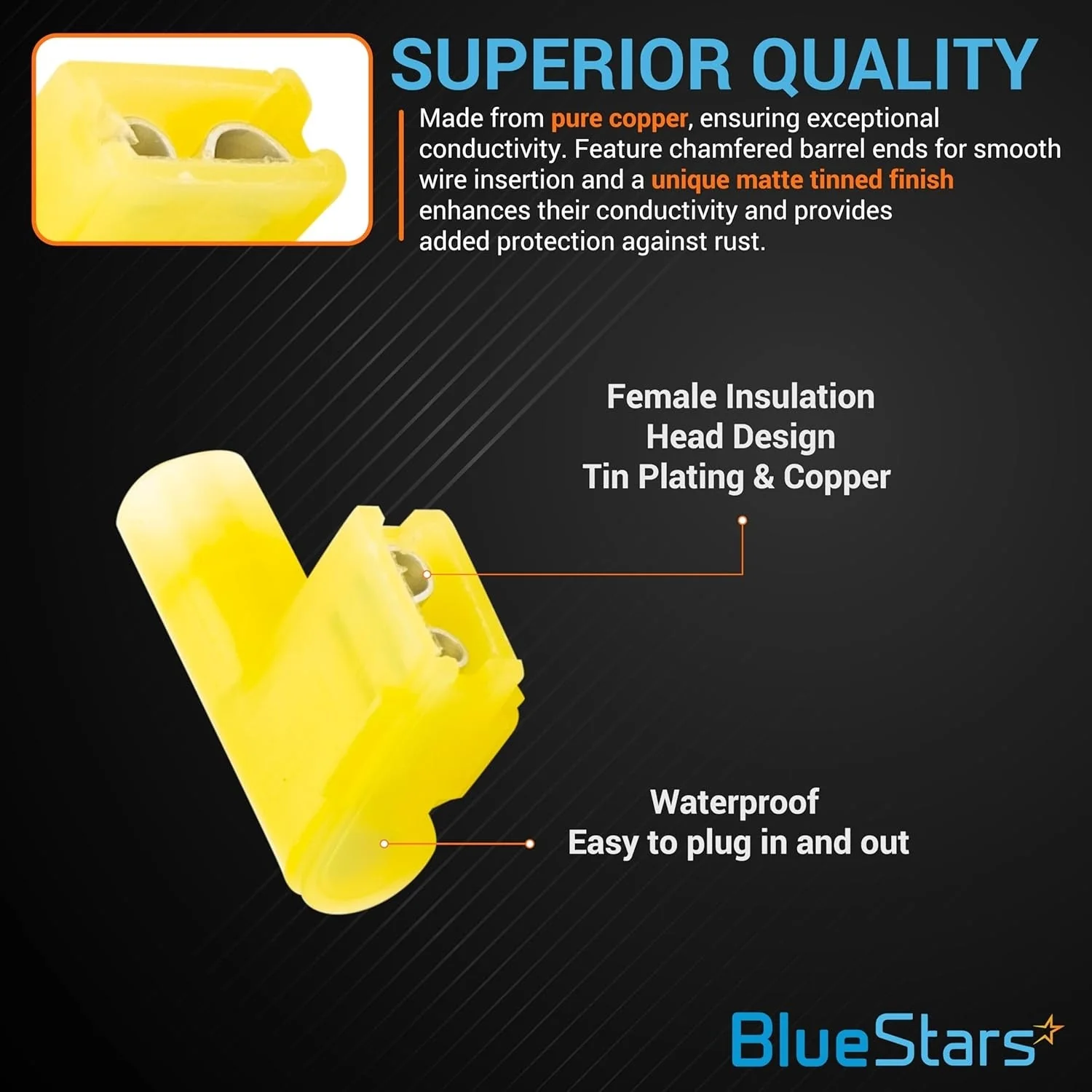

• Core Material: Tinned copper for conductivity

Replaces / Cross-Reference Part Numbers

• 1251951
• 304-96-769
• Replaces any standard yellow insulated 12-10 AWG female flag spade terminal.

Compatibility & Fitment

• Fits 12 to 10 gauge solid or stranded copper wire.
• Connects to standard male spade tabs measuring 6.35mm (1/4 in).
• Suitable for automotive, marine, industrial, and household electrical applications where a right-angle connection is required.

When to Replace

• Existing terminal shows signs of corrosion, melting, or physical damage.
• Connection is loose, intermittent, or has failed.
• Insulation on the terminal or wire is cracked, brittle, or discolored from heat.

Installation Tips

• Strip approximately 1/4 inch (6mm) of insulation from the wire end.
• Insert the stripped wire completely into the terminal's metal barrel.
• Use a calibrated crimping tool designed for insulated terminals to secure the connection.
• Ensure the crimp is applied firmly over the wire conductor barrel.
• Perform a gentle pull test to confirm a secure mechanical bond.
