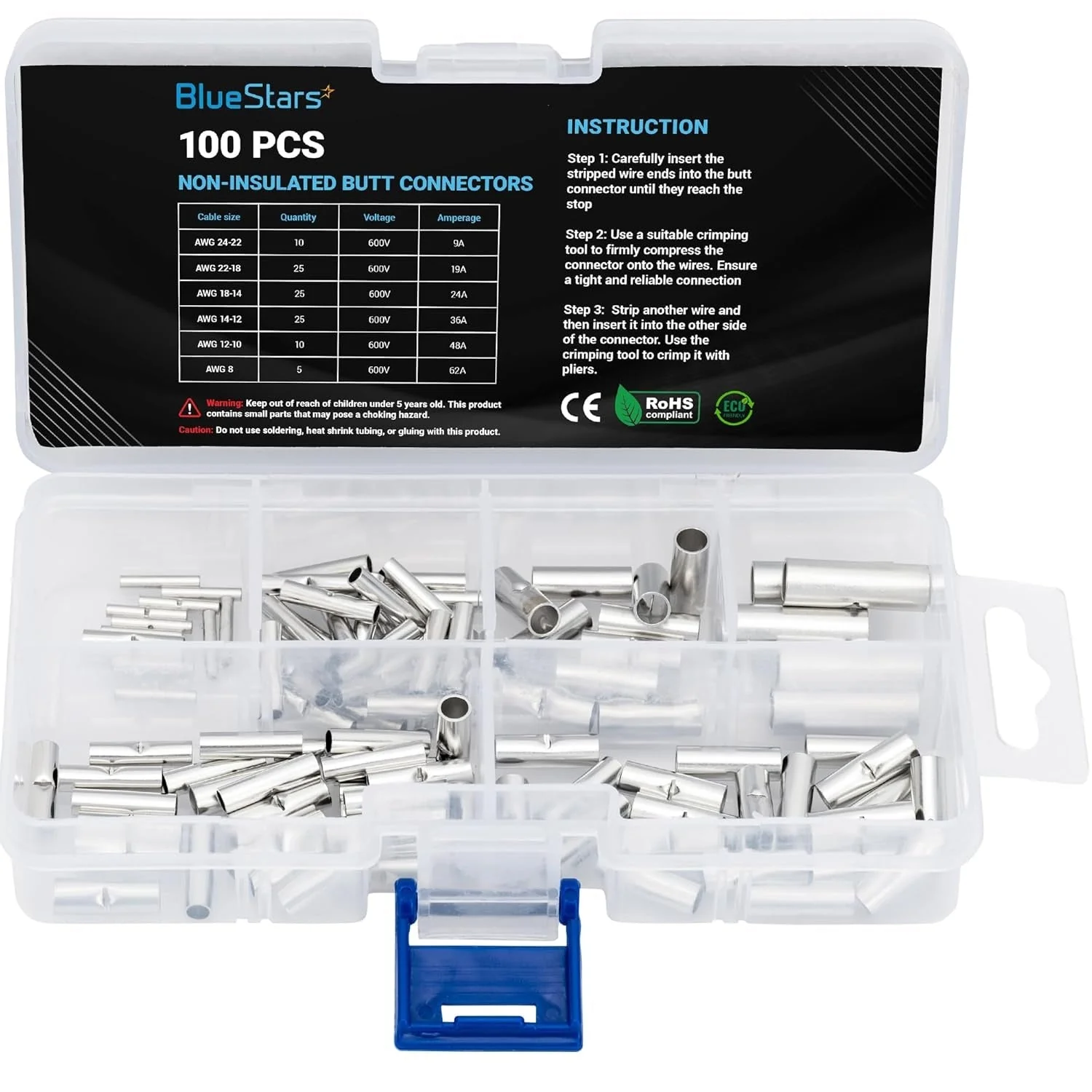

100 PCS Non-Insulated Butt Connectors Butt Splice

Key Features

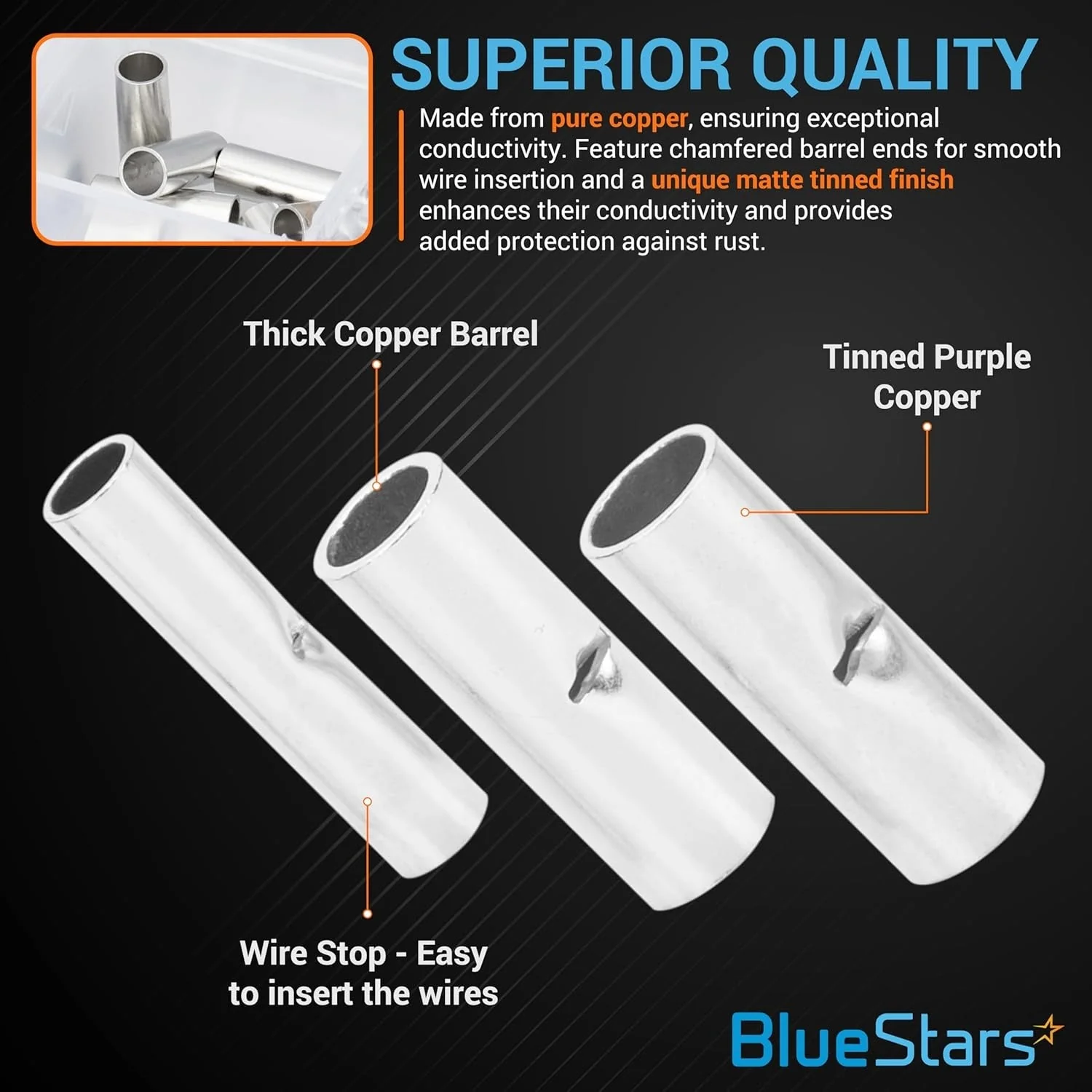

• Material: High-conductivity tubular copper construction.
• Plating: Electro-tin plated for enhanced corrosion resistance.
• Design: Seamless barrel for a strong, reliable crimp.
• Feature: Integrated center wire stop for correct wire positioning.
• Quantity: 100 pieces per package.
• Type: Non-insulated for applications where external insulation like heat shrink tubing is used.

Replaces / Cross-Reference Part Numbers

• BNT1
• Uninsulated butt splice
• Bare copper crimp sleeve
• Non-insulated splice connector

Compatibility & Fitment

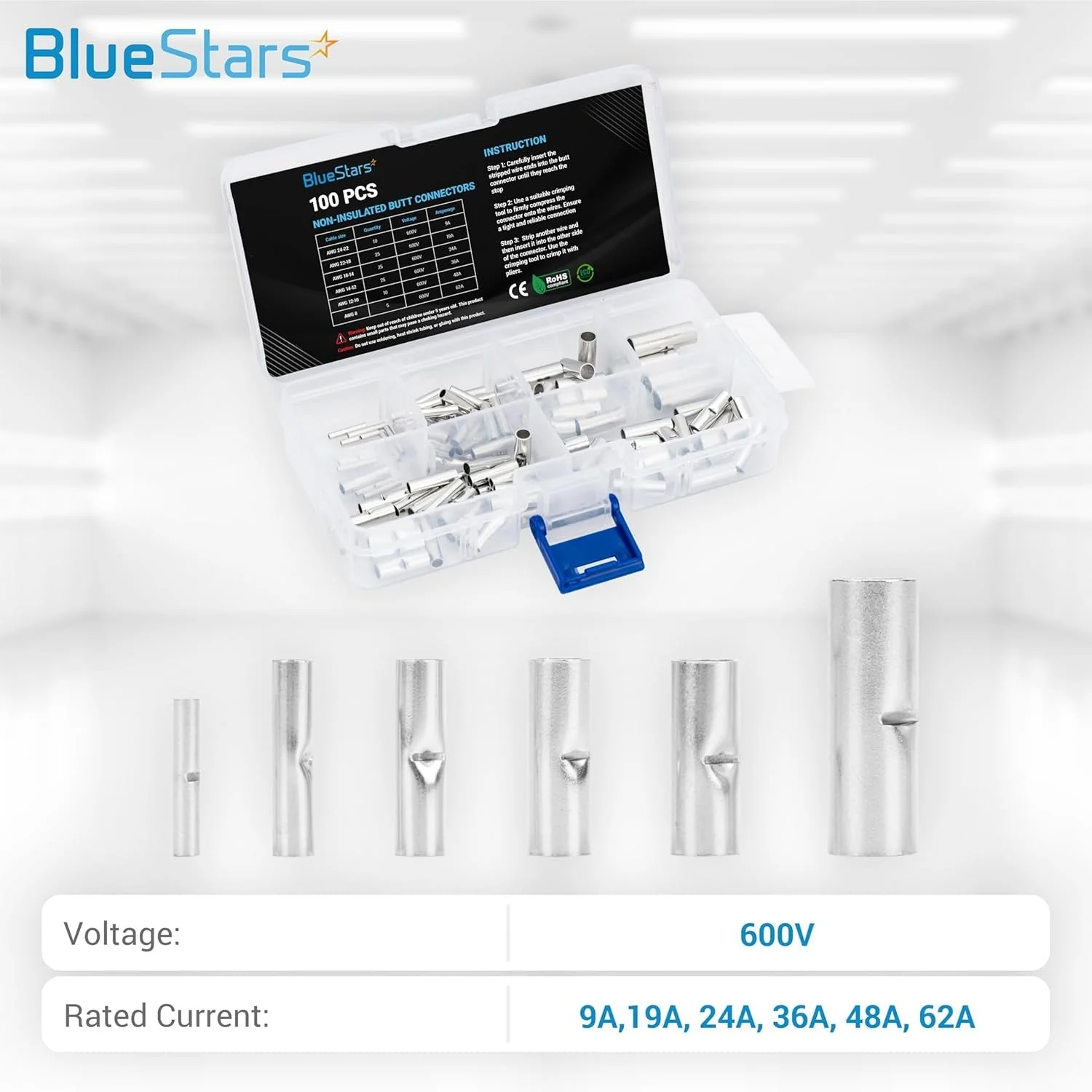

• Available for various American Wire Gauge (AWG) ranges, including 22-16, 16-14, and 12-10.
• Suitable for use with solid or stranded copper wire.
• Requires a standard crimping tool for installation.
• Ideal for automotive, marine, industrial, and audio system wiring applications.

When to Replace

• For repairing broken, cut, or damaged wires.
• To extend the length of existing electrical wires.
• When building custom wire harnesses or electrical systems.
• In applications requiring a permanent, non-removable wire splice.

Installation Tips

• Ensure the connector's wire gauge range matches the wire being used.
• Strip wire insulation to the recommended length, typically half the length of the connector barrel.
• Insert the stripped wire into one end of the connector until it contacts the center stop.
• Use the correct die on a crimping tool to secure the connection.
• Repeat the process for the second wire on the opposite side.
• Verify a secure mechanical connection by gently pulling on both wires.
• If needed, slide heat shrink tubing over the connection and apply heat for insulation and strain relief.
