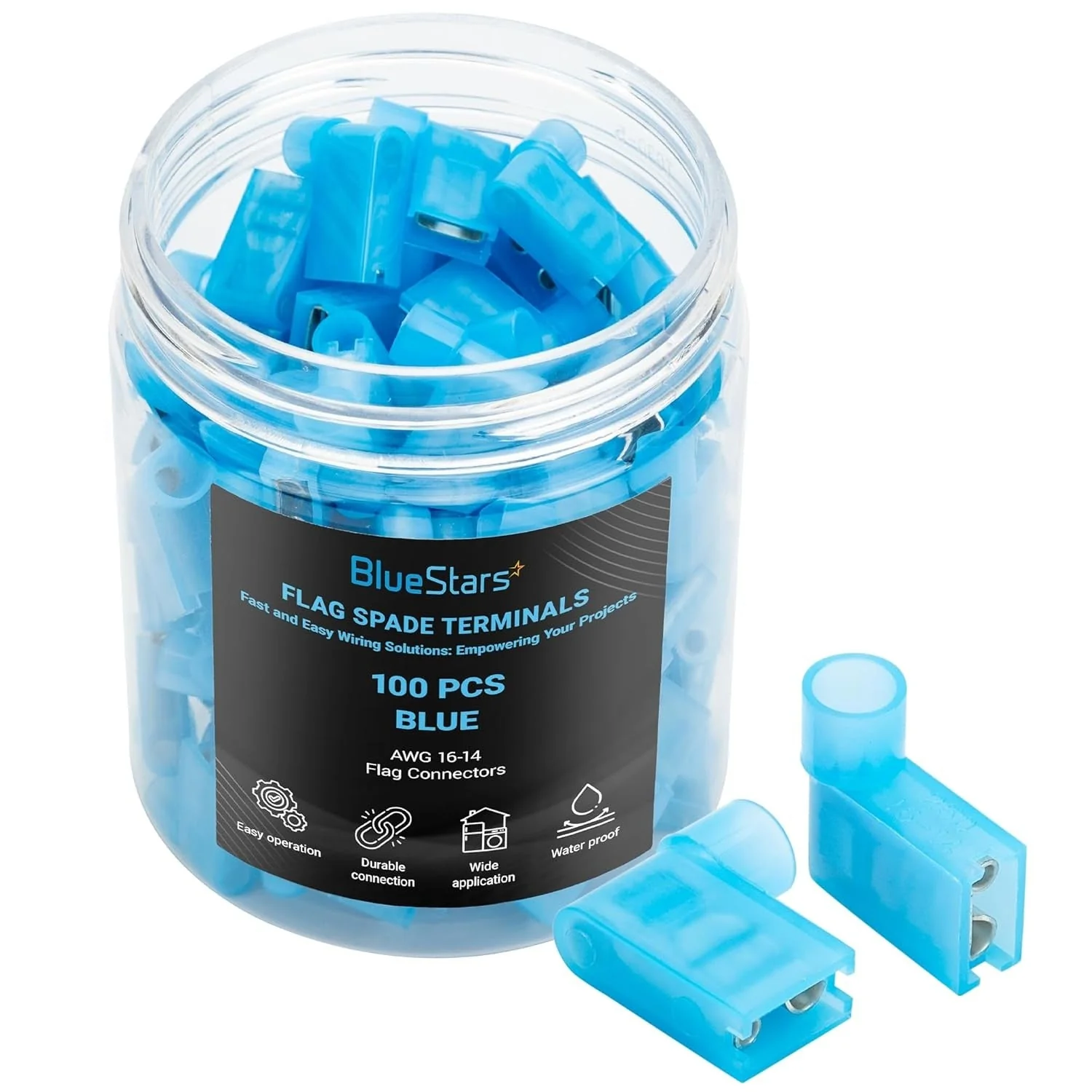

100 PCS Blue Flag Spade Terminals Female, AWG 16-14, 400V, 15A Electrical Connectors Kit, Nylon Flag Spade Quick Disconnects Female Wire Connector - Right Angle

Key Features

• Quantity: 100 pieces

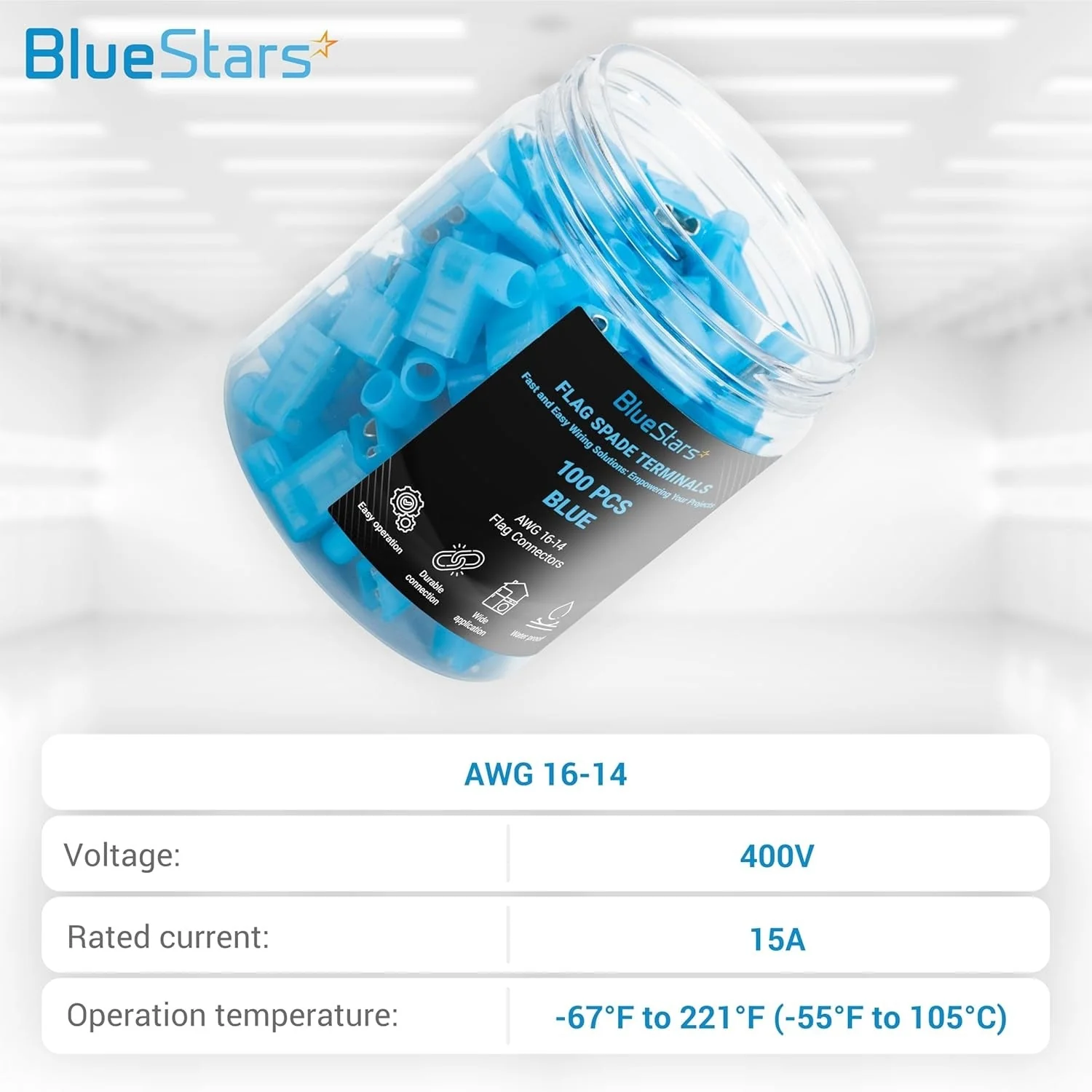

• Electrical Rating: 400V maximum voltage, 15A maximum current

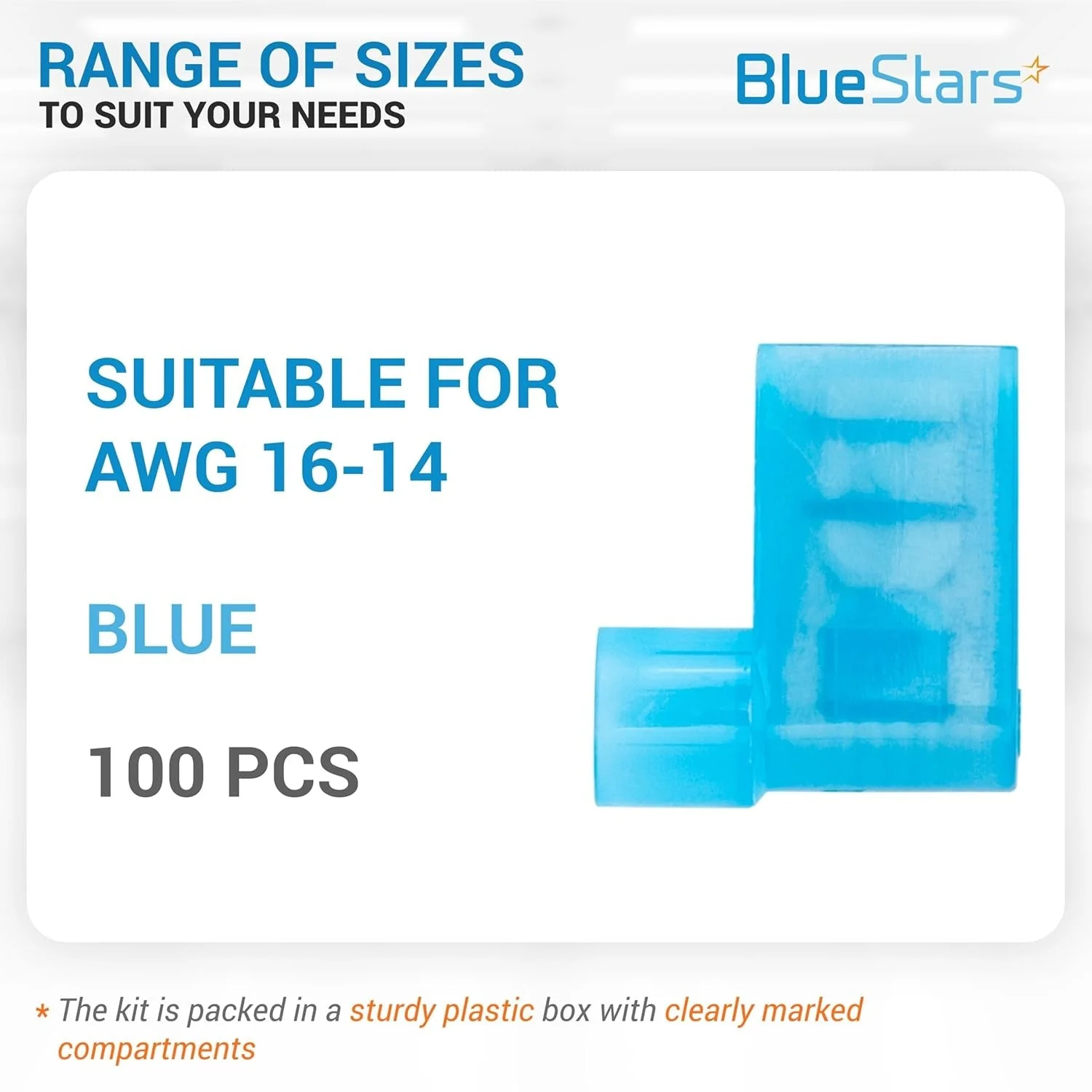

• Wire Gauge: Compatible with 16-14 AWG stranded or solid wire
• Design: Right-angle flag configuration for space-constrained applications

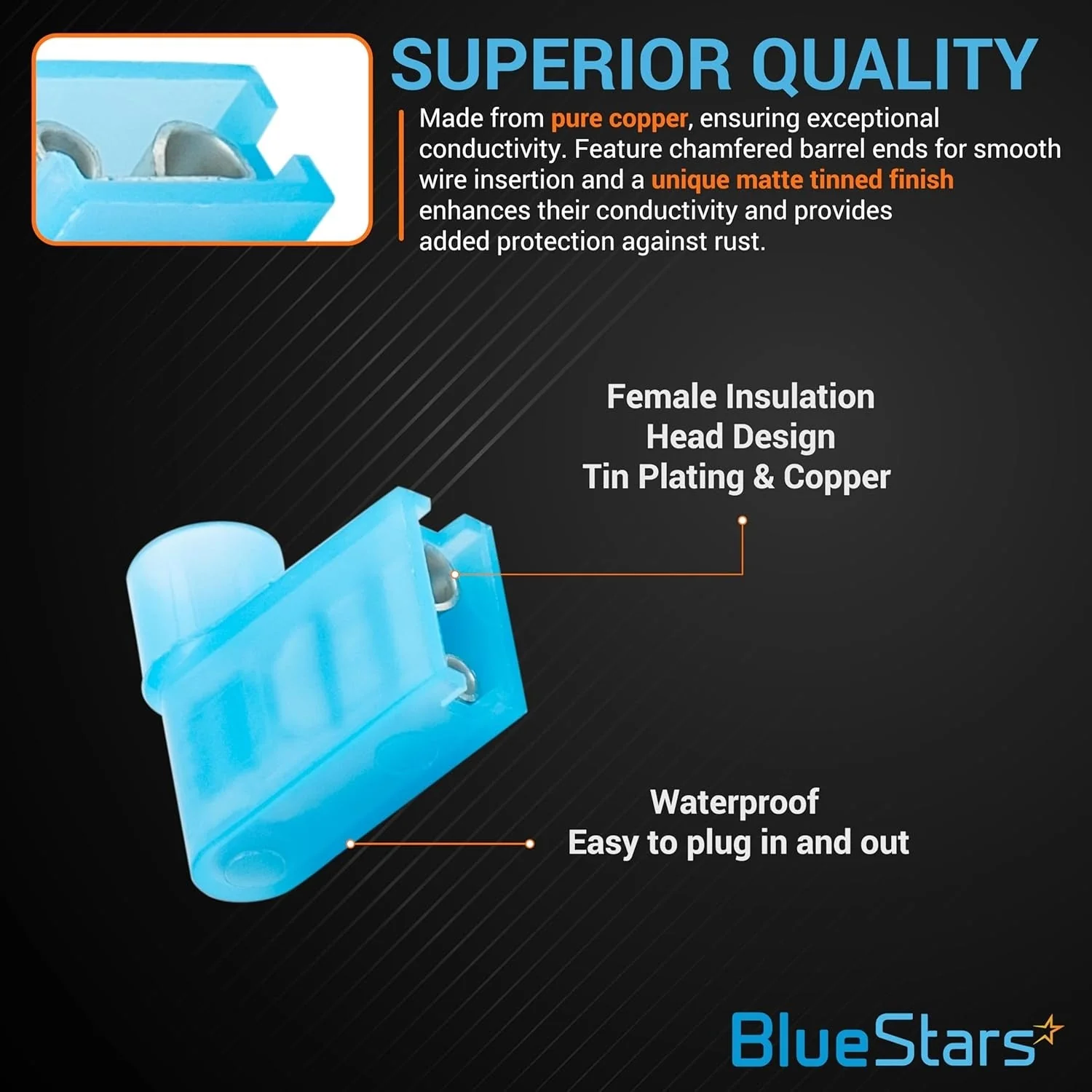

• Material: Tinned copper contacts for conductivity and corrosion resistance
• Insulation: Blue nylon housing for easy identification and durability
• Operating Temperature: -67°F to 221°F (-55°C to 105°C)

Replaces / Cross-Reference Part Numbers

• Universal replacement for standard blue female flag spade terminals designed for 16-14 AWG wire and a 0.250 inch male tab.

Compatibility & Fitment

• Fits standard 0.250 in. (6.35mm) male spade (tab) terminals.
• Suitable for a wide range of 12V-24V DC and AC electrical applications including automotive, marine, industrial controls, and household wiring.
• The right-angle design is ideal for connections in tight enclosures, against firewalls, or where straight-on access is limited.

When to Replace

• Existing terminal shows signs of corrosion, discoloration, or melting.
• Insulation is cracked, brittle, or physically damaged.
• Connection is loose, intermittent, or fails continuity tests.
• During routine maintenance or when upgrading electrical components.

Installation Tips

• Disconnect power to the circuit before installation.
• Strip the wire to the recommended length, typically 1/4 inch (6.3mm).
• Insert the stripped wire fully into the terminal barrel.
• Use a calibrated crimping tool designed for insulated terminals to form a secure mechanical and electrical connection.
• Confirm the wire is held securely by gently tugging on it.
