W10130695 W10862259 WPW10275768 Dishwasher Door Latch Handle

Key Features

Ergonomic Latching Mechanism: Designed to provide the mechanical leverage necessary to compress the door seal and engage the safety interlock switches, ensuring a watertight and secure operation.
Reinforced Polymer Construction: Manufactured from high-strength, heat-stabilized plastic to resist the high-temperature steam and detergents common in dishwasher environments.
Direct OEM Replacement: Engineered to the exact dimensions of the original factory handle, ensuring a flush fit and seamless alignment with the dishwasher's control panel.
Integrated Switch Mounts: Features specialized internal slots to securely hold the micro-switches in place, preventing intermittent power loss caused by shifting or loose components.

Replaces / Cross-Reference Part Numbers

WPW10275768
W10275768
WPW10130695
W10130695
W10862259

Compatibility & Fitment

This handle is a standard replacement for many Whirlpool-built dishwashers, particularly those in the "Quiet Series" and "Tall Tub" lines. Key compatible brands include:

Maytag: Fits Quiet Series 300, 400, and MDB series (e.g., MDB4709AWB, MDBH949AWB, MDBTT59AWW).
Whirlpool: Compatible with various WDF, WDT, and GU series models (e.g., GU2475XTVB, WDF310PAAW).
Kenmore / Sears: Fits many 665-series models manufactured by Whirlpool.
Amana & Jenn-Air: Compatible with select units utilizing the 10275768 latch configuration.

When to Replace

Handle Is Loose or Floppy: The internal plastic pivots or springs have snapped, and the handle no longer has the tension required to operate the latch hooks.
Dishwasher Won't Start: The handle fails to fully depress the internal micro-switches, leading the control board to believe the door is still open.
Door Won't Stay Closed: The latch hooks are worn or broken, allowing the door to pop open during the wash cycle or failing to pull the door tight against the gasket.
Visible Cracks: The exterior plastic handle shows signs of stress or heat damage, making it difficult to grip or operate comfortably.

Installation Tips

Power Down: Turn off the circuit breaker or unplug the dishwasher before starting. You will be working near the main control board and high-voltage wiring.
Access the Inner Panel: You will need to remove the screws (typically Torx T15 or Phillips) from the inner door panel to separate it from the outer panel and access the latch assembly.
Switch Transfer: This part is often the handle/latch assembly only. You will need to carefully unclip the micro-switches from your old latch and snap them into the new one in the same orientation.
Spring Retention: Note the position of the metal tension spring. Use needle-nose pliers to transfer the spring to the new handle to ensure it "snaps" back into place correctly.
Avoid Over-tightening: When reassembling the door panel, do not over-tighten the screws into the plastic console, as this can cause the panel to crack or warp.

Whirlpool Brand

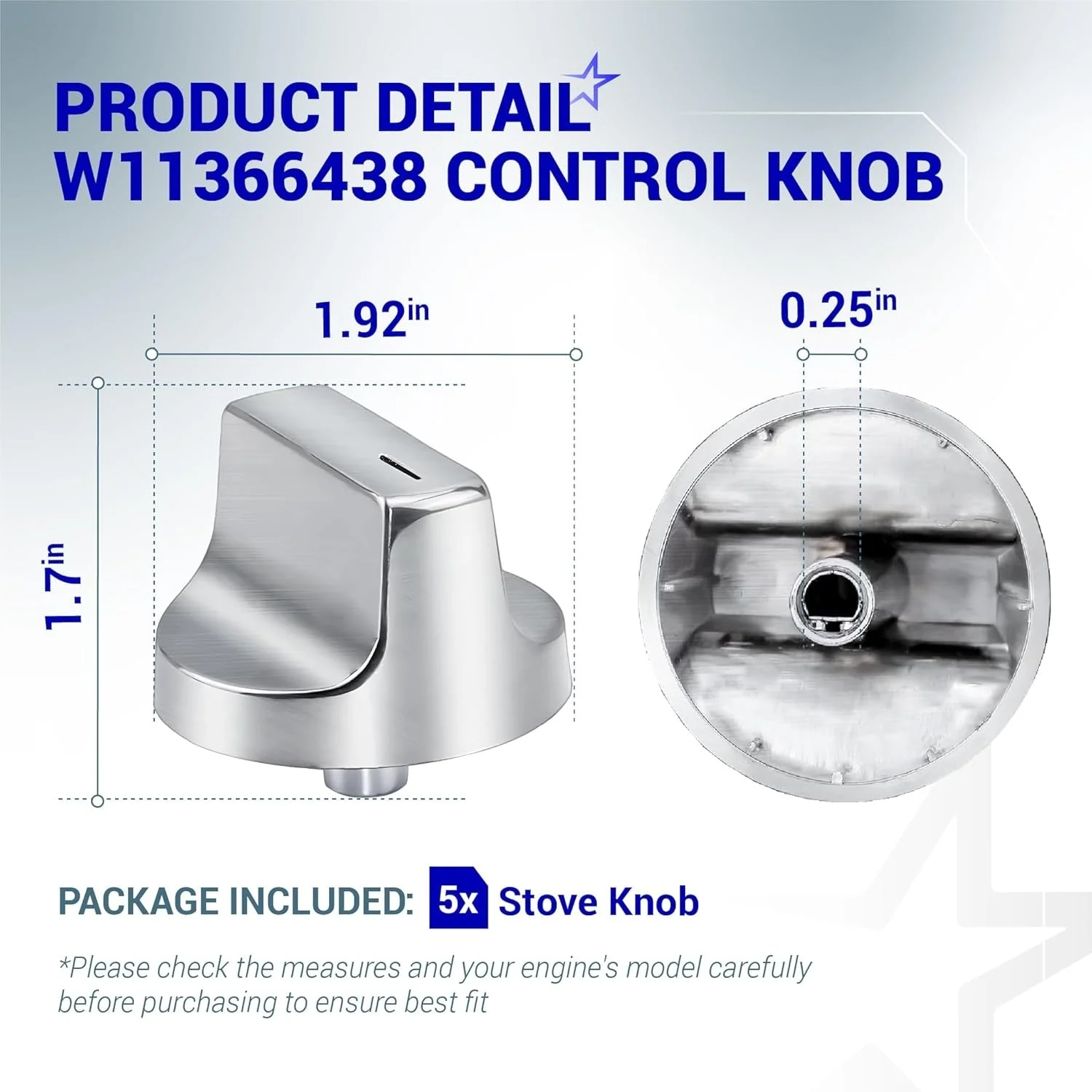

[Lifetime Warranty] W11366438 Gas Range Stove Control Knob - Compatible with Whirlpool WCG55US0HS00 WCG55US0HS05 WCG55US6HS00 WCG55US6HS05 - Replaces W11084623 W11359382 W11505414 4929319 - Pack of 5
