W10130695 W10862259 WPW10275768 Dishwasher Door Latch Handle

Key Features

• Ergonomic Latching Mechanism: Designed to provide the mechanical leverage necessary to compress the door seal and engage the safety interlock switches, ensuring a watertight and secure operation.

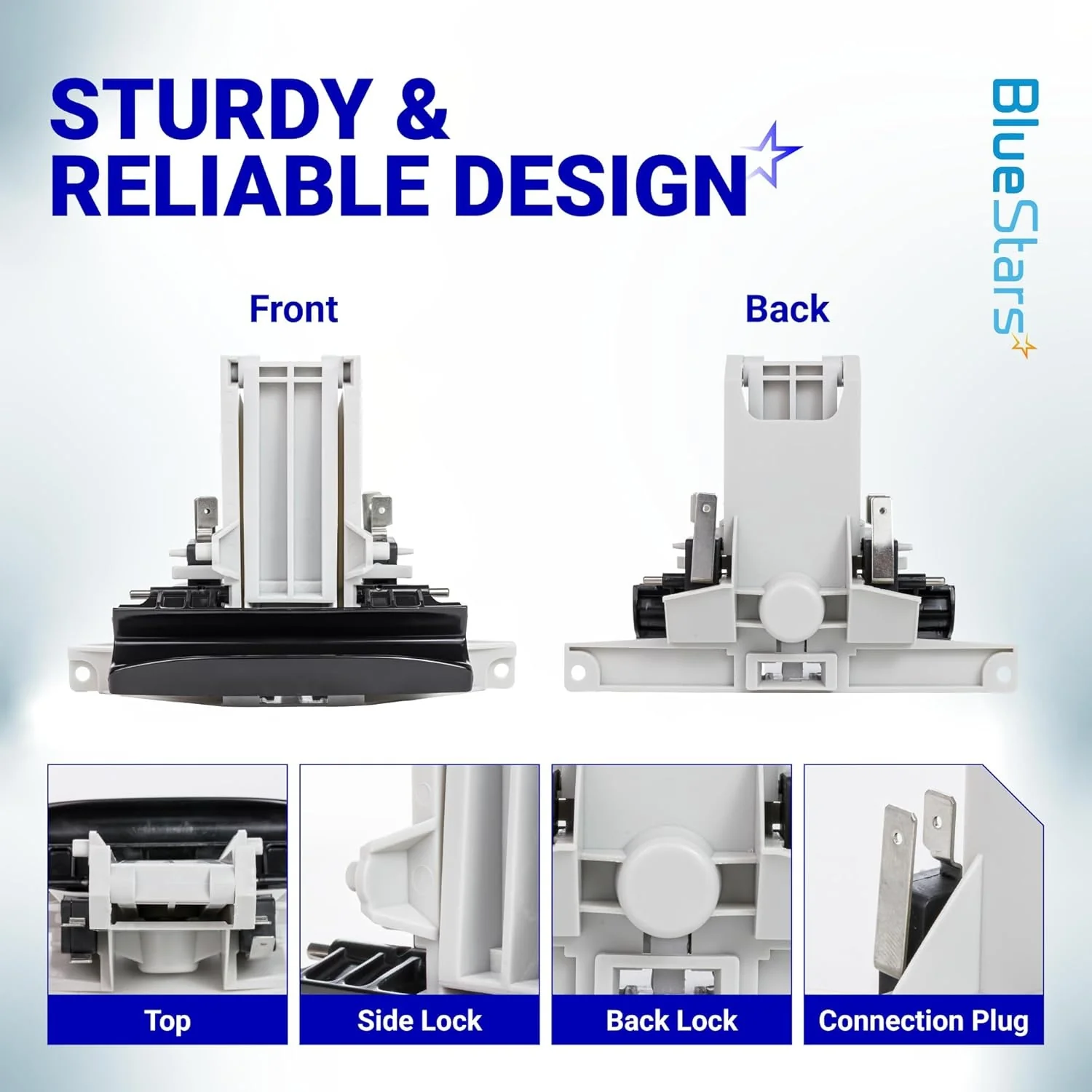

• Reinforced Polymer Construction: Manufactured from high-strength, heat-stabilized plastic to resist the high-temperature steam and detergents common in dishwasher environments.

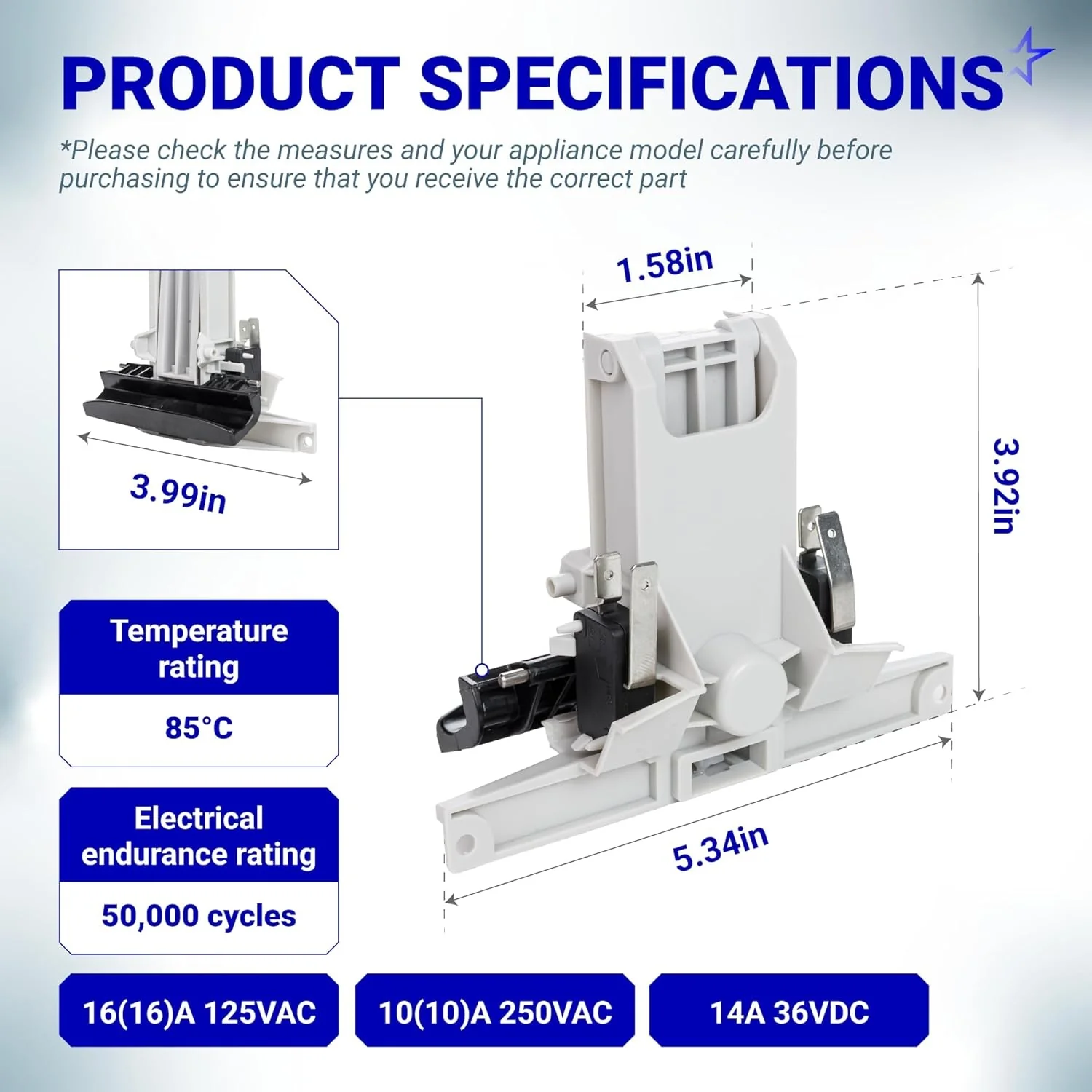

• Direct OEM Replacement: Engineered to the exact dimensions of the original factory handle, ensuring a flush fit and seamless alignment with the dishwasher's control panel.
• Integrated Switch Mounts: Features specialized internal slots to securely hold the micro-switches in place, preventing intermittent power loss caused by shifting or loose components.

Replaces / Cross-Reference Part Numbers

• WPW10275768
• W10275768
• WPW10130695
• W10130695
• W10862259

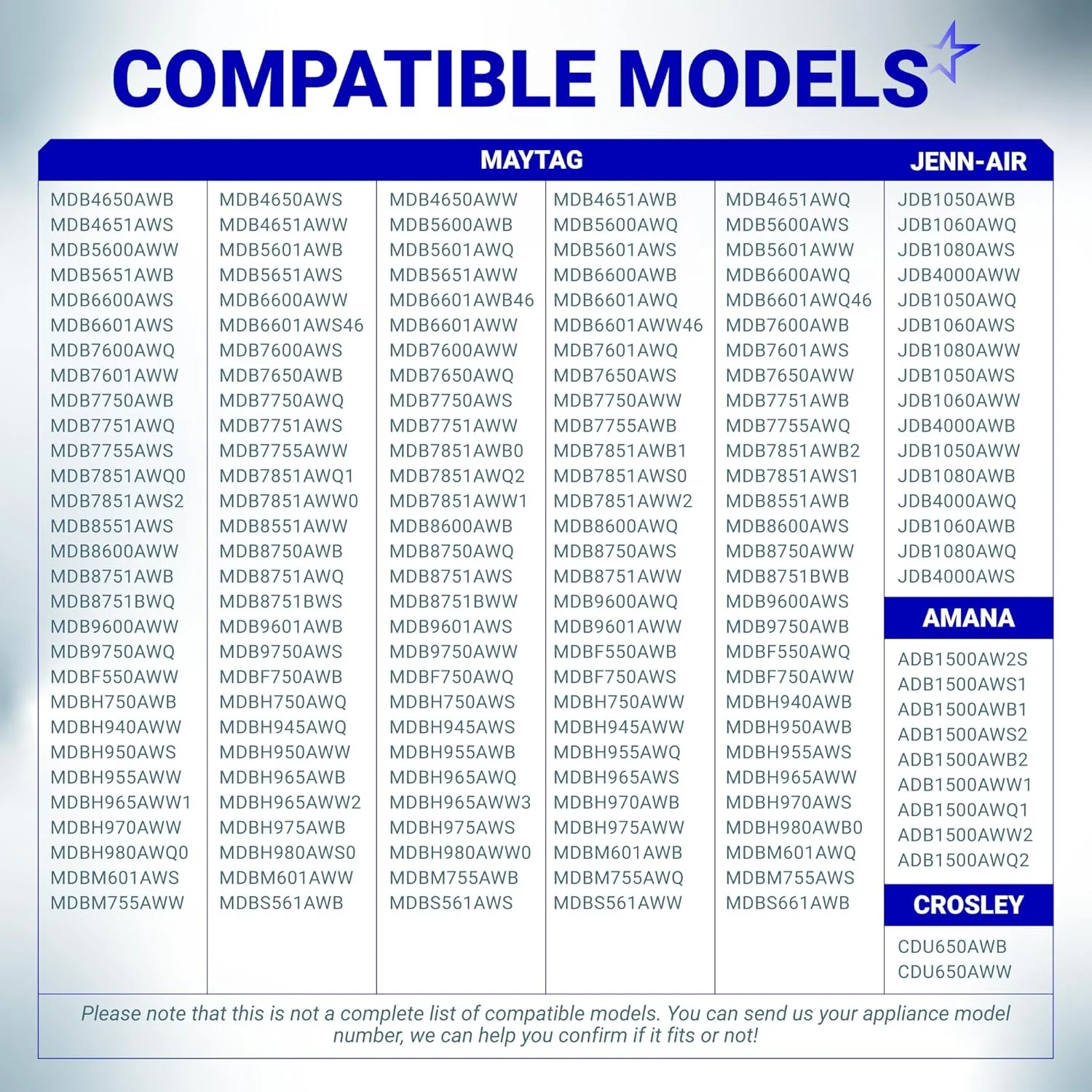

Compatibility & Fitment

This handle is a standard replacement for many Whirlpool-built dishwashers, particularly those in the "Quiet Series" and "Tall Tub" lines. Key compatible brands include:

• Maytag: Fits Quiet Series 300, 400, and MDB series (e.g., MDB4709AWB, MDBH949AWB, MDBTT59AWW).
• Whirlpool: Compatible with various WDF, WDT, and GU series models (e.g., GU2475XTVB, WDF310PAAW).
• Kenmore / Sears: Fits many 665-series models manufactured by Whirlpool.
• Amana & Jenn-Air: Compatible with select units utilizing the 10275768 latch configuration.

When to Replace

• Handle Is Loose or Floppy: The internal plastic pivots or springs have snapped, and the handle no longer has the tension required to operate the latch hooks.
• Dishwasher Won't Start: The handle fails to fully depress the internal micro-switches, leading the control board to believe the door is still open.
• Door Won't Stay Closed: The latch hooks are worn or broken, allowing the door to pop open during the wash cycle or failing to pull the door tight against the gasket.
• Visible Cracks: The exterior plastic handle shows signs of stress or heat damage, making it difficult to grip or operate comfortably.

Installation Tips

• Power Down: Turn off the circuit breaker or unplug the dishwasher before starting. You will be working near the main control board and high-voltage wiring.
• Access the Inner Panel: You will need to remove the screws (typically Torx T15 or Phillips) from the inner door panel to separate it from the outer panel and access the latch assembly.
• Switch Transfer: This part is often the handle/latch assembly only. You will need to carefully unclip the micro-switches from your old latch and snap them into the new one in the same orientation.
• Spring Retention: Note the position of the metal tension spring. Use needle-nose pliers to transfer the spring to the new handle to ensure it "snaps" back into place correctly.
• Avoid Over-tightening: When reassembling the door panel, do not over-tighten the screws into the plastic console, as this can cause the panel to crack or warp.
